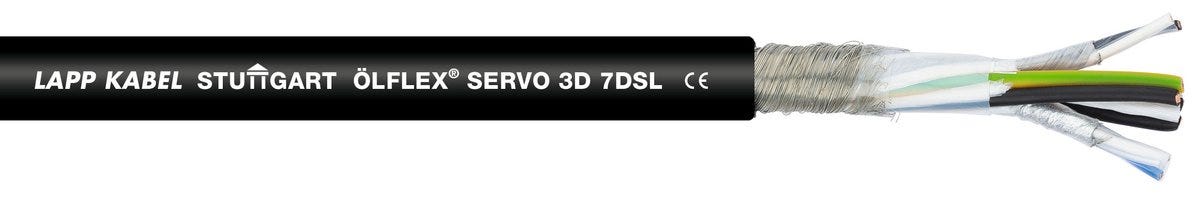

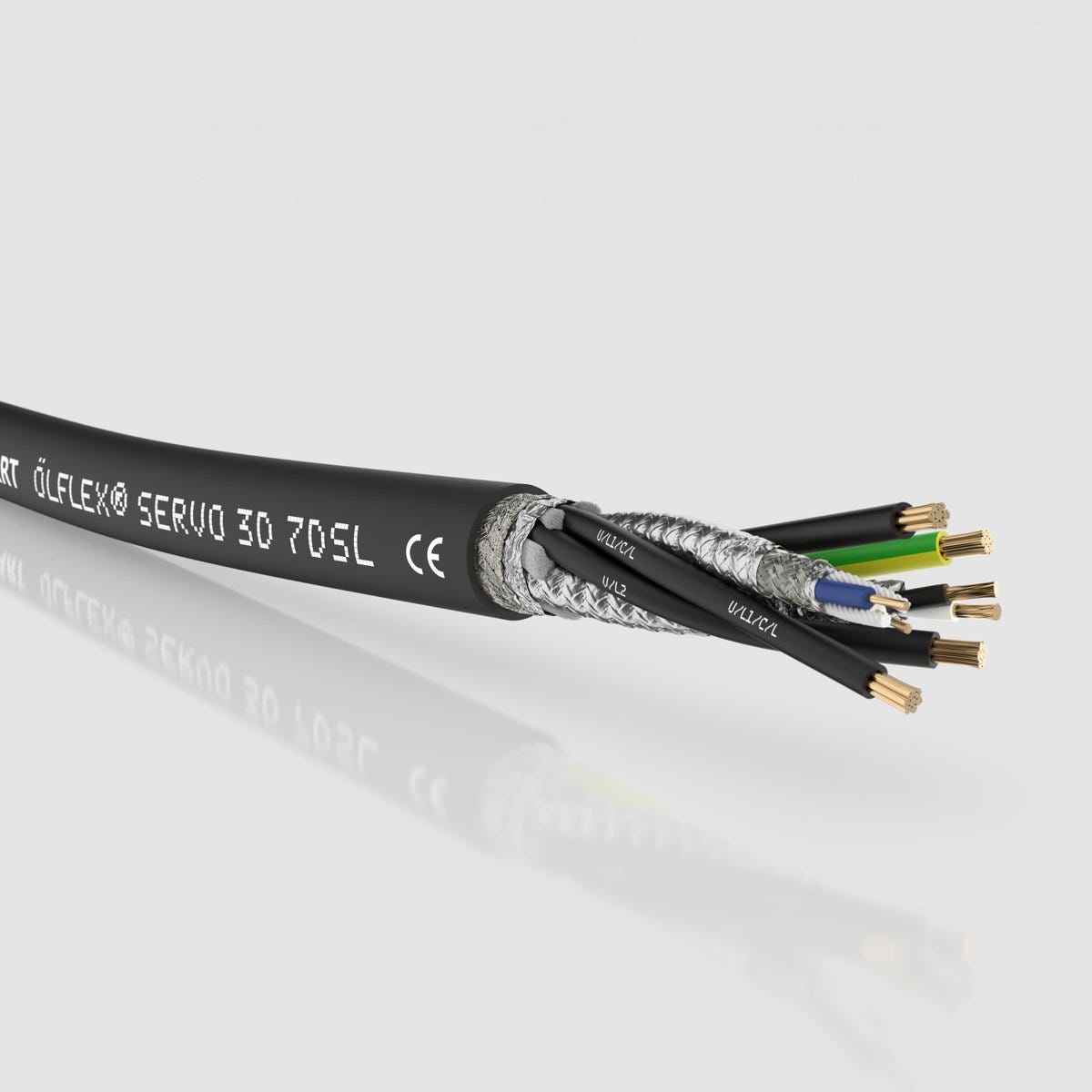

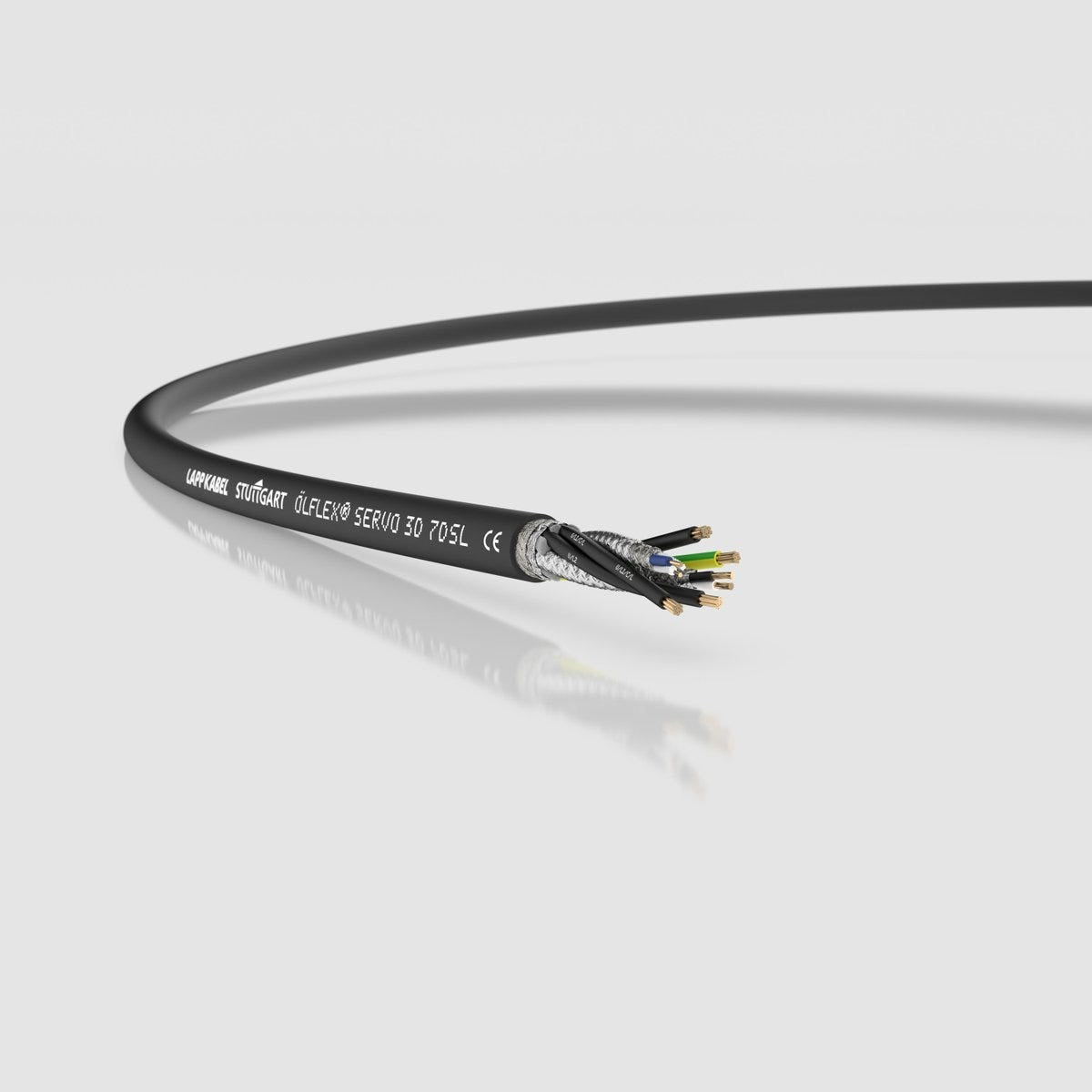

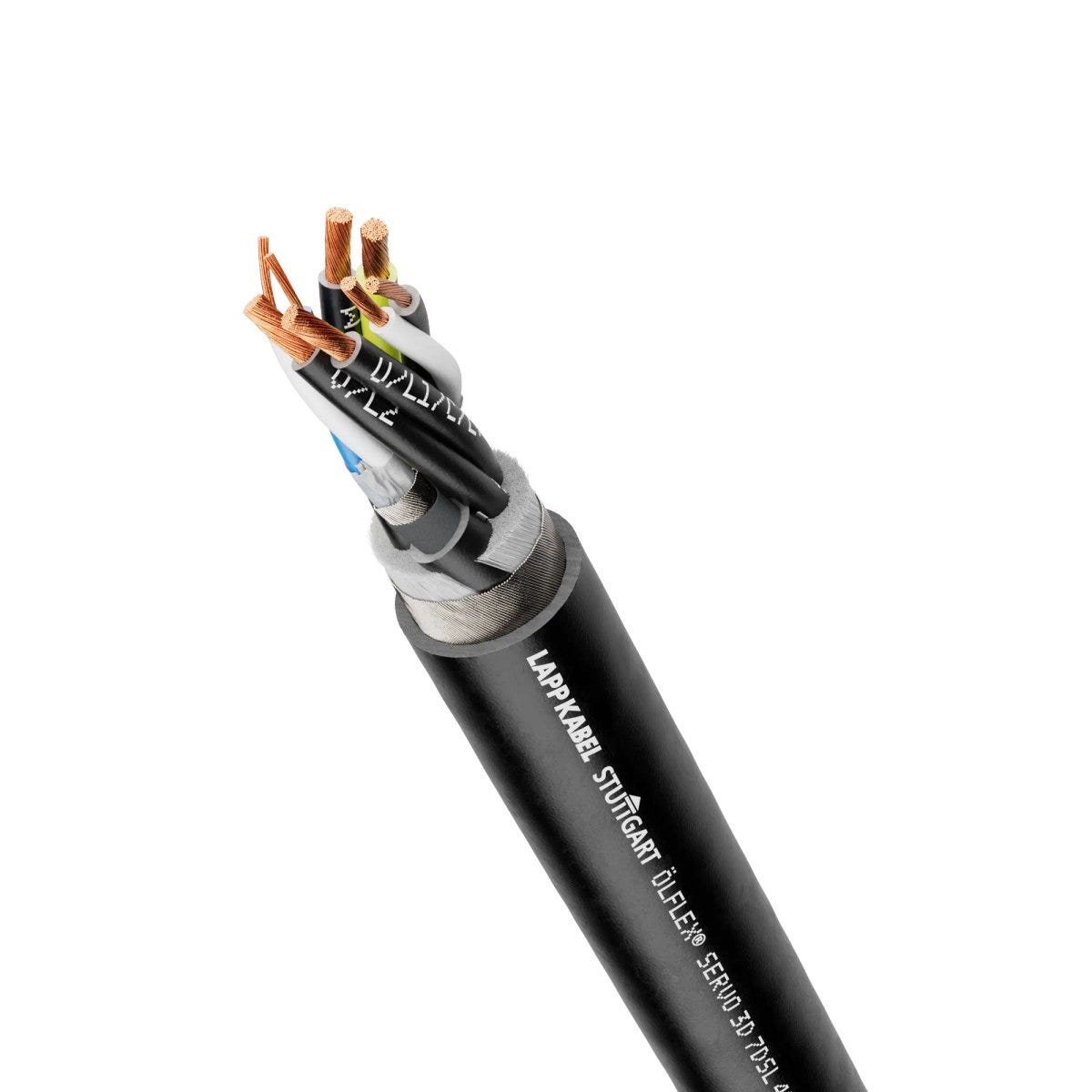

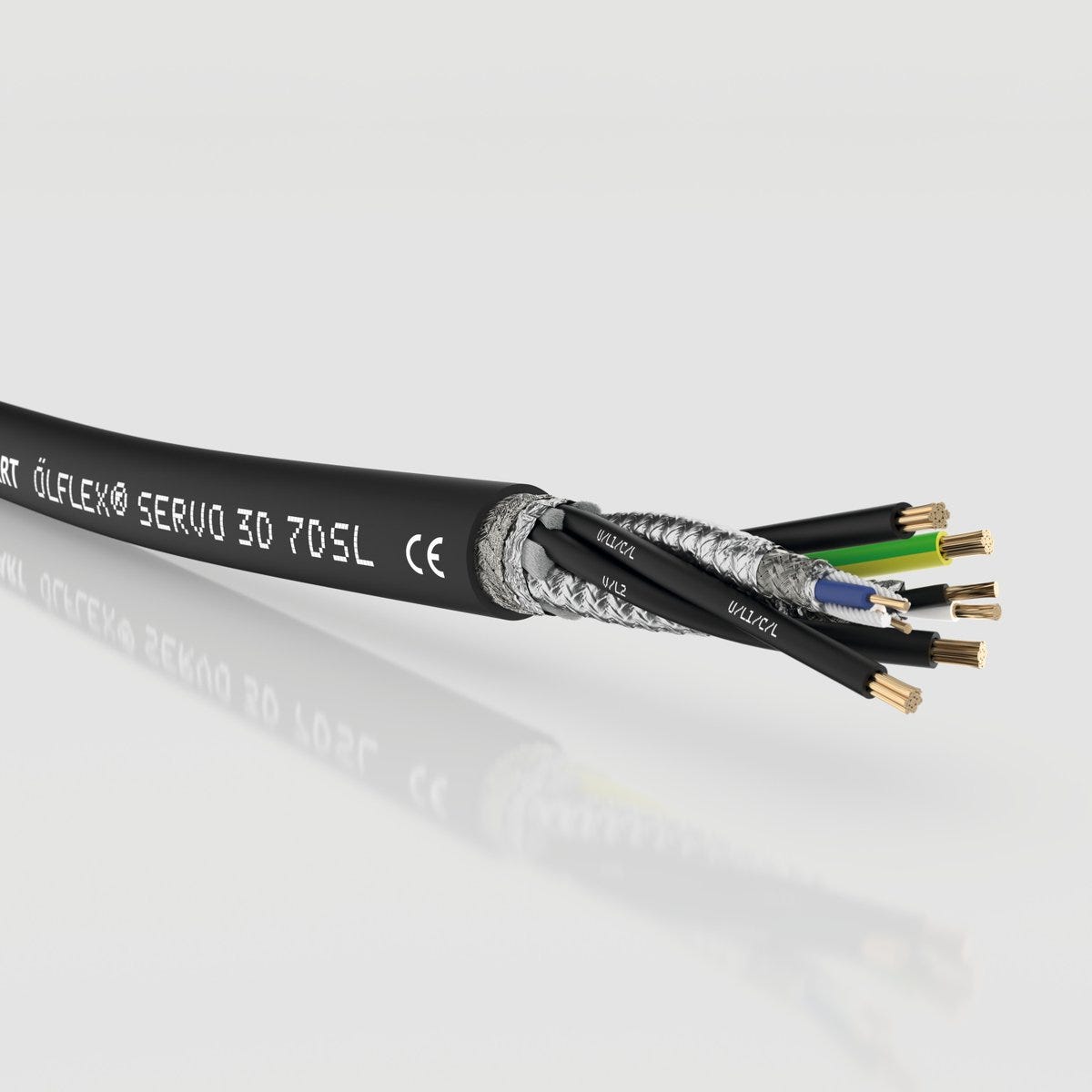

ÖLFLEX® SERVO 3D 7DSL 4G0,5+(2x0,25)+(2x2
Servo cable; 4G0,5+(2x0,25)+(2x26 AWG); U0/U: 0,6/1 kV; PUR; Shielded; UL recognised; Torsion
ÖLFLEX® SERVO 3D 7DSL 4G0,5+(2x0,25)+(2x2
SGD 37.76
/
ÖLFLEX® SERVO 3D 7DSL 4G0,5+(2x0,25)+(2x2
SGD 37.76
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
oil resistant
chemical resistance
uv-resistant.
icon powerchain
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
UR recognised US, cUR recognised US
Benefits
Space-saving and weight-saving hybrid cable for simultaneous power supply, signal and data transmission (one-cable technology)
Operating voltage of 1,000 V according to UL, permitted for North America
Compatible with single-cable technology interfaces such as HIPERFACE DSL® and SCS open link
Special core stranding allows simultaneous bending and twisting (torsion angle up to ± 180°/m)
Allows space-saving installation without additional encoder cable for the transmission of feedback signals
Reduced connection costs due to less cabling work and quick installation of fewer components
Low-capacitance core insulation for long transmission paths
Ideal protection against electromagnetic interference due to wrapping made of tin-plated copper wires, adapted to torsional loads
Tried-and-tested cable, successfully tested for 5 million torsion cycles
UL/CSA certification according to technical data enables the product to be used in the North American market.
Applications
For connecting frequency converters and servo motors
The cable design allows flexible, constantly flexing use under torsional stress in industrial robots and handling devices
Especially for environments where electromagnetic compatibility (EMC) is required
Can be used in dry, wet and especially in harsh and oily environments
The PU outer sheath withstands high mechanical loads
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant
Suitable for outdoor use
Flexible use up to -40°C.
Technical Attributes
General Information
| Brand | ÖLFLEX® |
| Product type | Servo cable |
| Copper index | 70.000 kg/km |
| Copper index (lb) | 470.381 lb |
| Weight | 130 kg/km |
Electrical Characteristics
| Power cores test voltage | 4 |
| Nominal surge impedance | 110 |
| Maximum transmission length | 100 |
| Nominal voltage | U0/U: 0,6/1 kV AC rms according to IEC |
| Current rating according to | VDE 0298-4, VDE 0891-1 |
| Test voltage core/screening | 2 |
| Rated voltage | 1000 V AC rms according to UL AWM, 1000 V AC rms according to cRU AWM, 600 V AC rms / DC according to UL AWM, 600 V AC rms / DC according to cRU AWM |
| Test voltage control cores | 4 |
| Signal pair nominal voltage | U0/U: 300/300 V AC rms according to IEC |
| Power cores nominal voltage | U0/U: 0,6/1 kV AC rms according to IEC |
| Nominal voltage control cores | U0/U: 0,6/1 kV AC rms according to IEC |
| Test voltage core/core | 4 |

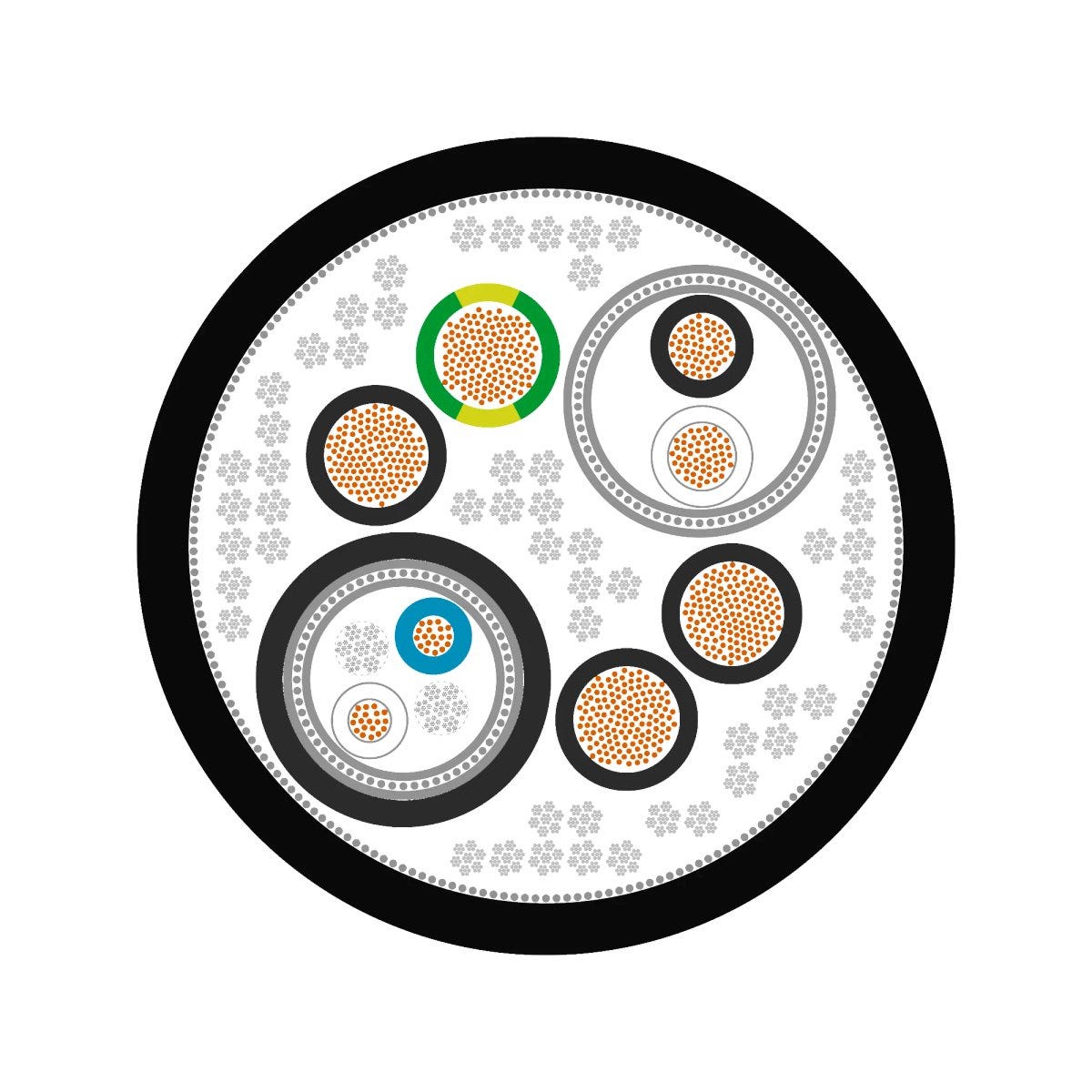

Product Design
| Conductor design | IEC 60228 class 6: extra-fine wire |
| Nominal outer diameter | 9.4 mm |
| Compatible drive/feedback system | SICK / HIPERFACE DSL® |
| Conductor material | Bare copper |
| Nominal conductor cross-section (metric) | 0.5 mm² |
| Conductor count/size | 4G0,5+(2x0,25)+(2x26 AWG) |
| Wrapping over stranding | PTFE film |
| Shielded |
|
| Core identification | Alphanumeric and colours |
| Cable element 3 | Signal pair: 1x(2x26 AWG), Shielding: Tin-plated copper braiding and Aluminium-steamed fleece |
| Shape of cable | Round |
| Number of pairs | 2 |
| Outer sheath colour | black |
| Stranding type | Layered stranding |
| Pair screening type | Aluminium-laminated plastic foil, Aluminium-steamed fleece, Tin-plated copper braiding |
| Leading conductor cross-section | mm² |
| Cable sheath RAL colour | RAL 9005 |
| Type of overall screen | Wrapped with braided tin-plated copper wires |
| Cable element 1 | Power core: 4G0.5 |
| Number of cores | 4 |
| Nominal conductor cross-section (AWG) | 21 AWG |
| Core insulation basic material | Polypropylene |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | PP |
| Cable element 2 | Control core pair: 1x(2x0.25), Shielding: Tin-plated copper braiding |
| Basic material of outer sheath, short form | PUR |
Product Characteristics
| Flame-retardant |
|
| For continuous flexing |
|
| Maximum acceleration | 30 |
| Low capacitance |
|
| Low-adhesion sheath surface |
|
| Maximum bending cycles | 5000000 |
| Ozone-resistant according to | EN 50396, method B |
| Maximum self-supporting speed | 10 |
| Minimum bending radius in mm, dynamic continuously flexing | 94.0 mm |
| Chemical resistant |
|
| Ozone resistant |
|
| UV-resistant |
|
| hydrolysis resistant |
|
| Minimum bending radius in mm, fixed installation | 47.0 mm |
| PWIS-free |
|
| max. conductor temperature, dynamic continuously flexing | -40 °C to 80 °C max. conductor temperature: according to IEC, to 80 °C max. conductor temperature: according to UL AWM, to 80 °C max. conductor temperature: according to CSA AWM |
| Application area | Torsion, Cable chain, Flexible |
| max. conductor temperature, occasionally moved | -40 °C to 80 °C max. conductor temperature: according to IEC, to 80 °C max. conductor temperature: according to UL AWM, to 80 °C max. conductor temperature: according to CSA AWM |
| Oil-resistant |
|
| Minimum bending radius in mm, occasionally flexing | 94.0 mm |
| weather resistant |
|
| Minimum bending radius, stationary | 5 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Temperature, fixed installation | -50 °C to 80 °C max. conductor temperature: according to IEC, to 80 °C max. conductor temperature: according to UL AWM, to 80 °C max. conductor temperature: according to CSA AWM |
| Flame retardance according to | IEC 60332-1-2, UL VW-1, CSA FT1 |
| Oil resistance according to | EN 50363-10-2 |
| UV-resistant according to | EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use) |
| Minimum bending radius, dynamic continuously flexing | 10 x outer diameter |
| Maximum travel distance | 20 |
| Torsion | for +/- 180 °/m and min. -40 °C up to 5000000 Torsion cycles |
| Maximum speed sliding | 5 |
| Halogenfree |
|
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| UL AWM certification | 21223 according to UL 758 (e-file number: E63634), 10867 according to UL 758 (e-file number: E63634), 1887 according to UL 758 (e-file number: E63634) |
| cUL listed |
|
| UL listed |
|
| cUR certification | AWM I A according to CSA C22.2 No. 210 (e-file number: E63634), AWM I B according to CSA C22.2 No. 210 (e-file number: E63634), AWM II A according to CSA C22.2 No. 210 (e-file number: E63634), AWM II B according to CSA C22.2 No. 210 (e-file number: E63634) |
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
Documentation
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- HIPERFACE DSL® is a registered trademark of SICK AG; ACURO®link and SCS open link are registered trademarks of Hengstler GmbH.
Product Family List
All articles from ÖLFLEX® SERVO 3D 7DSL
| Article number | Conductor count/size | Compatible drive/feedback system | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|---|
| 1023351 | 4G0,5+(2x0,25)+(2x26 AWG) | SICK / HIPERFACE DSL® | 9.4 | 130 kg/km | ||
| 1023352 | 4G1,5+(2x1)+(2x22 AWG) | SICK / HIPERFACE DSL® | 13.3 | 276 kg/km | ||
| 1023353 | 4G2,5+(2x1)+(2x22 AWG) | SICK / HIPERFACE DSL® | 14.4 | 326 kg/km |
