ED-IE-AX-RJ45F-6A-A-FC

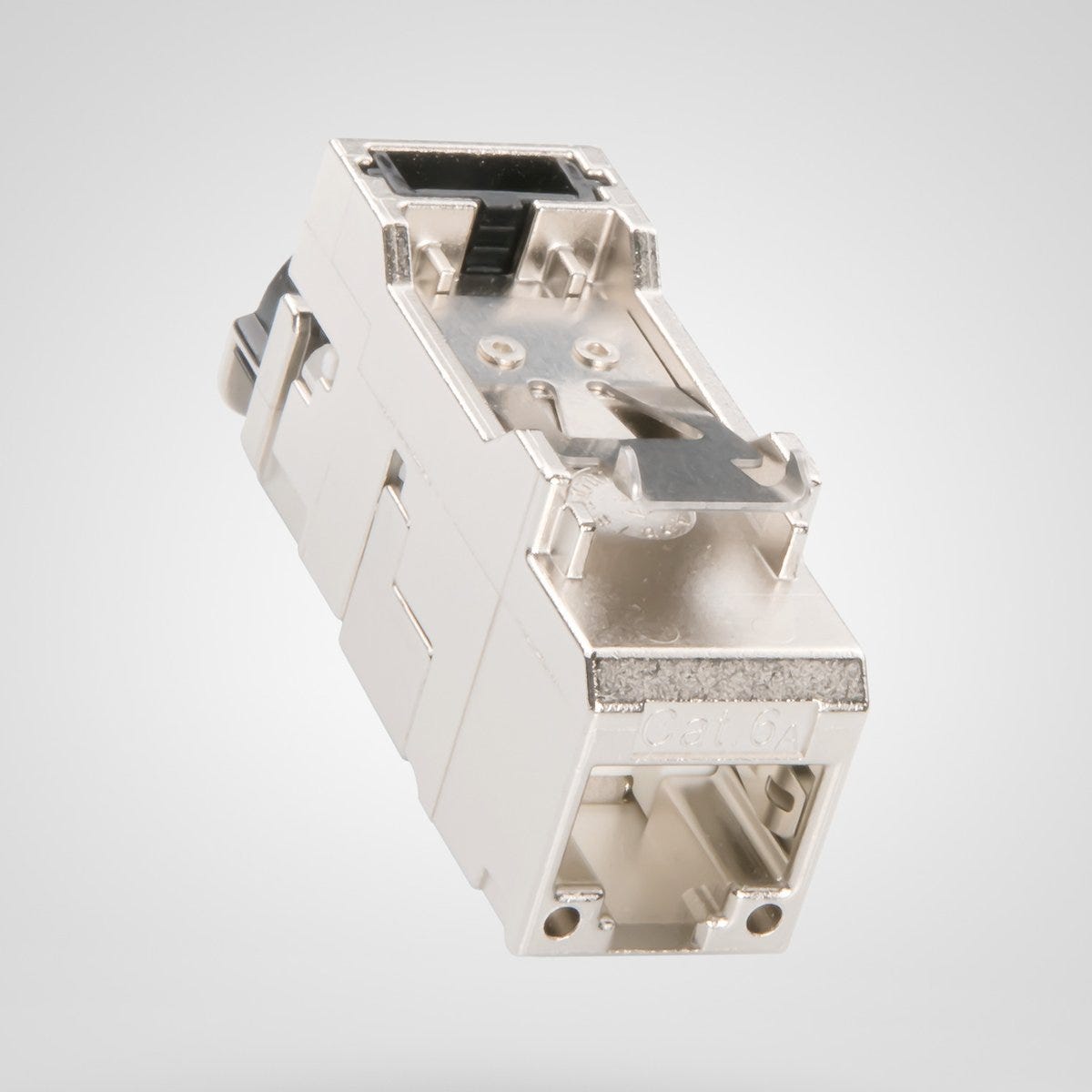

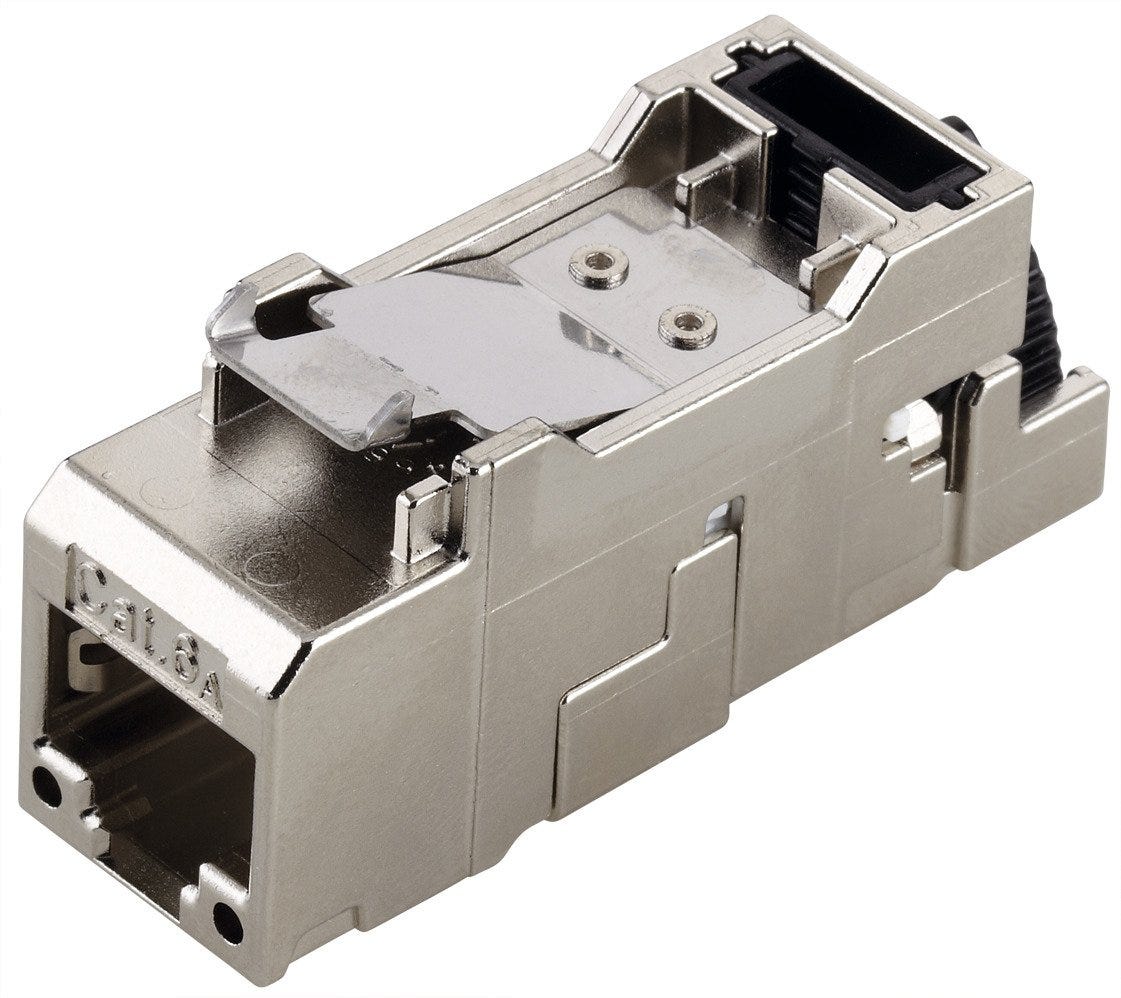

Data connector; Ethernet, PROFINET, ETHERNET/IP, EtherCAT; Cat.6A; RJ 45; Socket; Straight (180 °)
ED-IE-AX-RJ45F-6A-A-FC
SGD 29.08
/
ED-IE-AX-RJ45F-6A-A-FC
SGD 29.08
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
Certificate
UL listed
ETHERNET/IP
PROFINET
Benefits
Easy cable connection thanks to insulation displacement technology
Low error potential when connecting connectors and cores using the core manager with colour coding according to EIA/TIA standard
Stability thanks to die-cast zinc metal housing
UL certification according to technical data enables the product to be used on the North American market.
Applications
For use with Cat.6A cables
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Data connector |
| valid fieldbus or Ethernet system | Ethernet, PROFINET, ETHERNET/IP, EtherCAT |
| Delivery Unit | 24.000 |
| Weight | 0.02 kg |
Electrical Characteristics
| Rated current | 1 A according to IEC |
| Max. contact resistance | 20 |
Product Design
| Total length | 44.1 |
| Max. connectable conductor cross section solid-conductor (AWG) | 22 AWG |
| Design connector housing | Straight |
| Connector format | RJ 45 |
| Overall width | 14.8 |
| Housing colour | Metal |
| Min. connectable conductor cross-section fine-wire (AWG) | 27 AWG |
| Dust protection cap |
|
| Number of contacts | 8 |
| Core manager colour coding | TIA 568A |
| Total height | 21.9 |
| Housing coating | Nickel-plated |
| Type of connection | Plug to socket |
| Shielded |
|
| For min. cable outer diameter | 5 |
| Housing coating, short form | Ni |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Material contact surface | Gold-plated |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Au |
| Screen contact type | Shield terminal |
| For max. cable outer diameter | 9 |
| Connector type | Socket |
| Housing variant | Rectangular housing |
| Conductor connection type | Penetration technique |
| Housing base material | Zinc alloy |
| With thread |
|
| Locking type | Latch |
| Screen contact |
|
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
Product Characteristics
| IP protection rating | IP 20 |
| Installation temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 70 |
| Min. number of insertion cycles | 750 |
| Ethernet cable category | Cat.6A |
| Max. assembly temperature | 70 |
| Contact application areact | Data / signals |
Certifications and Standards
| cUR recognized |
|
| Product standard according to IEC | RJ45 according to IEC 60603-7-51 |
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
