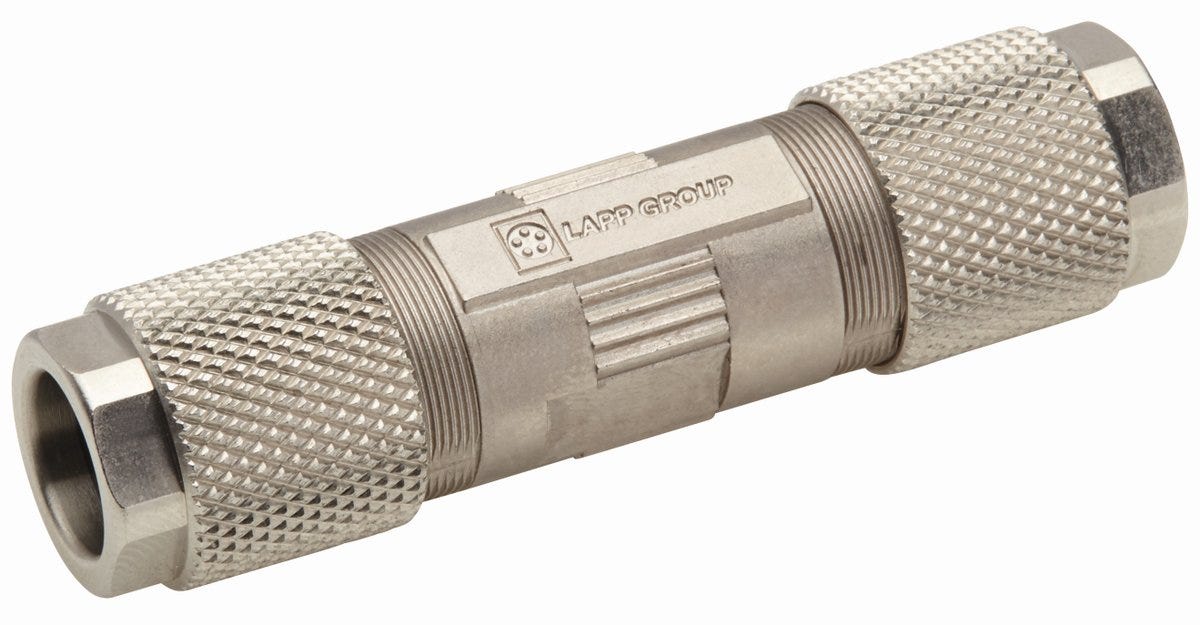

EPIC® DATA CCR FA
Cable tie round; ETHERNET/IP, PROFINET, Ethernet, EtherCAT; Cat.7A; Coupling; Straight (180 °); Cable diameter: 5.0 - 9.7 mm
EPIC® DATA CCR FA
SGD 133.45
/
EPIC® DATA CCR FA
SGD 133.45
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
icon sturgeon signal
Certificate
cUL listed US, UL listed US
ETHERNET/IP
PROFINET
Benefits
Easy cable connection thanks to insulation displacement technology
When connected, protection class IP 67 can be achieved
The integrated vibration protection of the connector makes it resistant to shocks and vibrations
UL certification according to technical data enables the product to be used on the North American market.
Applications
Can be used universally on machine interfaces for many applications in data and signal transmission
Also suitable for EtherCAT, EtherNet/IP and 4-pair PROFINET applications
Shielded connectors with metal housings are particularly suitable for environments where electromagnetic compatibility (EMC) is required
Suitable for use at temperatures up to -40°C.
Technical Attributes
General Information
| Brand | EPIC® |
| Product type | Cable tie round |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET, Ethernet, EtherCAT |
| Delivery Unit | 1.000 |
| Weight | 0.027 kg |
Electrical Characteristics
| Rated current | 0.5 A according to (manufacturer specifications) |
| Rated voltage | 48 V AC rms / DC according to (manufacturer specifications) |
Product Design
| Assembly type | Field configurable |
| Total length | 62 |
| Max. connectable conductor cross section solid-conductor (AWG) | 22 AWG |
| Design connector housing | Straight |
| Housing colour | Metal |
| Min. connectable conductor cross-section fine-wire (AWG) | 26 AWG |
| Number of contacts | 8 |
| Core manager colour coding | TIA 568A |
| Connectable core diameter max. (mm) | 1.6 |
| Connector diameter | 16.8 |
| Housing coating | Nickel-plated |
| Type of connection | Cable to cable |
| Shielded |
|
| For min. cable outer diameter | 5.0 |
| Housing coating, short form | Ni |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Seal type | Sealing cone |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Sn |
| Screen contact type | Shield terminal |
| For max. cable outer diameter | 9.7 |
| Connector type | Coupling |
| Housing variant | Cable coupler hood |
| Conductor connection type | Insulation displacement contact |
| Housing base material | Zinc alloy |
| With thread |
|
| Reusable |
|
| Min. connectable conductor cross-section (mm) | 0.85 |
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
Product Characteristics
| IP protection rating | IP 67 |
| Corrosion-resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 85 |
| Ethernet cable category | Cat.7A |
| Pollution degree | 1 |
| Vibration protection |
|
| Contact application areact | Ethernet |
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from EPIC® DATA CCR FA
| Article number | Shielded | Connector type | Design connector housing | Conductor connection type |
|---|---|---|---|---|
| 21700623 | Yes | Coupling | Straight | Insulation displacement contact |
