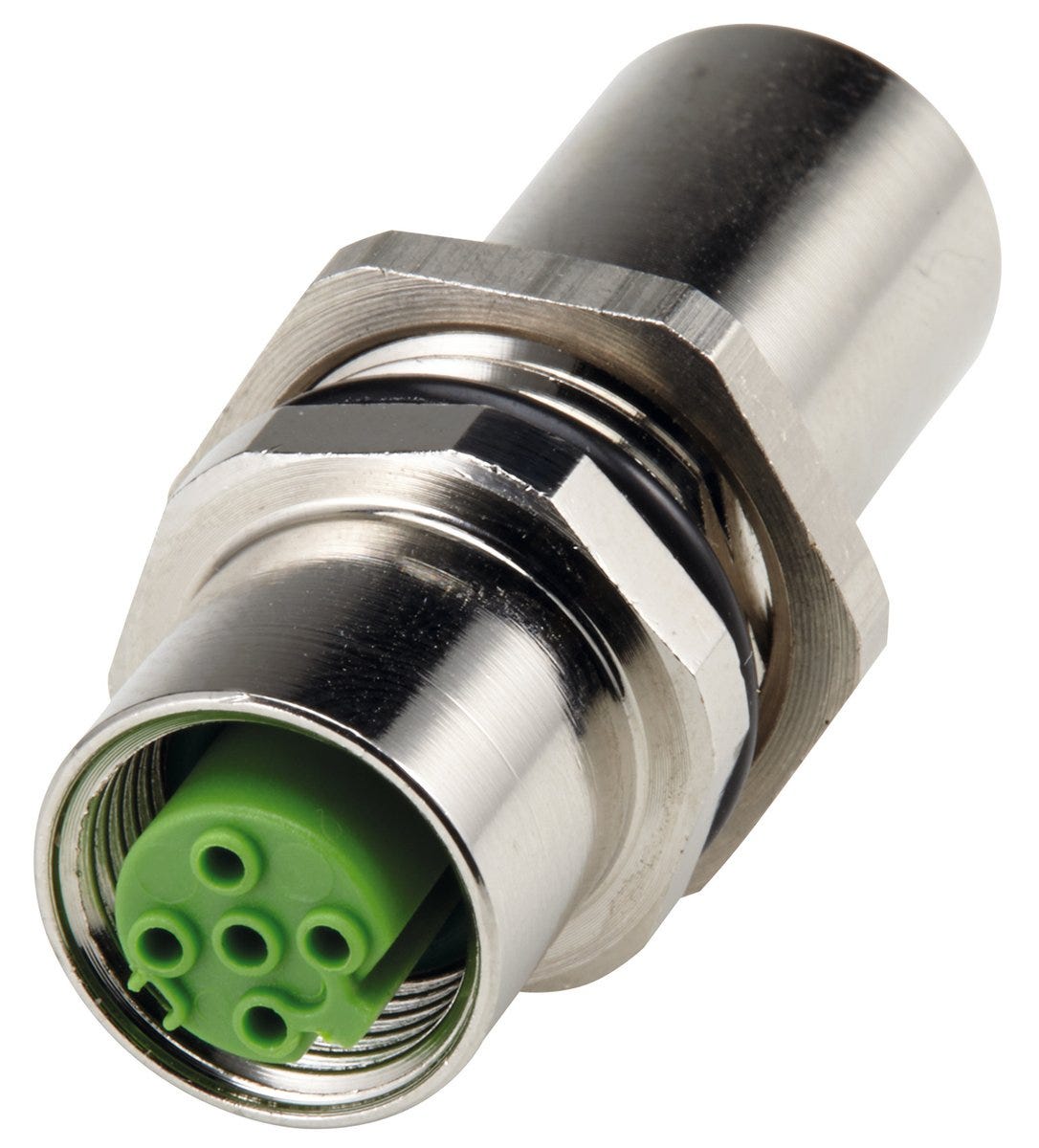

AB-C4-DSI-M12FSD-M12FSD-M16-SH
Data connector; M 12 (D-coded); Socket; Straight (180 °)
AB-C4-DSI-M12FSD-M12FSD-M16-SH
SGD 99.11
/
AB-C4-DSI-M12FSD-M12FSD-M16-SH
SGD 99.11
/
In stock (13)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
icon sturgeon signal
Benefits
Stability thanks to die-cast zinc metal housing
Easy cable connection thanks to insulation displacement technology
Low potential for errors during assembly by core manager with colour coding according to the PROFINET standard or EIA/TIA standard (T568A or T568B)
Connectors with metal housings have an electrically conductive coating. They offer optimum protection against electromagnetic interference (EMC) and dissipate interference signals with low impedance
When connected, protection class IP 67 can be achieved
UL certification in accordance with the technical data (article dependent) allows the product to be used on the North American market.
Applications
Can be used universally on machine interfaces for many applications in data and signal transmission
For Ethernet applications 100BASE-TX (up to 100 Mbit/s) according to IEEE 802.3
Shielded connectors with metal housings are particularly suitable for environments where electromagnetic compatibility (EMC) is required
Good oil and chemical resistance.
Technical Attributes
General Information
| Product type | Data connector |
| Delivery Unit | 1.000 |
| Weight | 0.033 kg |
Electrical Characteristics
Product Design
| With thread |
|
| Reusable |
|
| Connector housing angle | 180 |
| Coded |
|
| Number of contacts | 4 |
| Design connector housing | Straight |
| Connector type | Socket |
| Connector format | M 12 |
| Housing variant | Control cabinet bushing |
| Type of connection | Plug to plug |
| Shielded |
|
| Coding type | D-coded |
Product Characteristics
| UV-resistant |
|
Certifications and Standards
| UL listed |
|
| CE marked |
|
| cUR recognized |
|
| UL recognized |
|
| cUL listed |
|
| CSA certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
