H05V-K EMBOSS 1X1 WH

Single core; 1X1; white; Large Cardboard Box; U0/U: 300/500 V; PVC; HAR-certified; Fixed Installation

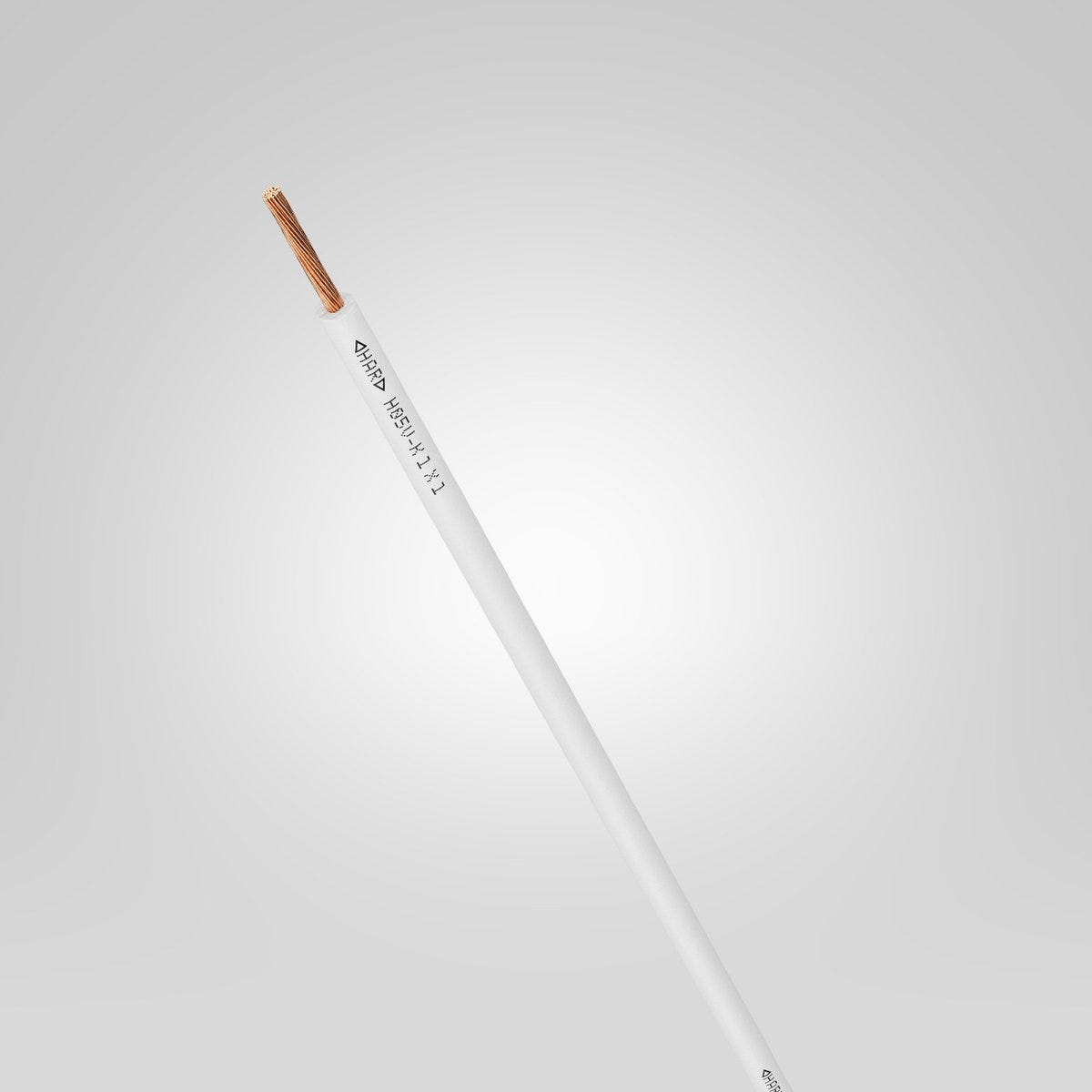

Primary Image
Primary Image

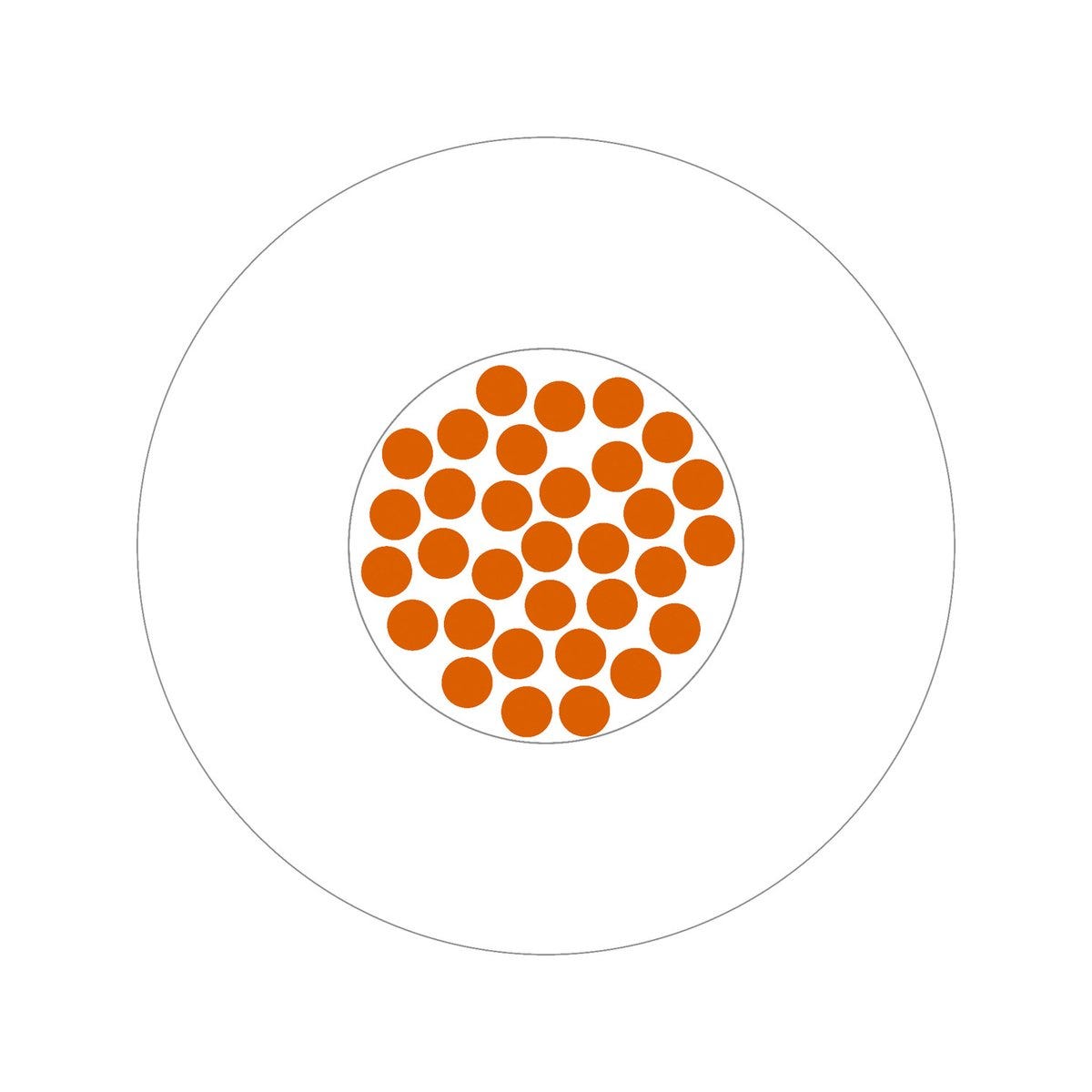

Secondary Image
Primary Image
Primary Image
Secondary Image
LAPPSKU: 4510053EArticle No.#: 4510053E

H05V-K EMBOSS 1X1 WH

Single core; 1X1; white; Large Cardboard Box; U0/U: 300/500 V; PVC; HAR-certified; Fixed Installation
Primary Image
H05V-K EMBOSS 1X1 WH
SGD 0.42
Payment & Security
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant flame-retardant
Certificate
CE marked CE marked
Harmonisation marking Harmonisation marking
Benefits
Made in accordance with harmonised European design H05V-K, with ◁HAR▷ testing mark for proven reliability and quality
◁HAR▷-style cables are widely accepted and can be used in Europe
Ideal for automated cable assembly in large volumes
Also available in large disposable cardboard boxes
Different core insulation colours available
Embossed cable for individual, permanent reprinting
Also available as ring or on coils
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.
Applications
For wiring circuits inside machines
For wiring lighting
Suitable for use in AC and DC charging infrastructures for electromobility
For fixed and protected installation
Can be used for open installation into cable conduits for equipotential bonding
Suitable for use at temperatures up to -40°C.

Technical Attributes

General Information
Length per PU 6000
Product type Single core
Single core packaging type Large cardboard box
Copper index 9.600  kg/km
Weight 15 kg/km
Electrical Characteristics
Current rating according to VDE 0298-4
Nominal voltage U0/U: 300/500 V AC rms according to IEC
Test voltage 2  kV
Product Design
Cable dimension 1X1
Conductor design IEC 60228 class 5: fine-wire
Conductor material Bare copper
Core insulation basic material Polyvinylchloride
Core insulation basic material, short form PVC
Nominal conductor cross-section (metric) 1  mm²
Harmonised design H05V-K
Number of cores 1
Max. outer diameter 2.8
Min. outer diameter 2.4
Shape of cable Round
Single core colour white
Single core identification Single-coloured
Product Characteristics
Application area Fixed installation
Minimum bending radius with careful bending 2 x outer diameter
Flame retardance according to IEC 60332-1-2
Flame-retardant

Halogenfree

Max. assembly temperature 70
Installation temperature min. 5
Oil-resistant

Ozone resistant

Max. storage temperature 40
Storage temperature min. 5
Temperature, fixed installation -40 °C to 70 °C max. conductor temperature:
Temperature, fixed installation max 70
Temperature, fixed installation min -40
UV-resistant

weather resistant

Minimum bending radius, stationary 4 x outer diameter
Minimum bending radius in mm, fixed installation 11.2  mm
Certifications and Standards
CE marked

CPR fire class Eca
HAR-certified

Product standard DIN / EN EN 50525-2-31
Flame retardance tested according to UN/ECE-R118

VDE certified

EAC certification number ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

Documentation
Downloads
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
trcu declaration of conformity - ru-RU (PDF)
Further Links
EPLAN Data in EPLAN Data Portal
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
  • Trade product, not a LAPP product.
Product Family List
All articles from H05V-K HAR
Article number Conductor cross-section (mm2) Single core colour Single core packaging type Imp length per pu Length per PU Imp outer dia cable sheath min Min. outer diameter Imp outer diam cable sheath max Max. outer diameter Copper index calc export Weight
4510001 0.5 green/yellow Ring 100 2.1 2.5 9 kg/km
4510001K 0.5 green/yellow Large cardboard box 3000 2.1 2.5 9 kg/km
4510001S 0.5 green/yellow Spool 250 2.1 2.5 9 kg/km
4510002 0.75 green/yellow Ring 100 2.2 2.7 12 kg/km
4510002K 0.75 green/yellow Large cardboard box 2500 2.2 2.7 12 kg/km
4510002S 0.75 green/yellow Spool 250 2.2 2.7 12 kg/km
4510002X 0.75 green/yellow Ring 500 2.2 2.7 12 kg/km
4510003 1 green/yellow Ring 100 2.4 2.8 15 kg/km
4510003K 1 green/yellow Large cardboard box 2000 2.4 2.8 15 kg/km
4510003S 1 green/yellow Spool 250 2.4 2.8 15 kg/km
4510003X 1 green/yellow Ring 400 2.4 2.8 15 kg/km
4510011 0.5 black Ring 100 2.1 2.5 9 kg/km
4510011K 0.5 black Large cardboard box 3000 2.1 2.5 9 kg/km
4510011S 0.5 black Spool 250 2.1 2.5 9 kg/km
4510011X 0.5 black Ring 600 2.1 2.5 9 kg/km
4510012 0.75 black Ring 100 2.2 2.7 12 kg/km
4510012K 0.75 black Large cardboard box 2500 2.2 2.7 12 kg/km
4510012S 0.75 black Spool 250 2.2 2.7 12 kg/km
4510012X 0.75 black Ring 500 2.2 2.7 12 kg/km
4510013 1 black Ring 100 2.4 2.8 15 kg/km
4510013E 1 black Large cardboard box 6000 2.4 2.8 15 kg/km
4510013K 1 black Large cardboard box 2000 2.4 2.8 15 kg/km
4510013S 1 black Spool 250 2.4 2.8 15 kg/km
4510013X 1 black Ring 400 2.4 2.8 15 kg/km
4510021 0.5 blue Ring 100 2.1 2.5 9 kg/km
4510021E 0.5 blue Large cardboard box 9000 2.1 2.5 9 kg/km
4510021K 0.5 blue Large cardboard box 3000 2.1 2.5 9 kg/km
4510021S 0.5 blue Spool 250 2.1 2.5 9 kg/km
4510021X 0.5 blue Ring 500 2.1 2.5 9 kg/km
4510022 0.75 blue Ring 100 2.2 2.7 12 kg/km
4510022E 0.75 blue Large cardboard box 7500 2.2 2.7 12 kg/km
4510022K 0.75 blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510022S 0.75 blue Spool 250 2.2 2.7 12 kg/km
4510022X 0.75 blue Ring 500 2.2 2.7 12 kg/km
4510023 1 blue Ring 100 2.4 2.8 15 kg/km
4510023E 1 blue Large cardboard box 6000 2.4 2.8 15 kg/km
4510023K 1 blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510023S 1 blue Spool 250 2.4 2.8 15 kg/km
4510023X 1 blue Ring 400 2.4 2.8 15 kg/km
4510031 0.5 brown Ring 100 2.1 2.5 9 kg/km
4510031S 0.5 brown Spool 250 2.1 2.5 9 kg/km
4510032 0.75 brown Ring 100 2.2 2.7 12 kg/km
4510032K 0.75 brown Large cardboard box 2500 2.2 2.7 12 kg/km
4510032S 0.75 brown Spool 250 2.2 2.7 12 kg/km
4510033 1 brown Ring 100 2.4 2.8 15 kg/km
4510033K 1 brown Large cardboard box 2000 2.4 2.8 15 kg/km
4510033S 1 brown Spool 250 2.4 2.8 15 kg/km
4510033X 1 brown Ring 400 2.4 2.8 15 kg/km
4510041 0.5 red Ring 100 2.1 2.5 9 kg/km
4510041S 0.5 red Spool 250 2.1 2.5 9 kg/km
4510041X 0.5 red Ring 500 2.1 2.5 9 kg/km
4510042 0.75 red Ring 100 2.2 2.7 12 kg/km
4510042E 0.75 red Large cardboard box 7500 2.2 2.7 12 kg/km
4510042K 0.75 red Large cardboard box 2500 2.2 2.7 12 kg/km
4510042S 0.75 red Spool 250 2.2 2.7 12 kg/km
4510042X 0.75 red Ring 500 2.2 2.7 12 kg/km
4510043 1 red Ring 100 2.4 2.8 15 kg/km
4510043K 1 red Large cardboard box 2000 2.4 2.8 15 kg/km
4510043S 1 red Spool 250 2.4 2.8 15 kg/km
4510043X 1 red Ring 400 2.4 2.8 15 kg/km
4510051 0.5 white Ring 100 2.1 2.5 9 kg/km
4510051S 0.5 white Spool 250 2.1 2.5 9 kg/km
4510051X 0.5 white Ring 600 2.1 2.5 9 kg/km
4510052 0.75 white Ring 100 2.2 2.7 12 kg/km
4510052K 0.75 white Large cardboard box 2500 2.2 2.7 12 kg/km
4510052S 0.75 white Spool 250 2.2 2.7 12 kg/km
4510052X 0.75 white Ring 500 2.2 2.7 12 kg/km
4510053 1 white Ring 100 2.4 2.8 15 kg/km
4510053E 1 white Large cardboard box 6000 2.4 2.8 15 kg/km
4510053K 1 white Large cardboard box 2000 2.4 2.8 15 kg/km
4510053S 1 white Spool 250 2.4 2.8 15 kg/km
4510053X 1 white Ring 400 2.4 2.8 15 kg/km
4510061 0.5 grey Ring 100 2.1 2.5 9 kg/km
4510061S 0.5 grey Spool 250 2.1 2.5 9 kg/km
4510061X 0.5 grey Ring 500 2.1 2.5 9 kg/km
4510062 0.75 grey Ring 100 2.2 2.7 12 kg/km
4510062K 0.75 grey Large cardboard box 2500 2.2 2.7 12 kg/km
4510062S 0.75 grey Spool 250 2.2 2.7 12 kg/km
4510062X 0.75 grey Ring 500 2.2 2.7 12 kg/km
4510063 1 grey Ring 100 2.4 2.8 15 kg/km
4510063K 1 grey Large cardboard box 2000 2.4 2.8 15 kg/km
4510063S 1 grey Spool 250 2.4 2.8 15 kg/km
4510063X 1 grey Ring 400 2.4 2.8 15 kg/km
4510071 0.5 violet Ring 100 2.1 2.5 9 kg/km
4510071S 0.5 violet Spool 250 2.1 2.5 9 kg/km
4510072 0.75 violet Ring 100 2.2 2.7 12 kg/km
4510072K 0.75 violet Large cardboard box 2500 2.2 2.7 12 kg/km
4510072S 0.75 violet Spool 250 2.2 2.7 12 kg/km
4510072X 0.75 violet Ring 500 2.2 2.7 12 kg/km
4510073 1 violet Ring 100 2.4 2.8 15 kg/km
4510073K 1 violet Large cardboard box 2000 2.4 2.8 15 kg/km
4510073S 1 violet Spool 250 2.4 2.8 15 kg/km
4510081 0.5 pink Ring 100 2.1 2.5 9 kg/km
4510081S 0.5 pink Spool 250 2.1 2.5 9 kg/km
4510082 0.75 pink Ring 100 2.2 2.7 12 kg/km
4510082K 0.75 pink Large cardboard box 2500 2.2 2.7 12 kg/km
4510082S 0.75 pink Spool 250 2.2 2.7 12 kg/km
4510083 1 pink Ring 100 2.4 2.8 15 kg/km
4510083K 1 pink Large cardboard box 2000 2.4 2.8 15 kg/km
4510083S 1 pink Spool 250 2.4 2.8 15 kg/km
4510091 0.5 orange Ring 100 2.1 2.5 9 kg/km
4510091S 0.5 orange Spool 250 2.1 2.5 9 kg/km
4510092 0.75 orange Ring 100 2.2 2.7 12 kg/km
4510092K 0.75 orange Large cardboard box 2500 2.2 2.7 12 kg/km
4510092S 0.75 orange Spool 250 2.2 2.7 12 kg/km
4510092X 0.75 orange Ring 500 2.2 2.7 12 kg/km
4510093 1 orange Ring 100 2.4 2.8 15 kg/km
4510093K 1 orange Large cardboard box 2000 2.4 2.8 15 kg/km
4510093S 1 orange Spool 250 2.4 2.8 15 kg/km
4510093X 1 orange Ring 400 2.4 2.8 15 kg/km
4510101S 0.5 transparent Spool 250 2.1 2.5 9 kg/km
4510102S 0.75 transparent Spool 250 2.2 2.7 12 kg/km
4510103S 1 transparent Spool 250 2.4 2.8 16 kg/km
4510111 0.5 yellow Ring 100 2.1 2.5 9 kg/km
4510111S 0.5 yellow Spool 250 2.1 2.5 9 kg/km
4510112 0.75 yellow Ring 100 2.2 2.7 12 kg/km
4510112K 0.75 yellow Large cardboard box 2500 2.2 2.7 12 kg/km
4510112S 0.75 yellow Spool 250 2.2 2.7 12 kg/km
4510113 1 yellow Ring 100 2.4 2.8 15 kg/km
4510113K 1 yellow Large cardboard box 2000 2.4 2.8 15 kg/km
4510113S 1 yellow Spool 250 2.4 2.8 15 kg/km
4510121 0.5 green Ring 100 2.1 2.5 9 kg/km
4510121S 0.5 green Spool 250 2.1 2.5 9 kg/km
4510122 0.75 green Ring 100 2.2 2.7 12 kg/km
4510122K 0.75 green Large cardboard box 2500 2.2 2.7 12 kg/km
4510122S 0.75 green Spool 250 2.2 2.7 12 kg/km
4510123 1 green Ring 100 2.4 2.8 15 kg/km
4510123S 1 green Spool 250 2.4 2.8 15 kg/km
4510141 0.5 dark blue Ring 100 2.1 2.5 9 kg/km
4510141S 0.5 dark blue Spool 250 2.1 2.5 9 kg/km
4510141X 0.5 dark blue Ring 600 2.1 2.5 9 kg/km
4510142 0.75 dark blue Ring 100 2.2 2.7 12 kg/km
4510142K 0.75 dark blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510142S 0.75 dark blue Spool 250 2.2 2.7 12 kg/km
4510142X 0.75 dark blue Ring 500 2.2 2.7 12 kg/km
4510143 1 dark blue Ring 100 2.4 2.8 15 kg/km
4510143K 1 dark blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510143S 1 dark blue Spool 250 2.4 2.8 15 kg/km
4510143X 1 dark blue Ring 400 2.4 2.8 15 kg/km
4510161 0.5 ultramarine blue Ring 100 2.1 2.5 9 kg/km
4510161K 0.5 ultramarine blue Large cardboard box 3000 2.1 2.5 9 kg/km
4510162 0.75 ultramarine blue Ring 100 2.2 2.7 12 kg/km
4510162K 0.75 ultramarine blue Large cardboard box 2500 2.2 2.7 12 kg/km
4510162S 0.75 ultramarine blue Spool 250 2.2 2.7 12 kg/km
4510163 1 ultramarine blue Ring 100 2.4 2.8 15 kg/km
4510163K 1 ultramarine blue Large cardboard box 2000 2.4 2.8 15 kg/km
4510163S 1 ultramarine blue Spool 250 2.4 2.8 15 kg/km
4510262K 0.75 blue/white Large cardboard box 2500 2.2 2.7 12 kg/km
4510263K 1 blue/white Large cardboard box 2000 2.4 2.8 15 kg/km
4510921 0.5 dark blue/white Ring 100 2.1 2.5 9 kg/km
4510921K 0.5 dark blue/white Large cardboard box 3000 2.1 2.5 9 kg/km
4510922 0.75 dark blue/white Ring 100 2.2 2.7 12 kg/km
4510922K 0.75 dark blue/white Large cardboard box 2500 2.2 2.7 12 kg/km
4510923 1 dark blue/white Ring 100 2.4 2.8 15 kg/km
4510923K 1 dark blue/white Large cardboard box 2000 2.4 2.8 15 kg/km
4511060E 0.5 dark blue Large cardboard box 9000 2.1 2.5 9 kg/km
4511061E 0.75 dark blue Large cardboard box 7500 2.2 2.7 12 kg/km
4511062E 1 dark blue Large cardboard box 6000 2.4 2.8 15 kg/km
4511064K 0.5 dark blue Large cardboard box 3000 2.1 2.5 9 kg/km
4511065K 0.5 brown Large cardboard box 3000 2.1 2.5 9 kg/km
4511068K 0.5 violet Large cardboard box 3000 2.1 2.5 9 kg/km
4511070K 0.5 orange Large cardboard box 3000 2.1 2.5 9 kg/km
4511071K 0.5 red Large cardboard box 3000 2.1 2.5 9 kg/km
4511072K 0.5 white Large cardboard box 3000 2.1 2.5 9 kg/km
4511073K 0.5 grey Large cardboard box 3000 2.1 2.5 9 kg/km
