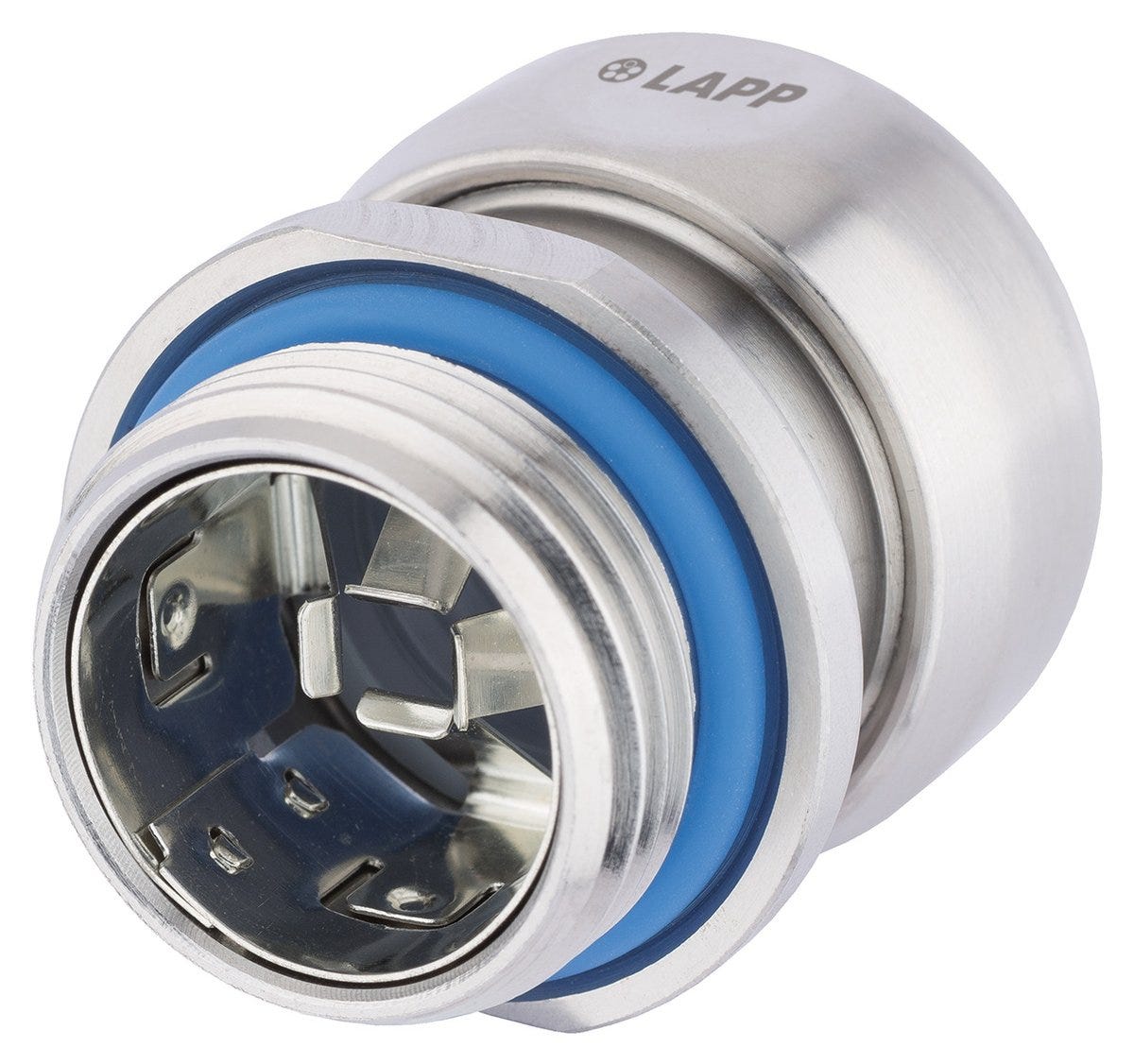

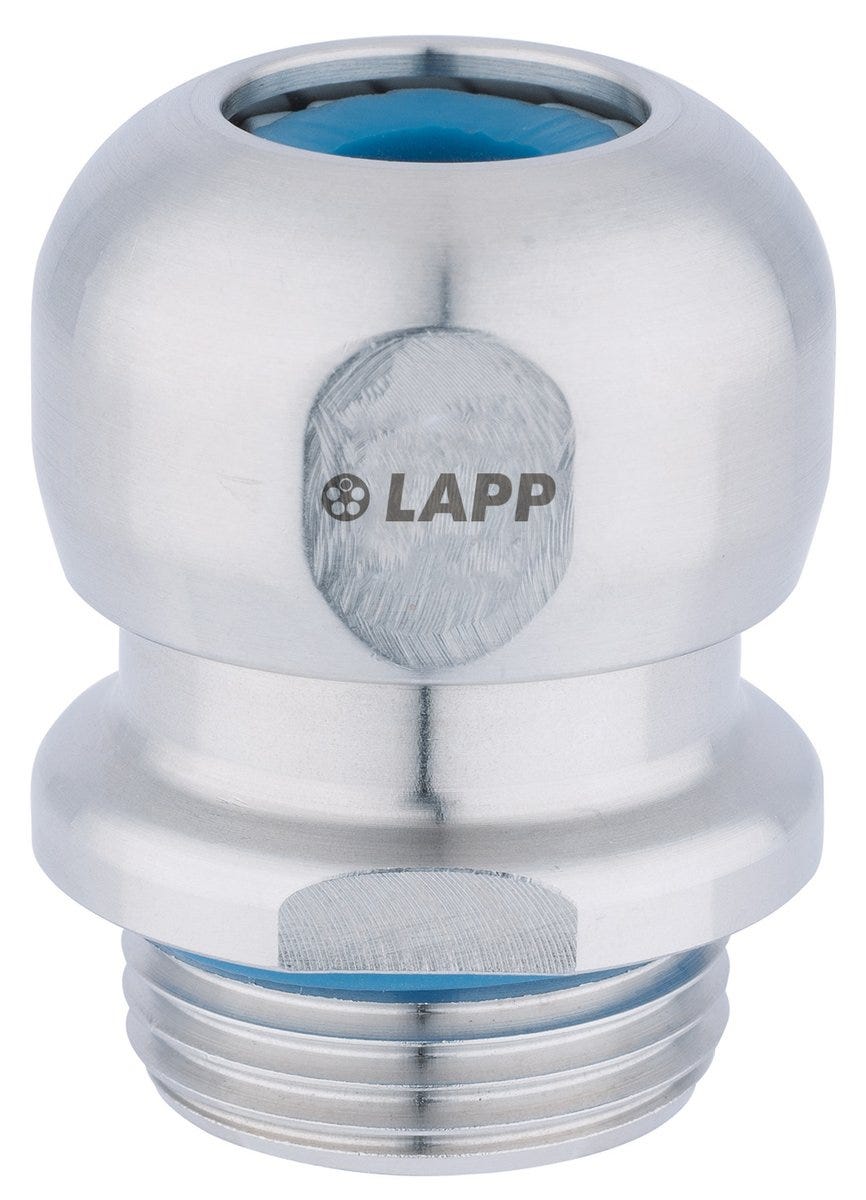

SKINTOP® INOX SC M 32
Cable gland; M 32; Clamping range (min./max.): 11 - 21 mm; Wrench width 1: 36; Stainless steel Uncoated; Halogenfree; UV-resistant; IP 68 - 5 bar (30 min), IP 69; EMC screening
SKINTOP® INOX SC M 32
SGD 73.62
/
SKINTOP® INOX SC M 32
SGD 73.62
/
In stock (30)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
corrosion resistant
chemical resistance
acid resistance
uv-resistant.
icon sturgeon signal
Certificate
CE marked
UR recognised US, cUR recognised US
.svg "Ecolab"){kind=logo}
Ecolab
NSF certified
Benefits
Resistant to corrosion in salty sea water and many chemical substances
Tested resistance to ECOLAB® disinfectants and cleaning agents
With smooth surfaces and fewer corners and edges for easy cleaning process
More compact design than other cable glands
The best possible sealing enables protection class IP 68 and IP 69
Optimum EMC protection thanks to integrated, highly conductive and flexible contact spring, which creates a low-resistance transition between the copper stranded shielding and the cable gland
Sealing material in blue to easily distinguish the cable glands used in the food industry
Certified according to NSF/ANSI 169 for use in hygiene-critical areas in North America (Standard: Special Purpose Food Equipment and Devices/for Use in Food Zone Non Contact).
Applications
For EMC-compliant insertion of copper-shielded cables
For use in offshore applications involving contact with seawater
Wherever excellent resistance to a wide range of chemical substances is required
Also suitable for use in the food industry, where the product needs to be installed in the spray zone or in the indirect food production environment (product-free zone)
Withstands high mechanical stress.
Technical Attributes
General Information
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINTOP® |
| Product type | Cable gland |
| Packaging type | Bag |
| Delivery Unit | 5.000 |
| Weight | 0.11 kg |
Electrical Characteristics
Product Design
| Total length | 44.6 |
| Number of cable entries | 1 |
| Material body | Stainless steel |
| Thread type | Metric |
| Cable gland design | Straight |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Conduit sealing ring |
| Material body shortname | V4A |
| Thread size | M 32 |
| Colour | metal |
| Insert material, short form | PA |
| Thread length | 9 |
| Hexagon corner dimensions | 38.2 |
| Bending protection |
|
| Clear width | 21 |
| Max. clamping range | 21 |
| Seal type | Conduit sealing ring |
| O-ring material | Silicone |
| Glass-fibre reinforced |
|
| Pitch of thread | 1,5 |
| Insert material | Polyamide |
| Surface protection | Uncoated |
| Spanner size 1 | 36 |
| Min. clamping range | 11 |
| For armoured cables |
|
| Thread standard | DIN EN 60423 |
| Spanner size 2 | 36 |
| Sealing material | Silicone |
Product Characteristics
| Flame-retardant |
|
| IP protection rating | IP 68 - 5 bar (30 min), IP 69 |
| Corrosion-resistant |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Oil-resistant |
|
| Temperature (min.) | -40 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| NEMA type rating | Type 1, Type 2, Type 4x, Type 6, Type 12 |
| Halogenfree |
|
Certifications and Standards
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| UL AWM certification | according to UL 514B (CCN: QBPZ2 / e-file number: E79903) |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| cUR certification | according to CSA C22.2 No. 18.3 (CCN: QBPZ8 / e-file number: E79903) |
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from SKINTOP® INOX SC M
| Article number | Thread size | Imp thread length | Thread length | Imp clamping range min | Min. clamping range | Imp clamping range max | Max. clamping range | Imp wrench width 1 | Spanner size 1 | Delivery Unit |
|---|---|---|---|---|---|---|---|---|---|---|
| 53806720 | M 12 | 6.5 | 4 | 7 | 16 | 5.000 | ||||
| 53806722 | M 16 | 7 | 6 | 10 | 20 | 5.000 | ||||
| 53806724 | M 20 | 8 | 7 | 13 | 24 | 5.000 | ||||
| 53806726 | M 25 | 8 | 9 | 17 | 29 | 5.000 | ||||
| 53806728 | M 32 | 9 | 11 | 21 | 36 | 5.000 | ||||
| 53806731 | M 40 | 9 | 19 | 28 | 45 | 5.000 | ||||
| 53806732 | M 50 | 10 | 27 | 35 | 54 | 5.000 |
