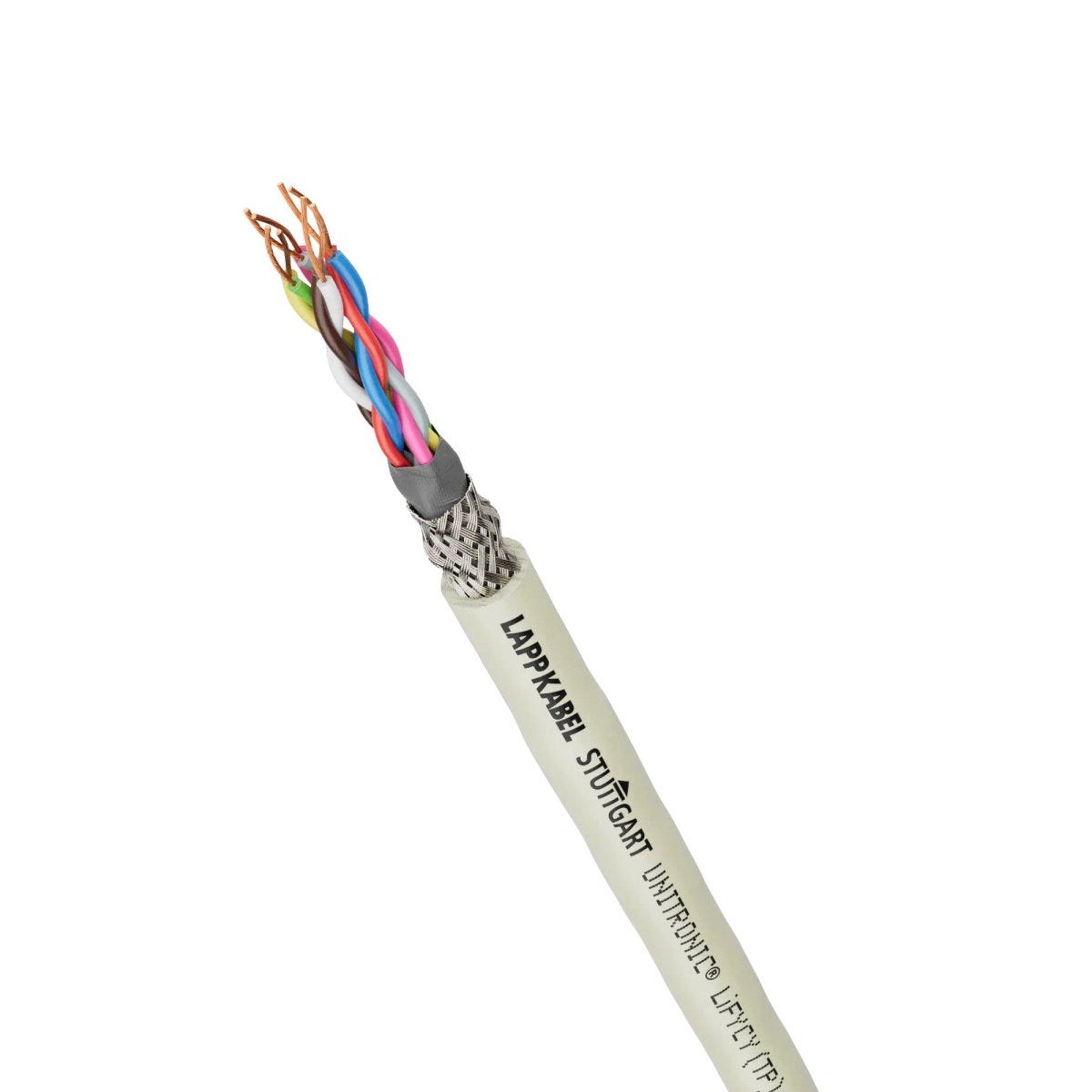

UNITRONIC® LiFYCY (TP) 4x2x0,08
Low-frequency data cable; 4X2X0.08; Conductor colour code: DIN 47100; PVC; Shielded; Flexible
UNITRONIC® LiFYCY (TP) 4x2x0,08
SGD 5.01
/
UNITRONIC® LiFYCY (TP) 4x2x0,08
SGD 5.01
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
福利
The conductor circuits are well decoupled thanks to the twin cabling (TP, Twisted Pair) with short lay lengths
Short core stranding allows small bending radii. , With robust, flexible and resistant PVC outer sheath
Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.
申请书
Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range
Especially for environments where electromagnetic compatibility (EMC) is required
For fixed installation and occasional flexing
Can be used in dry and damp rooms.
技术属性
一般信息
| Product type | Low-frequency data cable |
| Brand | UNITRONIC® |
| Copper index | 19.400 kg/km |
| Copper index (lb) | 130.300 lb |
| Weight | 37 kg/km |
电气特性
| Test voltage core/screening | 0.5 |
| Conductor/shielding operating capacitance (800Hz), approx. | 152 |
| Max. conductor resistance at 20°C | 243 Ω/km |
| Inductance (800 Hz), approx. | 0.782 |
| Test voltage core/core | 0.8 |
| Conductor/conductor operating capacitance (800Hz), approx. | 98 |
产品设计
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | grey |
| Conductor design | extra-fine wire |
| Stranding type | Twisted-pair |
| Nominal outer diameter | 5.4 mm |
| Conductor material | Bare copper |
| Conductor colour code | DIN 47100 |
| Type of overall screen | Tin-plated copper braiding |
| Nominal conductor cross-section (metric) | 0.08 mm² |
| Cable dimension | 4X2X0.08 |
| Core insulation basic material | Polyvinylchloride |
| LiF fine-stranded cables | LiFYCY (TP) |
| Basic material of outer sheath | Polyvinylchloride |
| Including protective earth |
|
| Core insulation basic material, short form | PVC |
| Shielded |
|
| Basic material of outer sheath, short form | PVC |
产品特点
| Flame-retardant |
|
| Application area | Flexible, Fixed installation |
| max. conductor temperature, occasionally moved | -5 °C to 70 °C max. conductor temperature: |
| PWIS-free according to | VDMA 24364-B2-L |
| Oil-resistant |
|
| UV-resistant |
|
| Minimum bending radius, stationary | 4 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2 |
| Minimum bending radius in mm, fixed installation | 21.6 mm |
| PWIS-free |
|
| Halogenfree |
|
认证和标准
| Flame retardance tested according to UN/ECE-R118 |
|
| CE marked |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
