ÖLFLEX® HEAT 205 SC 1X1 RD

Single core; 1X1; red; Ring; U0/U: 300/500 V; FEP; -100°C - 205°C; Fixed installation
Primary ImagePrimary Image
Secondary ImageSecondary Image
Primary Image
Secondary Image
LAPPSKU: 0084104Article No.#: 0084104

ÖLFLEX® HEAT 205 SC 1X1 RD

Single core; 1X1; red; Ring; U0/U: 300/500 V; FEP; -100°C - 205°C; Fixed installation
Primary Image
ÖLFLEX® HEAT 205 SC 1X1 RD
SGD 1.53
In stock (600)
付款与安全
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa

您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant flame-retardant
oil resistant oil resistant
chemical resistance chemical resistance
uv-resistant. uv-resistant.
Product Carbon Footprint Product Carbon Footprint
Certificate
CE marked CE marked
福利
Small outer diameters for maximum saving of space and weight, Resistant to contact with mostly all highly aggressive chemical media
申请书
Typical fields of application- Control cabinets with high heat generation- Measuring instruments- Furnaces and brickworks- Heating equipment and kitchen appliances- Electric motor building- Installations in the chemical industry, For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces

技术属性

一般信息
Product type Single core
Length per PU 100
Single core packaging type Ring
Brand ÖLFLEX®
Copper index 9.600  kg/km
Copper index (lb) 64.500  lb
Weight 13 kg/km
电气特性
Nominal voltage U0/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C 20  Ω/km
Test voltage 2.5  kV
产品设计
Shape of cable Round
Single core colour red

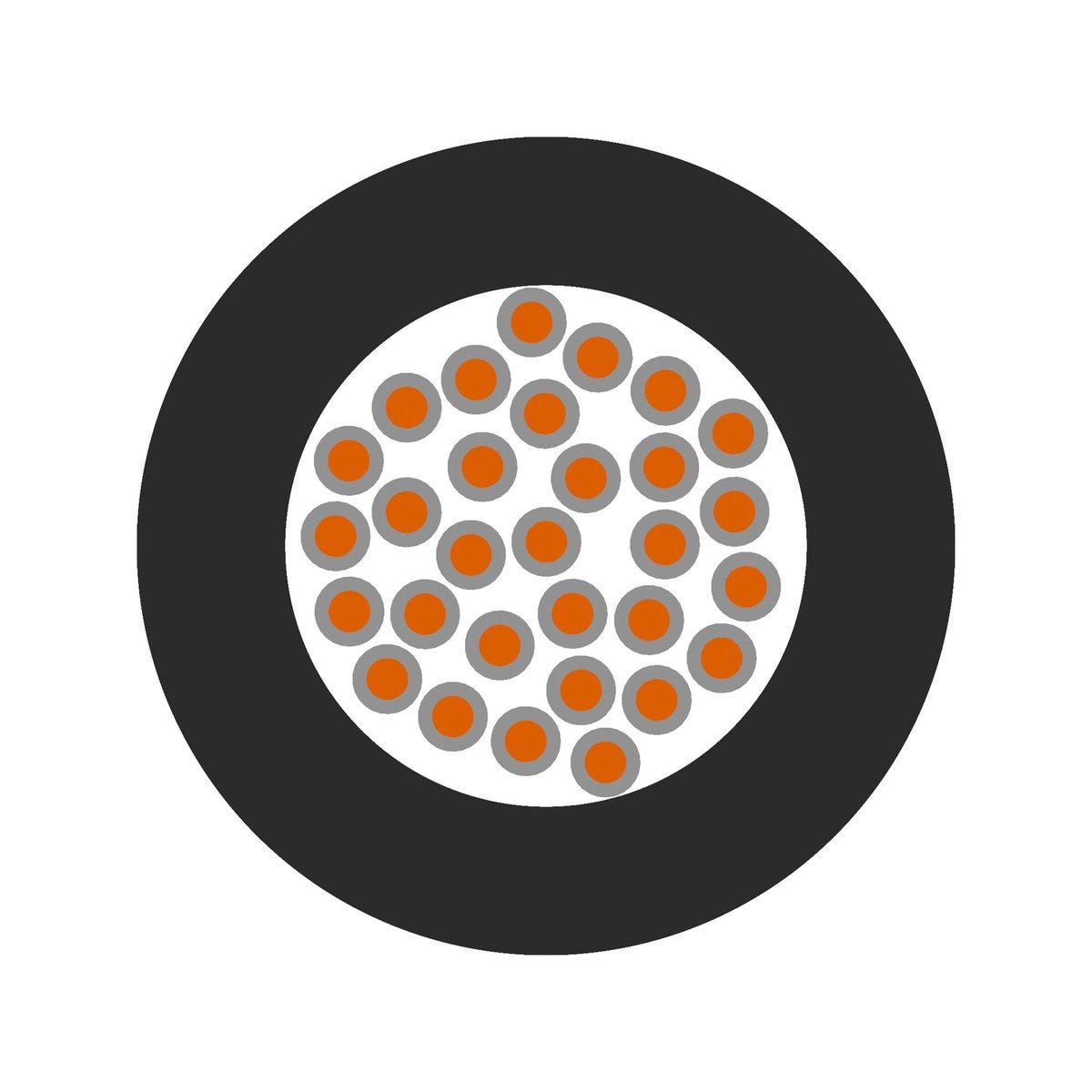

Conductor design IEC 60228 class 5: fine-wire
Nominal outer diameter 1.9  mm
Conductor material Tin-plated copper
Number of cores 1
Nominal conductor cross-section (metric) 1  mm²
Cable dimension 1X1
Core insulation basic material Fluoroethylene propylene
Single core identification Single-coloured
Core insulation basic material, short form FEP
Shielded

产品特点
Flame-retardant

Application area Fixed installation
PWIS-free according to VDMA 24364-B2-L
Oil-resistant

Minimum bending radius in mm, occasionally flexing 19.0  mm
Chemical resistant

UV-resistant

Minimum bending radius, stationary 4 x outer diameter
Water resistant

Minimum bending radius, occasionally flexing 10 x outer diameter
Temperature, fixed installation -100 °C to 205 °C max. conductor temperature:
Minimum bending radius in mm, fixed installation 7.6  mm
PWIS-free

Halogenfree

认证和标准
Flame retardance tested according to UN/ECE-R118

CE marked

VDE certified

EAC certification number ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

文档
Downloads
CE declaration of conformity - en-UK (PDF)
Datasheet - de-DE (PDF)
Datasheet - en-UK (PDF)
Further Links
EPLAN Data in EPLAN Data Portal
Notes
  • Photographs and graphics are not to scale and do not represent detailed images of the respective products.
  • Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ÖLFLEX® HEAT 205 SC
Article number Conductor cross-section (mm2) Single core colour Single core packaging type Imp length per pu Length per PU Imp outer diam of core nom Nominal core diameter Copper index calc export Weight
0080001 0.14 black Ring 100 3 kg/km
0080002 0.14 blue Ring 100 3 kg/km
0080005 0.14 yellow Ring 100 3 kg/km
0080006 0.14 green Ring 100 3 kg/km
0080010 0.14 transparent Ring 100 3 kg/km
0080104 0.14 red Ring 100 3 kg/km
0080105 0.14 white Ring 100 3 kg/km
0081001 0.25 black Ring 100 4 kg/km
0081001S 0.25 black Spool 500 4 kg/km
0081002 0.25 blue Ring 100 4 kg/km
0081002S 0.25 blue Spool 500 4 kg/km
0081003 0.25 brown Ring 100 4 kg/km
0081003S 0.25 brown Spool 500 4 kg/km
0081005 0.25 yellow Ring 100 4 kg/km
0081006 0.25 green Ring 100 5 kg/km
0081009 0.25 orange Ring 100 4 kg/km
0081010 0.25 transparent Ring 100 4 kg/km
0081104 0.25 red Ring 100 4 kg/km
0081104S 0.25 red Spool 500 4 kg/km
0081105 0.25 white Ring 100 4 kg/km
0081106 0.25 grey Ring 100 4 kg/km
0082000 0.5 green/yellow Ring 100 7 kg/km
0082001 0.5 black Ring 100 7 kg/km
0082001S 0.5 black Spool 500 7 kg/km
0082002 0.5 blue Ring 100 7 kg/km
0082002S 0.5 blue Spool 500 7 kg/km
0082003 0.5 brown Ring 100 7 kg/km
0082003S 0.5 brown Spool 500 7 kg/km
0082005 0.5 yellow Ring 100 7 kg/km
0082006 0.5 green Ring 100 7 kg/km
0082007 0.5 violet Ring 100 7 kg/km
0082009 0.5 orange Ring 100 7 kg/km
0082010 0.5 transparent Ring 100 7 kg/km
0082104 0.5 red Ring 100 7 kg/km
0082104S 0.5 red Spool 500 7 kg/km
0082105 0.5 white Ring 100 7 kg/km
0082106 0.5 grey Ring 100 7 kg/km
0083000 0.75 green/yellow Ring 100 10 kg/km
0083000S 0.75 green/yellow Spool 500 10 kg/km
0083001 0.75 black Ring 100 10 kg/km
0083001S 0.75 black Spool 500 10 kg/km
0083002 0.75 blue Ring 100 10 kg/km
0083002S 0.75 blue Spool 500 10 kg/km
0083003 0.75 brown Ring 100 10 kg/km
0083003S 0.75 brown Spool 500 10 kg/km
0083005 0.75 yellow Ring 100 10 kg/km
0083006 0.75 green Ring 100 10 kg/km
0083010 0.75 transparent Ring 100 10 kg/km
0083104 0.75 red Ring 100 10 kg/km
0083104S 0.75 red Spool 500 10 kg/km
0083105 0.75 white Ring 100 10 kg/km
0084000 1 green/yellow Ring 100 13 kg/km
0084000S 1 green/yellow Spool 500 13 kg/km
0084001 1 black Ring 100 13 kg/km
0084001S 1 black Spool 500 13 kg/km
0084002 1 blue Ring 100 13 kg/km
0084002S 1 blue Spool 500 13 kg/km
0084003 1 brown Ring 100 13 kg/km
0084003S 1 brown Spool 500 13 kg/km
0084005 1 yellow Ring 100 13 kg/km
0084006 1 green Ring 100 13 kg/km
0084007 1 violet Ring 100 13 kg/km
0084010 1 transparent Ring 100 13 kg/km
0084104 1 red Ring 100 13 kg/km
0084104S 1 red Spool 500 13 kg/km
0084105 1 white Ring 100 13 kg/km
0084106 1 grey Ring 100 13 kg/km
0085000 1.5 green/yellow Ring 100 18 kg/km
0085000S 1.5 green/yellow Spool 500 18 kg/km
0085001 1.5 black Ring 100 18 kg/km
0085001S 1.5 black Spool 500 18 kg/km
0085002 1.5 blue Ring 100 18 kg/km
0085002S 1.5 blue Spool 500 18 kg/km
0085003 1.5 brown Ring 100 18 kg/km
0085003S 1.5 brown Spool 500 18 kg/km
0085005 1.5 yellow Ring 100 18 kg/km
0085010 1.5 transparent Ring 100 18 kg/km
0085104 1.5 red Ring 100 18 kg/km
0085104S 1.5 red Spool 500 18 kg/km
0085105 1.5 white Ring 100 18 kg/km
0086000 2.5 green/yellow Ring 100 30 kg/km
0086000S 2.5 green/yellow Spool 500 30 kg/km
0086001 2.5 black Ring 100 30 kg/km
0086001S 2.5 black Spool 500 30 kg/km
0086002 2.5 blue Ring 100 30 kg/km
0086002S 2.5 blue Spool 500 30 kg/km
0086003 2.5 brown Ring 100 30 kg/km
0086003S 2.5 brown Spool 500 30 kg/km
0086007 2.5 violet Ring 100 30 kg/km
0086010 2.5 transparent Ring 100 30 kg/km
0086104 2.5 red Ring 100 30 kg/km
0086104S 2.5 red Spool 500 30 kg/km
0086105 2.5 white Ring 100 30 kg/km
0086106 2.5 grey Ring 100 30 kg/km
0087000 4 green/yellow Ring 100 45 kg/km
0087001 4 black Ring 100 45 kg/km
0087002 4 blue Ring 100 45 kg/km
0087003 4 brown Ring 100 45 kg/km
0087005 4 yellow Ring 100 45 kg/km
0087010 4 transparent Ring 100 45 kg/km
0087104 4 red Ring 100 45 kg/km
0087105 4 white Ring 100 45 kg/km
0088000 6 green/yellow Depending on length 68 kg/km
0088001 6 black Depending on length 68 kg/km
0088002 6 blue Depending on length 68 kg/km
0088003 6 brown Depending on length 68 kg/km
0088010 6 transparent Depending on length 68 kg/km
0088104 6 red Depending on length 68 kg/km
0089000 10 green/yellow Depending on length 116 kg/km
0089001 10 black Depending on length 116 kg/km
0089002 10 blue Depending on length 116 kg/km
0089003 10 brown Depending on length 116 kg/km
0089010 10 transparent Depending on length 116 kg/km
0089104 10 red Depending on length 116 kg/km
0089105 10 white Depending on length 116 kg/km
0089106 10 grey Depending on length 111 kg/km
0090000 16 green/yellow Depending on length 175 kg/km
0090001 16 black Depending on length 175 kg/km
0090002 16 blue Depending on length 175 kg/km
0090104 16 red Depending on length 175 kg/km
