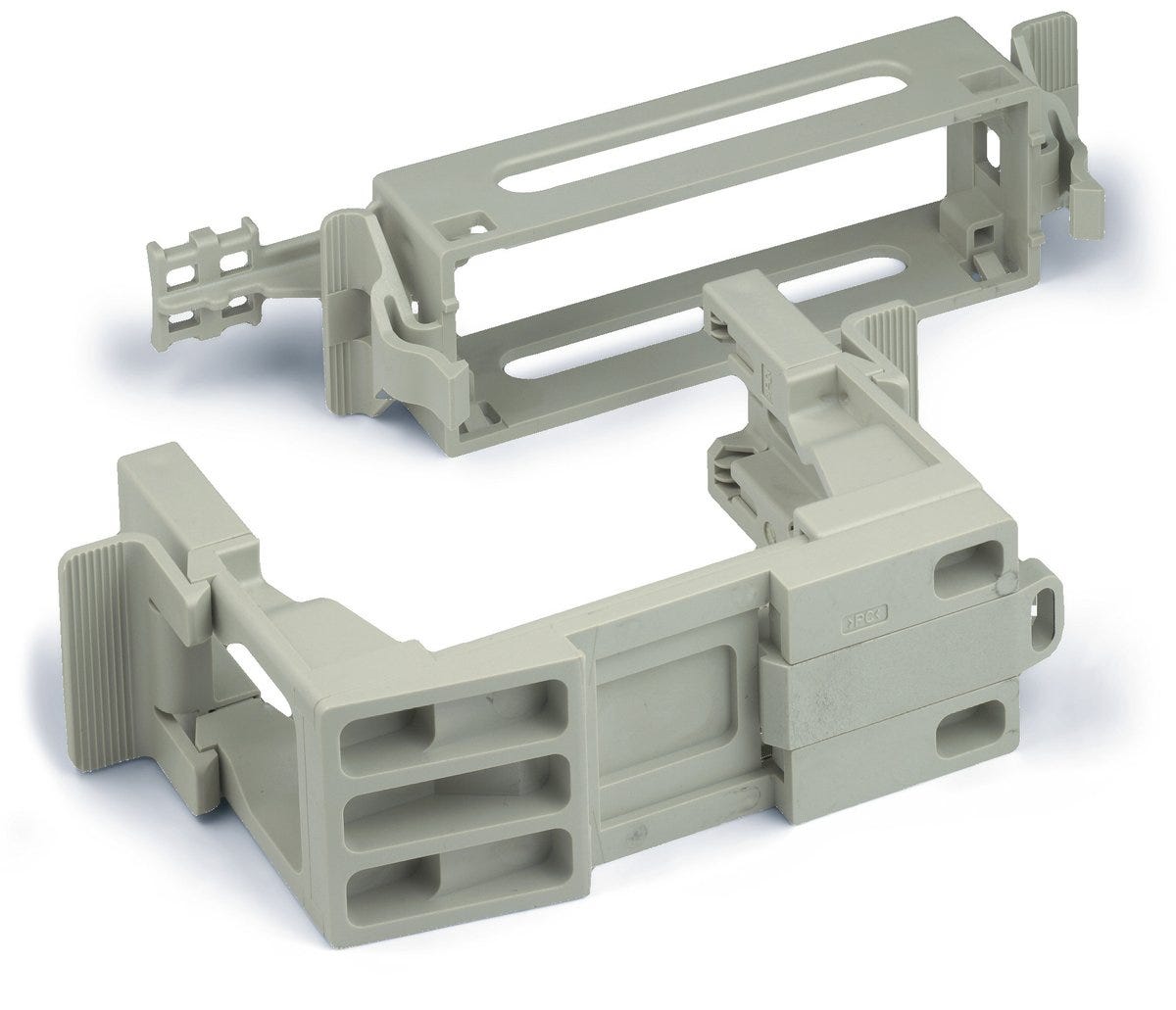

H-B 6 Q+E 安装系统顶部部件
Assembly system; Design size: 6B
H-B 6 Q+E 安装系统顶部部件
SGD 9.86
/
H-B 6 Q+E 安装系统顶部部件
SGD 9.86
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Certificate
CE marked
福利
Rectangular connector inserts snap effortlessly into the top and bottom parts
The lower part can be clipped onto the top-hat rail without tools (clip mechanism)
With space for labelling the rectangular connector insert
Made of robust polycarbonate (flammability class V-0 according to the UL 94 testing procedure for the flammability of plastics)
The upper part can be purchased separately for each size. The lower part can also be purchased separately for each size. Alternatively, a universal, size-adjustable article for sizes H-B 6 to H-B 24 is available in a higher packaging unit (article number 10027810).
申请书
For mounting rectangular connector inserts on 35 mm top-hat rails
For use with rectangular connector inserts of the EPIC®H-B series.
技术属性
一般信息
| Product type | Assembly system |
| Installation type | clip on |
| Brand | EPIC® |
| Design size | 6B |
| Delivery Unit | 10.000 |
| Weight | 0.03 kg |
电气特性
产品设计
| Overall width | 43 |
| Colour | grey |
| RAL colour | RAL 7035 |
| Total length | 60 |
| Material | Polycarbonate |
| Direct mounting possible |
|
| Fastening element type | Rail bracket |
产品特点
认证和标准
| CE marked |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
