H-B Q+E 编码集
Coding element;
H-B Q+E 编码集
SGD 2.67
/
H-B Q+E 编码集
SGD 2.67
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
福利

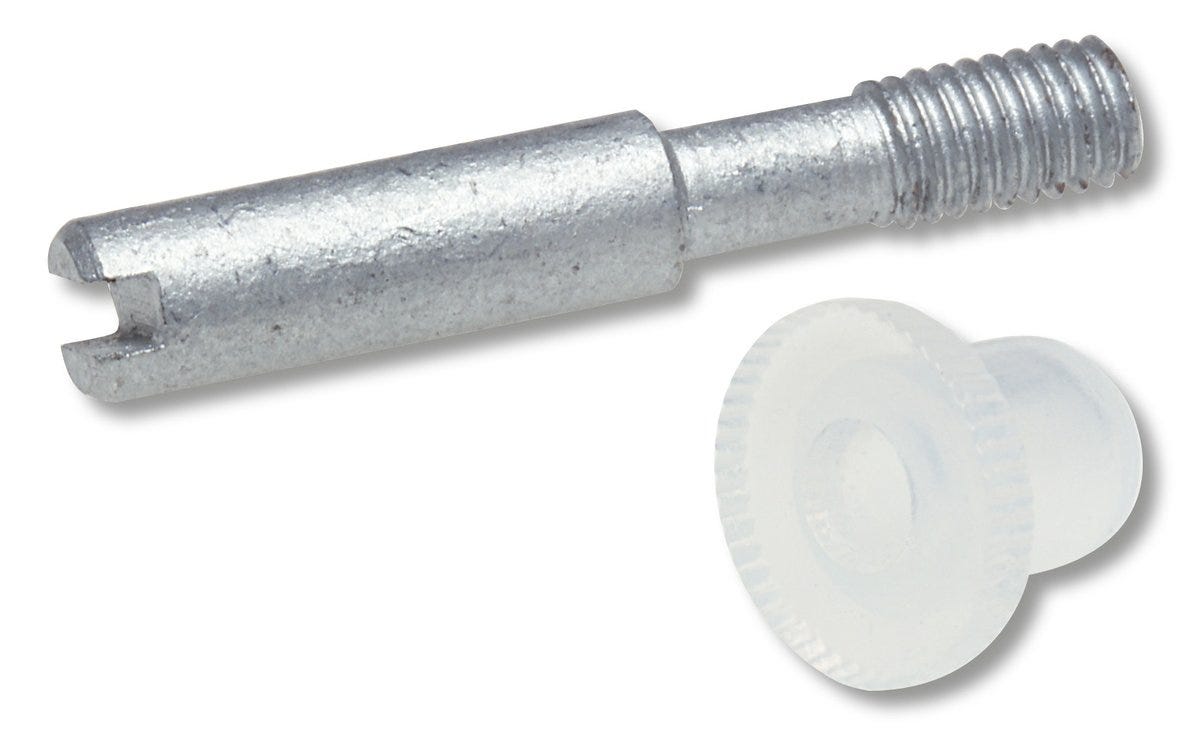

Coding set with large packaging unit, consisting of coding pin and coding bolt
For simple and clear identification of connector inserts with an identical number of poles but different assignments or functions
Coding pins are used for mechanical coding of the connector face and prevent mismating with the mating connector
Coding pins are used for mechanical coding of the connector insert and prevent mismating with the mating connector
Coding pins are placed in the pin insert and pressed in with a screwdriver (the corresponding contact positions in the opposite socket insert must be kept free)
Coding bolts replace one or more fastening screws of the connector insert.
申请书
For use with the EPIC® QUICK & EASY mounting system and the EPIC® H-B series rectangular connector housings.
技术属性
一般信息
| Brand | EPIC® |
| Product type | Coding element |
| Delivery Unit | 50.000 |
| Weight | 0.002 kg |
电气特性
产品设计
产品特点
认证和标准
| CE marked |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from EPIC® QUICK & EASY
| Article number | Design size | Delivery Unit |
|---|---|---|
| 10028000 | 50.000 |
