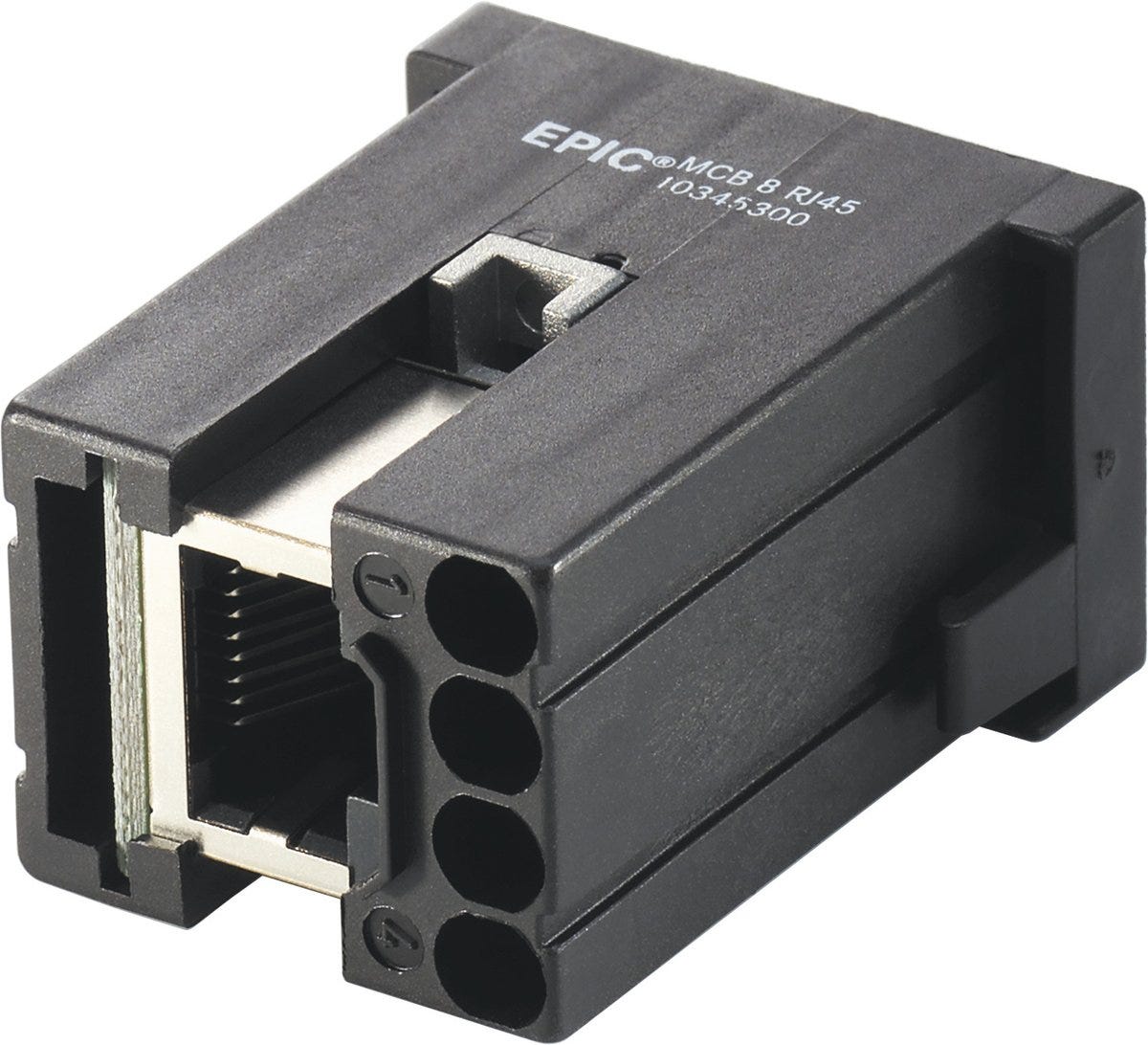

EPIC® MCB 8 RJ45 工业以太网
MC module modular system; Crimp termination; Number of contacts: 12+PE; Required slots: 2; For cross-section (min./max.): 0.14mm² - 2.5mm²;
EPIC® MCB 8 RJ45 工业以太网
SGD 50.77
/
EPIC® MCB 8 RJ45 工业以太网
SGD 50.77
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
icon sturgeon signal
福利
Hybrid module for accommodating an RJ45 connector and also for accommodating 4 power contacts for power supply up to 10 A
Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media
Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)
Snaps effortlessly into the matching module frame
Different crimp contacts available for different conductor cross-sections.
申请书
For the production of a modular connector
Universally applicable for data transmission in LAN networks and Ethernet applications
SAlso suitable for the power supply of smaller connected devices
For use with the rectangular connector module frames of the EPIC® MC series
For use with many EPIC® rectangular connector housings.
技术属性
一般信息
| Product type | MC module modular system |
| Scope of delivery | Order contacts separately |
| Brand | EPIC® |
| Installation type | clip on |
| Contacts included |
|
| Delivery Unit | 5.000 |
| Weight | 0.026 kg |
电气特性
| Rated voltage power contact | 600 V AC rms / DC according to IEC to 4 |
| Protective conductor integrated into insert |
|
| Rated current power contact | 10 A according to IEC |
产品设计
| Contact insert type | Socket |
| Number of PE contacts | 1 |
| Number of data contacts | 8 |
| Conductor connection type | Crimp termination |
| EMC screening |
|
| Insert material | Polyamide |
| With wire protection |
|
| Colour | black |
| Connectable conductor cross section min. (AWG) | 26 AWG |
| Insert material, short form | PA |
| Max. connectable conductor cross-section AWG | 16 AWG |
| Min. connectable conductor cross-section (mm2) | 0.14 |
| Number of contacts | 12+PE |
| Required slots | 2 |
| Screen contact |
|
| Number of signal contacts | 0 |
| With protective conductor |
|
| Max. connectable conductor cross-section (mm2) | 2.5 |
| Number of power contacts | 4 |
产品特点
| Flame-retardant |
|
| Min. number of insertion cycles | 100 |
| Pollution degree | 3 |
| Operating temperature min. | -20 |
| Flame retardance according to | UL 94 V-0 |
| Operating temperature max. | 85 |
| Halogenfree |
|
认证和标准
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| CE marked |
|
| VDE certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
