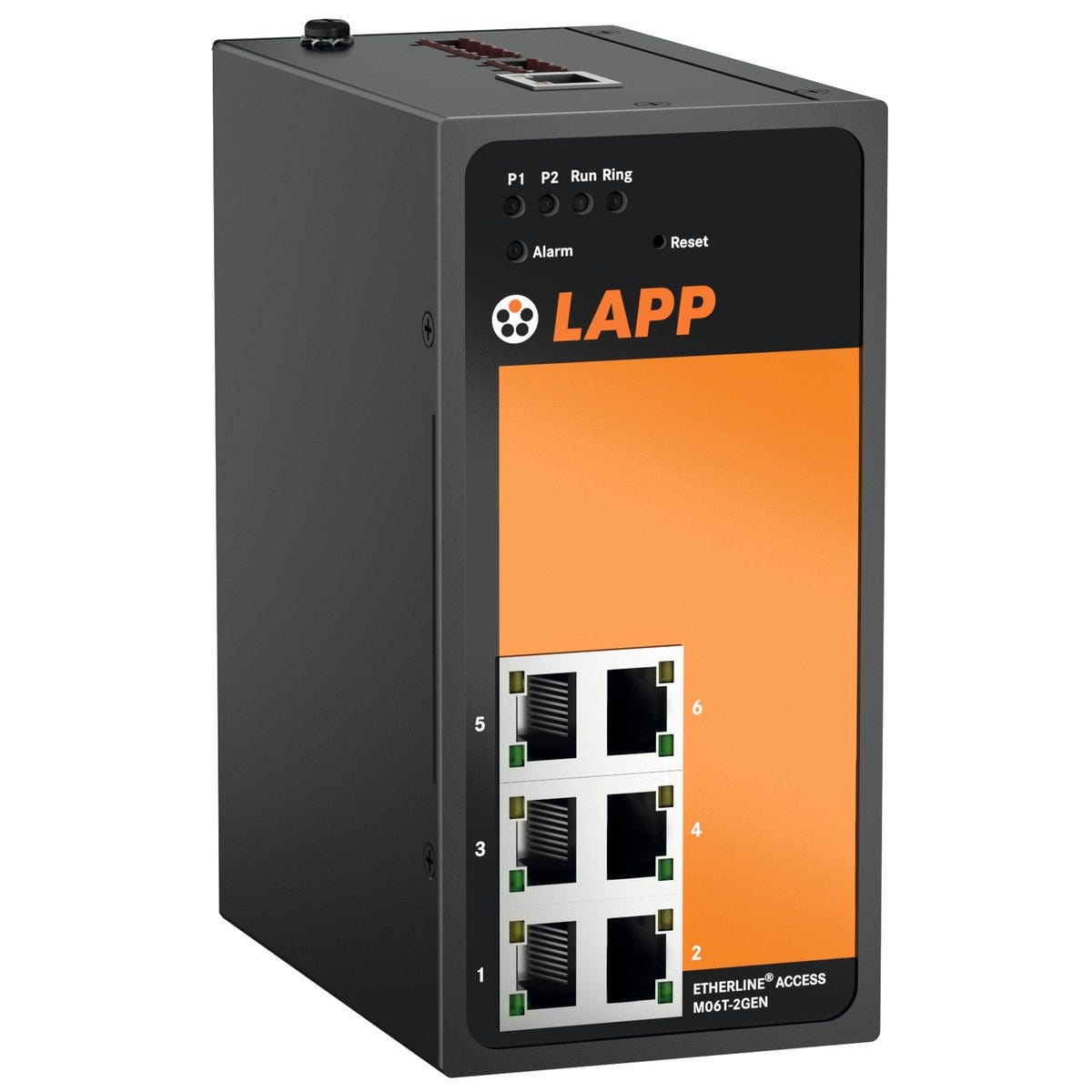

ETHERLINE® ACCESS M06T-2GEN
Managed switch; Ethernet/IP, Modbus/TCP; Interfaces: 6xRJ 45 (10 Mbit/s; 100 Mbit/s)
ETHERLINE® ACCESS M06T-2GEN
SGD 1,055.71
/
ETHERLINE® ACCESS M06T-2GEN
SGD 1,055.71
/
In stock (42)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
CE marked
UL listed
福利
With management functions for better controlling and monitoring of the network. In the event of an error, advanced diagnostic functions can help to locate the fault more quickly
Ring redundancy with a short reconfiguration time of less than 20 ms enables uninterrupted data transmission even if a device fails
A redundant power supply (two connections to the device) ensures uninterrupted data communication even if the primary connection fails
Robust design for direct mounting on 35 mm top-hat rails
Low-noise and maintenance-free as it is operated without fans.
申请书
For use in control cabinets in harsh environments (protection class IP 40)
Extended temperature range (-40°C to +75°C).
技术属性
一般信息
| Product type | Managed switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
| Weight | 1.1 kg |
电气特性
| Current consumption (max.) | 0.62 |
| Nominal operating voltage | 24 V DC, 48 V DC |
| Operating voltage range | 18 V - 60 V DC |
产品设计
| Interfaces (copper) | 10 Mbit/s; 100 Mbit/s: 6 x RJ 45 |
| Interfaces | Copper |
| Total length | 107.5 |
| Number of ports | 6 |
| Configuration | Via web interface |
| Direct mounting possible |
|
| Overall width | 66 |
| Housing colour | black |
| Housing base material | Steel |
| Switch variant | Managed |
| Total height | 135 |
| Status indication |
|
产品特点
| Flame-retardant |
|
| IP protection rating | IP 40 |
| Switching protocols | ACL rate limiters, GVRP, LACP, Port aggregation, Port FlowControl, PVLAN, QoS storm policing, VLAN |
| Package buffer size | 4 |
| Multicast protocols | GMRP, IGMP Snooping, Static multicast |
| Network security protocols | User Classification, HTTPS/SSL, MAC Address Connection to Switch Ports, RADIUS, SSH, TACACS+ |
| Suitable for EX-applications |
|
| Time management | PTP, SNTP Client |
| Redundancy protocols | DR/ DHP, DT-VLAN, STP / RSTP / MSTP |
| Alarm function | CRC error, IP/MAC conflict, Packet loss, Port, Port traffic, Power, Ring, Memory/CPU usage |
| Management and maintenance | Console, Link test, LLDP, Port mirroring, RMON, Loop detection, SNMPv1/v2c/v3, Syslog, Telnet, Web-Interface |
| Data transmission rate | 10, 100 |
| Industrial protocols | Ethernet/IP, Modbus/TCP |
| IP management | DHCP server/snooping/client |
| Operating temperature min. | -40 |
| MAC table size | 8 |
| Operating temperature max. | 75 |
| Service quality | ACL, DSCP, QoS, SP, WRR queue planning |
认证和标准
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
