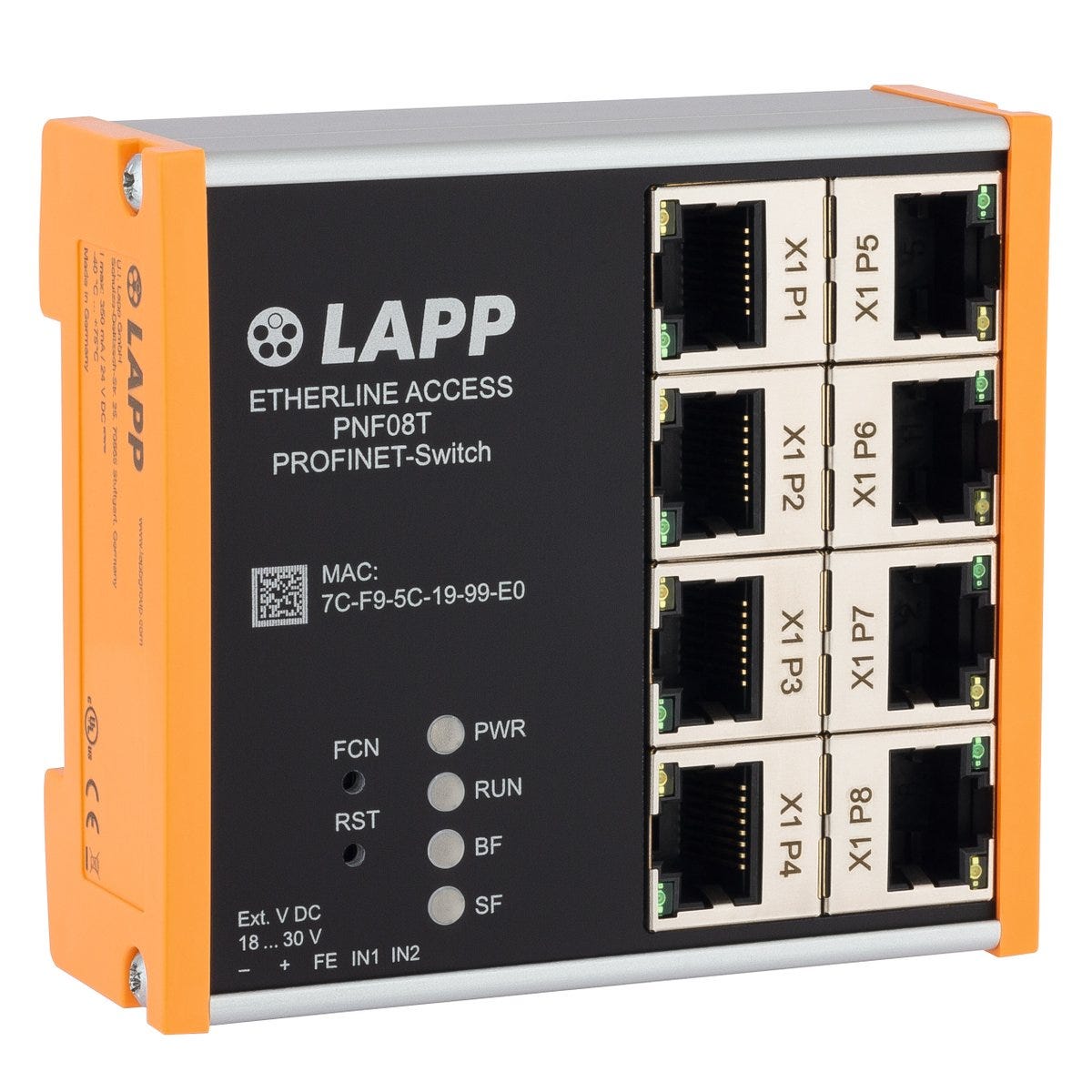

ETHERLINE® ACCESS PNF08T
Managed switch; PROFINET CC-B; Interfaces: 8xRJ 45 (10 Mbit/s; 100 Mbit/s)
ETHERLINE® ACCESS PNF08T
SGD 1,386.51
/
ETHERLINE® ACCESS PNF08T
SGD 1,386.51
/
Low Stock (1)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
CE marked
UL listed
PROFINET
福利

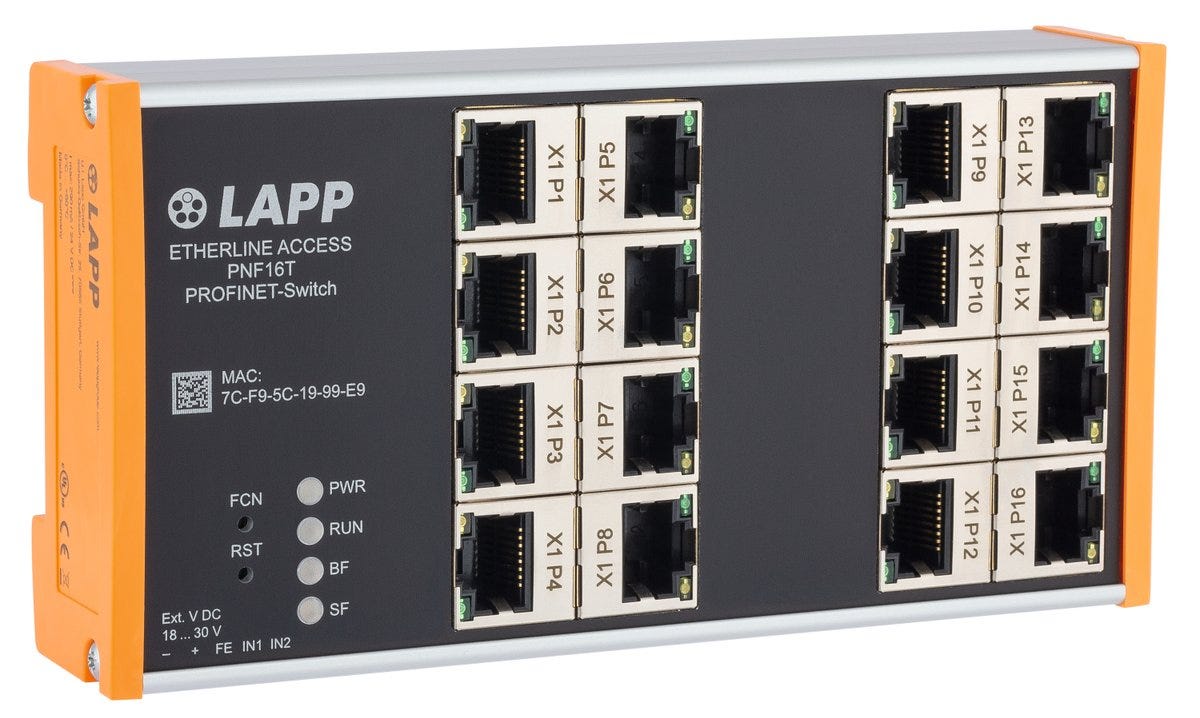

Available with 4, 8 or 16 ports (10/100BASE-T(X))
Extremely space-saving, compact design for direct mounting on 35 mm top-hat rails
Prioritising PROFINET data packages with real-time data
Easy configuration and diagnosis via PROFINET or web interface
Supports MRP (client), LLDP, DCP and SNMP, allows port mirroring, diagnostic alarms and detailed network statistics.
申请书
For use in PROFINET networks for automation technology ("Conformance Class B")
For use in control cabinets (protection class IP 20)
"PNF04" and "PNF08" variants can be used in an extended temperature range from -40°C to +75°C
"PN16" variant can be used at temperatures -10°C to +60°C.
技术属性
一般信息
| Product type | Managed switch |
| Brand | ETHERLINE® |
| valid fieldbus or Ethernet system | PROFINET |
| Delivery Unit | 1.000 |
| Weight | 0.18 kg |
电气特性
| Current consumption (max.) | 0.11 |
| Nominal operating voltage | 24 V DC |
| Operating voltage range | 18 V - 30 V DC |
| Power consumption (max.) | 2.0 |
产品设计
| Interfaces (copper) | 10 Mbit/s; 100 Mbit/s: 8 x RJ 45 |
| Interfaces | Copper |
| Total length | 32 |
| Number of ports | 8 |
| Configuration | Via web interface |
| Direct mounting possible |
|
| Overall width | 83 |
| Housing base material | Aluminium |
| Switch variant | PROFINET-supporting |
| Total height | 76 |
| Status indication |
|
产品特点
| Flame-retardant |
|
| IP protection rating | IP 20 |
| Network security protocols | HTTPS/SSL, SSH |
| Suitable for EX-applications |
|
| Redundancy protocols | MRP-Client |
| Management and maintenance | LLDP, SNMPv1/v2c/v3, Telnet, Web-Interface, Port mirroring |
| Data transmission rate | 10, 100 |
| Industrial protocols | PROFINET CC-B |
| Operating temperature min. | -40 |
| Operating temperature max. | 75 |
认证和标准
| TÜV certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
