ED-PB-90-PG-LED-FC

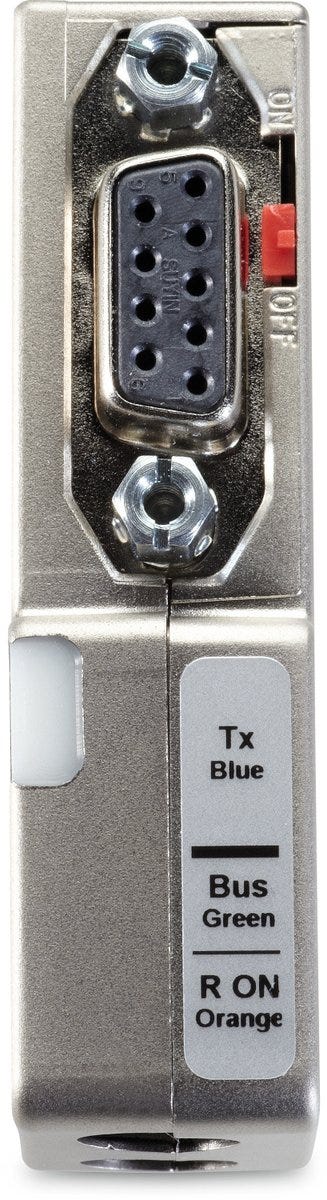

Data connector; PROFIBUS DP; Sub-D Plug/Socket; Angled (90 °); Screw terminal technology; With terminating resistor, With diagnostic interface; diagnostic interface; Status indication
ED-PB-90-PG-LED-FC
SGD 240.30
/
ED-PB-90-PG-LED-FC
SGD 240.30
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
CE marked
UR recognised, UL recognised
PROFIBUS DP, PROFIBUS PA
福利
Wide range of variants available
The small design size make it suitable for use in limited spaces
Easy cable connection thanks to insulation displacement technology
Thanks to the integrated terminating resistors that can be switched via a slide controller, the connector can be used as a transition or terminating connector
Improved protection against electromagnetic interference due to metallised housing
Also available as a variant with coloured LEDs for unambiguous status display
Also available as a "PG" variant with a second D-Sub interface for programming and diagnosis
UL certification according to technical data enables the product to be used on the North American market.
申请书
For use in the PROFIBUS® DP network
For connecting PROFIBUS®-compliant cables (outer cable diameter 5-8 mm).
技术属性
一般信息
| Product type | Data connector |
| Brand | EPIC® |
| valid fieldbus or Ethernet system | PROFIBUS DP |
| Delivery Unit | 1.000 |
| Weight | 0.041 kg |
电气特性
| Impedance | 150 |
产品设计
| Assembly type | Field configurable |
| Connector housing angle | 90 |
| Coded |
|
| Total length | 72 |
| Design connector housing | Angled |
| Connector type | Plug/socket |
| Connector format | Sub-D |
| Number of LEDs | 3 |
| Conductor connection type | Screw terminal technology |
| diagnostic interface |
|
| Overall width | 40 |
| With thread |
|
| Reusable |
|
| Locking type | Screw lock |
| Total height | 17 |
| Status indication |
|
| Shielded |
|
产品特点
| IP protection rating | IP 20 |
| Suitable for EX-applications |
|
| Pollution degree | 2 |
| Fast Connect (FC) cable |
|
| UV-resistant |
|
| Operating temperature min. | -25 |
| Variant of the Sub-D | With terminating resistor, With diagnostic interface |
| Operating temperature max. | 70 |
认证和标准
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
