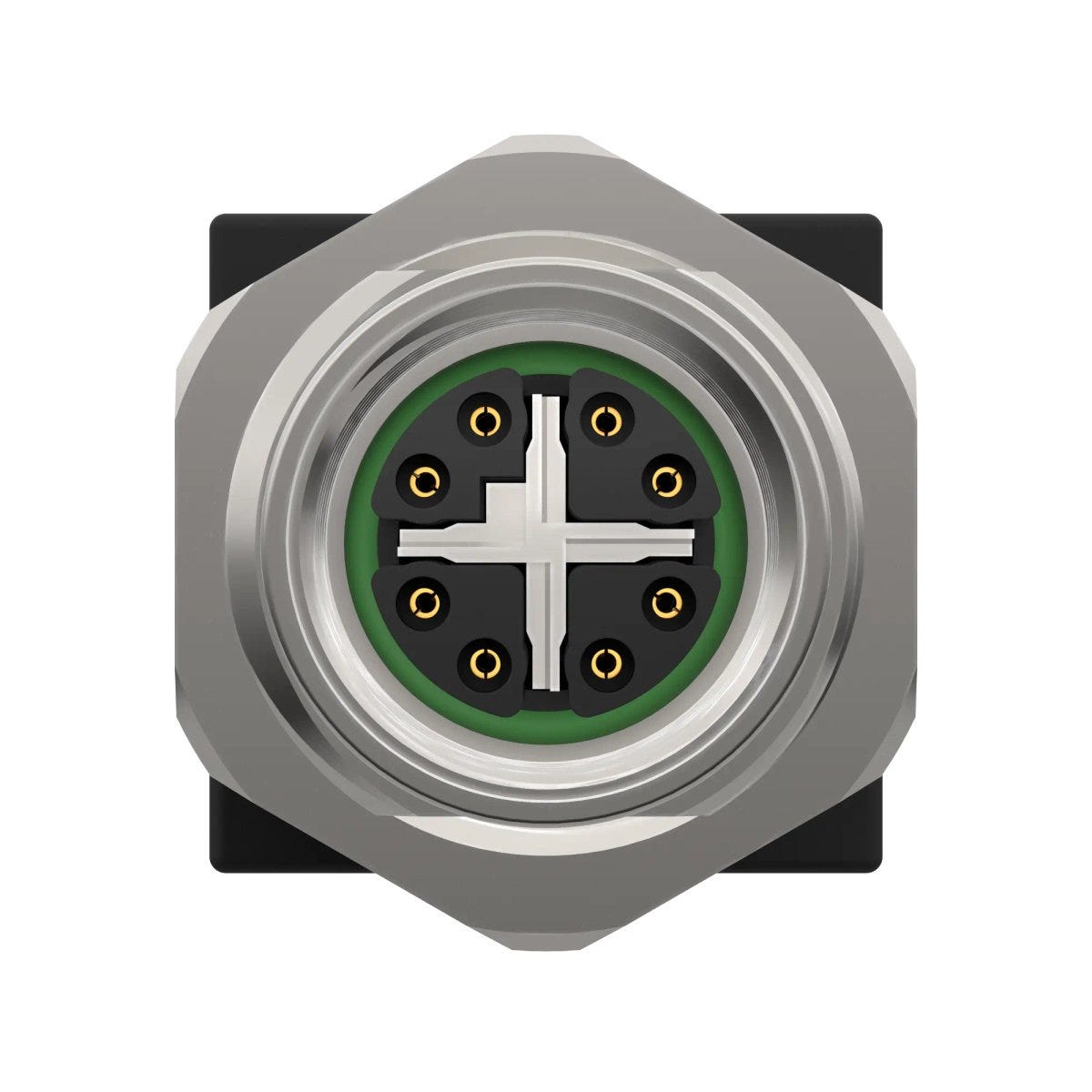

ED-IE-AX-M12X-6A-67-FC
Ethernet connector; PROFINET, ETHERNET/IP, EtherCAT; Cat.6A; M 12 (X-coded); Plug; Straight (180 °)
ED-IE-AX-M12X-6A-67-FC
SGD 107.61
/
ED-IE-AX-M12X-6A-67-FC
SGD 107.61
/
In stock (232)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Enables easy transition from M12 to RJ45
When connected, protection class IP 67 can be achieved on the M12 side
The M12 socket is available D-coded or X-coded
The angled shape of the connector is suitable for a space-saving cable outlet.
申请书
Designed as a control cabinet feed-through for connecting an M12 connection to an RJ45 patch cable
For use with assembled data cables (M12D or M12X connector).
技术属性
一般信息
| Product type | Control cabinet bushing |
| Brand | EPIC® |
| valid fieldbus or Ethernet system | Ethernet |
| Delivery Unit | 1.000 |
电气特性
| Rated voltage | 50 V AC rms / DC according to (manufacturer specifications) |
| Rated current | 0.5 A according to (manufacturer specifications) |
| Max. contact resistance | 10 |
产品设计
| Assembly type | Assembled |
| Connector housing angle | 180 |
| Coded |
|
| Total length | 54 |
| Design connector housing | Straight |
| Connector type | Socket |
| Connector format | M 12, RJ 45 |
| Thread type | Metric |
| Housing variant | Control cabinet bushing |
| Conductor connection type | Screw lock |
| Thread size | M 12 |
| Overall width | 19.7 |
| Colour | black |
| Housing base material | Polyvinylchloride |
| With thread |
|
| Dust protection cap |
|
| Housing base material, short form | PVC |
| Reusable |
|
| Number of contacts | 8 |
| Total height | 19.7 |
| Screen contact |
|
| Shielded |
|
| Coding type | X-coded |
产品特点
| IP protection rating | IP 67, IP 20 |
| Min. number of insertion cycles | 100 |
| Ethernet cable category | Cat.6A |
| Pollution degree | 2 |
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 80 |
认证和标准
| cUR recognized |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
