ED-IE-AX-RJ45F-6A-B-FC

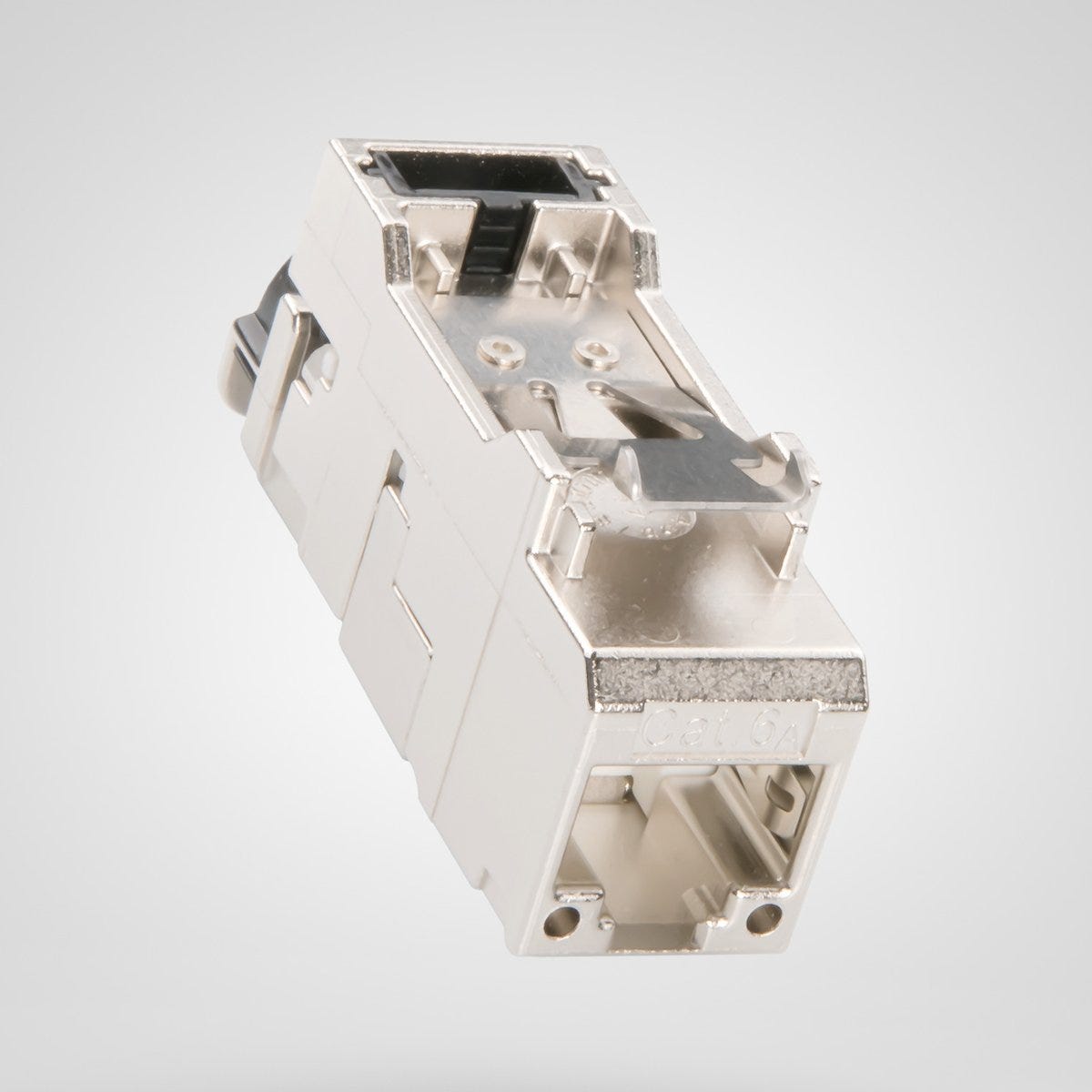

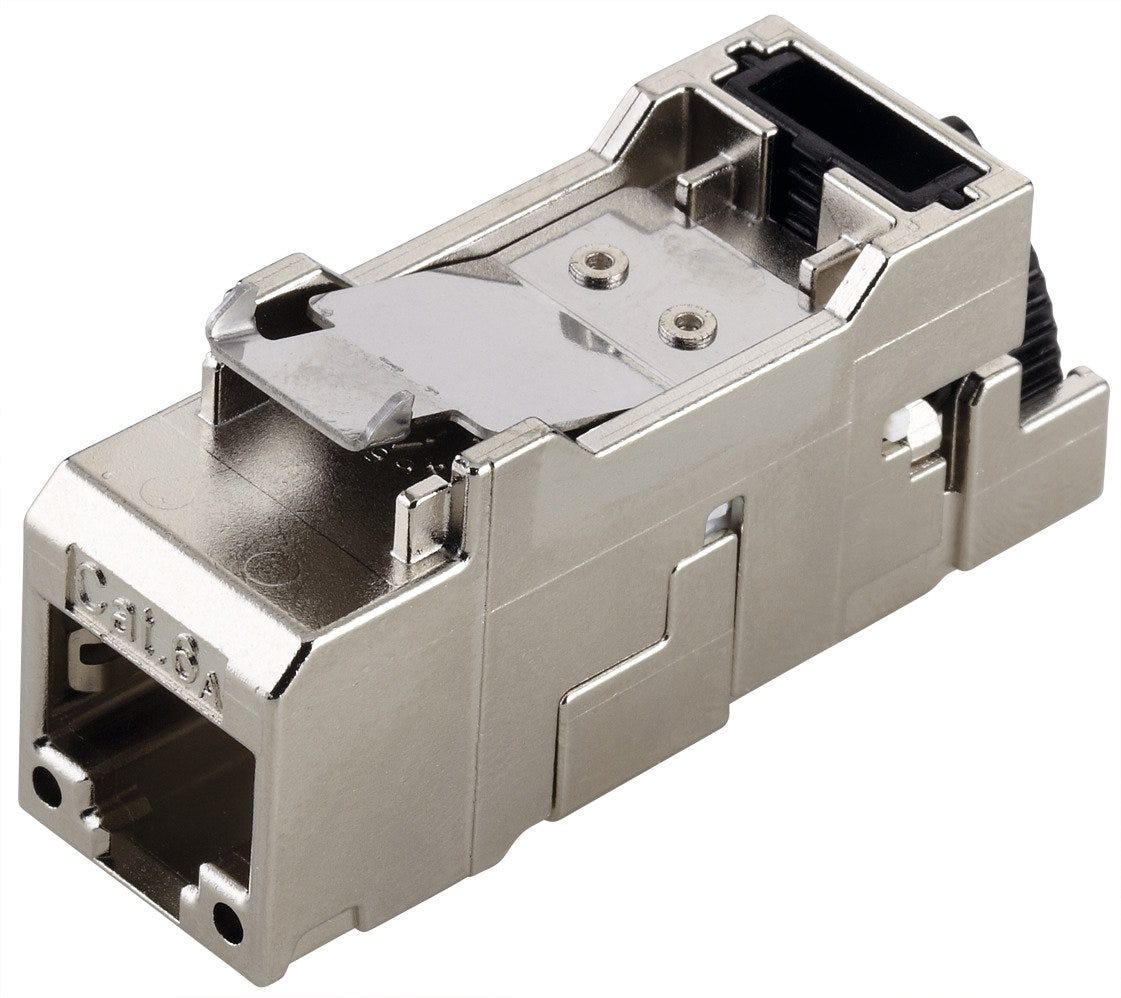

Data connector; ETHERNET/IP, PROFINET, EtherCAT, Ethernet; Cat.6A; RJ 45; Socket; Straight (180 °)
ED-IE-AX-RJ45F-6A-B-FC
SGD 29.08
/
ED-IE-AX-RJ45F-6A-B-FC
SGD 29.08
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
UL listed
ETHERNET/IP
PROFINET
福利
Easy cable connection thanks to insulation displacement technology
Low error potential when connecting connectors and cores using the core manager with colour coding according to EIA/TIA standard
Stability thanks to die-cast zinc metal housing
UL certification according to technical data enables the product to be used on the North American market.
申请书
For use with Cat.6A cables
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T.
技术属性
一般信息
| Brand | EPIC® |
| Product type | Data connector |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET, EtherCAT, Ethernet |
| Delivery Unit | 24.000 |
| Weight | 0.02 kg |
电气特性
| Rated current | 1 A according to IEC |
| Max. contact resistance | 20 |
产品设计
| Total length | 44.1 |
| Max. connectable conductor cross section solid-conductor (AWG) | 22 AWG |
| Design connector housing | Straight |
| Connector format | RJ 45 |
| Overall width | 14.8 |
| Housing colour | Metal |
| Min. connectable conductor cross-section fine-wire (AWG) | 27 AWG |
| Dust protection cap |
|
| Number of contacts | 8 |
| Core manager colour coding | TIA 568B |
| Total height | 21.9 |
| Housing coating | Nickel-plated |
| Type of connection | Plug to socket |
| Shielded |
|
| For min. cable outer diameter | 5 |
| Housing coating, short form | Ni |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Material contact surface | Gold-plated |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Au |
| Screen contact type | Shield terminal |
| For max. cable outer diameter | 9 |
| Connector type | Socket |
| Housing variant | Rectangular housing |
| Conductor connection type | Penetration technique |
| Housing base material | Zinc alloy |
| With thread |
|
| Locking type | Latch |
| Screen contact |
|
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
产品特点
| IP protection rating | IP 20 |
| Installation temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 70 |
| Min. number of insertion cycles | 750 |
| Ethernet cable category | Cat.6A |
| Max. assembly temperature | 70 |
| Contact application areact | Data / signals |
认证和标准
| cUR recognized |
|
| Product standard according to IEC | RJ45 according to IEC 60603-7-51 |
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
