EPIC® DATA CCR 故障分析

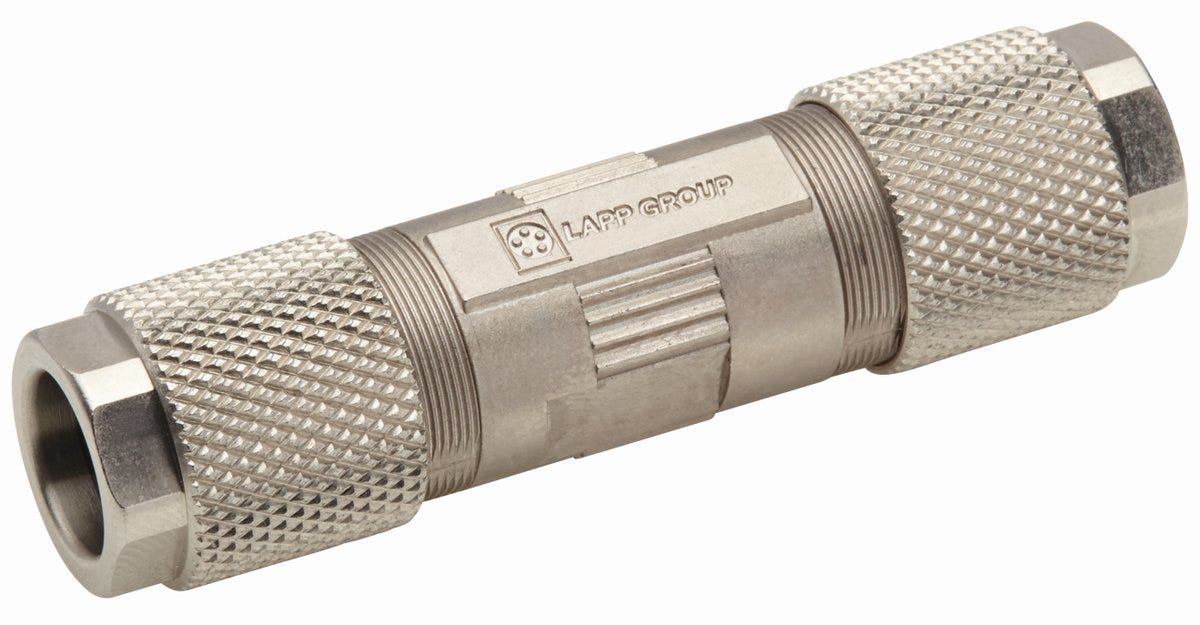

Cable tie round; ETHERNET/IP, PROFINET, Ethernet, EtherCAT; Cat.7A; Coupling; Straight (180 °); Cable diameter: 5.0 - 9.7 mm
EPIC® DATA CCR 故障分析
SGD 133.45
/
EPIC® DATA CCR 故障分析
SGD 133.45
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
icon sturgeon signal
Certificate
cUL listed US, UL listed US
ETHERNET/IP
PROFINET
福利
Easy cable connection thanks to insulation displacement technology
When connected, protection class IP 67 can be achieved
The integrated vibration protection of the connector makes it resistant to shocks and vibrations
UL certification according to technical data enables the product to be used on the North American market.
申请书
Can be used universally on machine interfaces for many applications in data and signal transmission
Also suitable for EtherCAT, EtherNet/IP and 4-pair PROFINET applications
Shielded connectors with metal housings are particularly suitable for environments where electromagnetic compatibility (EMC) is required
Suitable for use at temperatures up to -40°C.
技术属性
一般信息
| Brand | EPIC® |
| Product type | Cable tie round |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET, Ethernet, EtherCAT |
| Delivery Unit | 1.000 |
| Weight | 0.027 kg |
电气特性
| Rated current | 0.5 A according to (manufacturer specifications) |
| Rated voltage | 48 V AC rms / DC according to (manufacturer specifications) |
产品设计
| Assembly type | Field configurable |
| Total length | 62 |
| Max. connectable conductor cross section solid-conductor (AWG) | 22 AWG |
| Design connector housing | Straight |
| Housing colour | Metal |
| Min. connectable conductor cross-section fine-wire (AWG) | 26 AWG |
| Number of contacts | 8 |
| Core manager colour coding | TIA 568A |
| Connectable core diameter max. (mm) | 1.6 |
| Connector diameter | 16.8 |
| Housing coating | Nickel-plated |
| Type of connection | Cable to cable |
| Shielded |
|
| For min. cable outer diameter | 5.0 |
| Housing coating, short form | Ni |
| Min. connectable conductor cross section solid conductor (AWG) | 26 AWG |
| Seal type | Sealing cone |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Sn |
| Screen contact type | Shield terminal |
| For max. cable outer diameter | 9.7 |
| Connector type | Coupling |
| Housing variant | Cable coupler hood |
| Conductor connection type | Insulation displacement contact |
| Housing base material | Zinc alloy |
| With thread |
|
| Reusable |
|
| Min. connectable conductor cross-section (mm) | 0.85 |
| Max. connectable conductor cross-section fine-wire (AWG) | 22 AWG |
产品特点
| IP protection rating | IP 67 |
| Corrosion-resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 85 |
| Ethernet cable category | Cat.7A |
| Pollution degree | 1 |
| Vibration protection |
|
| Contact application areact | Ethernet |
认证和标准
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
