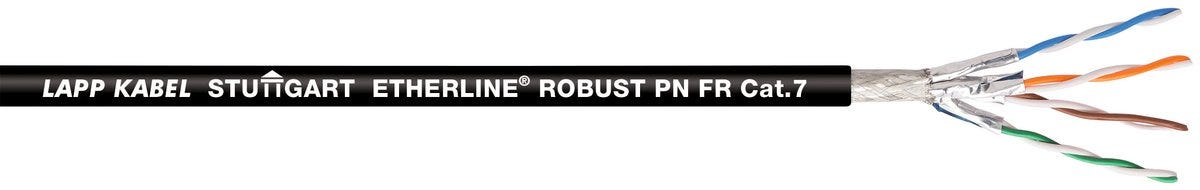

ETHERLINE® ROBUST PN FR Cat.7

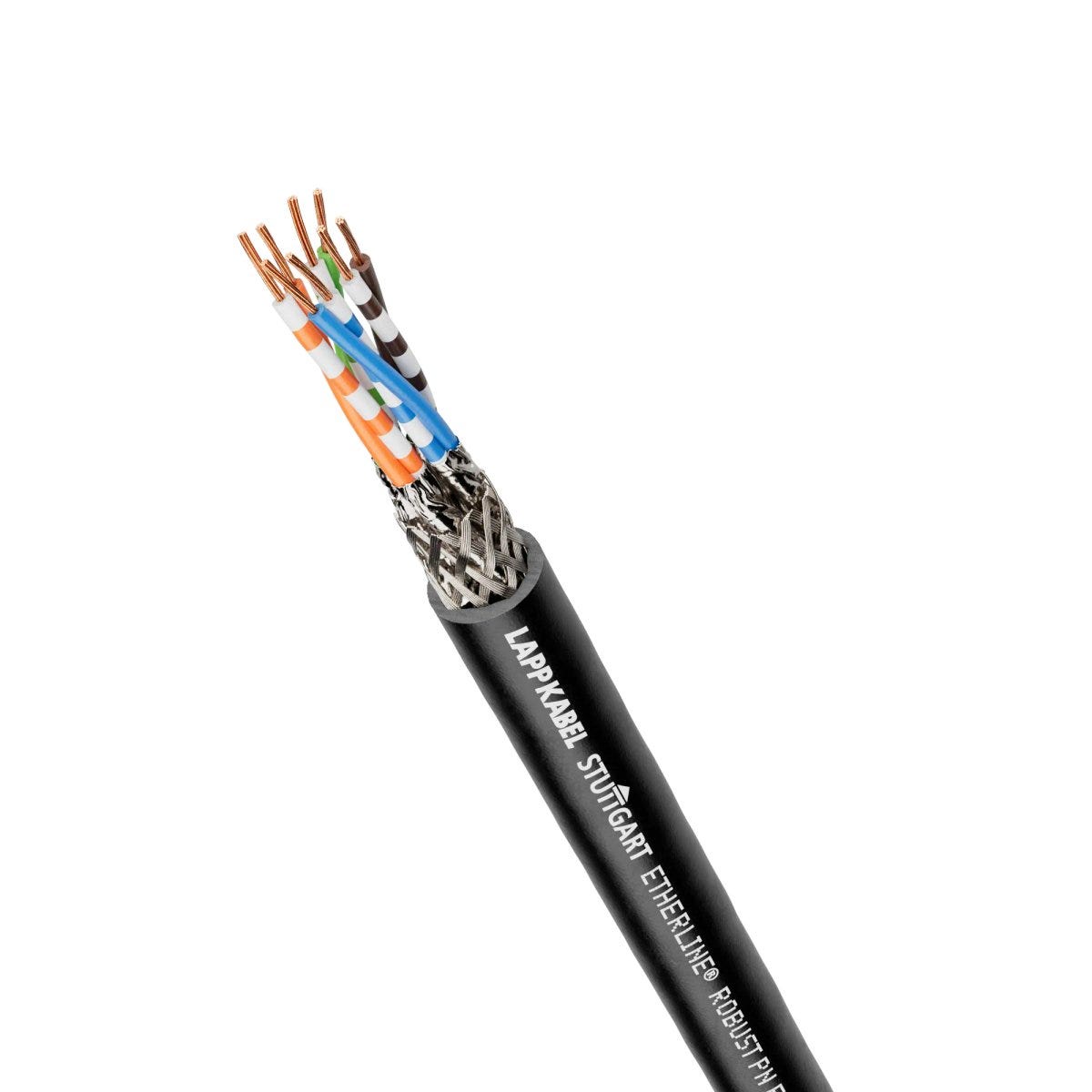

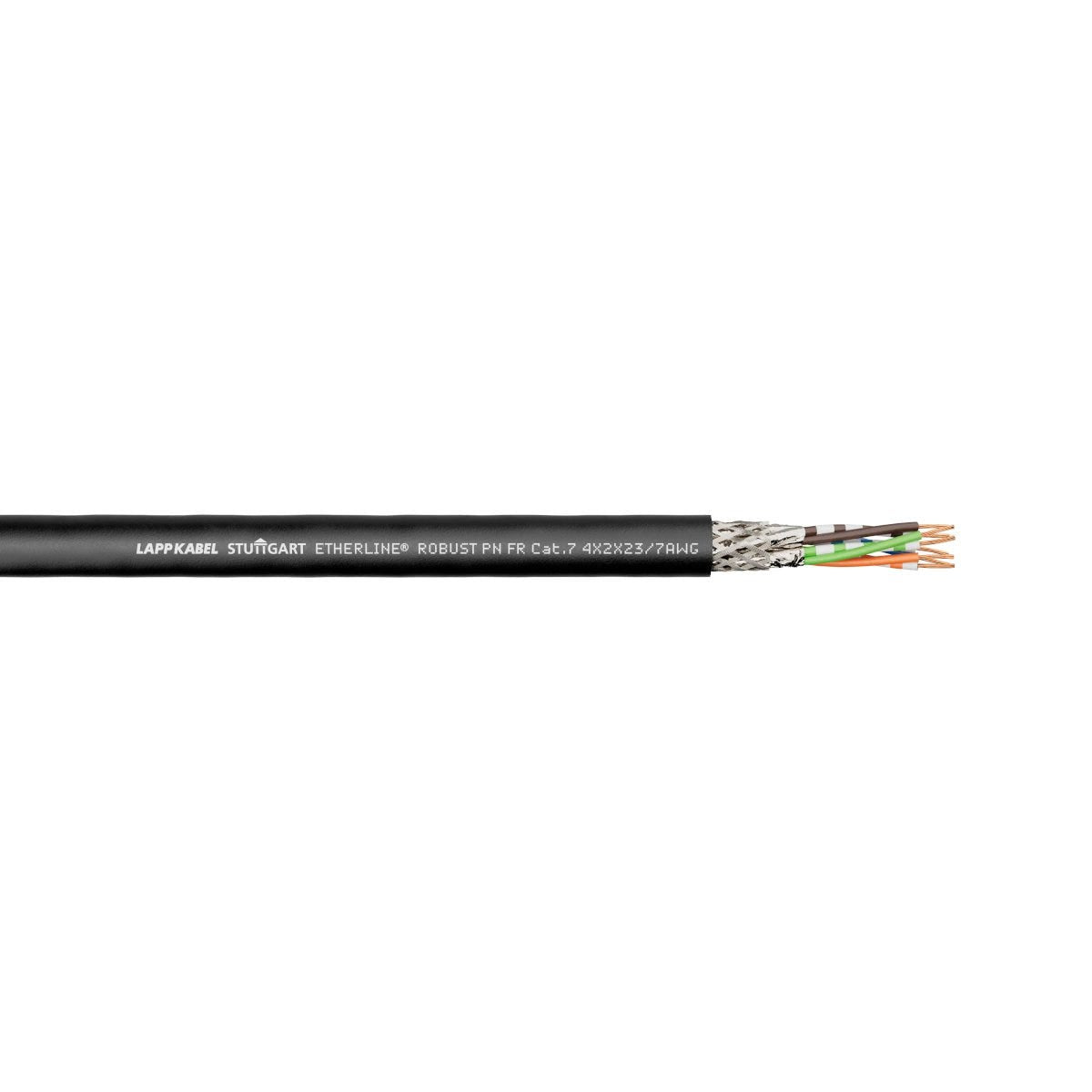

Ethernet cable; Flexible; ETHERNET/IP, EtherCAT; Cat.7; S/FTP; TPE; black
ETHERLINE® ROBUST PN FR Cat.7
SGD 10.51
/
ETHERLINE® ROBUST PN FR Cat.7
SGD 10.51
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
uv-resistant.
icon sturgeon signal
Product Carbon Footprint
Certificate
CE marked
.svg "Ecolab"){kind=logo}
Ecolab
ETHERNET/IP
福利
Excellent resistance to a wide range of chemical substances (e.g. ammonia compounds, biogases), as well as plant, animal or synthetic fats and oils (e.g. bio-oils and ester-based hydraulic oils)
Particularly suitable in conjunction with water-soluble cleaning agents and coolants
Resistant to hot water and steam when subjected to frequent steam jet cleaning
Tested resistance to ECOLAB® disinfectants and cleaning agents
Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with high degree of coverage (SF/UTP)
For the transmission of analogue and digital signals in the frequency range up to 100 MHz (Cat. 5e) or up to 600 MHz (Cat. 7).
申请书
Can be used universally on machine interfaces for many applications in data and signal transmission
Typical areas of application are washing bays, sewage treatment plants, composting plants and applications in the food industry
“PN” variants are suitable for flexible use in the PROFINET network (type B)
Also suitable for EtherCAT and EtherNet/IP applications
For fixed installation and structured building cabling according to EN 50173 and ISO/IEC 11801
Suitable for applications with UV-C radiation (according to LAPP's internal test method)
Suitable for outdoor use.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, EtherCAT |
| Copper index | 48.000 kg/km |
| Copper index (lb) | 322.500 lb |
| Weight | 73 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 284 |
| Possible data transmission rates | 10000 |
| Signal propagation speed (nom.) | 0.71 |
| Test voltage core/screening | 1 |
| Test voltage core/core | 1 |
| Rated voltage core to core | 50 V AC rms according to IEC |
产品设计
| Nominal core diameter | 1.5 |
| Conductor design | 7-wire |
| Nominal outer diameter | 8.7 mm |
| Conductor material | Bare copper |
| Min. outer diameter | 8.4 |
| Nominal conductor cross-section (metric) | 0.25 mm² |

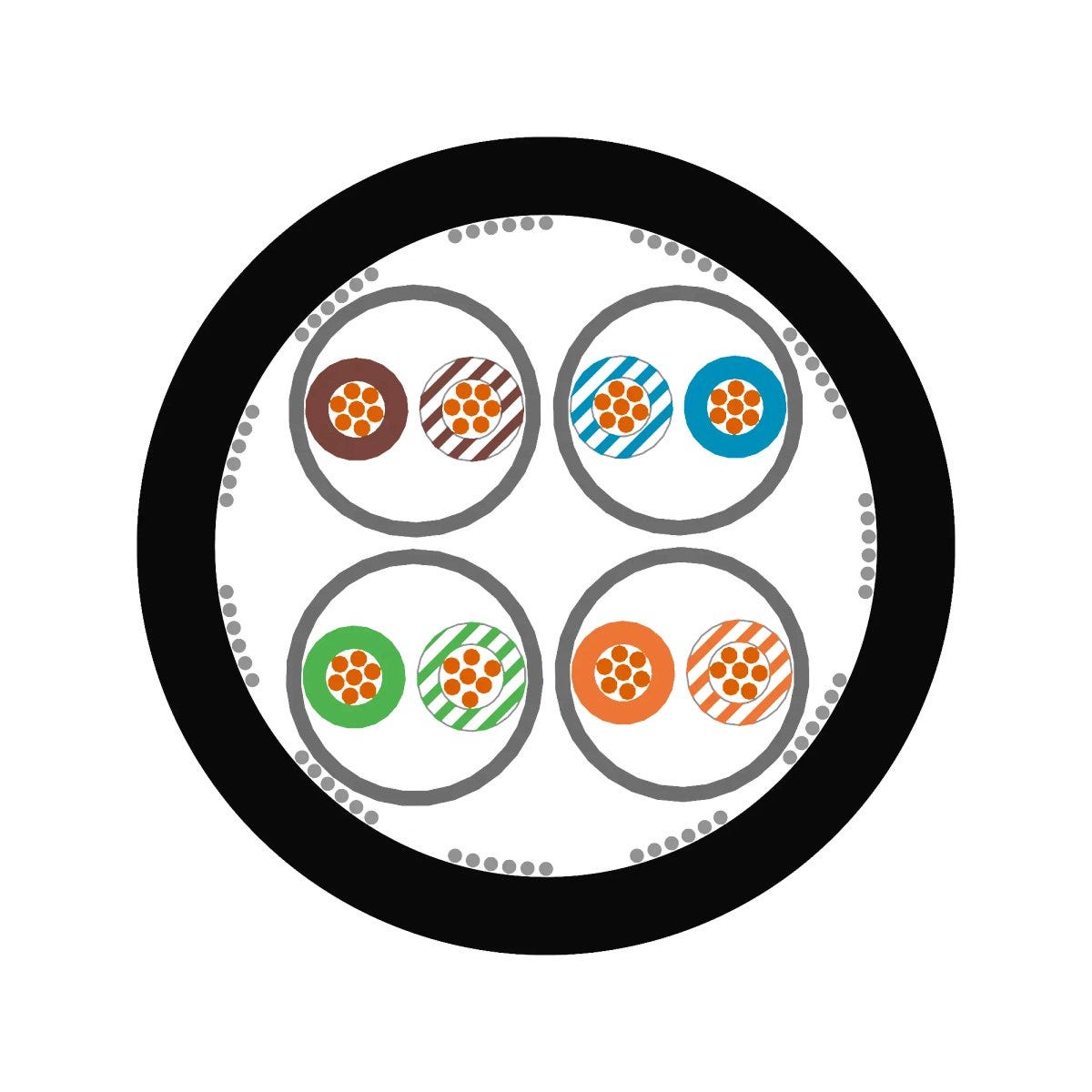

| Conductor count/size | 4x2x23/7AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | black |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | S/FTP |
| Cable sheath RAL colour | RAL 9005 |
| With rodent protection |
|
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 8 |
| Nominal conductor cross-section (AWG) | 23 AWG |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Thermoplastic elastomers |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| With armouring |
|
| Max. outer diameter | 9 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | TPE |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Ozone-resistant according to | EN 50396, method B |
| Ozone resistant |
|
| Installation temperature min. | -40 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 72.0 mm |
| PWIS-free |
|
| Application area | Flexible |
| max. conductor temperature, occasionally moved | -40 °C to 80 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.7 |
| Minimum bending radius in mm, occasionally flexing | 90.0 mm |
| Max. assembly temperature | 80 |
| weather resistant |
|
| Minimum bending radius, stationary | 8 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Temperature, fixed installation | -50 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2 |
| UV-resistant according to | VDE 0276-605 |
| UV-C resistant |
|
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
产品系列列表
All articles from ETHERLINE® ROBUST FR
| Article number | Conductor count/size | Ethernet cable category | Conductor cross-section (mm2) | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|---|---|
| 2170454 | 1x4x22AWG | Cat.5e | 0.34 | 6.5 | 55 kg/km | ||
| 2170455 | 4x2x23/7AWG | Cat.7 | 0.25 | 8.7 | 73 kg/km | ||
| 2170456 | 4x2x26/7AWG | Cat.7 | 0.14 | 6.2 | 40 kg/km |
