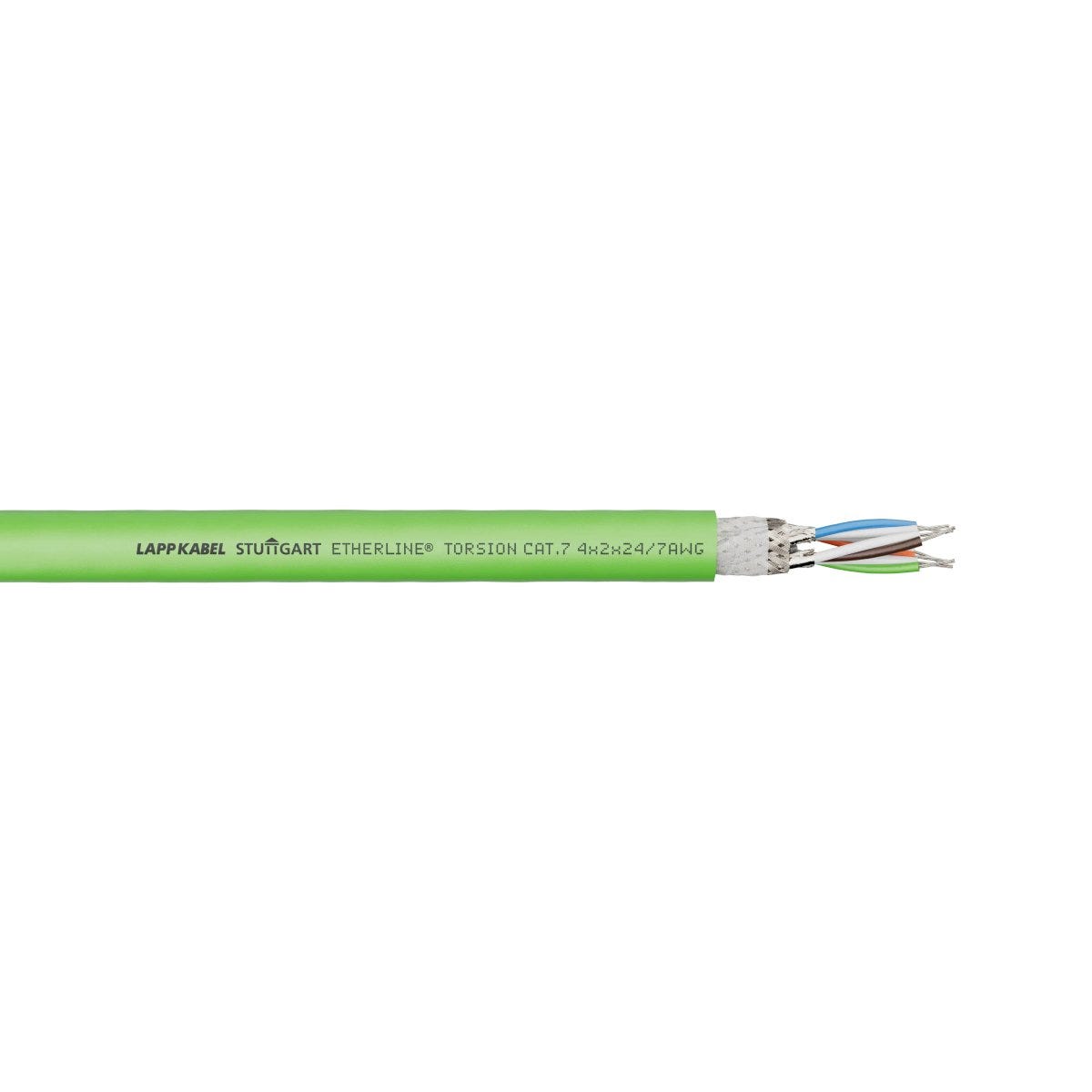

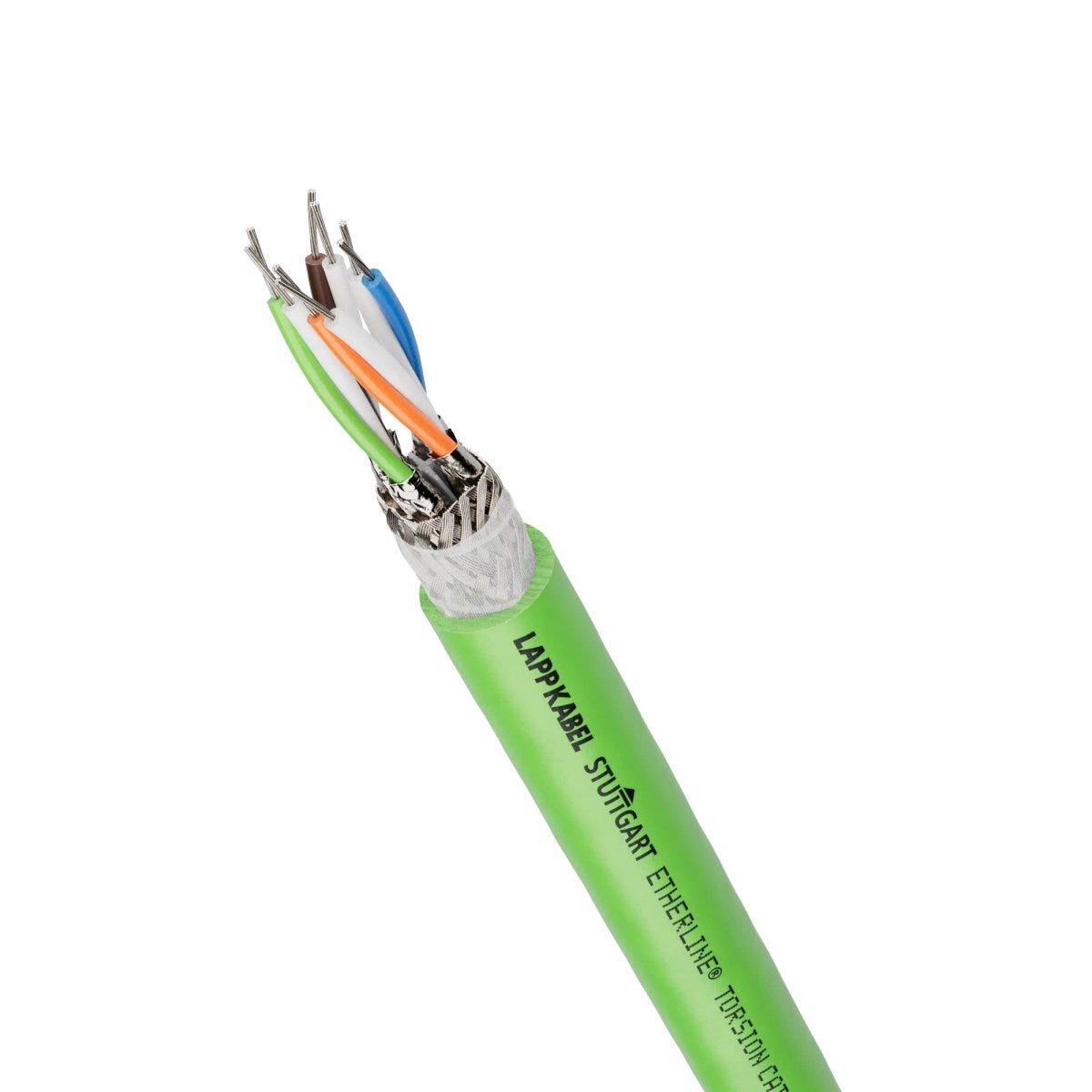

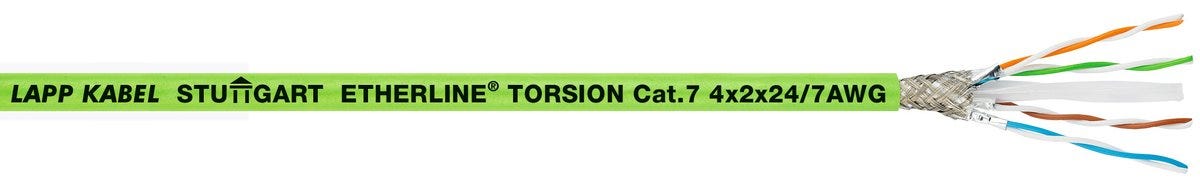

ETHERLINE® TORSION Cat.7
Ethernet cable; Torsion, Flexible; PROFINET, ETHERNET/IP, Ethernet; PROFINET® application: Type C; Cat.7; SF/FTP; PUR; Halogenfree; green
ETHERLINE® TORSION Cat.7
SGD 20.22
/
ETHERLINE® TORSION Cat.7
SGD 20.22
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
uv-resistant.
torsion resistant
icon sturgeon signal
Certificate
CE marked
UR recognised US, cUR recognised US
cUL listed US, UL listed US
ETHERNET/IP
PROFINET
福利
Fast information exchange through Ethernet technology. , For transmission of analogue and digital signals in the frequency range up to 600 MHz
Halogen free core insulation and sheath compound to meet special fire safety requirements

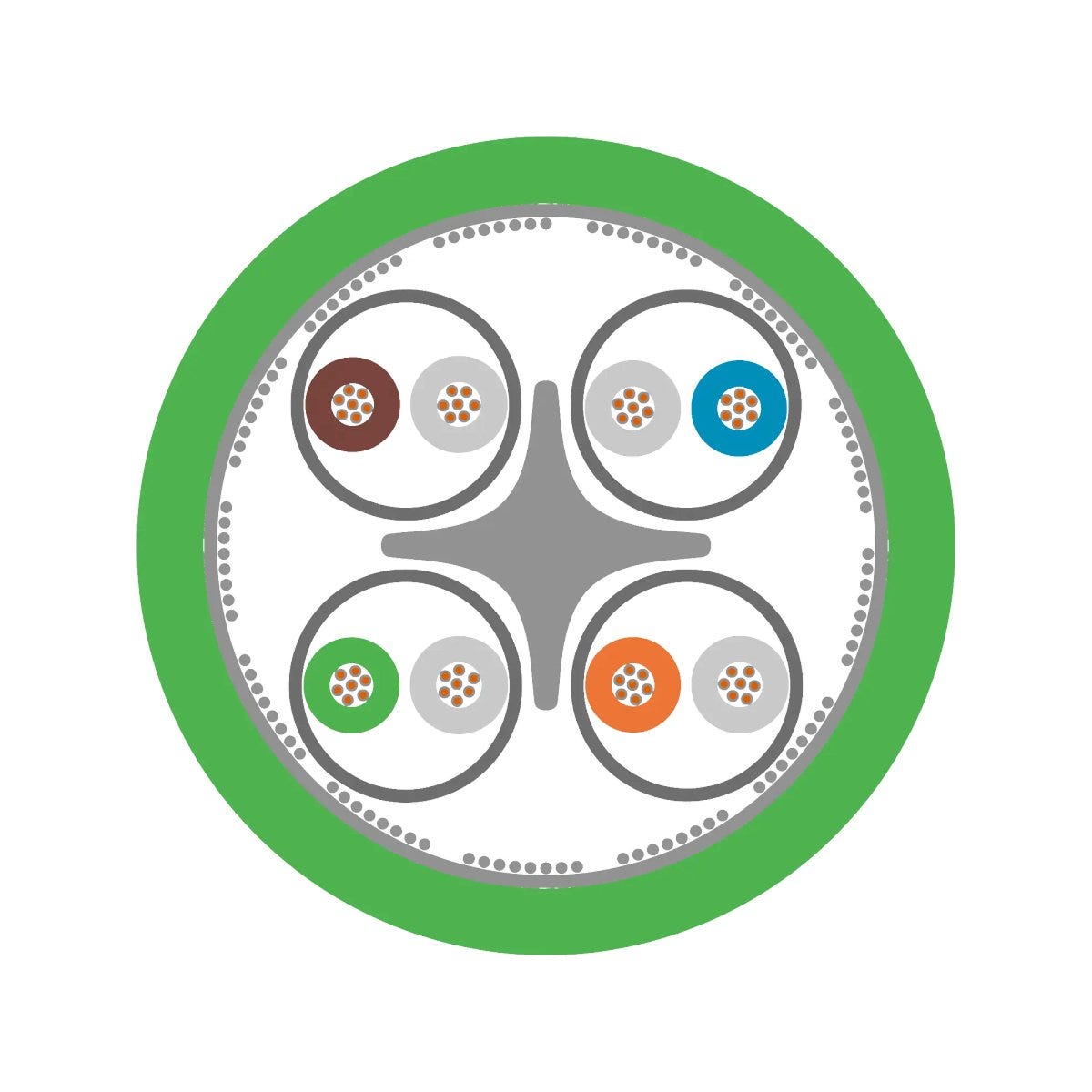

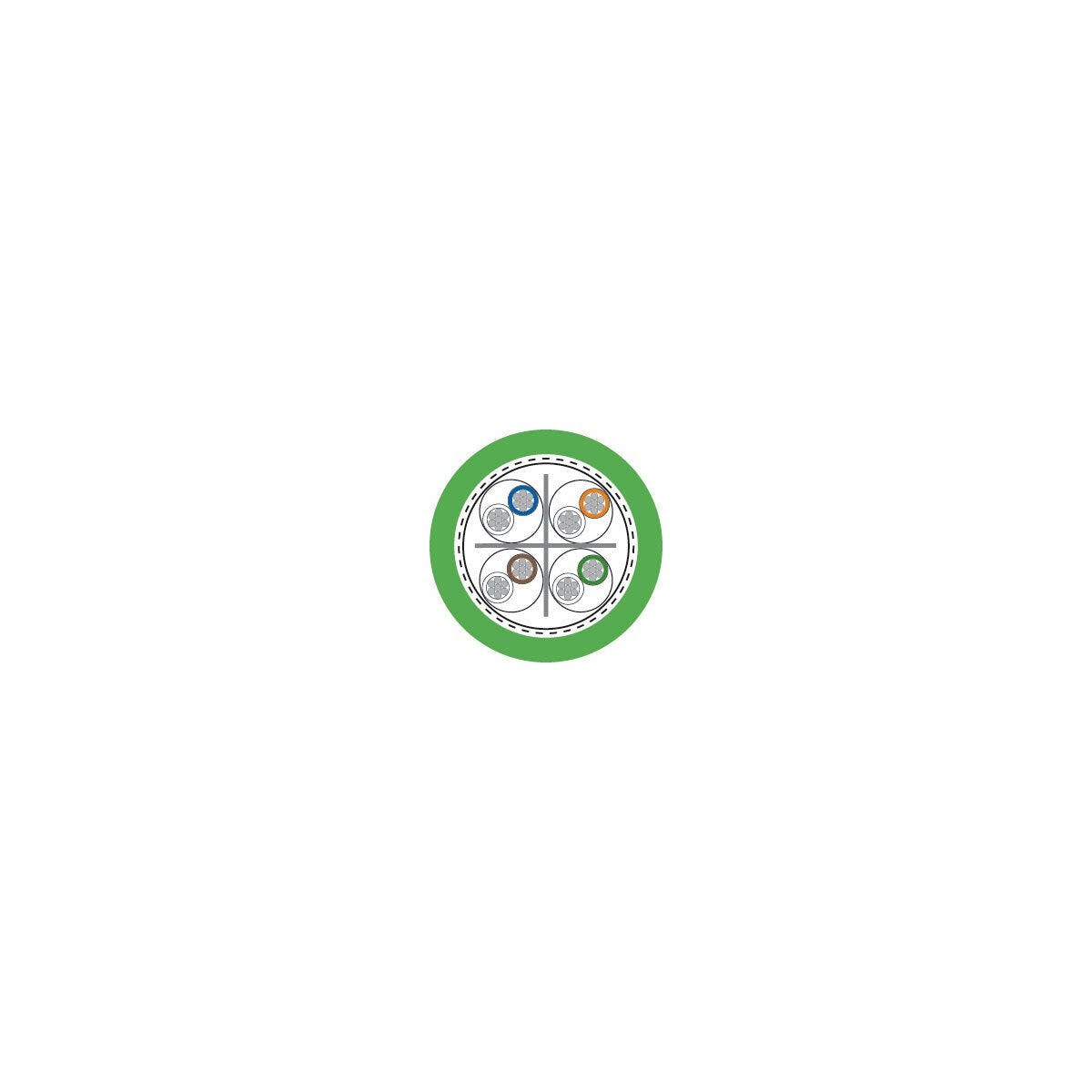

Ideal protection against electromagnetic interference due to aluminium-laminated pair shielding and copper stranded shielding as overall shielding (S/FTP)
UL/CSA certification according to technical data enables the product to be used in the North American market.
申请书
The cable design allows flexible, constantly flexing use under torsional stress in industrial robots and handling devices
Also suitable for torsion applications in wind turbines
For flexible use in the PROFINET network (type C)
Also suitable for EtherCAT and EtherNet/IP applications
Suitable for all LAN networks and Ethernet applications up to 10GBASE-T
Can be used in dry and damp environments
The PU outer sheath withstands high mechanical loads
The PU outer sheath is resistant to mineral oil-based lubricants and is highly chemical resistant
Suitable for outdoor use.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | PROFINET, ETHERNET/IP, Ethernet |
| Copper index | 44.000 kg/km |
| Copper index (lb) | 295.640 lb |
| Weight | 95 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (4PPoE) |
| Loop resistance at 20°C | 175.2 |
| Possible data transmission rates | 10000 |
| Test voltage core/screening | 0.75 |
| Test voltage core/core | 0.75 |
| Rated voltage core to core | 50 V AC rms according to IEC |
产品设计
| Nominal core diameter | 1.4 |
| Nominal outer diameter | 9.4 mm |
| Max. diameter of core | 1.45 |
| Conductor material | Tin-plated copper |
| Min. outer diameter | 9.2 |
| Nominal conductor cross-section (metric) | 0.22 mm² |
| Conductor count/size | 4x2x24/7AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| With cable messenger |
|
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 4 |
| Outer sheath colour | green |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/FTP |
| Cable sheath RAL colour | RAL 6018 |
| With rodent protection |
|
| Conductor colour code | PROFINET Colour code 4-pair |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 8 |
| Nominal conductor cross-section (AWG) | 24 AWG |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| With armouring |
|
| Max. outer diameter | 9.6 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PUR |
| Additional stranding element | Cross separator |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | VDE 0472-815 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| PROFINET® application | Type C |
| Installation temperature min. | -30 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 76.8 mm |
| PWIS-free |
|
| Application area | Torsion, Flexible |
| max. conductor temperature, occasionally moved | -30 °C to 70 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.7 |
| Minimum bending radius in mm, occasionally flexing | 144.0 mm |
| Max. assembly temperature | 70 |
| Minimum bending radius, stationary | 8 x outer diameter |
| Minimum bending radius, occasionally flexing | 15 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | UL VW-1, IEC 60332-1-2 |
| Oil resistance according to | EN 50363-10-2 |
| Windable |
|
| Torsion | for +/- 180 °/m and min. -30 °C up to 5000000 Torsion cycles |
| For torsional load |
|
| Halogenfree |
|
认证和标准
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| UL AWM certification | 21576 according to UL 444 (e-file number: E63634) |
| TÜV certified |
|
| UL certification | UL CMX according to UL 444 (e-file number: E236660) |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| cUL certification | cUL CMX (75°C) according to CSA C22.2 No. 210 (e-file number: E236660) |
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from ETHERLINE® TORSION Cat.7
| Article number | Conductor count/size | Copper index calc export | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|
| 2170481 | 4x2x24/7AWG | 9.4 | 95 kg/km |
