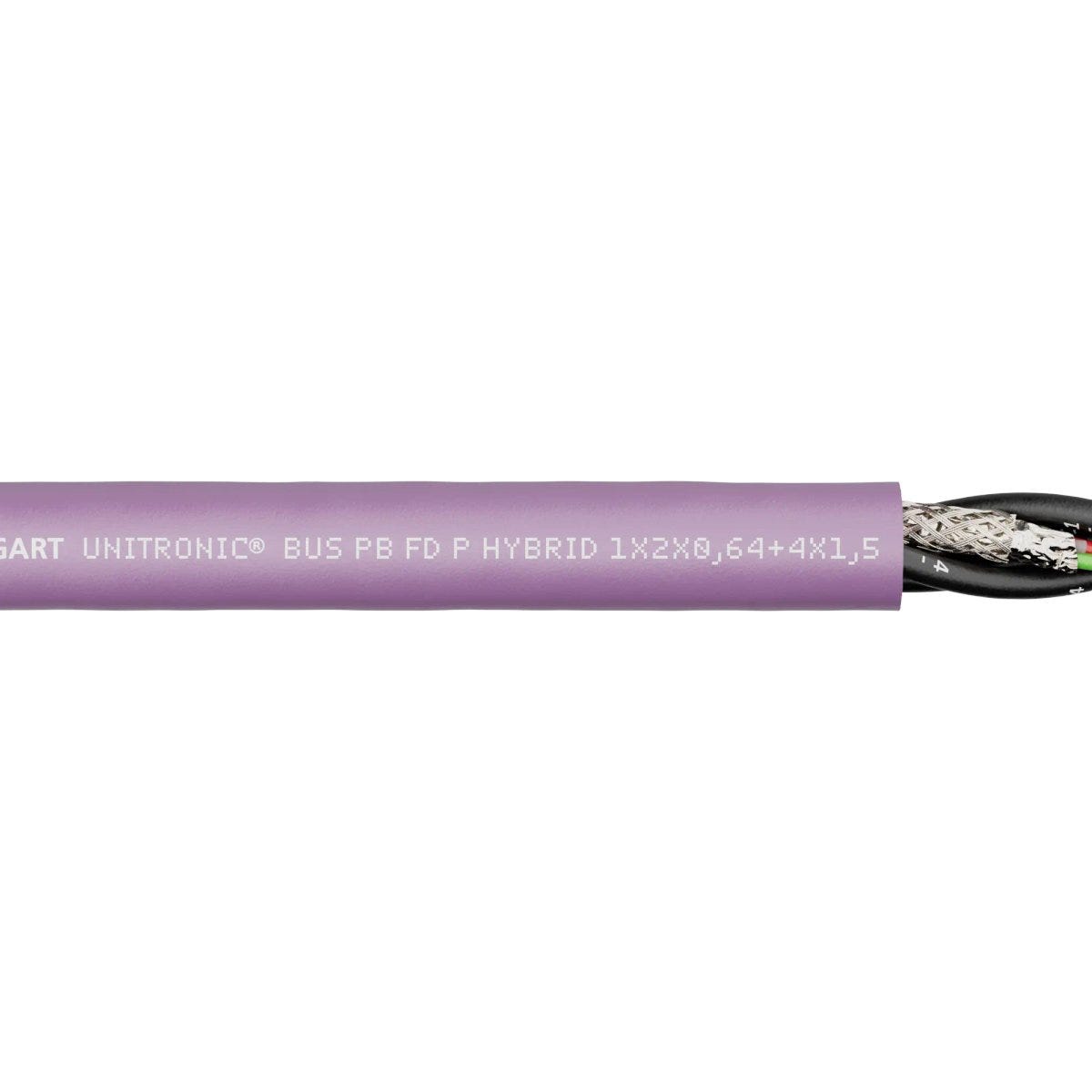

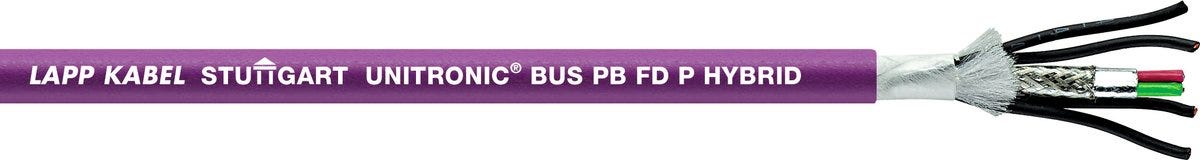

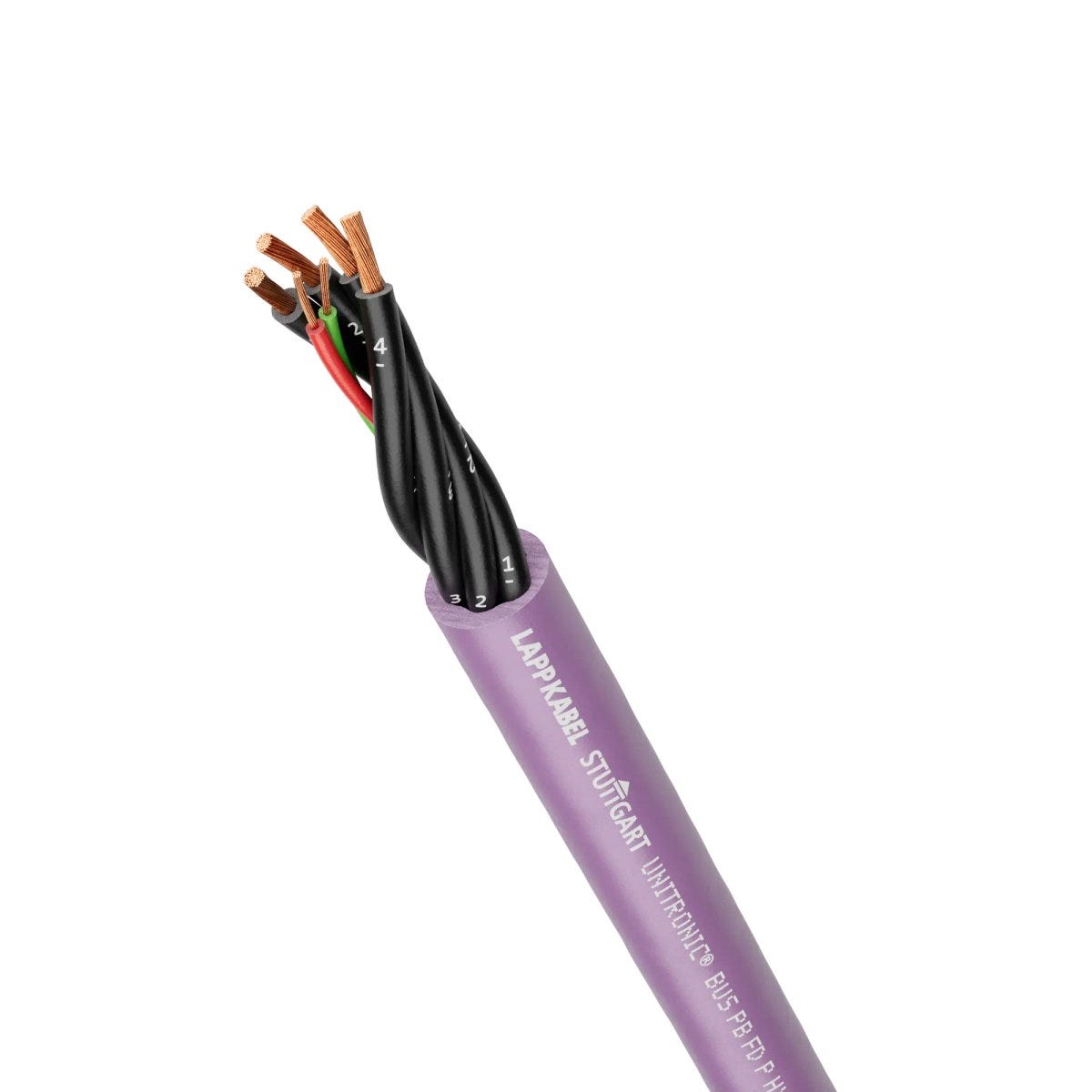

UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
Bus cable; PROFIBUS DP; Cable chain; Nominal surge impedance: 150; PUR; violet
UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
SGD 17.20
/
UNITR. BUS PB FD P HYBRID 1X2X0,64+4X1,5
SGD 17.20
/
In stock (100)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
icon powerchain
icon sturgeon signal
Product Carbon Footprint
Certificate
PROFIBUS DP, PROFIBUS PA
福利
Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP, For use where the combination of a halogen-free outer sheath with properties similar to PUR and enhanced flame-retardance is required, For highly flexible applications (power chains, moving machine parts)
申请书
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
技术属性
一般信息
| Brand | UNITRONIC® |
| Product type | Bus cable |
| valid fieldbus or Ethernet system | PROFIBUS DP |
| Copper index | 89.000 kg/km |
| Copper index (lb) | 598.000 lb |
| Weight | 148 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 100 |
| Nominal surge impedance | 150 |
| Test voltage core/screening | 0.6 |
| Test voltage core/core | 0.6 |
产品设计
| Conductor design | 7-wire |
| Nominal outer diameter | 11.3 mm |
| Conductor material | Bare copper |
| Nominal conductor cross-section (metric) | 0.25 mm² |
| Conductor count/size | 1X2X0,64+4X1,5 |
| With cable messenger |
|
| Shielded |
|
| Nominal conductor diameter (mm) | 0.64 |
| Core identification | Colours and numbers |
| Shape of cable | Round |
| Number of pairs | 1 |
| Outer sheath colour | violet |
| Stranding type | Twisted-pair |
| Pair screening type | Aluminium-laminated plastic foil |
| Cable sheath RAL colour | RAL 4001 |
| With rodent protection |
|
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |

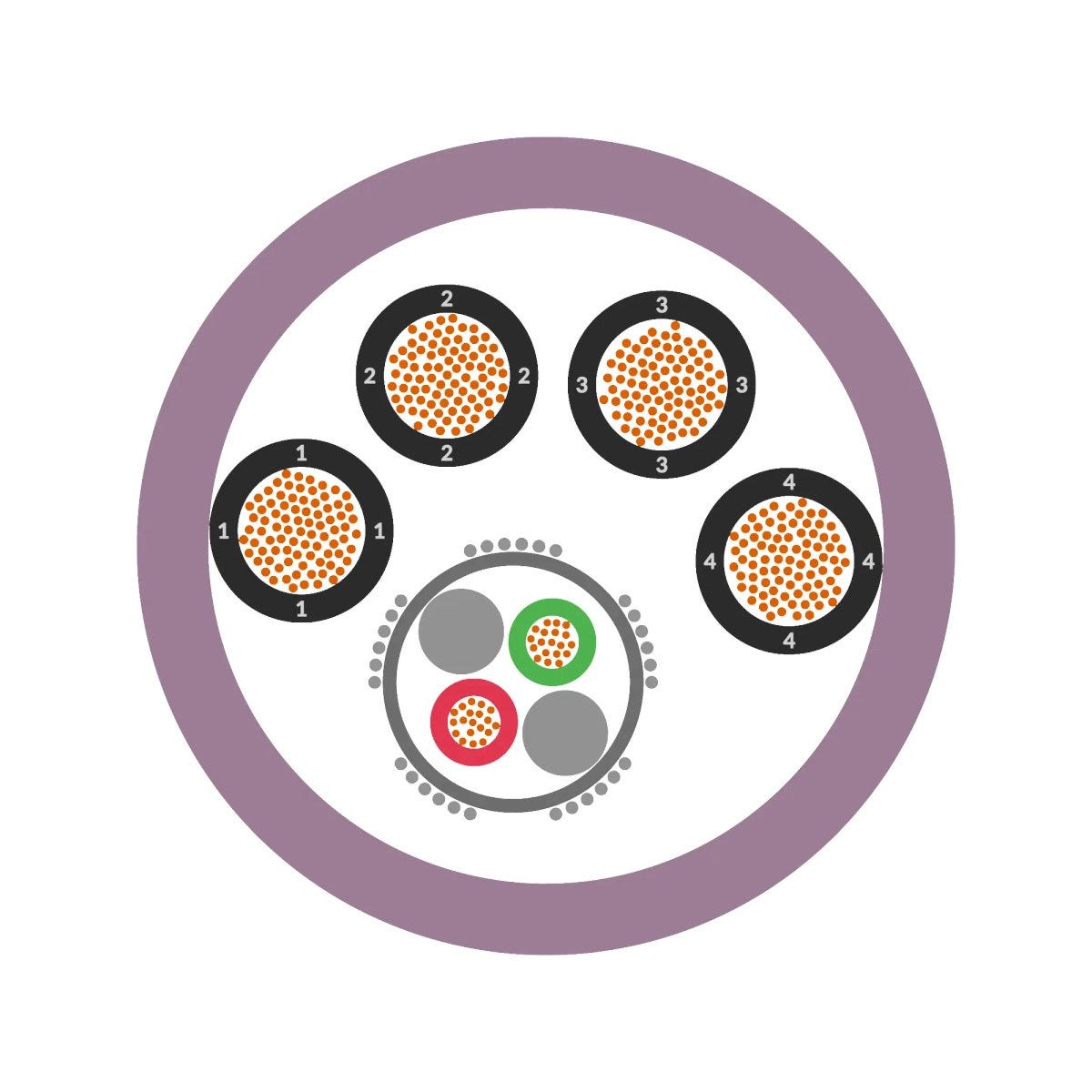

| Cable element 1 | Signal pair: 1x(2x0.25), Shielding: Aluminium-laminated plastic foil |
| Number of cores | 6 |
| Nominal conductor cross-section (AWG) | 24 AWG |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Polyurethane |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| With armouring |
|
| Cable element 2 | Power core: 4x1.5 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PUR |
产品特点
| Flame-retardant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Minimum bending radius in mm, dynamic continuously flexing | 169.5 mm |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 90.4 mm |
| Application area | Cable chain |
| Oil-resistant |
|
| Minimum bending radius, stationary | 8 x outer diameter |
| Temperature, fixed installation | -40 °C to 70 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2, UL FT4 |
| Oil resistance according to | IEC 60811-2-1 |
| Minimum bending radius, dynamic continuously flexing | 15 x outer diameter |
| For torsional load |
|
| Halogenfree |
|
认证和标准
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| TÜV certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- SIMATIC® is a registered trademark of SIEMENS AG. FIP is a registered trademark of World FIP.
产品系列列表
All articles from UNITRONIC® BUS PB FD P HYBRID
| Article number | Conductor count/size | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|
| 2170495 | 1X2X0,64+4X1,5 | 11.3 | 148 kg/km |
