ETHERLINE® Cat.5 ARM

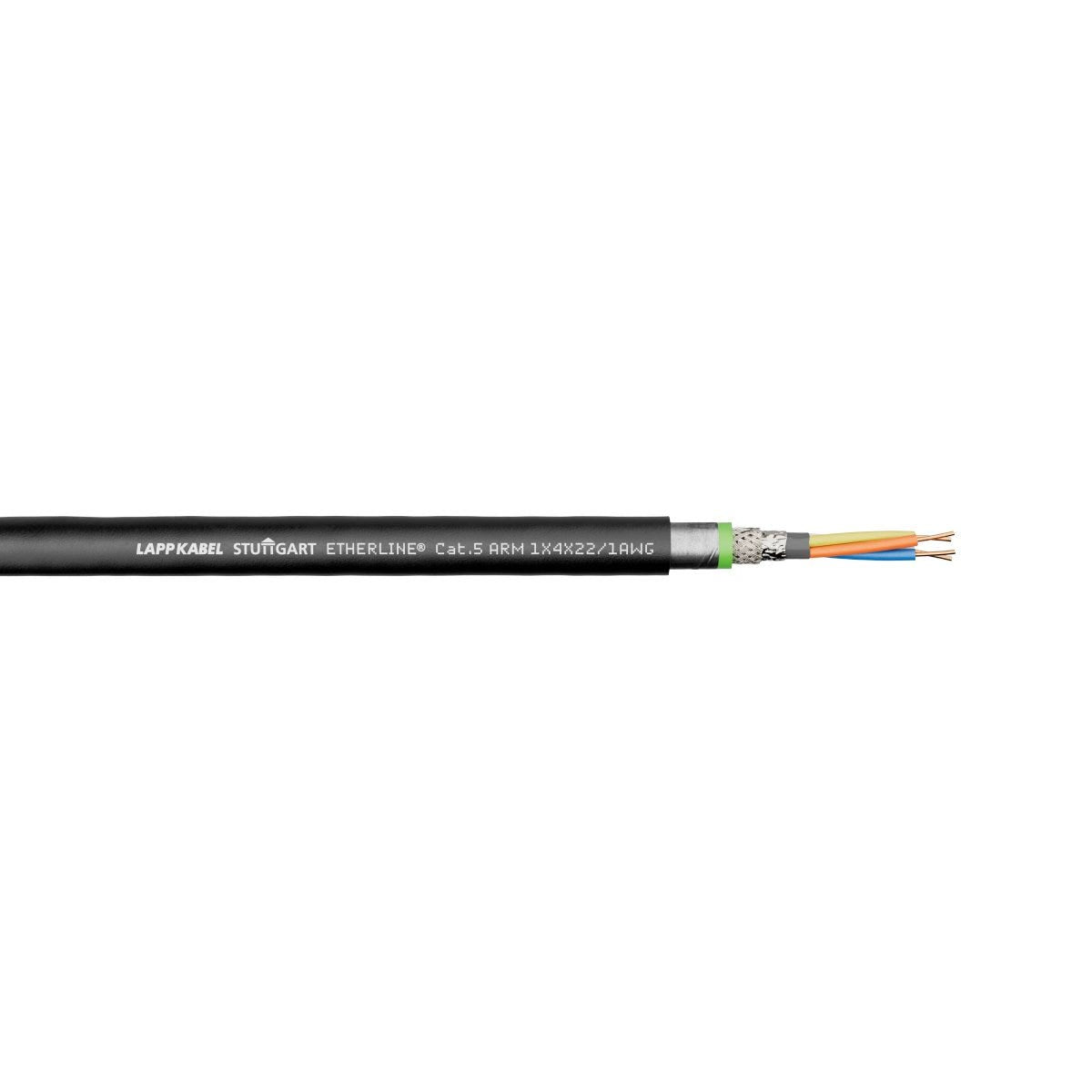

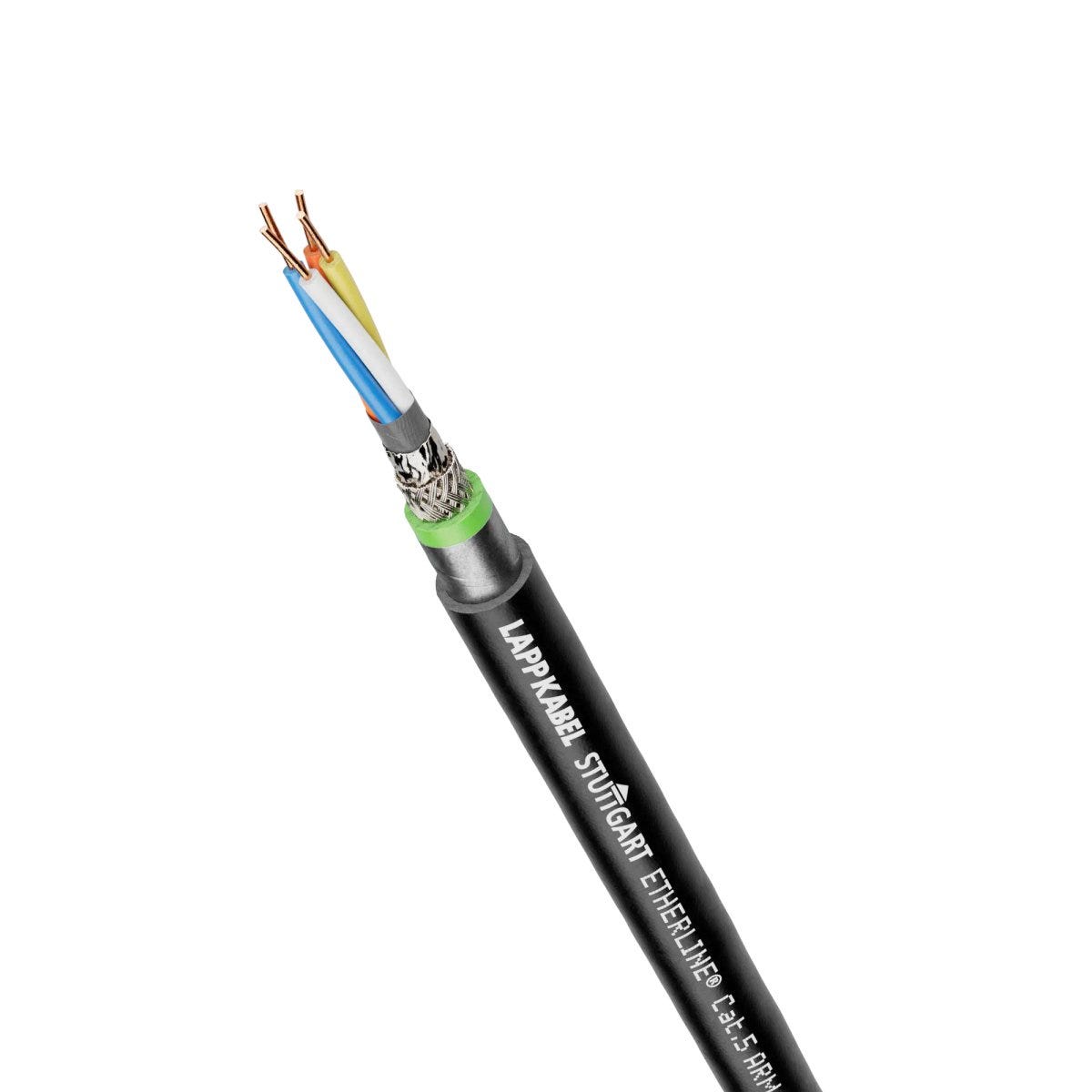

Ethernet cable; Fixed installation; ETHERNET/IP, EtherCAT; PROFINET® application: Type A; Cat.5e; SF/UTP; PE; black
ETHERLINE® Cat.5 ARM
SGD 9.99
/
ETHERLINE® Cat.5 ARM
SGD 9.99
/
In stock (293)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
uv-resistant.
icon sturgeon signal
Certificate
CE marked
ETHERNET/IP
福利
Fast information exchange through Ethernet technology. , Cat. 5e performance up to 100 Mbit/s
For transmission of analogue and digital signals in the frequency range up to 100 MHz
With 2-layer steel tape armouring for increased rodent protection
The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs
Additional protection against electromagnetic interference thanks to double overall shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP).
申请书
For use in the PROFINET network (type C), fixed installation
Suitable for direct underground installation outdoors, without protective conduit.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, EtherCAT |
| Copper index | 30.400 kg/km |
| Copper index (lb) | 204.300 lb |
| Weight | 124 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Segregation class according to EN 50174-2 | D |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Loop resistance at 20°C | 124 |
| Possible data transmission rates | 100 |
| Signal propagation speed (nom.) | 0.67 |
| Test voltage core/screening | 2 |
| Test voltage core/core | 2 |
| Rated voltage core to core | 50 V AC rms according to IEC |
产品设计
| Nominal core diameter | 1.5 |
| Nominal outer diameter | 9.3 mm |
| Conductor material | Bare copper |
| Min. outer diameter | 8.8 |
| Conductor count/size | 1x4x22/1AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| Wrapping over stranding | Plastic film |
| Shielded |
|
| Nominal conductor diameter (mm) | 0.65 |
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 2 |
| base material inner sheath shortname | PVC |
| Outer sheath colour | black |

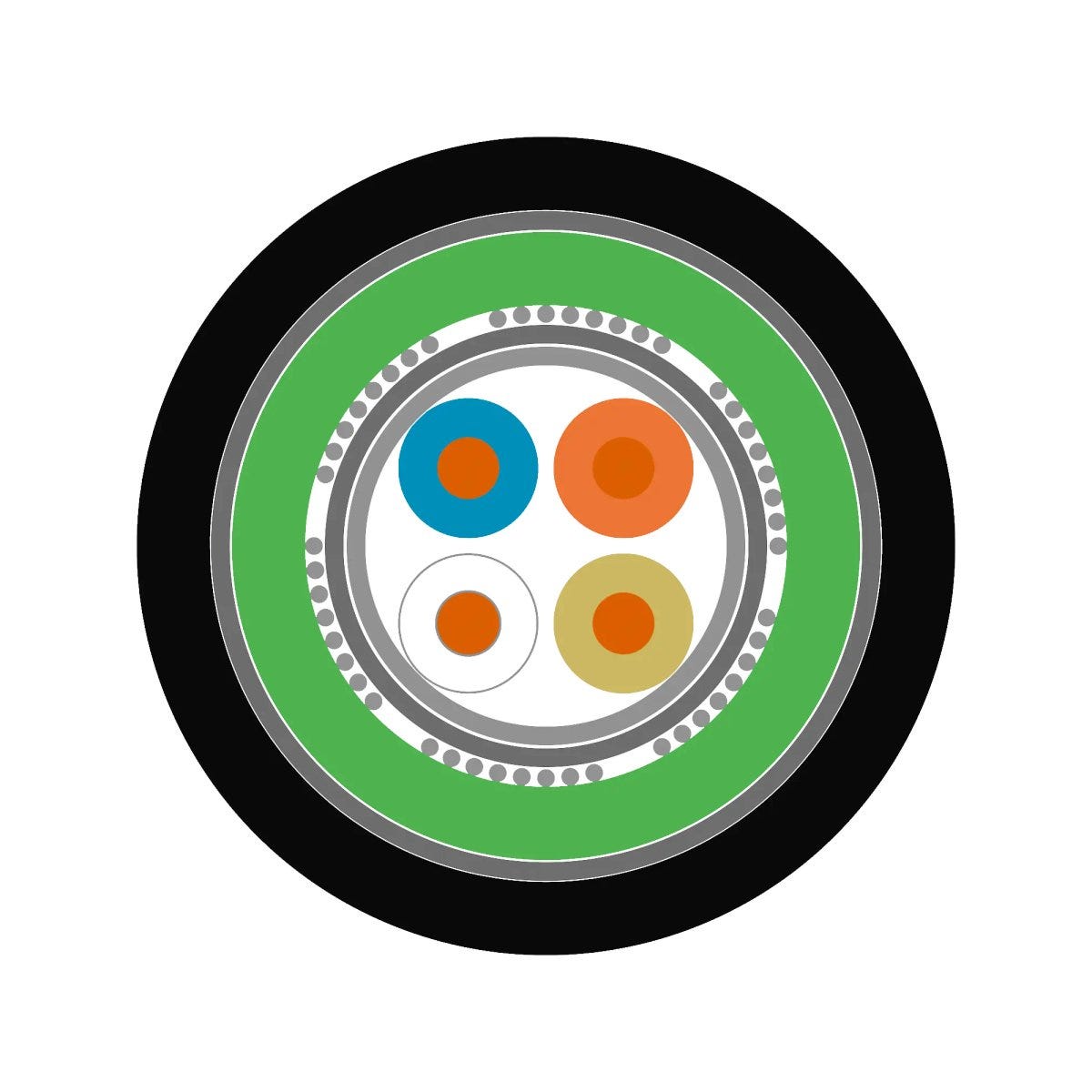

| Stranding type | Star quad |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/UTP |
| Cable sheath RAL colour | RAL 9005 |
| With rodent protection |
|
| Conductor colour code | PROFINET Color code star quad |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 4 |
| Nominal conductor cross-section (AWG) | 22 AWG |
| Core insulation basic material | Polyethylene |
| Basic material of outer sheath | Polyethylene |
| Basic material of inner sheath | Polyvinylchloride |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| With armouring |
|
| Max. outer diameter | 9.8 |
| Number of wires | 1 |
| Basic material of outer sheath, short form | PE |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| For continuous flexing |
|
| Low-adhesion sheath surface |
|
| Fast Connect (FC) cable |
|
| PROFINET® application | Type A |
| Installation temperature min. | -20 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 98.0 mm |
| Suitable for underground installation | in cable trench, in protective cable conduit |
| PWIS-free |
|
| Application area | Fixed installation |
| max. conductor temperature, occasionally moved | -20 °C to 60 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.5e |
| Minimum bending radius in mm, occasionally flexing | 147.0 mm |
| Max. assembly temperature | 60 |
| Minimum bending radius, stationary | 10 x outer diameter |
| Minimum bending radius, occasionally flexing | 15 x outer diameter |
| Temperature, fixed installation | -40 °C to 70 °C max. conductor temperature: |
| UV-resistant according to | EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use) |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| TÜV certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
产品系列列表
All articles from ETHERLINE® Cat.5e ARM
| Article number | Conductor count/size | Copper index calc export | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|
| 2170496 | 1x4x22/1AWG | 9.3 | 124 kg/km |
