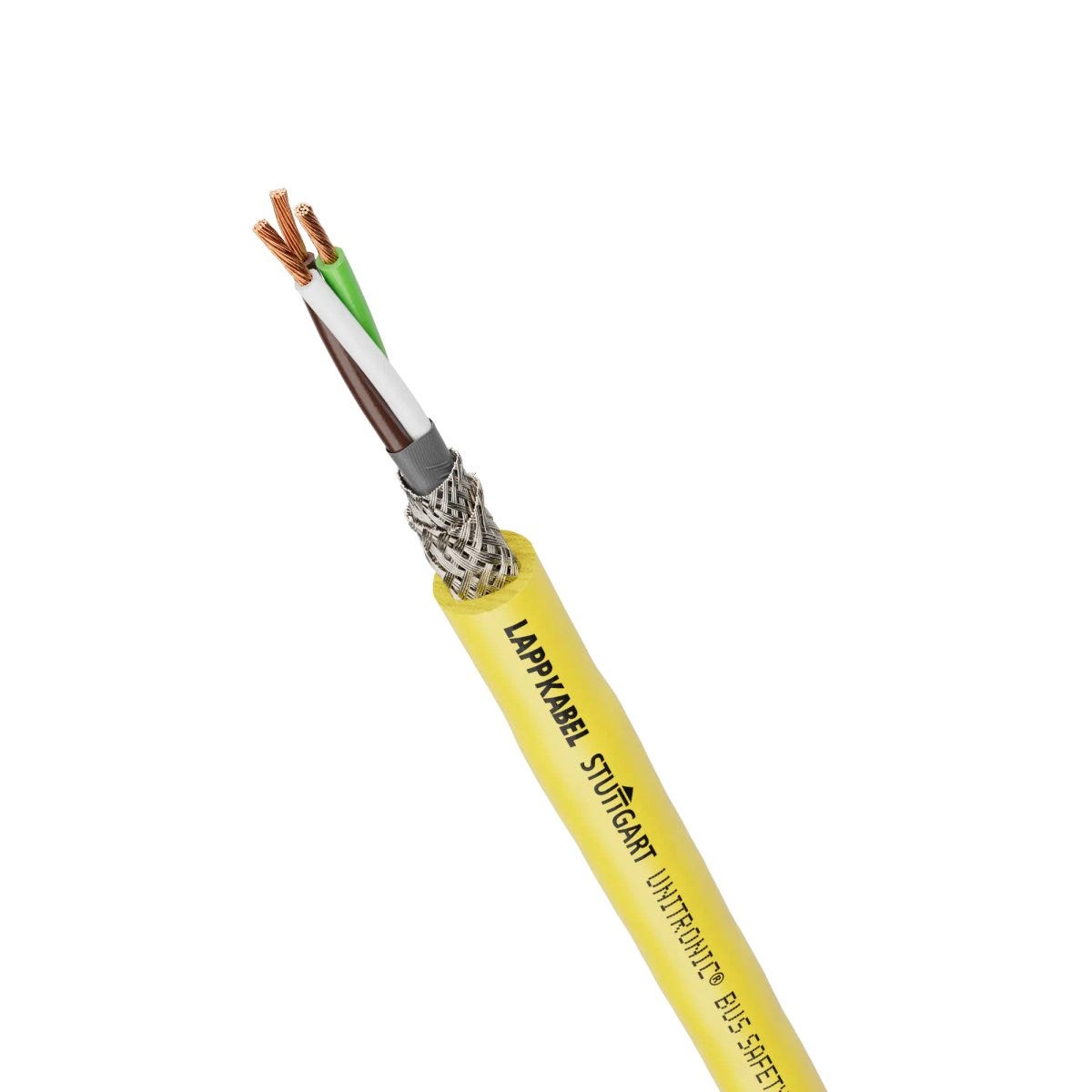

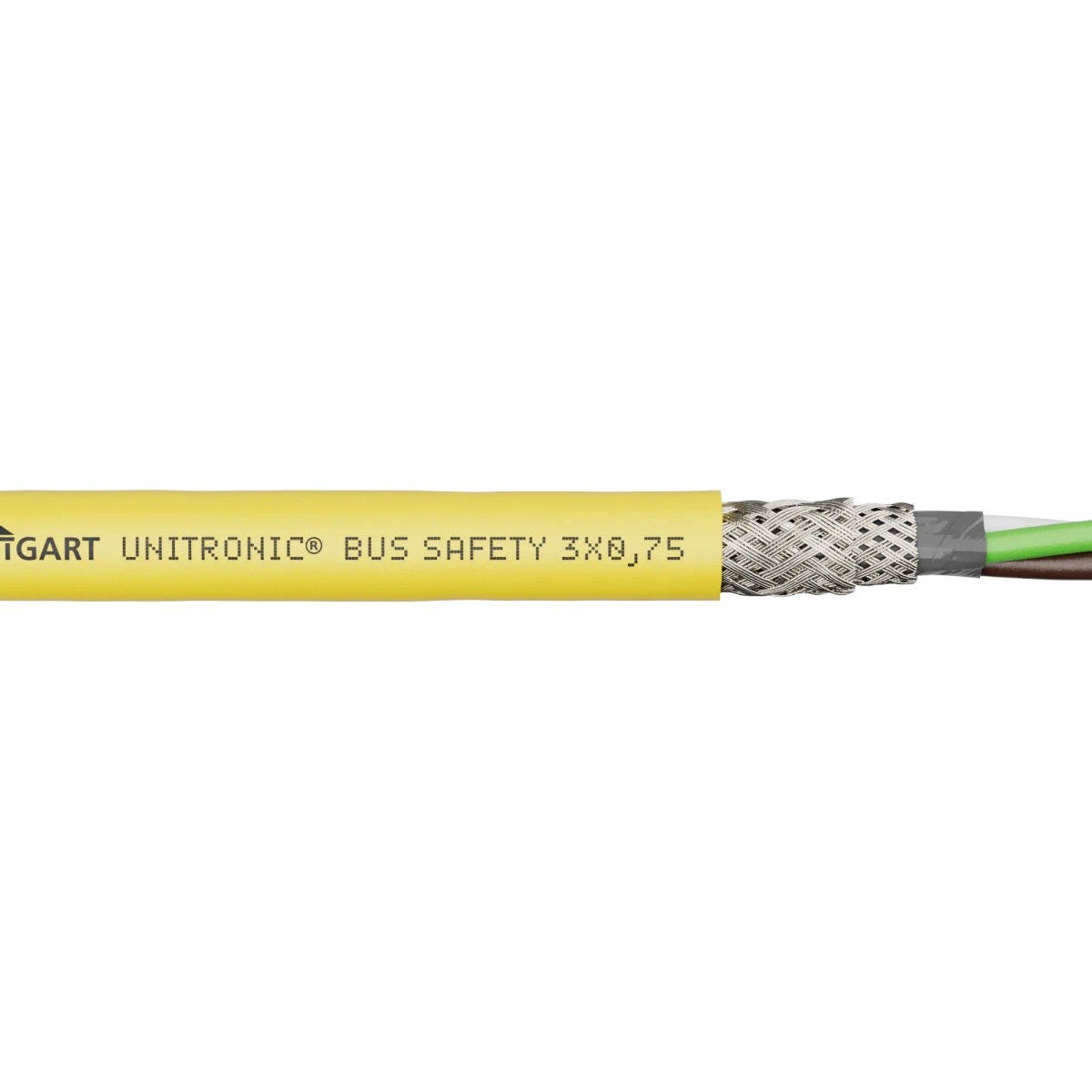

UNITRONIC® BUS SAFETY FD P 3X0,75
Bus cable; SafetyBus; Cable chain; Nominal characteristic impedance: 120; yellow
UNITRONIC® BUS SAFETY FD P 3X0,75
SGD 13.13
/
UNITRONIC® BUS SAFETY FD P 3X0,75
SGD 13.13
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
icon powerchain
icon sturgeon signal
福利
For serial transmission of safety-oriented data
申请书
UNITRONIC BUS SAEFTY - fixed InstallationUNITRONIC BUS SAEFTY FD P - highly flexible applications, For systems such as SafetyBUS p®, based on the well-known CAN bus system
技术属性
一般信息
| Product type | Bus cable |
| Brand | UNITRONIC® |
| valid fieldbus or Ethernet system | SafetyBus |
| Copper index | 49.000 kg/km |
| Copper index (lb) | 329.200 lb |
| Weight | 68 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 250 |
| Nominal surge impedance | 120 |
| Test voltage core/core | 1.5 |
产品设计

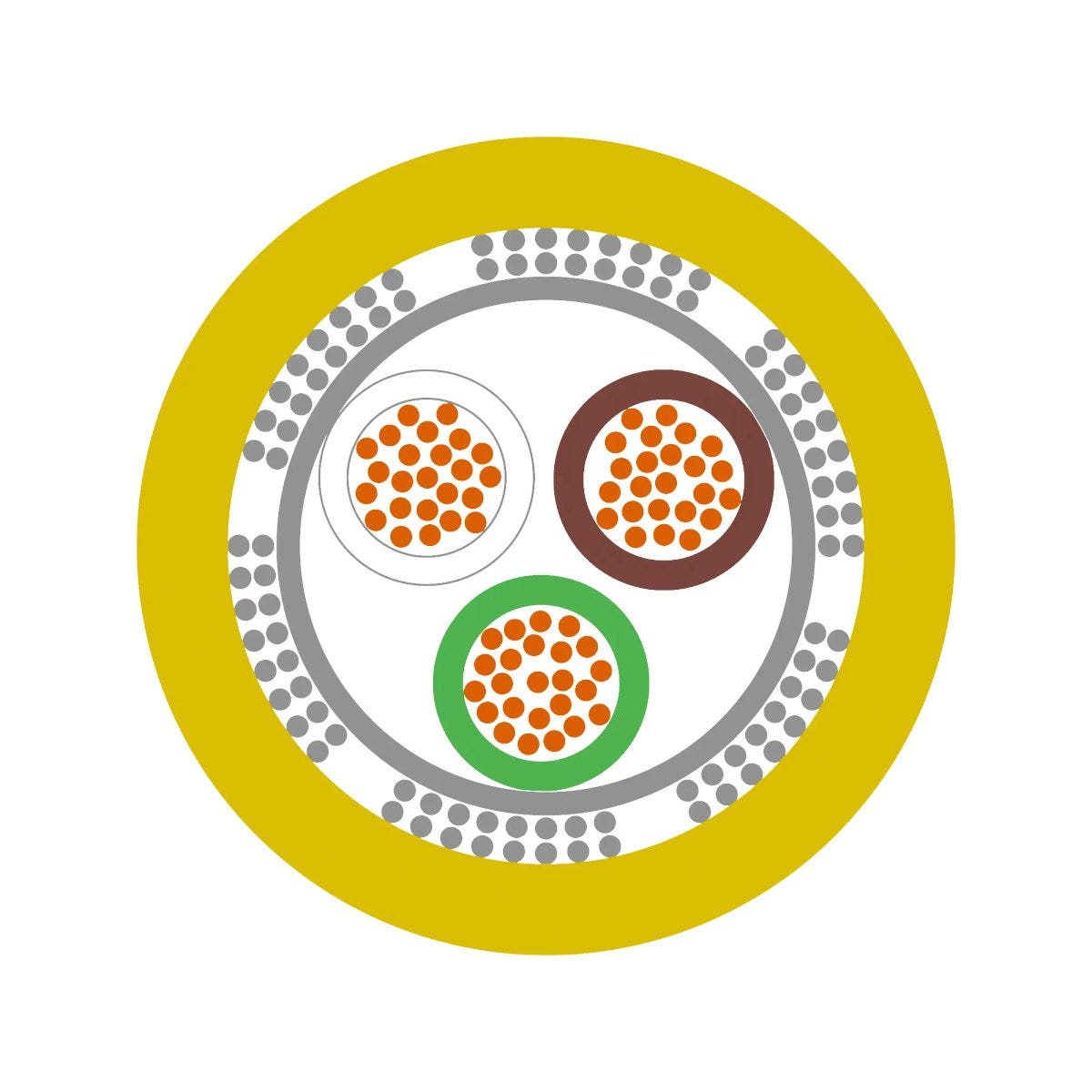

| Core identification | Colours |
| Shape of cable | Round |
| Outer sheath colour | yellow |
| Conductor design | extra-fine wire |
| Nominal outer diameter | 7.6 mm |
| Conductor material | Bare copper |
| Leading conductor cross-section | mm² |
| With rodent protection |
|
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 3 |
| Nominal conductor cross-section (metric) | 0.75 mm² |
| Cable dimension | 3X0.75 |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Halogen-free compound |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| With armouring |
|
| Wrapping over stranding | Fleece wrapping |
| Shielded |
|
| Number of wires | 24 |
产品特点
| Flame-retardant |
|
| Application area | Cable chain |
| PWIS-free according to | VDMA 24364-B2-L |
| Oil-resistant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| UV-resistant |
|
| Minimum bending radius, stationary | 8 x outer diameter |
| Temperature, fixed installation | -30 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2 |
| Minimum bending radius in mm, fixed installation | 60.8 mm |
| PWIS-free |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| CE marked |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- SafetyBUS p® is a registered trademark of Pilz GmbH & Co.
