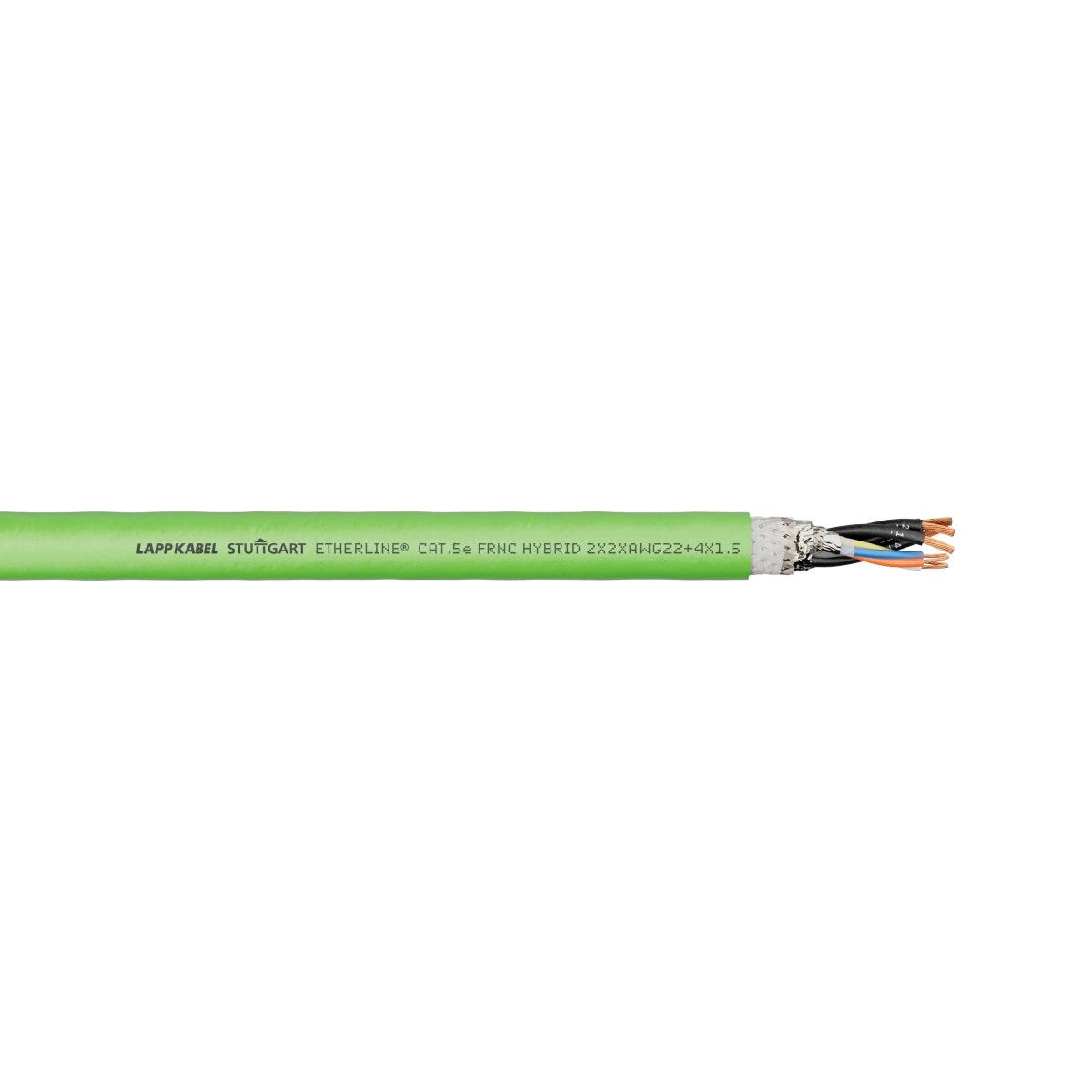

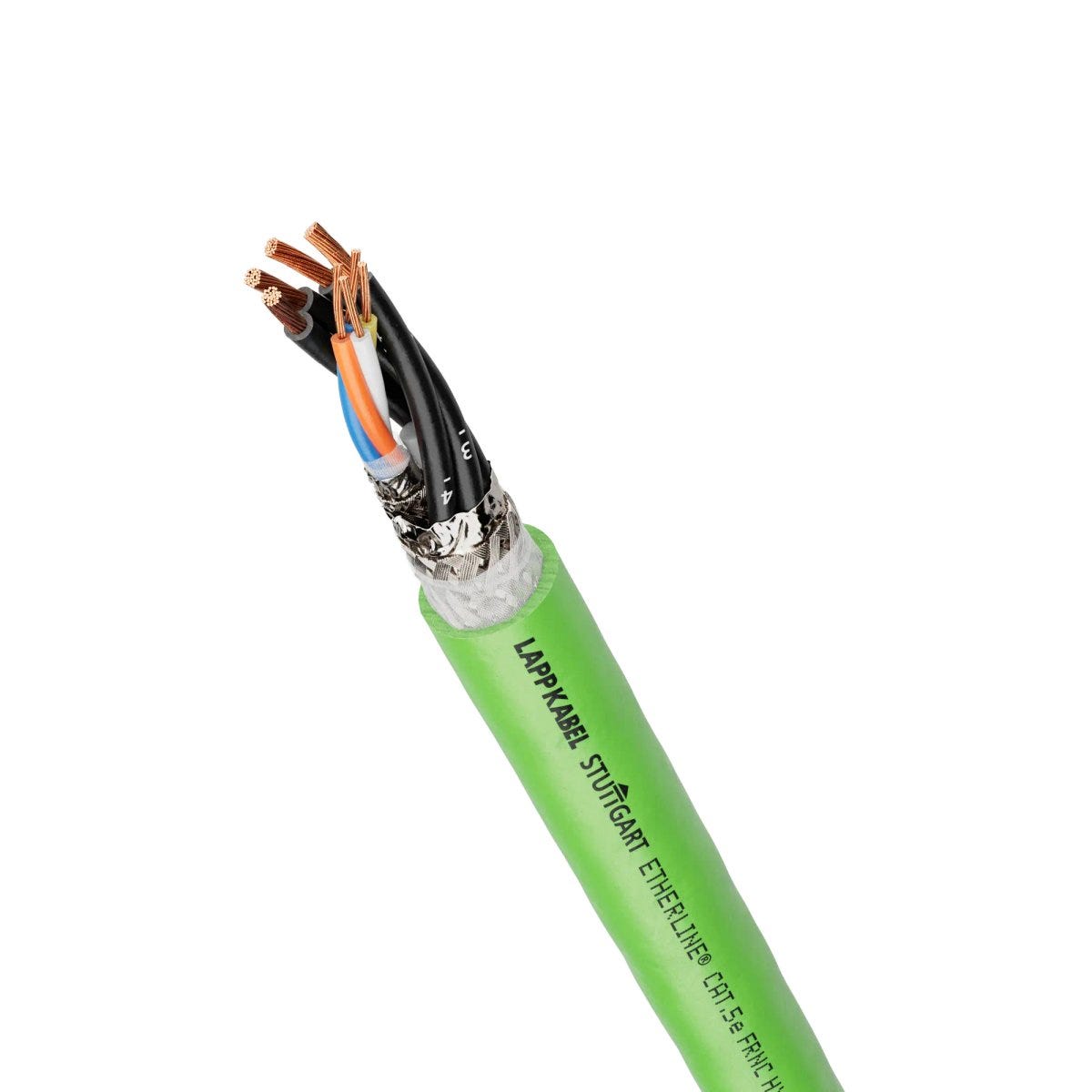

ETHERLINE® CAT5 FRNC HYBR 2X2XAWG22+4x1.5
Ethernet cable; Flexible, Fixed installation; ETHERNET/IP, PROFINET, Ethernet; PROFINET® application: Type B; Cat.5e; U/SFTP; LSZH; Halogenfree; green
ETHERLINE® CAT5 FRNC HYBR 2X2XAWG22+4x1.5
SGD 13.05
/
ETHERLINE® CAT5 FRNC HYBR 2X2XAWG22+4x1.5
SGD 13.05
/
In stock (9450)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
Product Carbon Footprint
Certificate
CE marked
UL recognized
ETHERNET/IP
PROFINET
福利
Fast information exchange through Ethernet technology. , Cat. 5 performance up to 100 Mbit/s
Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage
UL certification according to technical data enables the product to be used on the North American market.
申请书
For flexible use in the PROFINET network (type B), due to stranded conductor design
Also suitable for EtherCAT and EtherNet/IP applications
Suitable for all LAN networks and Ethernet applications up to 100Base-T
For fixed installation and occasional flexing
Can be used in dry, damp or wet environments.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET, Ethernet |
| Copper index | 94.200 kg/km |
| Copper index (lb) | 632.920 lb |
| Weight | 153 kg/km |
电气特性
| Nominal surge impedance | 100 |
| Segregation class according to EN 50174-2 | D |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Loop resistance at 20°C | 140 |
| Possible data transmission rates | 100 |
| Signal propagation speed (nom.) | 0.81 |
| Test voltage core/screening | 1 |
| Signal pair nominal voltage | 48 V AC rms according to IEC |
| Power cores nominal voltage | 48 V AC rms according to IEC |
| Nominal voltage control cores | 48 V AC rms according to IEC |
| Test voltage core/core | 1 |
| Rated voltage core to core | 100 V AC rms according to IEC |
产品设计

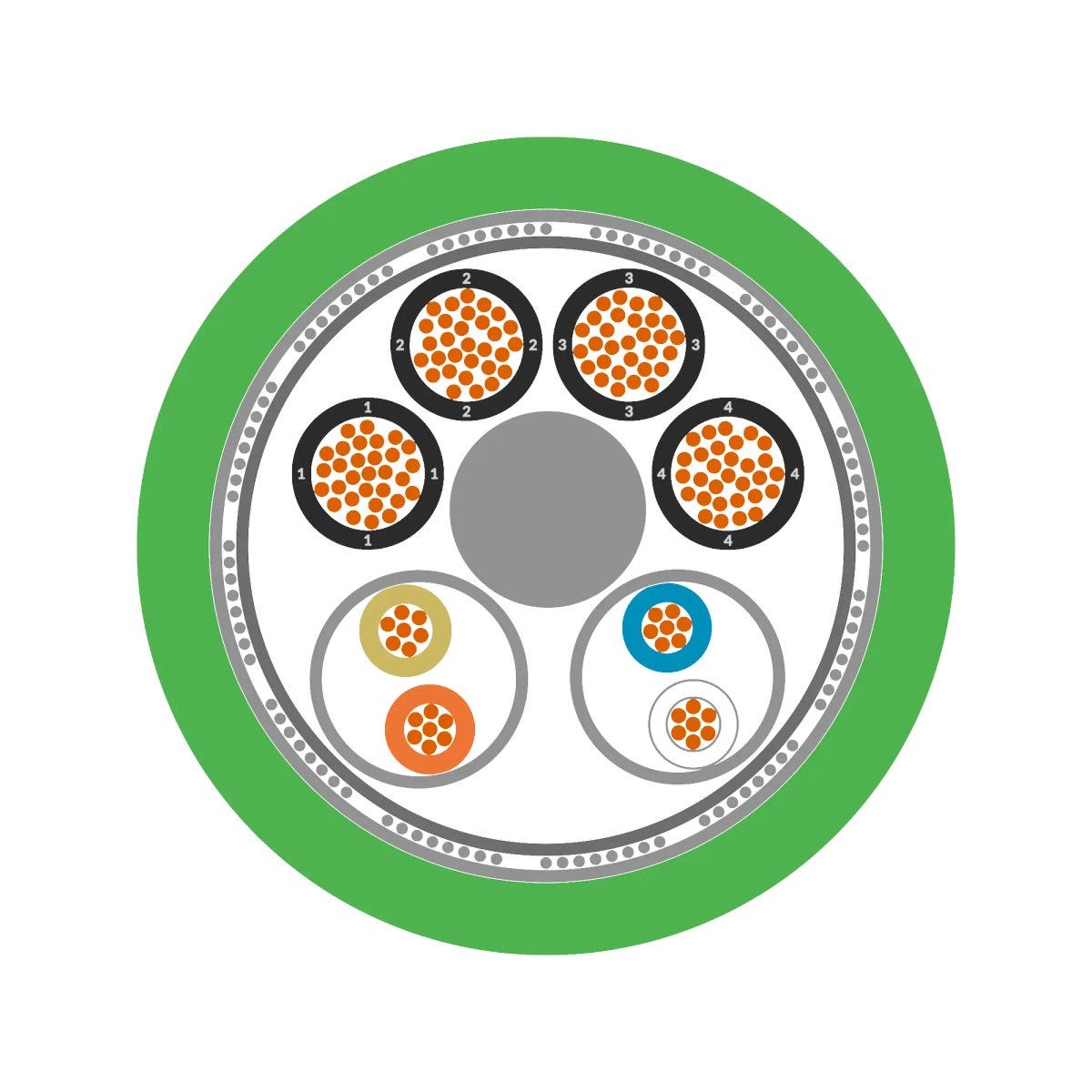

| Conductor abbreviation | 8x1.5 |
| Min. core diameter | 1.4 |
| Nominal core diameter | 1.5 |
| Nominal outer diameter | 10.3 mm |
| Max. diameter of core | 1.6 |
| Conductor material | Bare copper |
| Min. outer diameter | 10 |
| Nominal conductor cross-section (metric) | 1.5 mm² |
| Conductor count/size | 2x2x22/7AWG + 4x1,5mm² |
| Shielded |
|
| Nominal conductor diameter (mm) | 0.75 |
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 2 |
| Outer sheath colour | green |
| Pair screening type | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Abbreviation shielding | U/SFTP |
| Cable sheath RAL colour | RAL 6018 |
| With rodent protection |
|
| Conductor colour code | PROFINET Colour code Hybrid |
| Number of cores | 8 |
| Core insulation basic material | Polyethylene foam |
| Basic material of outer sheath | Halogen-free compound |
| Including protective earth |
|
| Core insulation basic material, short form | Foam-Skin PE |
| Max. outer diameter | 10.6 |
| Basic material of outer sheath, short form | LSZH |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| Halogen-free according to | IEC 60754-1 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| PROFINET® application | Type B |
| Installation temperature min. | -20 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 53.0 mm |
| PWIS-free |
|
| Application area | Flexible, Fixed installation |
| max. conductor temperature, occasionally moved | -20 °C to 70 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.5e |
| Minimum bending radius in mm, occasionally flexing | 106.0 mm |
| Max. assembly temperature | 70 |
| Minimum bending radius, stationary | 5 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Temperature, fixed installation | -20 °C to 70 °C max. conductor temperature: |
| Flame retardance according to | IEC 60332-1-2 |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| UL AWM certification | 21282 according to UL 758 (e-file number: E63634) |
| TÜV certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
产品系列列表
All articles from ETHERLINE® Cat.5 FRNC HYBRID
| Article number | Conductor count/size | Copper index calc export | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|
| 2170887 | 2x2x22/7AWG + 4x1,5mm² | 10.3 | 153 kg/km |
