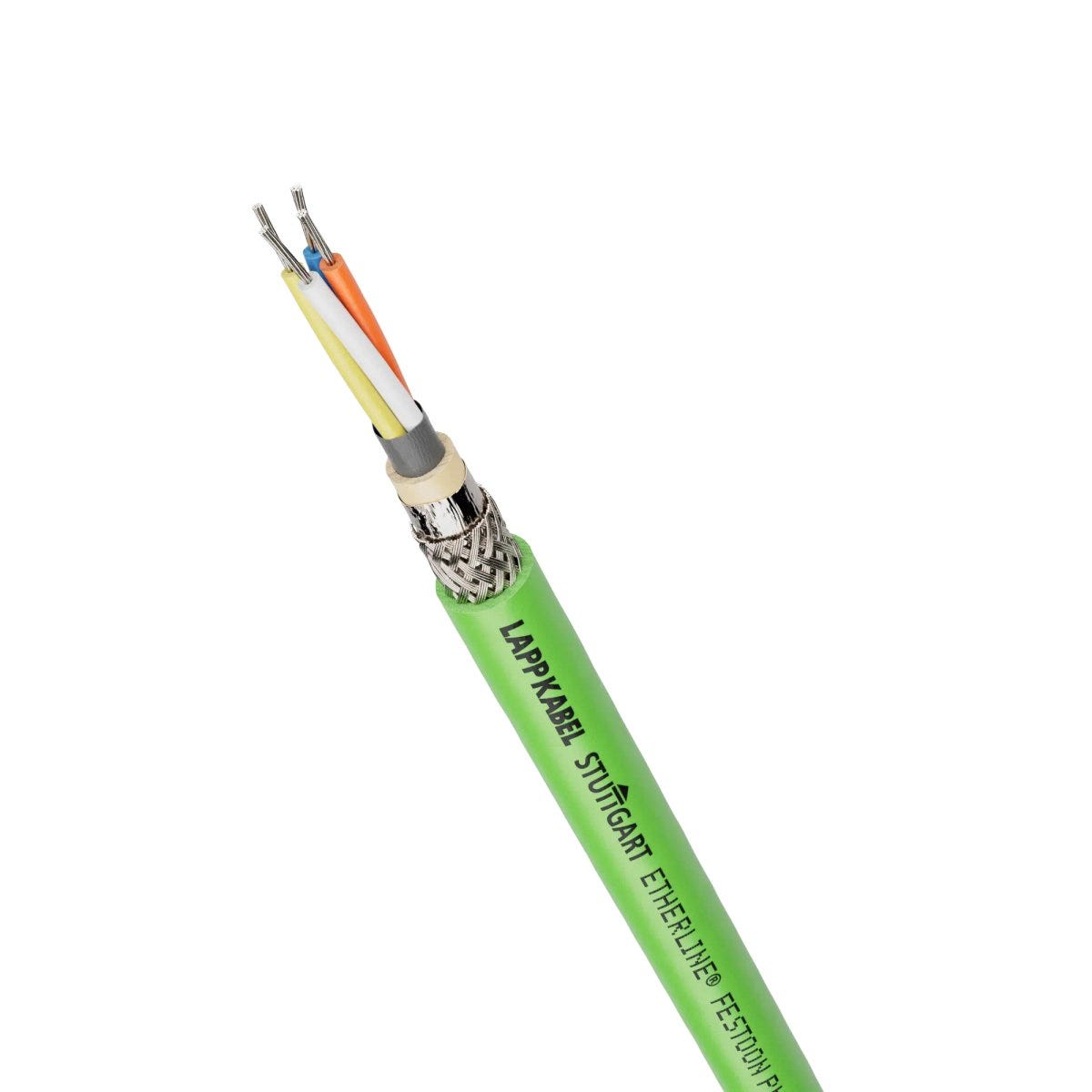

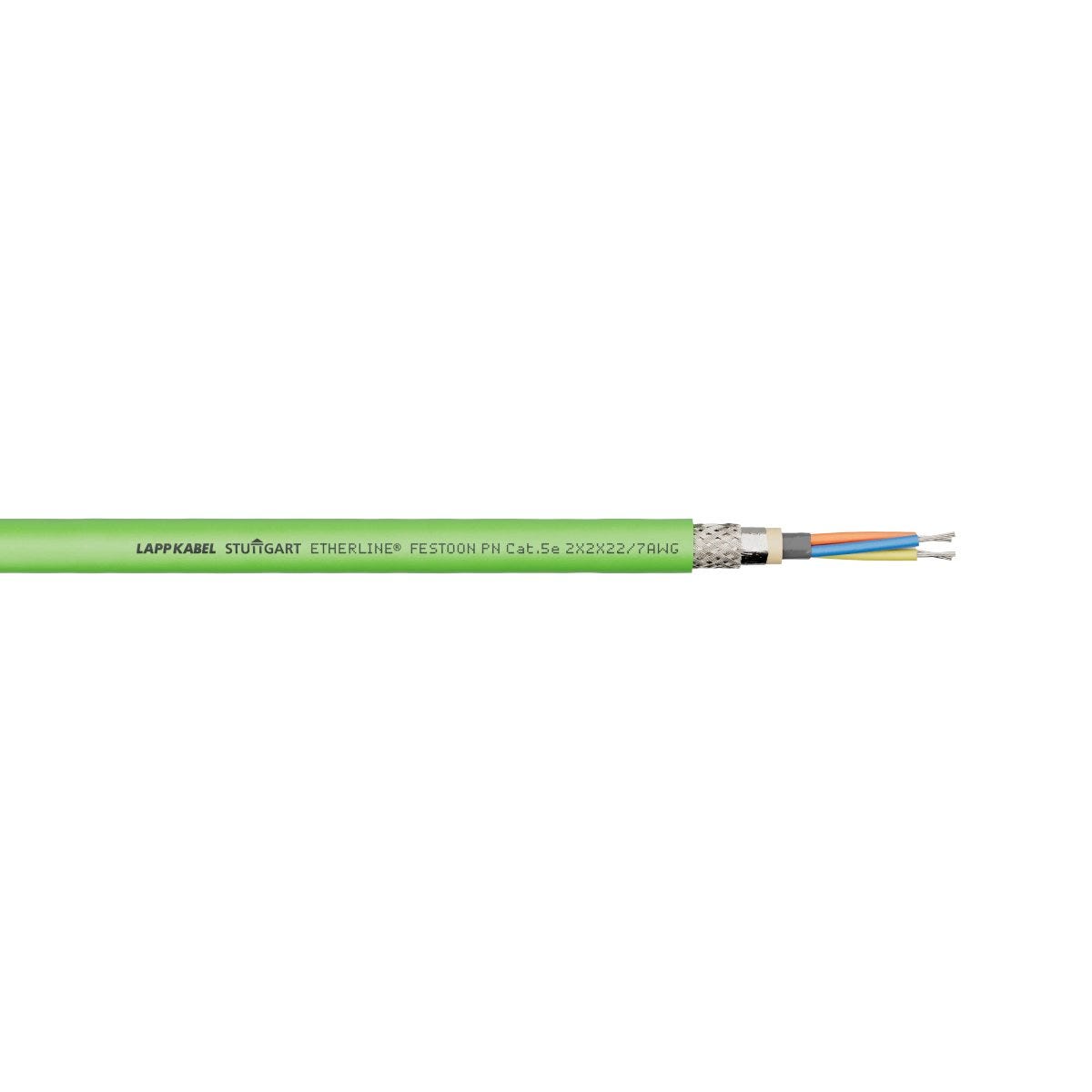

ETHERLINE® FESTOON PN Cat.5e
Ethernet cable; Cable chain, Flexible; ETHERNET/IP, PROFINET, Ethernet; PROFINET® application: Type C; Cat.5e; SF/UTP; PVC; green
ETHERLINE® FESTOON PN Cat.5e
SGD 8.91
/
ETHERLINE® FESTOON PN Cat.5e
SGD 8.91
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
oil resistant
uv-resistant.
icon powerchain
icon sturgeon signal
Certificate
CE marked
UR recognised US, cUR recognised US
cUL listed US, UL listed US
ETHERNET/IP
PROFINET
福利
Fast information exchange through Ethernet technology. , The "Fast Connect" design, including inner sheath and cross separator, significantly reduces the cable assembly time, by eliminating the time-consuming removal of the pair shielding. It also provides undiminished shielding of the core pairs
High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP)
UL/CSA certification according to technical data enables the product to be used in the North American market.
申请书
For highly flexible, constantly moving use in moving machine parts and in cable chains in the PROFINET network (type C)
Also suitable for EtherCAT and EtherNet/IP applications
Suitable for all LAN networks and Ethernet applications up to 100Base-T
Can be used in dry, damp or wet environments
Withstands high mechanical stress
Suitable for outdoor use.
技术属性
一般信息
| Brand | ETHERLINE® |
| Product type | Ethernet cable |
| valid fieldbus or Ethernet system | ETHERNET/IP, PROFINET, Ethernet |
| Copper index | 32.000 kg/km |
| Copper index (lb) | 215.030 lb |
| Weight | 69 kg/km |
电气特性
| Maximum operating voltage (not for power transmission) | 125 |
| Nominal surge impedance | 100 |
| Nominal voltage | 48 V AC rms according to IEC |
| Supports Power over Ethernet | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Loop resistance at 20°C | 110.8 |
| Possible data transmission rates | 100 |
| Signal propagation speed (nom.) | 0.67 |
| Test voltage core/screening | 2 |
| Test voltage core/core | 2 |
| Rated voltage core to core | 600 V AC rms according to UL AWM, 50 V AC rms according to IEC |
产品设计
| Nominal core diameter | 1.5 |
| Conductor design | 7-wire |
| Nominal outer diameter | 6.5 mm |
| Conductor material | Tin-plated copper |
| Min. outer diameter | 6.3 |
| Nominal conductor cross-section (metric) | 0.34 mm² |
| Conductor count/size | 2x2x22/7AWG |
| Optical degree of coverage of the stranded screening, overall screen | 85 |
| With cable messenger |
|
| Wrapping over stranding | Plastic film |
| Shielded |
|
| Nominal conductor diameter (mm) | 0.75 |
| Core identification | Colours |
| Shape of cable | Round |
| Number of pairs | 2 |
| base material inner sheath shortname | PVC |
| Outer sheath colour | green |

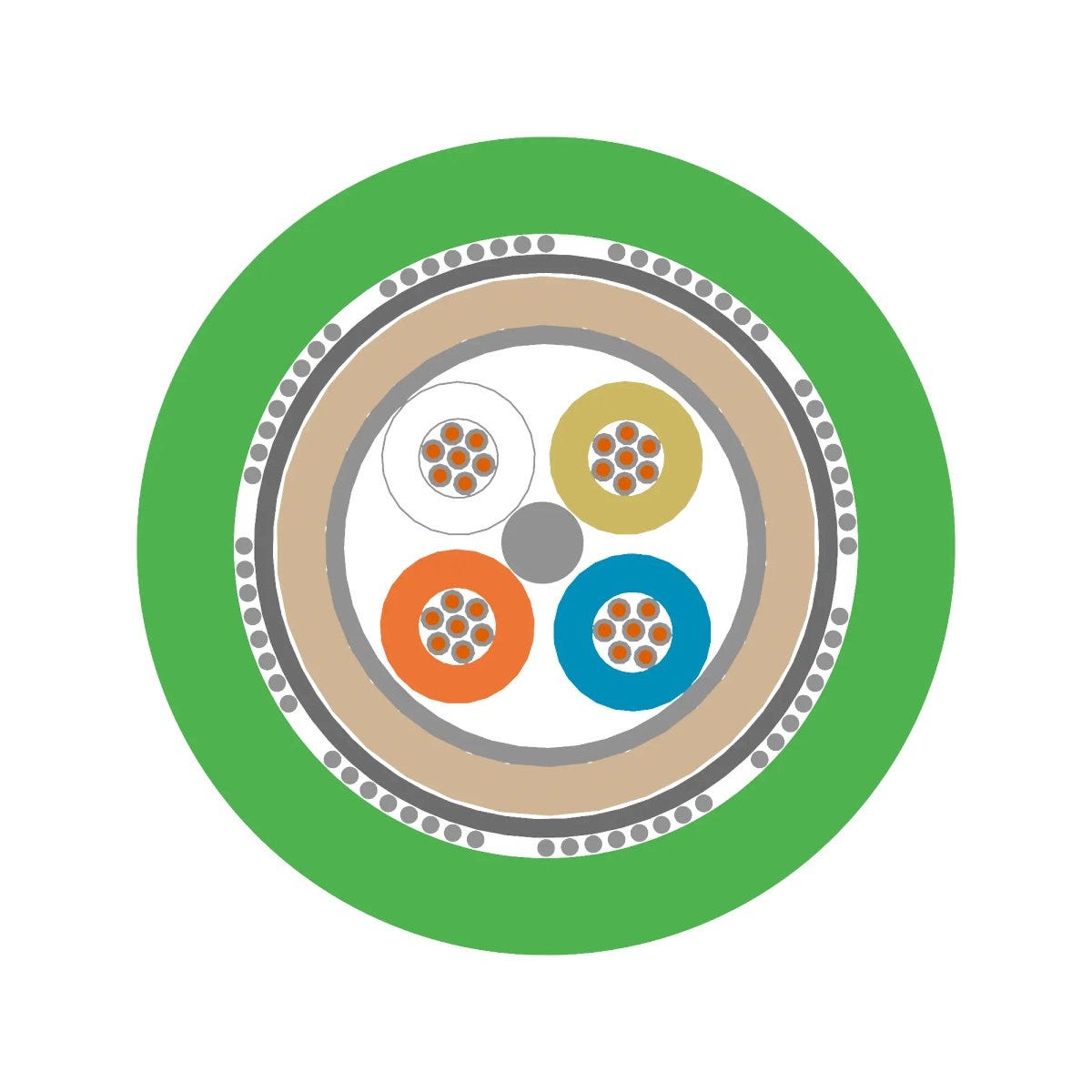

| Stranding type | Star quad |
| Leading conductor cross-section | AWG |
| Abbreviation shielding | SF/UTP |
| Cable sheath RAL colour | RAL 6018 |
| With rodent protection |
|
| Conductor colour code | PROFINET Color code star quad |
| Type of overall screen | Aluminium-laminated plastic foil, Tin-plated copper braiding |
| Number of cores | 4 |
| Nominal conductor cross-section (AWG) | 22 AWG |
| Core insulation basic material | Polyethylene |
| Basic material of outer sheath | Polyvinylchloride |
| Basic material of inner sheath | Polyvinylchloride |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| With armouring |
|
| Max. outer diameter | 6.7 |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PVC |
产品特点
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Maximum bending cycles | 5000000 |
| PROFINET® application | Type C |
| Minimum bending radius in mm, dynamic continuously flexing | 67.0 mm |
| Installation temperature min. | -10 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 26.8 mm |
| PWIS-free |
|
| Application area | Cable chain, Flexible |
| max. conductor temperature, occasionally moved | -10 °C to 70 °C max. conductor temperature: |
| Oil-resistant |
|
| Ethernet cable category | Cat.5e |
| Minimum bending radius in mm, occasionally flexing | 67.0 mm |
| Max. assembly temperature | 70 |
| Minimum bending radius, stationary | 4 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature: |
| Flame retardance according to | CSA FT4, UL FT1 |
| Oil resistance according to | UL OILRES I |
| UV-resistant according to | UL sunlight resistant |
| Minimum bending radius, dynamic continuously flexing | 10 x outer diameter |
| Maximum travel distance | 5 |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| UL AWM certification | 21694 according to UL 758 (e-file number: E63634) |
| TÜV certified |
|
| UL certification | UL PLTC according to UL 444 (e-file number: E236660) |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| cUR certification | AWM I B according to CSA C22.2 No. 210 (e-file number: E236660), AWM I A according to CSA C22.2 No. 210 (e-file number: E236660), AWM II B according to CSA C22.2 No. 210 (e-file number: E236660), AWM II A according to CSA C22.2 No. 210 (e-file number: E236660) |
| CE marked |
|
| cUL certification | cUL CMG (75°C) according to CSA C22.2 No. 210 (e-file number: E236660), cUL PLTC according to CSA C22.2 No. 210 (e-file number: E236660) |
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- PROFINET® is a registered trademark of PNO (PROFIBUS user organisation).
产品系列列表
All articles from ETHERLINE® FESTOON PN Cat.5e
| Article number | Conductor count/size | Basic material of outer sheath | Copper index calc export | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|---|
| 2170936 | 2x2x22/7AWG | Polyvinylchloride | 6.5 | 69 kg/km |
