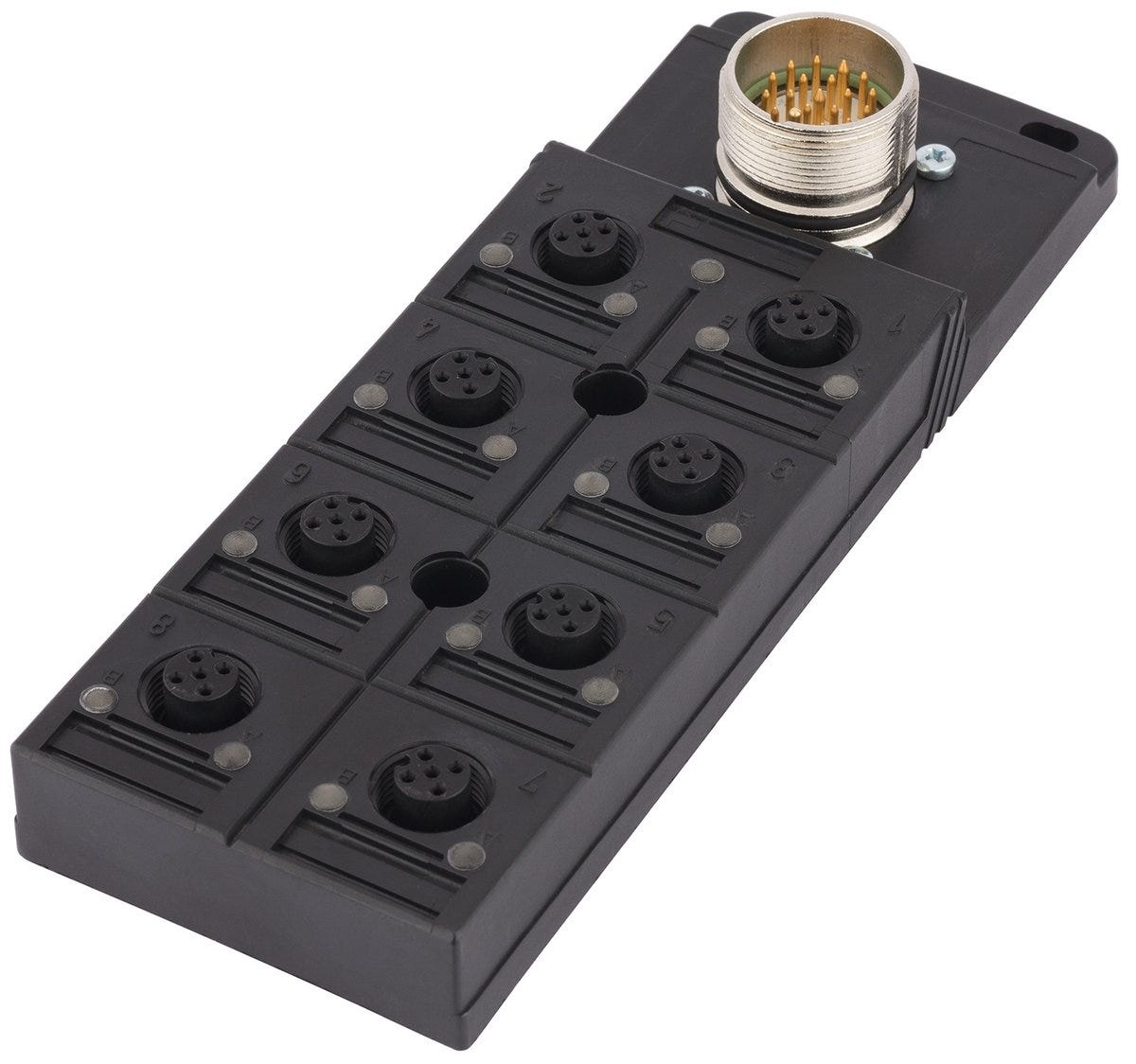

AB-B8-8-L-M23
Distribution box; Sensor/Actuator; A-coded; Status indication; Slot assignment: Simple; Number of plug contacts: 8
AB-B8-8-L-M23
SGD 208.96
/
AB-B8-8-L-M23
SGD 208.96
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Cost efficient and rational wiring of sensors and actuators, Instead of numerous individual conductors,one master cable is laid to the control unit, Hybrid cable for signal and power transmission, There are no assembly costsas the master cableis already pre-assembled, Suitable for drag chains
技术属性
一般信息
| Product type | Distribution box |
| Brand | UNITRONIC® |
| Installation type | screw |
| valid fieldbus or Ethernet system | Sensor/Actuator |
| Delivery Unit | 1.000 |
| Weight | 0.126 kg |
电气特性
| Nominal voltage | 24 V DC according to (manufacturer specifications) |
| Total current | 12 |
产品设计
| Interfaces (copper) | 1 x M 23, 0.4 Nm, 8 x M 12 (A-coded), 0.4 Nm |
| Coded |
|
| Total length | 155 |
| Direct mounting possible |
|
| EMC screening |
|
| Overall width | 54 |
| Housing base material | Polyamide |
| Housing base material, short form | PA |
| Total height | 26 |
| Status indication |
|
| Type of connection | Plug to socket |
| Coding type | A-coded |
| Number of plug contacts | 8 |
| Slot assignment | Simple |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 65, IP 67 |
| Max. assembly temperature | 75 |
| Installation temperature min. | -20 |
| UV-resistant |
|
| Operating temperature min. | -20 |
| Operating temperature max. | 75 |
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
