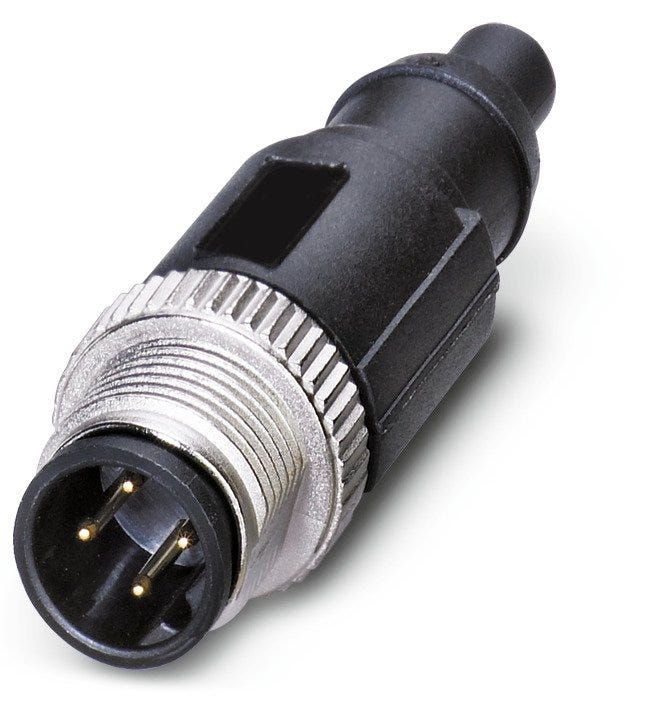

AB-C4-M12MS-PB-TR
Terminating resistor; PROFIBUS DP; M 12; Plug; Shielded: No
AB-C4-M12MS-PB-TR
SGD 38.55
/
AB-C4-M12MS-PB-TR
SGD 38.55
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
Certificate
PROFIBUS DP, PROFIBUS PA
福利
Cost efficient termination of a bus systems, Space-saving due to compact dimensions, Robust design
申请书
Mechanical and plant engineering
技术属性
一般信息
| Product type | Terminating resistor |
| valid fieldbus or Ethernet system | PROFIBUS DP |
| Delivery Unit | 5.000 |
| Weight | 0.01 kg |
电气特性
产品设计
| Connector housing angle | 180 |
| Coded |
|
| Design connector housing | Straight |
| Contact coating material, short form | Ni/Au |
| Connector type | Plug |
| Connector format | M 12 |
| Housing base material | Thermoplastic polyurethane |
| With thread |
|
| Housing base material, short form | TPU |
| Number of contacts | 4 |
| Status indication |
|
| Contact material | Copper-tin |
| Shielded |
|
| Coding type | B-inverse |
| Contact material, short form | CuSn |
产品特点
| IP protection rating | IP 65, IP 67 |
| Vibration protection |
|
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 90 |
| Contact application areact | BUS |
认证和标准
| Product standard according to IEC | M12 according to IEC 61076-2-101 |
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
