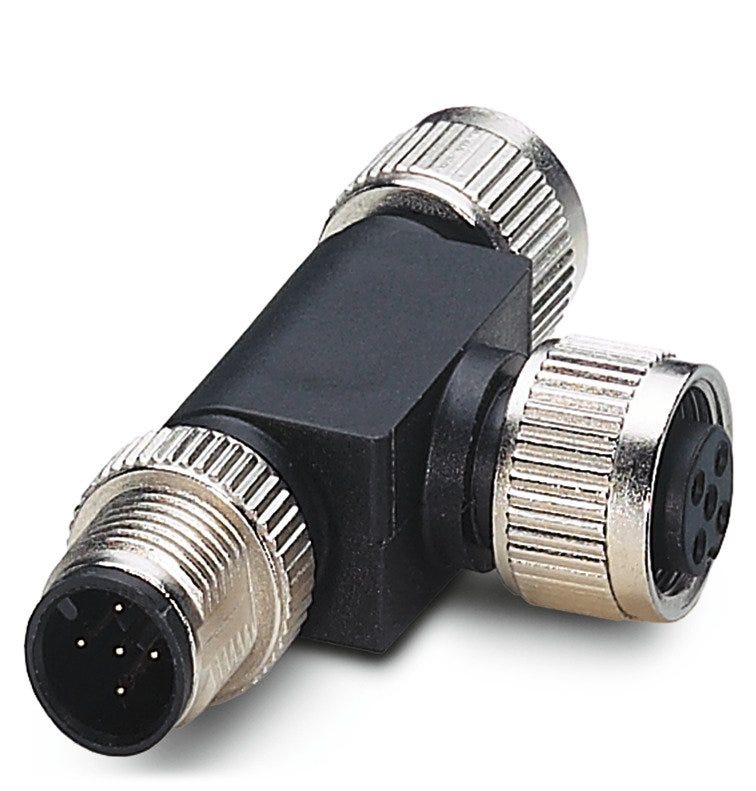

AB-C5-M12T-2XM12FS DN
T-splitter; Sensor/Actuator; M 12 (A-coded); Socket; Straight
AB-C5-M12T-2XM12FS DN
SGD 45.48
/
AB-C5-M12T-2XM12FS DN
SGD 45.48
/
Low Stock (10)
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
申请书
For universal data and signal transmission in the area of sensors and actuators at field level
For fieldbus communication in CAN- and CANopen-based networks.
技术属性
一般信息
| Product type | T-splitter |
| Brand | EPIC® |
| valid fieldbus or Ethernet system | Sensor/Actuator |
| Delivery Unit | 5.000 |
| Weight | 0.023 kg |
电气特性
| Rated voltage | 60 V DC according to IEC |
| Rated current | 4 A according to IEC |
产品设计
| Assembly type | Field configurable |
| Coding element material | Thermoplastic polyurethane |
| Coded |
|
| Design connector housing | Straight |
| Material coding element shortname | TPU |
| Contact coating material, short form | Ni/Au |
| Connector type | Socket |
| Connector format | M 12 |
| Cable tie type | Plug on 2x socket |
| Thread type | Metric |
| Housing variant | T-splitter |
| Conductor connection type | Screw lock |
| Thread size | M 12 |
| Housing colour | black |
| Housing base material | Thermoplastic polyurethane |
| With thread |
|
| Housing base material, short form | TPU |
| Reusable |
|
| Number of contacts | 5 |
| Locking type | Screw Thread |
| Status indication |
|
| Type of connection | T-distribution |
| Shielded |
|
| Coding type | A-coded |
| Contact material, short form | CuZn |
产品特点
| IP protection rating | IP 65, IP 67 |
| Pollution degree | 3 |
| Vibration protection |
|
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 90 |
认证和标准
| CE marked |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- DeviceNet is a registered trademark of the user organisation ODVA.
产品系列列表
All articles from EPIC® DATA CAN M12T
| Article number | Product type | Connector format |
|---|---|---|
| 22260765 | T-splitter | M 12 |
