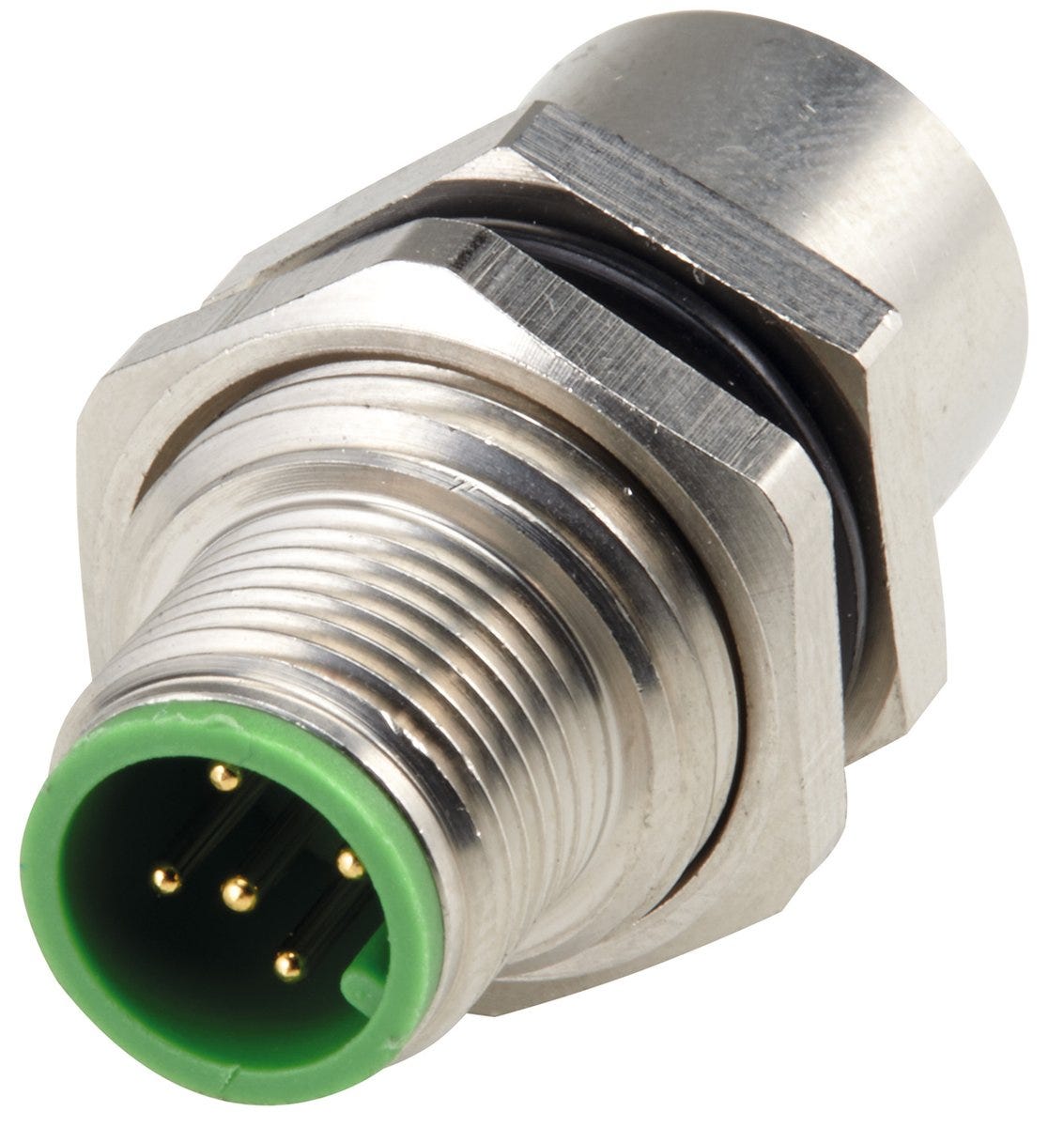

AB-C5-DSI-M12MS-M12FS-M16-SH
Data connector; Sensor/Actuator, CAN, DeviceNet; M 12 (A-coded); Plug/Socket; Straight (180 °)
AB-C5-DSI-M12MS-M12FS-M16-SH
SGD 69.18
/
AB-C5-DSI-M12MS-M12FS-M16-SH
SGD 69.18
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
icon sturgeon signal
Certificate
DeviceNet
CANopen
福利
When connected, protection class IP 67 can be achieved.
申请书
For connecting devices to control cabinets or machine housings
For universal data and signal transmission in the area of sensors and actuators at field level.
技术属性
一般信息
| Brand | EPIC® |
| Product type | Data connector |
| valid fieldbus or Ethernet system | Sensor/Actuator, CAN, DeviceNet |
| Delivery Unit | 1.000 |
| Weight | 0.03 kg |
电气特性
| Rated current | 4 A according to IEC |
| Over voltage category | II |
| Rated voltage | 24 V DC according to IEC |
产品设计
| Coding element material | Polyamide |
| Total length | 35 |
| Design connector housing | Straight |
| Material coding element shortname | PA |
| Connector format | M 12 |
| Thread type | Metric |
| Thread size | M 12 |
| Housing colour | Metal |
| Number of contacts | 5 |
| Connector diameter | 18 |
| Status indication |
|
| Contact material | Copper-tin |
| Type of connection | Plug to socket |
| Shielded |
|
| Coding type | A-coded |
| Contact material, short form | CuZn |
| Material contact surface | Gold-plated |
| Seal type | Sealing ring |
| Connector housing angle | 180 |
| Coded |
|
| Contact coating material, short form | Au |
| Connector type | Plug/socket |
| Housing variant | Control cabinet bushing |
| With thread |
|
| Reusable |
|
| Locking type | Screw Thread |
产品特点
| IP protection rating | IP 67 |
| UV-resistant |
|
| Operating temperature min. | -25 |
| Operating temperature max. | 85 |
| Pollution degree | 3 |
| Vibration protection |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| Product standard according to IEC | M12 according to IEC 61076-2-101 |
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- DeviceNet is a registered trademark of the user organisation ODVA.
产品系列列表
All articles from EPIC® DATA CAN M12/M12
| Article number | Delivery Unit |
|---|---|
| 22262020 | 1.000 |
