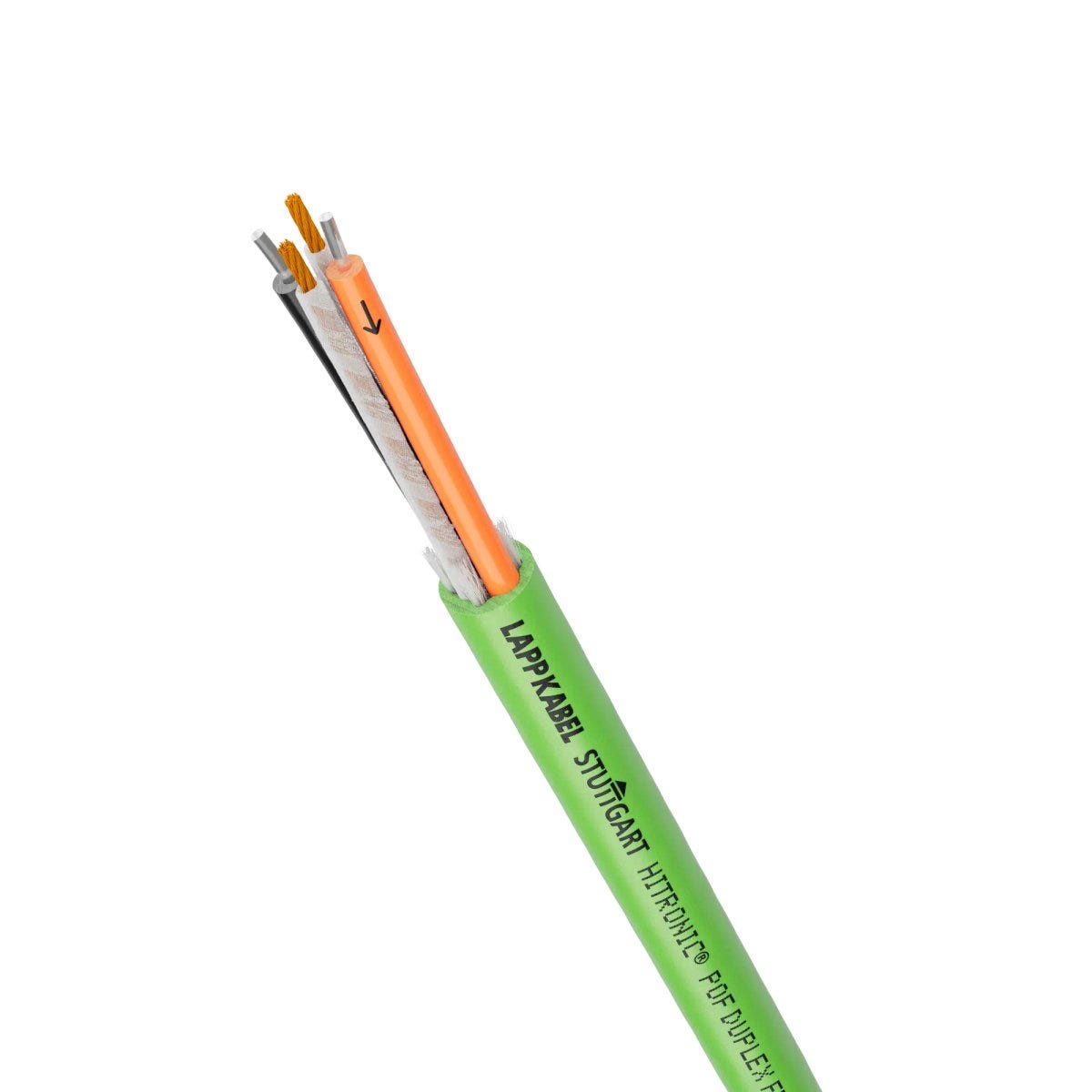

HITRONIC® POF 双工 PNB PA-PVC
POF; J-optical indoor cables: J-V4Y(ZN)Y; Fixed installation; Viscose fibre yarns; Polyvinylchloride; green; Tensile force fixed installation: 100N
HITRONIC® POF 双工 PNB PA-PVC
SGD 15.86
/
HITRONIC® POF 双工 PNB PA-PVC
SGD 15.86
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Certificate
ETHERNET/IP
PROFINET
福利
Optical data transmisson up to 70m, Suitable for direct connector assembly, Easy to handle, No intereference by external fields, No grounding problems
申请书
For optical signal transmission in industrial applications, PROFINET / Industrial Ethernet, At 100 Mbit/s: max 50 m cable length, PROFINET type B:for fixed laying, PROFINET type C:for flexible applications (power chains)
技术属性
一般信息
| Brand | HITRONIC® |
| Product type | Fibre optic cable |
| Fibre optic cable type, long designation | Polymer optical fibres |
| Fibre optic cable type | POF |
| valid fieldbus or Ethernet system | PROFINET, ETHERNET/IP |
| Weight | 59 kg/km |
电气特性
| Wavelength information | for 650 nm applies 160 dB / km as well as 1 MHz*km, for 660 nm applies 230 dB / km |
产品设计
| Base material buffer coating | Polyamide |
| Base material fibre core | Polymethylmetacrylate |
| Diameter fibre core | 980 |
| Nominal core diameter | 2.2 |
| Nominal outer diameter | 7.8 mm |
| Strain relief due to | Viscose fibre yarns |
| Diameter fibre cladding | 1000 |
| Base material buffer coating, shortname | PA |
| With cable messenger |
|
| Numerical aperture | 0.5 |
| Core identification | Colours |
| J-optical indoor cables | J-V4Y(ZN)Y |
| Shape of cable | Round |
| Outer sheath colour | green |
| Fibre type | Multi-mode fibre |
| Base material fibre core, shortname | PMMA |
| With rodent protection |
|
| Number of fibres | 2 |
| Number of cores | 2 |
| Basic material of outer sheath | Polyvinylchloride |
| With armouring |
|
| Basic material of outer sheath, short form | PVC |
产品特点
| Flame-retardant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Optical cable, insert | Indoor |
| PROFINET® application | Type B |
| Installation temperature min. | -10 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 78.0 mm |
| PWIS-free |
|
| Application area | Fixed installation |
| max. conductor temperature, occasionally moved | -10 °C to 50 °C max. conductor temperature: |
| Oil-resistant |
|
| Suitable for EX-applications |
|
| Max. assembly temperature | 50 |
| Tensile force, short-term | 200 |
| Minimum bending radius, stationary | 10 x outer diameter |
| Tensile force fixed installation | 100 |
| Temperature, fixed installation | -30 °C to 70 °C max. conductor temperature: |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| UL recognized |
|
| EAC certification number | RU С-DE.АЮ64.В.00321/19 |
| EAC-certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from HITRONIC® POF cables for PROFINET applications
| Article number | Dimension fibre core | Diameter fibre core | Dimension fibre cladding | Diameter fibre cladding | Fibre optic cable type | Number of fibres | Numerical aperture | For continuous flexing | Imp outer dia cable sheath nom | Nominal outer diameter | Weight | Windable | Halogenfree | Oil-resistant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 28051002 | 980 | 1000 | POF | 2 | 0.5 | No | 8.0 | 56 kg/km | No | No | Yes | |||
| 28052002 | 980 | 1000 | POF | 2 | 0.5 | No | 7.8 | 59 kg/km | No | No | No | |||
| 28351002 | 980 | 1000 | POF | 2 | 0.5 | Yes | 8.0 | 55 kg/km | Yes | No | Yes |
