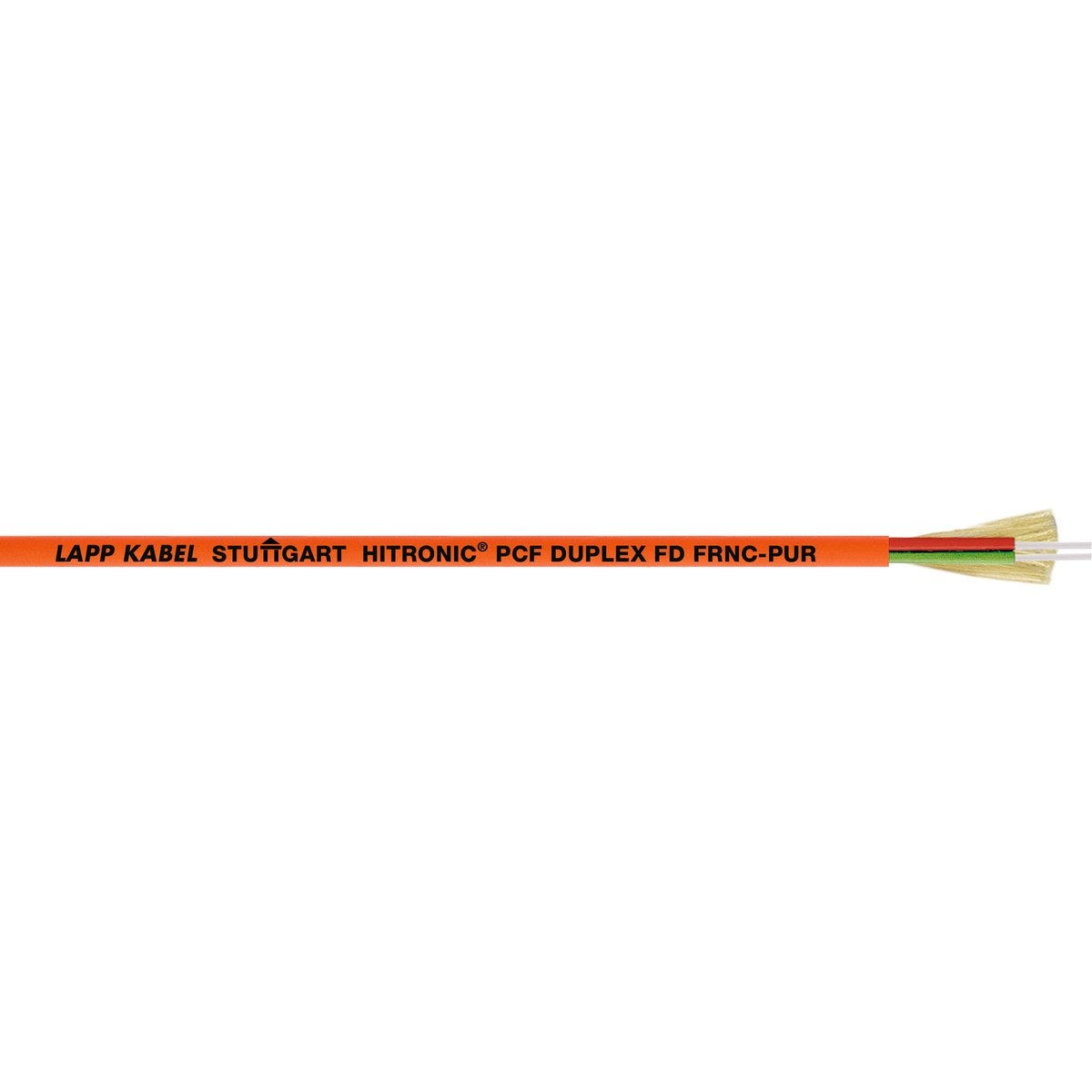

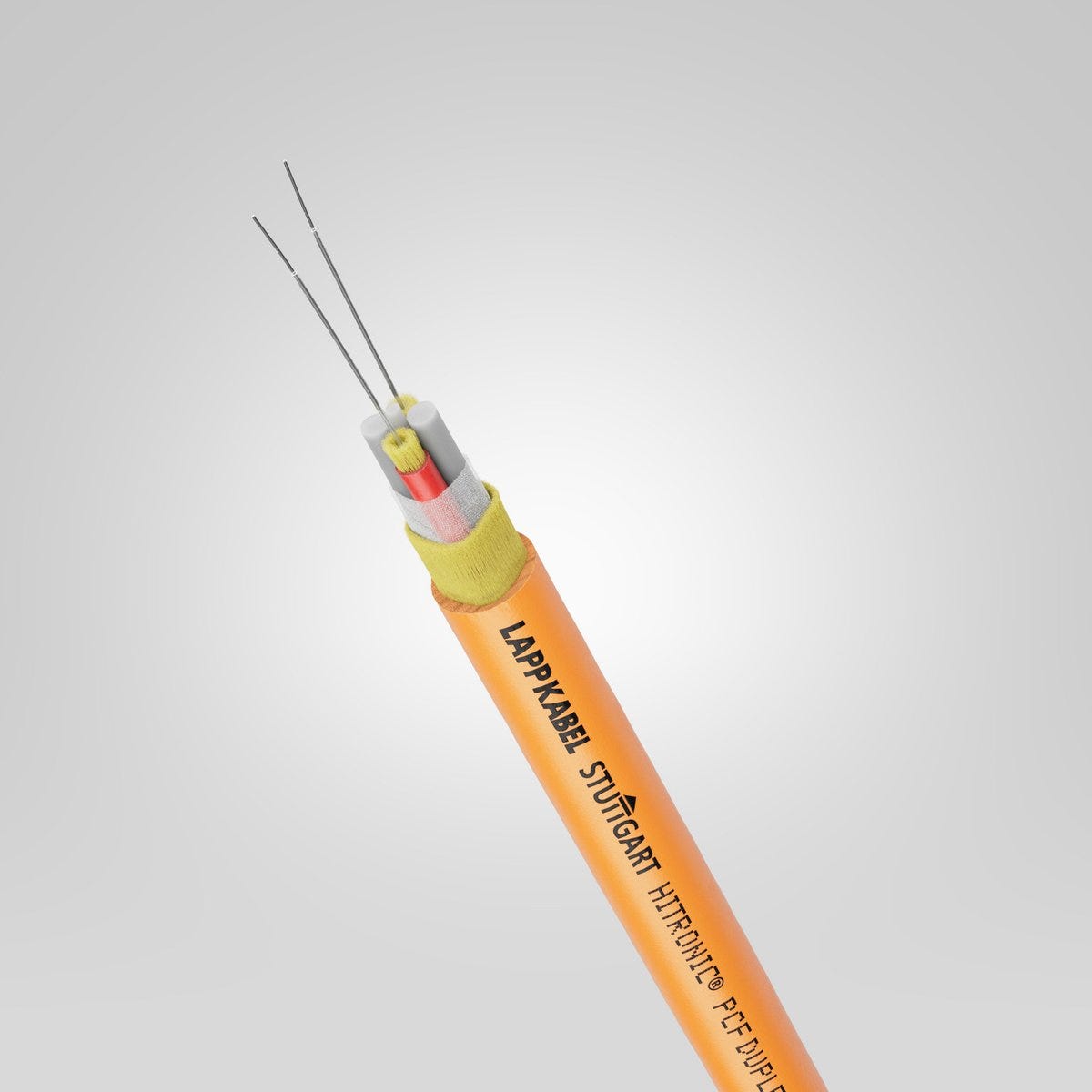

HITRONIC® PCF 双工 FD FRNC-PUR
PCF; J-optical indoor cables: A/J-V(ZN)11Y; A optical outdoor cable: A/J-V(ZN)H11Y; Cable chain, Torsion; Aramid yarns; PUR; orange; Halogenfree; For continuous flexing
HITRONIC® PCF 双工 FD FRNC-PUR
SGD 31.44
/
HITRONIC® PCF 双工 FD FRNC-PUR
SGD 31.44
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
icon powerchain
torsion resistant
福利
Designed for use in power chains, Transmission lengths up to 500 m, Suitable for direct connector assembly, Good resistance to oil, petrol, acids and alkalis, EMC protection
申请书
For data transmission in field bus systems, such as PROFIBUS, INTERBUS etc
As a link between moving parts, Industrial environments, For highly flexible applications
技术属性
一般信息
| Brand | HITRONIC® |
| Product type | Fibre optic cable |
| Fibre optic cable type, long designation | Plastic cladded glass fibre |
| Fibre optic cable type | PCF |
| Weight | 63 kg/km |
电气特性
| Wavelength information | for 650 nm applies 10 dB / km as well as 17 MHz*km, for 850 nm applies 8 dB / km as well as 20 MHz*km |

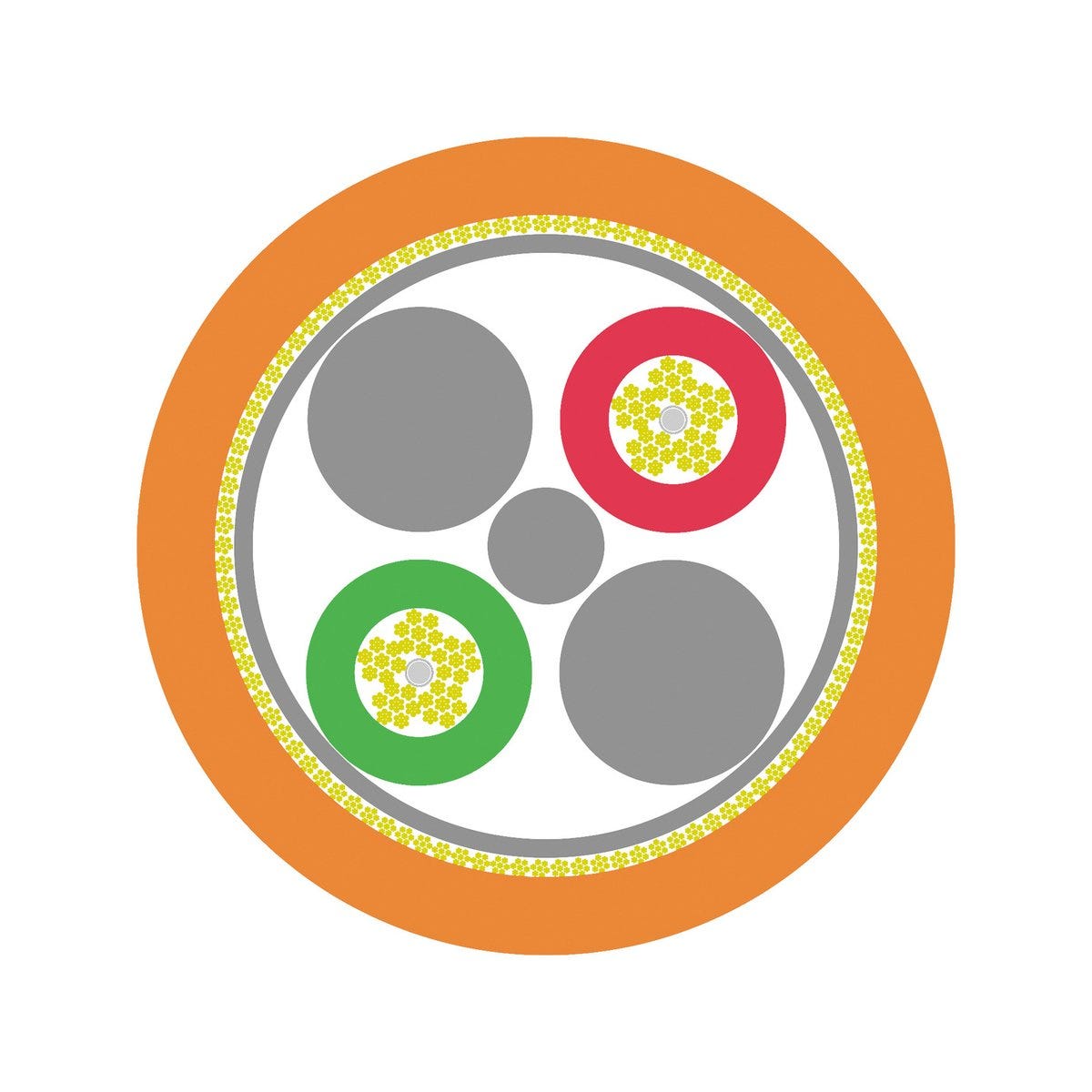

产品设计
| Base material buffer coating | Halogen-free compound |
| Base material fibre core | Glass (grade index) |
| Diameter fibre core | 200 |
| Nominal core diameter | 2.2 |
| Nominal outer diameter | 8.8 mm |
| Strain relief due to | Aramid yarns |
| Diameter fibre cladding | 230 |
| Base material fibre cladding | Ethylene tetrafluoroethylene copolymer |
| With cable messenger |
|
| Numerical aperture | 0.37 |
| Core identification | Colours |
| J-optical indoor cables | A/J-V(ZN)11Y |
| With tight buffer |
|
| Shape of cable | Round |
| Outer sheath colour | orange |
| A optical outdoor cable | A/J-V(ZN)H11Y |
| Classification of fibre optic cable | Divisible universal cable |
| Fibre type | Multi-mode fibre |
| With rodent protection |
|
| Diameter of primary coating | 500 |
| Number of fibres | 2 |
| Number of cores | 2 |
| Base material fibre cladding, shortname | ETFE |
| Basic material of outer sheath | Polyurethane |
| With armouring |
|
| Basic material of outer sheath, short form | PUR |
| Core wrapping | Fleece wrapping |
产品特点
| Flame-retardant |
|
| Halogen-free according to | IEC 60754-1 |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Optical cable, insert | Universal |
| Maximum bending cycles | 3000000 |
| Installation temperature min. | -10 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 176.0 mm |
| PWIS-free |
|
| Application area | Cable chain, Torsion |
| max. conductor temperature, occasionally moved | -20 °C to 70 °C max. conductor temperature: |
| Oil-resistant |
|
| Suitable for EX-applications |
|
| Max. assembly temperature | 50 |
| Tensile force, short-term | 2200 |
| Minimum bending radius, stationary | 20 x outer diameter |
| Tensile force fixed installation | 800 |
| Windable |
|
| Torsion | for +/- 110 °/m |
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| UL recognized |
|
| EAC certification number | RU С-DE.АЮ64.В.00321/19 |
| EAC-certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from HITRONIC® PCF DUPLEX FD cable
| Article number | Dimension fibre core | Diameter fibre core | Dimension fibre cladding | Diameter fibre cladding | Fibre optic cable type | Number of fibres | Numerical aperture | Imp outer dia cable sheath nom | Nominal outer diameter | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 28320702 | 200 | 230 | PCF | 2 | 0.37 | 8.8 | 63 kg/km |
