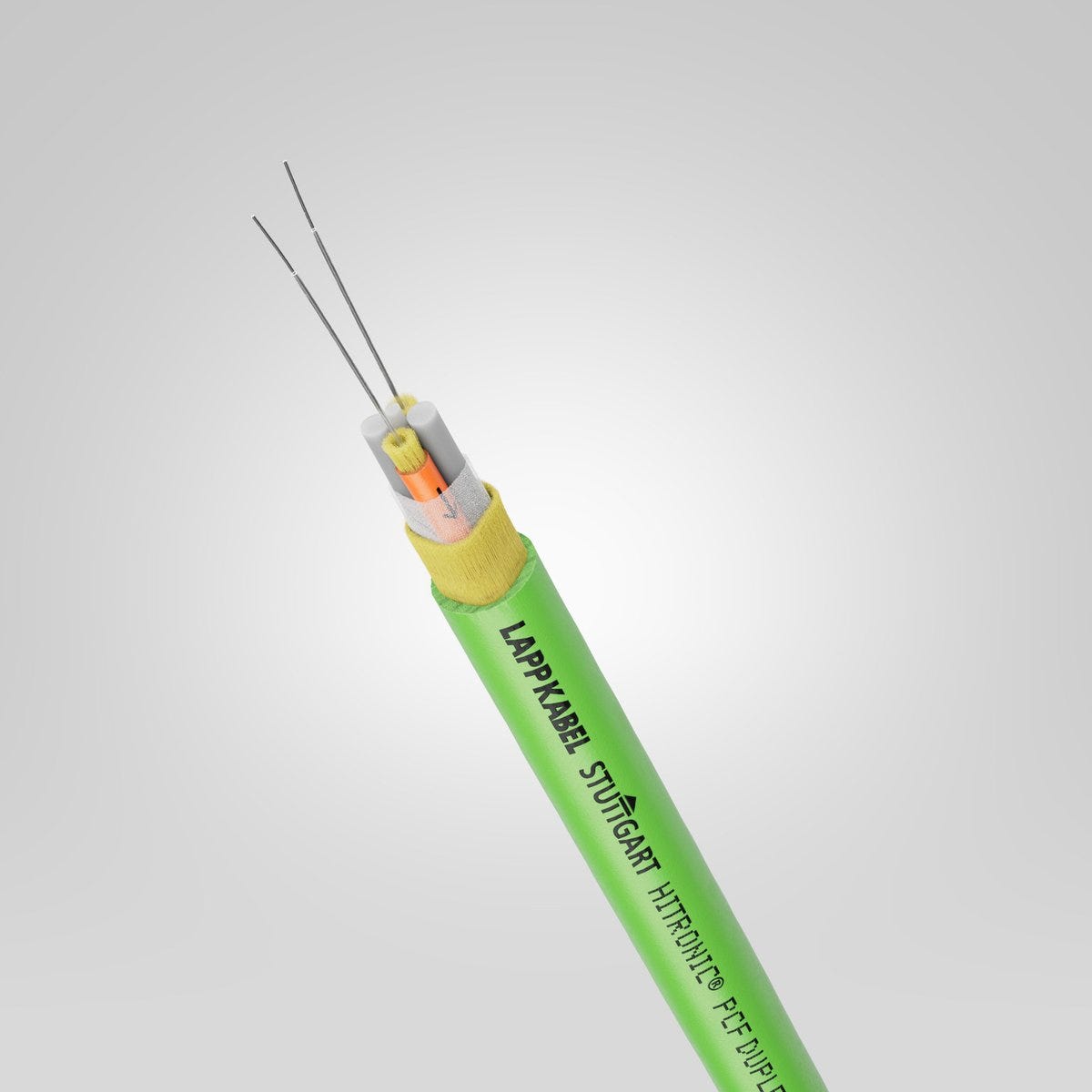

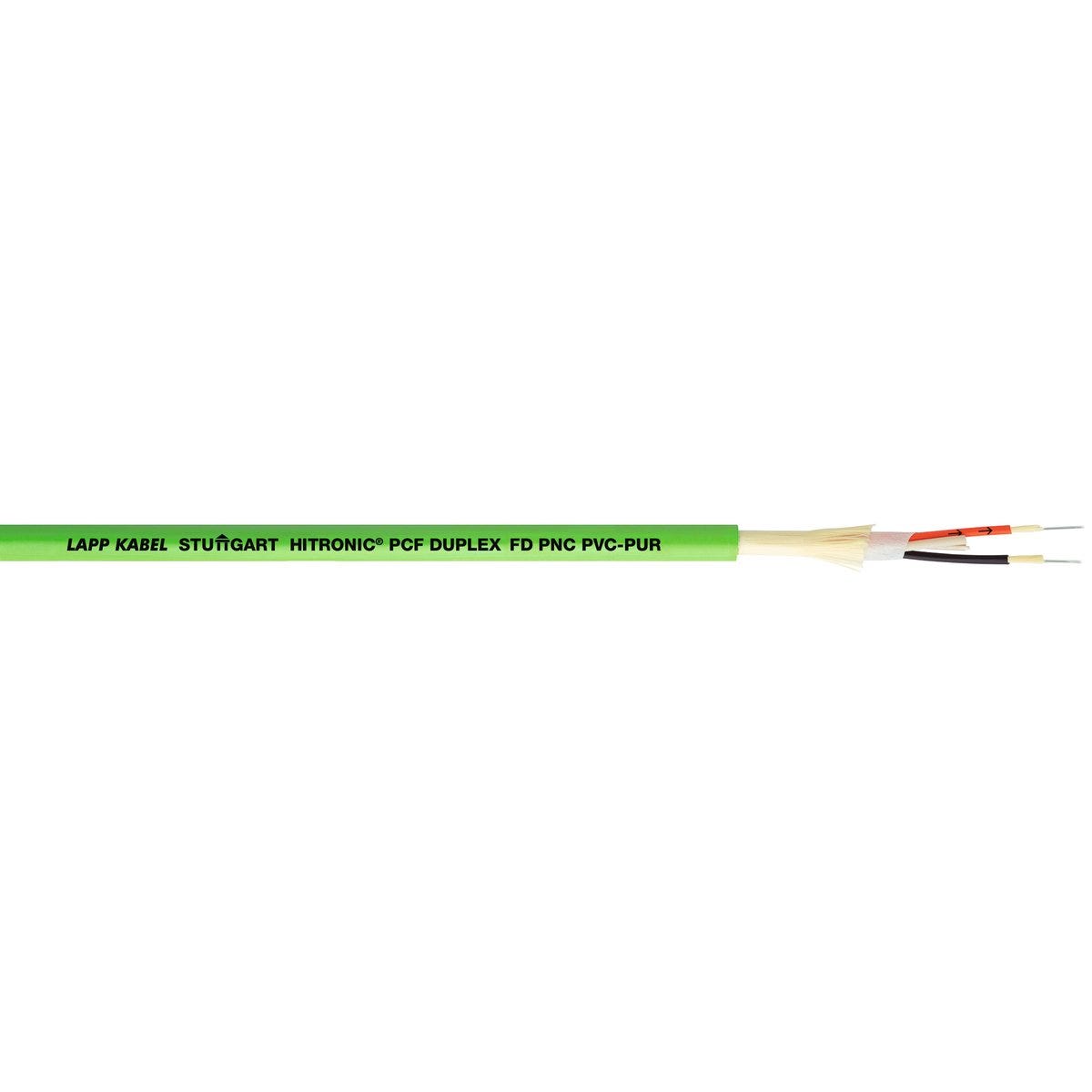

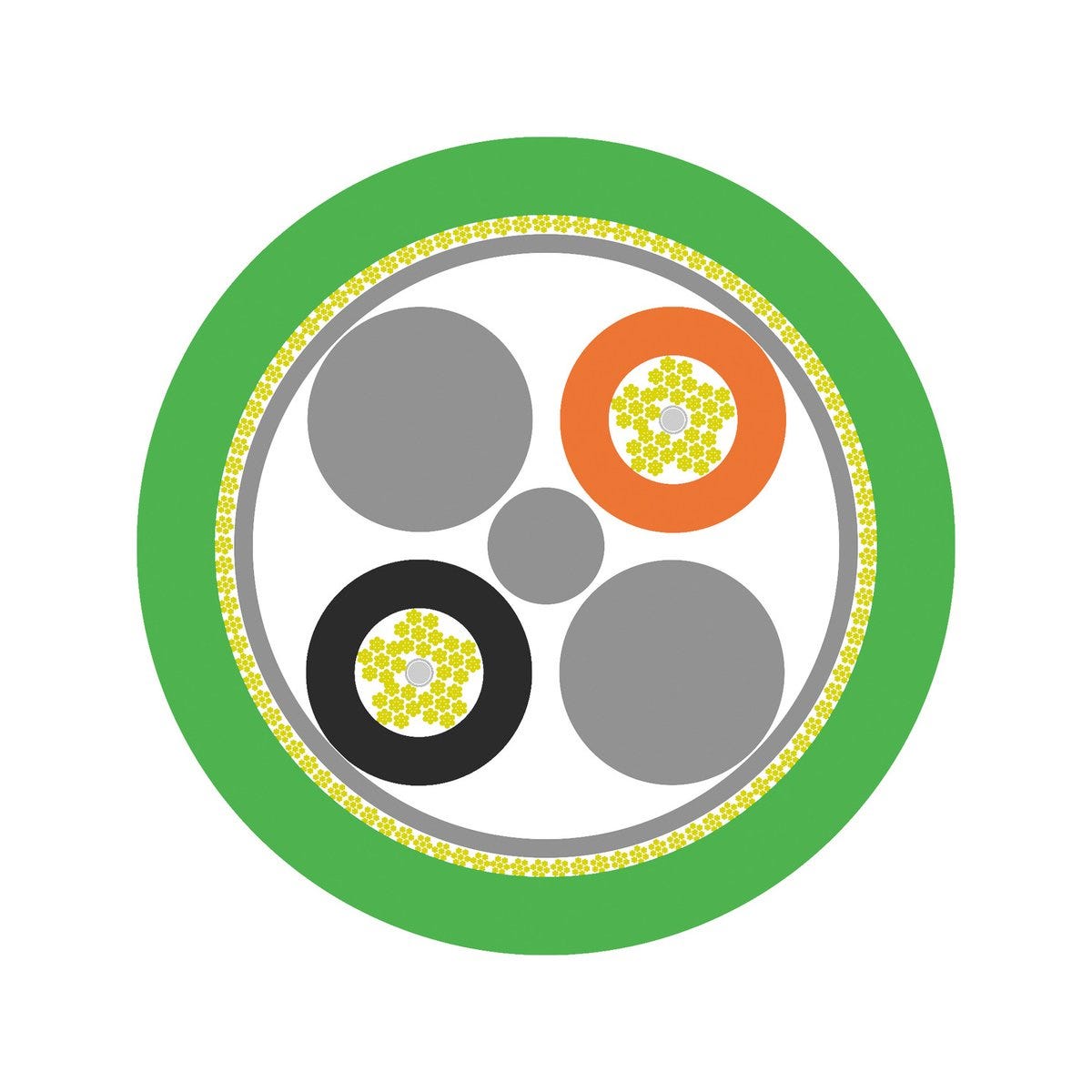

HITRONIC® PCF 双工FD PNC PVC-PUR
PCF; J-optical indoor cables: J-V(ZN)Y(ZN)11Y; Flexible; Aramid yarns; PUR; green; Halogenfree; For continuous flexing
HITRONIC® PCF 双工FD PNC PVC-PUR
SGD 41.80
/
HITRONIC® PCF 双工FD PNC PVC-PUR
SGD 41.80
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
flame-retardant
halogen-free
oil resistant
icon powerchain
Certificate
PROFINET
福利
Optical data transmisson up to 500m, Easy to handle, Suitable for direct connector assembly, No intereference by external fields, No grounding problems
申请书
PCF DUPLEX cabels for optical signal transmission in industrial applications, PROFINET / Industrial Ethernet, At 100 Mbit/s: max 100 m cable length, PROFINET type B:for fixed laying, PROFINET type C:for flexible applications (power chains)
技术属性
一般信息
| Brand | HITRONIC® |
| Product type | Fibre optic cable |
| Fibre optic cable type, long designation | Plastic cladded glass fibre |
| Fibre optic cable type | PCF |
| valid fieldbus or Ethernet system | PROFINET |
| Weight | 71 kg/km |
电气特性
| Wavelength information | for 650 nm applies 10 dB / km as well as 17 MHz*km, for 850 nm applies 8 dB / km as well as 20 MHz*km |
产品设计
| Base material buffer coating | Polyvinylchloride |
| Base material fibre core | Glass (grade index) |
| Diameter fibre core | 200 |
| Nominal core diameter | 2.2 |
| Nominal outer diameter | 8.8 mm |
| Strain relief due to | Aramid yarns |
| Diameter fibre cladding | 230 |
| Base material buffer coating, shortname | PVC |
| Base material fibre cladding | Ethylene tetrafluoroethylene copolymer |
| With cable messenger |
|
| Core identification | Colours |
| J-optical indoor cables | J-V(ZN)Y(ZN)11Y |
| With tight buffer |
|
| Shape of cable | Round |
| Outer sheath colour | green |
| Classification of fibre optic cable | Divisible indoor cable |
| With rodent protection |
|
| Conductor colour code | PROFINET Color code Power cable |
| Diameter of primary coating | 500 |
| Number of fibres | 2 |
| Base material fibre cladding, shortname | ETFE |
| Basic material of outer sheath | Polyurethane |
| With armouring |
|
| Basic material of outer sheath, short form | PUR |
产品特点
| Flame-retardant |
|
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| Optical cable, insert | Indoor |
| PROFINET® application | Type C |
| Minimum bending radius in mm, dynamic continuously flexing | 132.0 mm |
| Installation temperature min. | -10 |
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 132.0 mm |
| PWIS-free |
|
| Application area | Flexible |
| max. conductor temperature, occasionally moved | -10 °C to 50 °C max. conductor temperature: |
| Oil-resistant |
|
| Suitable for EX-applications |
|
| Minimum bending radius in mm, occasionally flexing | 88.0 mm |
| Max. assembly temperature | 50 |
| Tensile force, short-term | 1000 |
| Minimum bending radius, stationary | 15 x outer diameter |
| Minimum bending radius, occasionally flexing | 10 x outer diameter |
| Tensile force fixed installation | 800 |
| Temperature, fixed installation | -20 °C to 70 °C max. conductor temperature: |
| Oil resistance according to | UL 1581 paragraph 480 (60°C) |
| Minimum bending radius, dynamic continuously flexing | 15 x outer diameter |
| Windable |
|
| For torsional load |
|
| Halogenfree |
|
认证和标准
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| UL recognized |
|
| EAC certification number | RU С-DE.АЮ64.В.00321/19 |
| EAC-certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from HITRONIC® PCF cables for PROFINET applications
| Article number | Dimension fibre core | Diameter fibre core | Dimension fibre cladding | Diameter fibre cladding | Fibre optic cable type | Number of fibres | Numerical aperture | Imp outer dia cable sheath nom | Nominal outer diameter | PROFINET® application | For continuous flexing | Weight | UV-resistant | Halogenfree | UL listed | cUL listed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 28052702 | 200 | 230 | PCF | 2 | 0.37 | 7.2 | Type B | No | 55 kg/km | Yes | No | No | No | |||
| 28351702 | 200 | 230 | PCF | 2 | 8.8 | Type C | Yes | 71 kg/km | No | Yes | No | No | ||||
| 28352702 | 200 | 230 | PCF | 2 | 8.8 | Type C | Yes | 76 kg/km | Yes | No | No | No |
