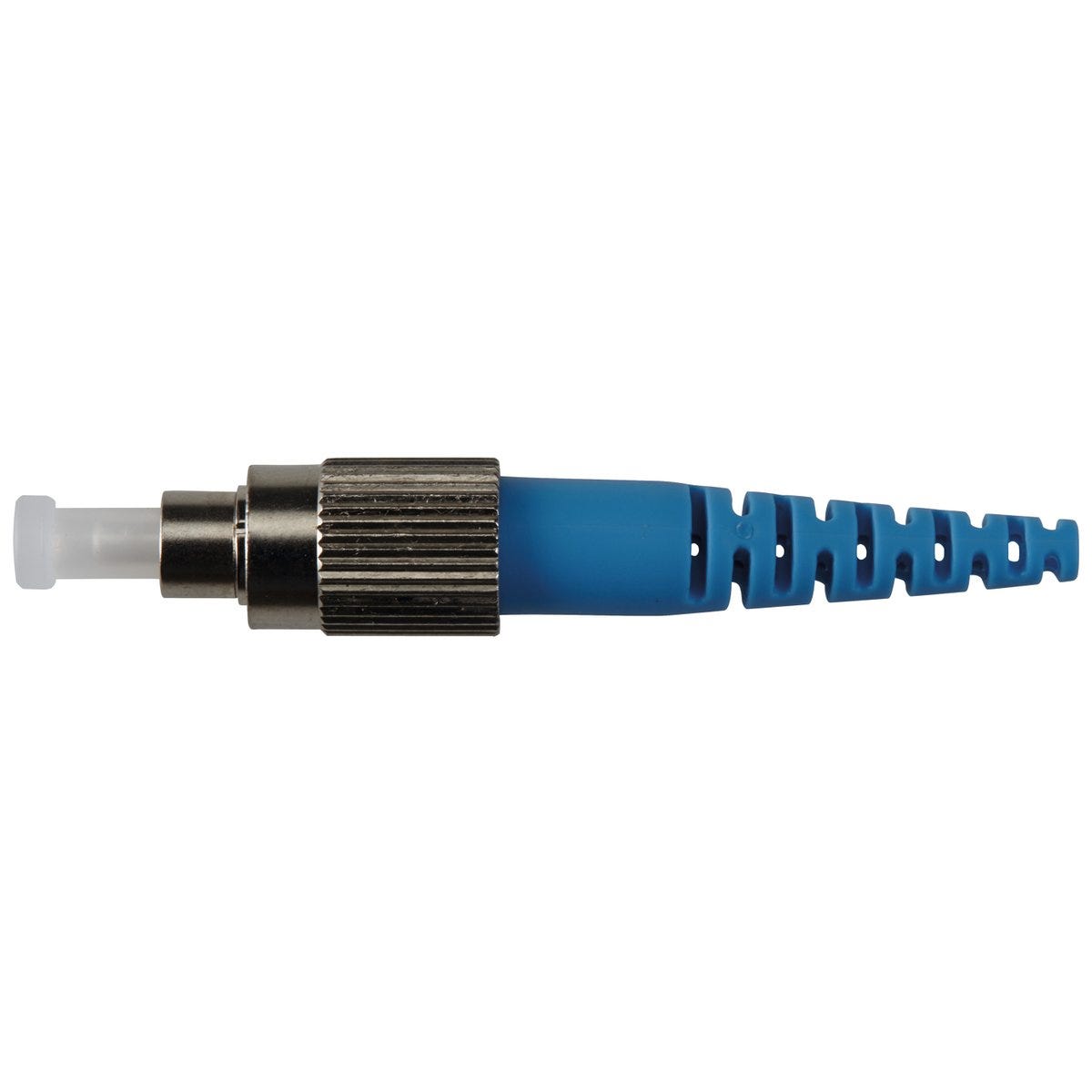

GOF连接器 FC 多模 /4PC
Fibre optic connector; FC; Plug; Straight; Locking type: Screw lock; Simplex;
GOF连接器 FC 多模 /4PC
SGD 3.88
/
GOF连接器 FC 多模 /4PC
SGD 3.88
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Ideal for assembling, For assembly process: cable preparation/glueing/crimping/polishing, Assembly instructions can be found in the GOF assembly toolbox (not included in Lapp product range), Trained optical installers should be used in all connector assembly
申请书
For connector assemblies in production or laboratory environment
技术属性
一般信息
| Product type | Fibre optic connector |
| Scope of delivery | 4 connectors, including dust protection cap, including anti-kink sleeves (one colour) |
| Brand | HITRONIC® |
| Fibre optic cable type | GOF |
| Delivery Unit | 4.000 |
| Weight | 0.005 kg |
电气特性
产品设计
| Total length | 47.4 |
| Design connector housing | Straight |
| Connector type | Plug |
| Type of plug connection | FC |
| Direct mounting possible |
|
| Dust protection cap |
|
| Variant of connector | Simplex |
| Connectable core diameter max. (mm) | 2.8 |
| Locking type | Screw lock |
| Suitable type of optical fibre | Multi-mode fibre |
| Ferrule material | Zirconia |
| Ferrule diameter | 2.5 |
产品特点
| Max. storage temperature | 85 |
| Storage temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Tensile strength after assembly | 100 |
| Operating temperature max. | 80 |
| Contact application areact | Data / signals |
认证和标准
| Product standard according to IEC | FC-PC according to IEC 61754-13 |
| EAC certification number | Отказное письмо № 481 |
| EAC-certified | Not required |
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
