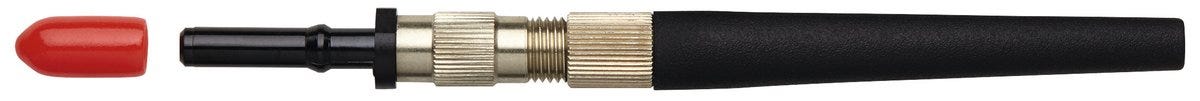

PCF 连接器 HFBR4521 夹具 3.0 /50PC
Fibre optic connector; HFBR-4521; Plug; Straight; Simplex; Suitable fibre width: 230; clamp;
PCF 连接器 HFBR4521 夹具 3.0 /50PC
SGD 122.97
/
PCF 连接器 HFBR4521 夹具 3.0 /50PC
SGD 122.97
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Compatible with HP Versatile Link Connectors and Components series
申请书
Factory automation, Medical equipment, Telecommunications Switching Systems
技术属性
一般信息
| Product type | Fibre optic connector |
| Scope of delivery | 50 connectors, including dust protection cap, including anti-kink sleeves (one colour) |
| Brand | HITRONIC® |
| Fibre optic cable type | PCF |
| Installation type | clamp |
| Delivery Unit | 50.000 |
| Weight | 0.007 kg |
电气特性
产品设计
| Total length | 91.7 |
| Design connector housing | Straight |
| Connector type | Plug |
| Type of plug connection | HFBR-4521 |
| Dust protection cap colour | red |
| Anti-kink sleeve material, short form | TPE |
| Direct mounting possible |
|
| Bend protection boot |
|
| Connector RAL colour | RAL 9005 |
| Dust protection cap RAL colour | RAL 3000 |
| Connector colour | black |
| Anti-kink sleeve material | Thermoplastic |
| Housing base material | Stainless steel |
| Dust protection cap |
|
| Housing base material, short form | VA |
| Reusable |
|
| Variant of connector | Simplex |
| Anti-kink sleeve RAL colour | RAL 9005 |
| Connectable core diameter max. (mm) | 3.0 |
| Connector diameter | 7 |
| Anti-kink sleeve colour | black |
| Suitable type of optical fibre | Simplex |
| Contact connection type | Insulation displacement contact |
| Ferrule material | Stainless steel |
| Suitable fibre width | 230 |
产品特点
| IP protection rating | IP 20 |
| Max. storage temperature | 85 |
| Insertion attenuation | 1.25 |
| Vibration protection |
|
| Tensile force, short-term | 80 |
| Storage temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Tensile force fixed installation | 80 |
| Tensile strength after assembly | 80 |
| Operating temperature max. | 85 |
| Contact application areact | Fibre optic cables |
认证和标准
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
