PCF 连接器 SC-RJ 夹具 3.0

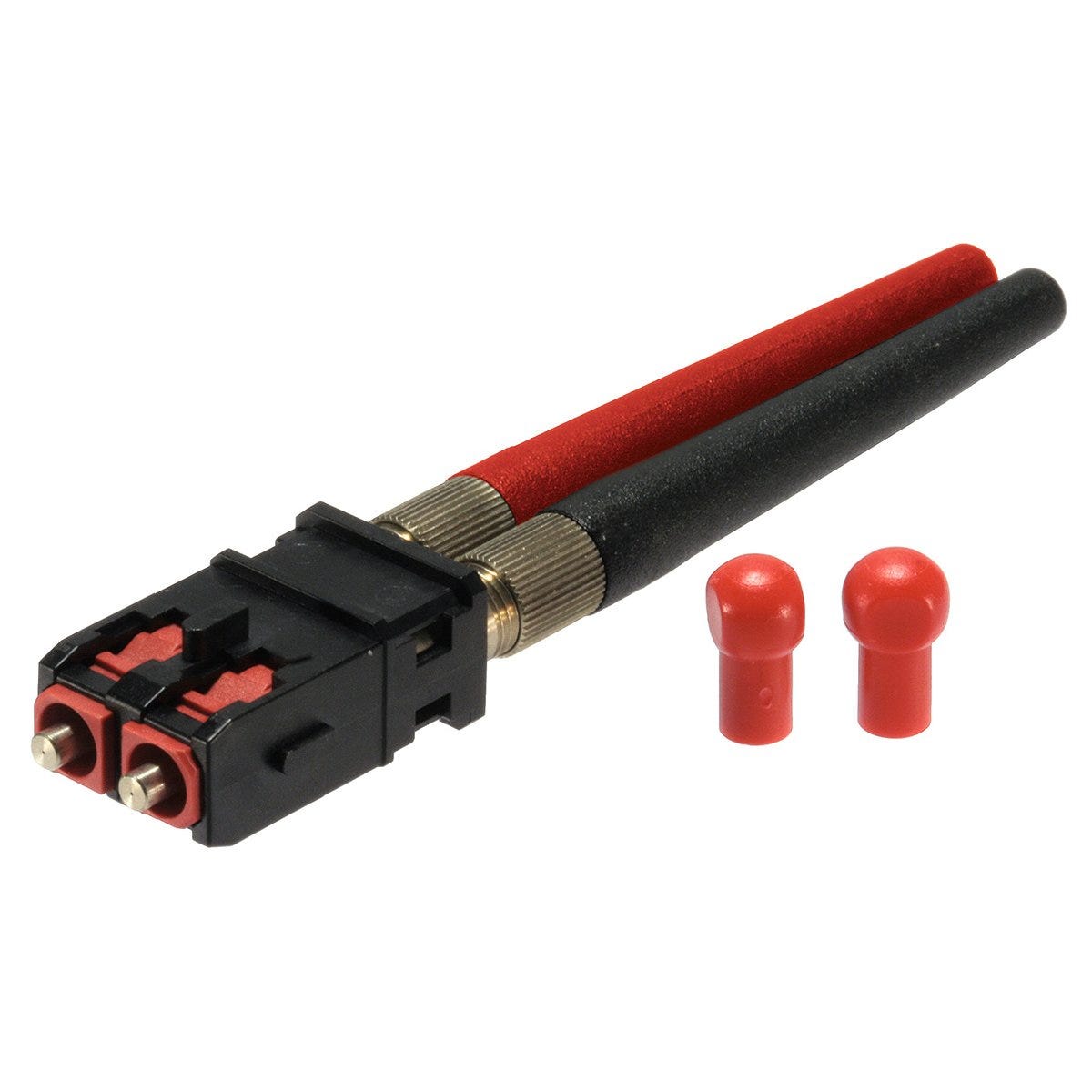

Fibre optic connector; SC-RJ; Plug; Straight; Duplex; Suitable fibre width: 230;
PCF 连接器 SC-RJ 夹具 3.0
SGD 169.06
/
PCF 连接器 SC-RJ 夹具 3.0
SGD 169.06
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
福利
Designed for field assembly, Reusable as it can be removed, Easy to assemble
技术属性
一般信息
| Product type | Fibre optic connector |
| Brand | HITRONIC® |
| Fibre optic cable type | PCF |
| Delivery Unit | 1.000 |
| Weight | 0.018 kg |
电气特性
产品设计
| Total length | 38.7 |
| Design connector housing | Straight |
| Connector type | Plug |
| Type of plug connection | SC-RJ |
| Direct mounting possible |
|
| Connector colour | black |
| Dust protection cap |
|
| Variant of connector | Duplex |
| Connectable core diameter max. (mm) | 3.0 |
| Connector diameter | 6.7 |
| Ferrule material | Nickel silver |
| Suitable fibre width | 230 |
| Ferrule diameter | 2.5 |
产品特点
| IP protection rating | IP 20 |
| Max. storage temperature | +85 |
| Storage temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | +85 |
认证和标准
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
