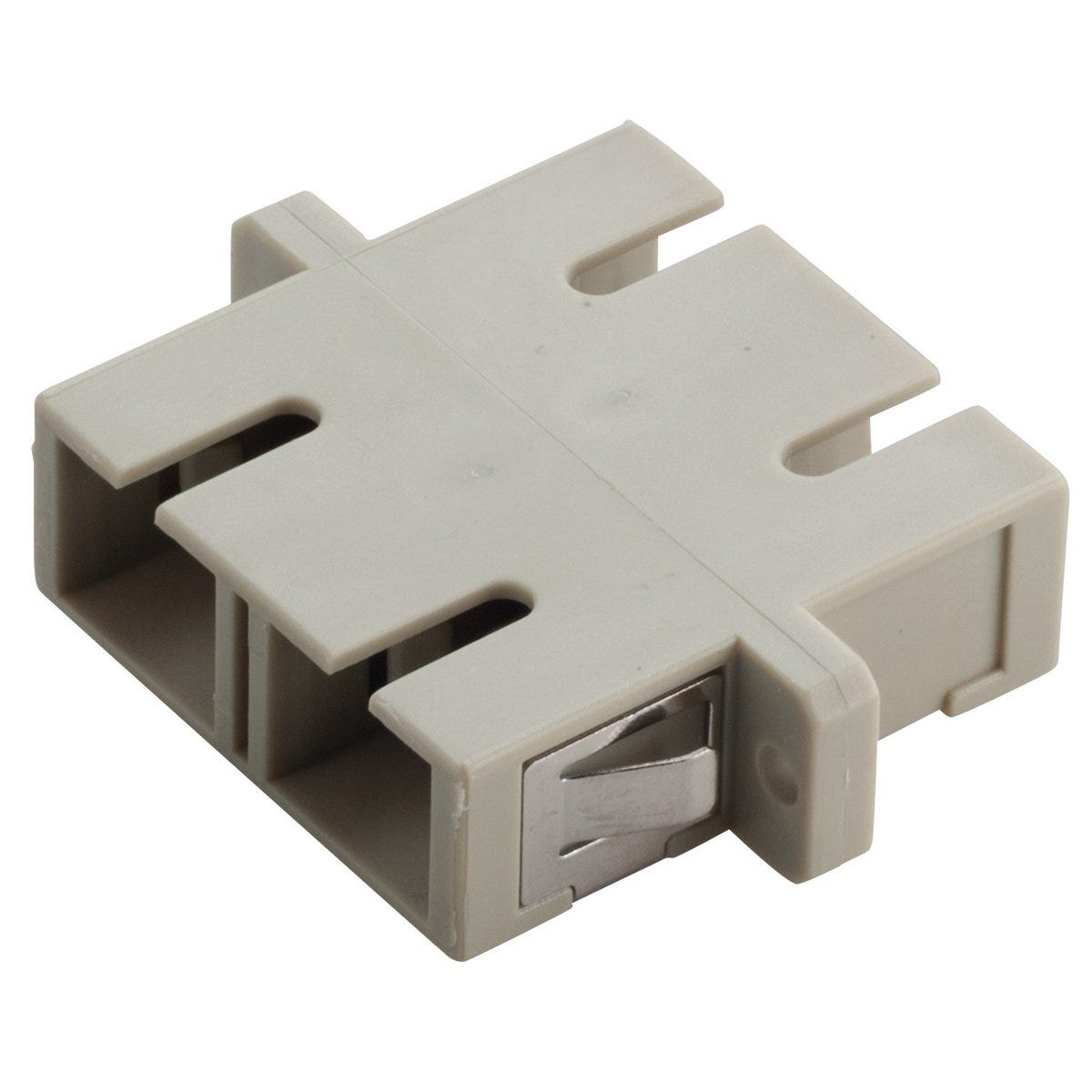

GOF适配器双工SC多模BE/4PC
Fibre optic coupling; Coupling; Duplex; physical contact; PC; screw
GOF适配器双工SC多模BE/4PC
SGD 6.89
/
GOF适配器双工SC多模BE/4PC
SGD 6.89
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
技术属性
一般信息
| Product type | Fibre optic coupling |

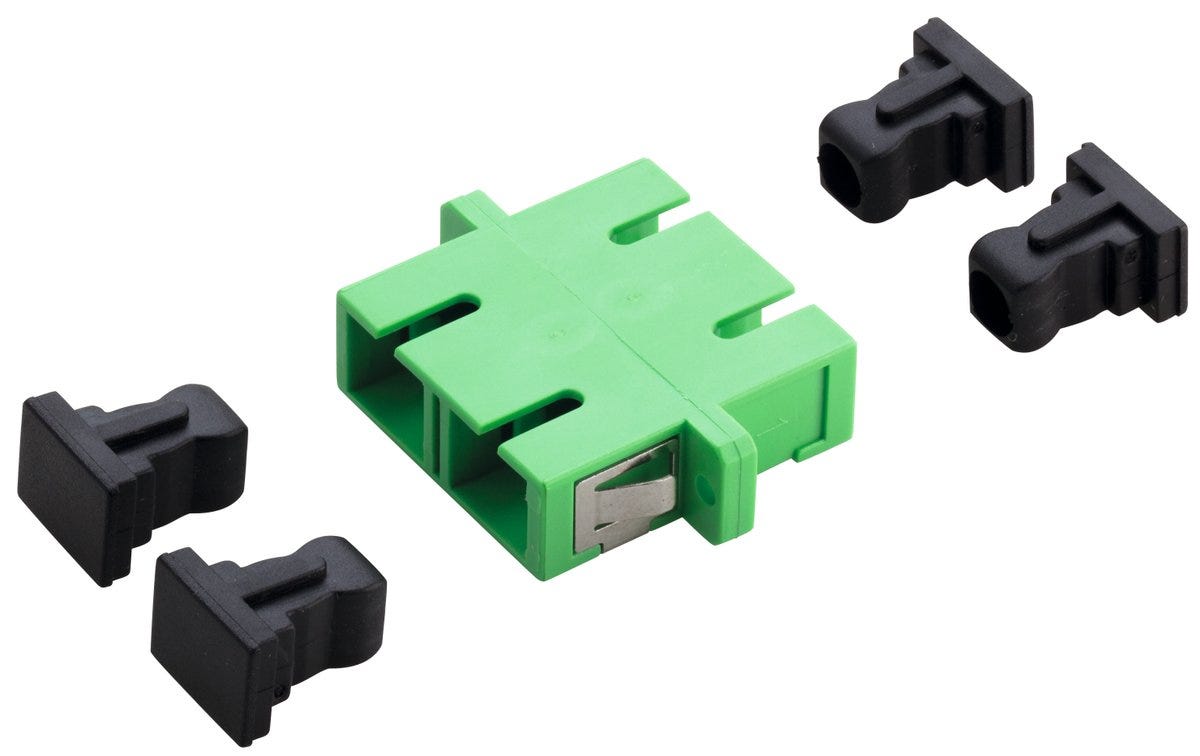

| Scope of delivery | 4 couplings, including dust protection cap |
| Brand | HITRONIC® |
| Fibre optic cable type | GOF |
| Installation type | screw |
| Delivery Unit | 4.000 |
| Weight | 0.005 kg |
电气特性
产品设计
| Connector housing angle | 180 |
| Total length | 27.4 |
| Flange |
|
| Design connector housing | Straight |
| Connector type | Coupling |
| Grinding contact surface | PC |
| Dust protection cap colour | black |
| Direct mounting possible |
|
| Bend protection boot |
|
| Coupling connection type | SC/SC |
| Cut type contact surface description | physical contact |
| Overall width | 9.3 |
| Housing base material | Acrylonitrile butadiene styrene plastic |
| Dust protection cap |
|
| Housing base material, short form | ABS |
| Variant of connector | Duplex |
| Locking type | without |
| Total height | 34.9 |
| Suitable type of optical fibre | Multi-mode fibre |
| Ferrule material | Zirconia |
| Suitable fibre width | 125 |
产品特点
| Min. number of insertion cycles | 1000 |
| Max. assembly temperature | 85 |
| Installation temperature min. | -40 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 85 |
| Contact application areact | Data / signals |
认证和标准
| Product standard according to IEC | SC according to IEC 61754-4 |
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from GOF adapter SC
| Article number | Scope of delivery | Suitable type of optical fibre | Grinding contact surface | Cut type contact surface description |
|---|---|---|---|---|
| 29410199 | 4 couplings, including dust protection cap | Multi-mode fibre | PC | physical contact |

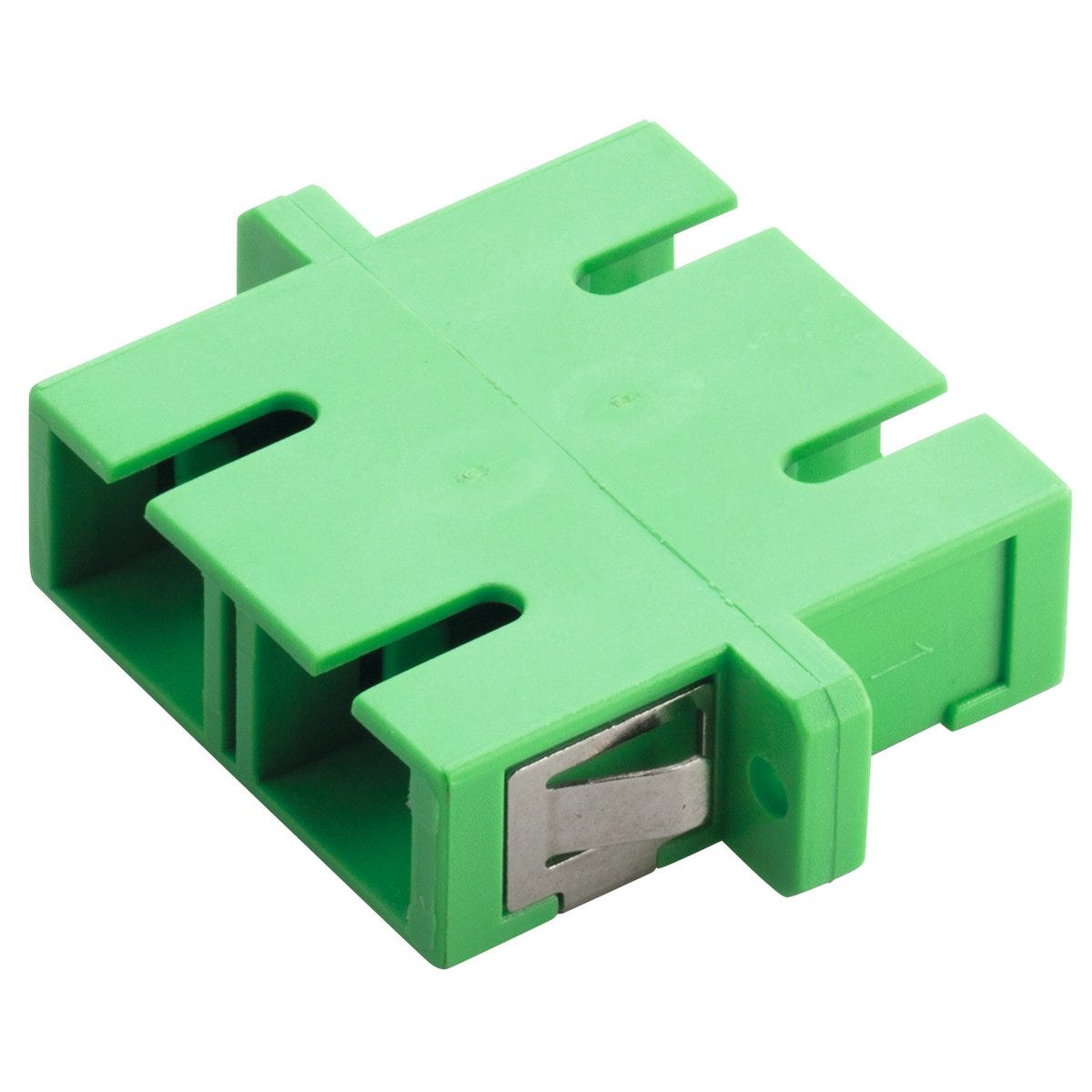

| 29410989 | 4 couplings, including dust protection cap | Single-mode fibre | APC | angled physical contact |

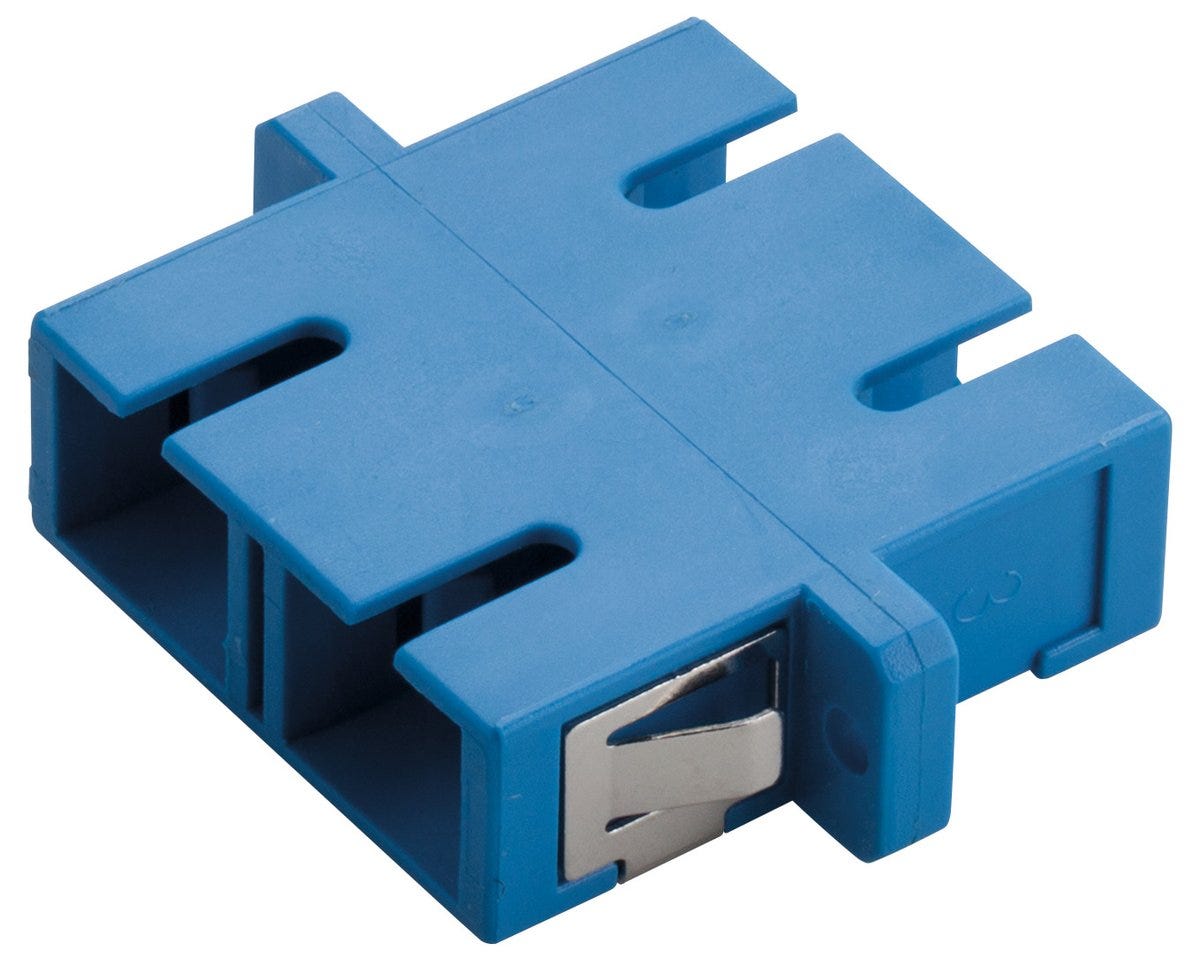

| 29410999 | 4 couplings, including dust protection cap | Single-mode fibre | PC | physical contact |
