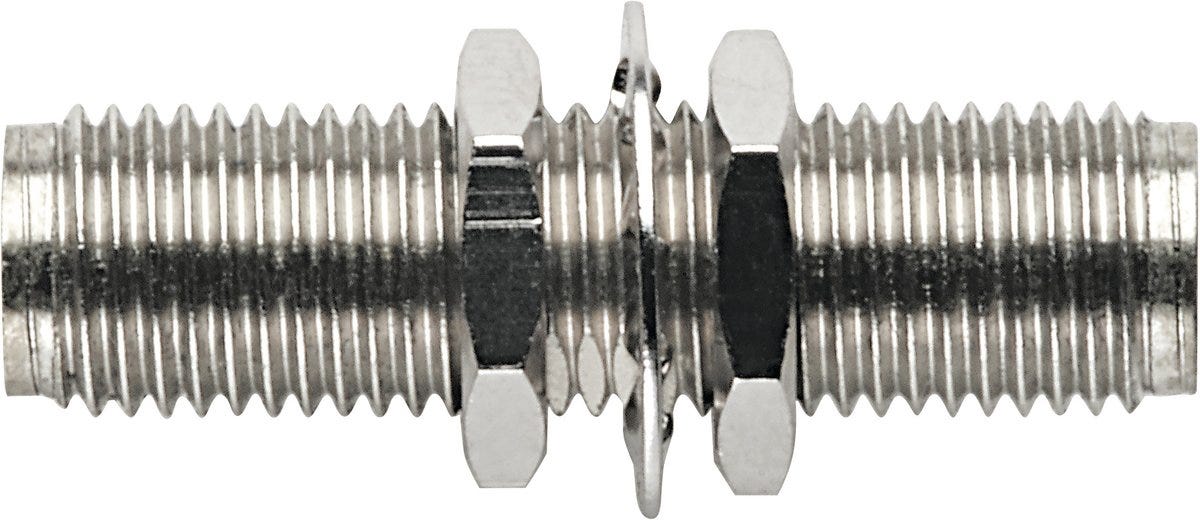

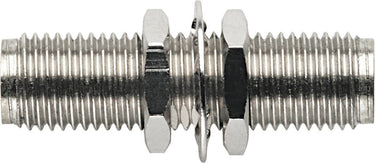

POF ADAPTER FSMA /4件套
Fibre optic coupling; Coupling; Straight; Simplex; Suitable fibre width: 1000; screw;
POF ADAPTER FSMA /4件套
SGD 33.94
/
POF ADAPTER FSMA /4件套
SGD 33.94
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
技术属性
一般信息
| Product type | Fibre optic coupling |
| Scope of delivery | 4 couplings |
| Brand | HITRONIC® |
| Installation type | screw |
| Delivery Unit | 4.000 |
| Weight | 0.005 kg |
电气特性
产品设计
| Assembly type | Field configurable |
| Total length | 23.5 |
| Flange |
|
| Design connector housing | Straight |
| Connector type | Coupling |
| Type of plug connection | F-SMA |

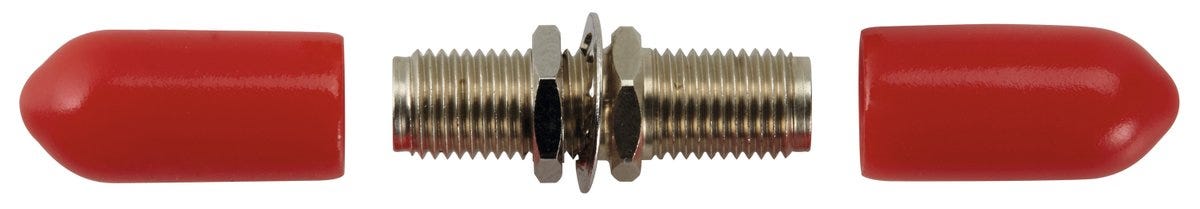

| Dust protection cap colour | red |
| Direct mounting possible |
|
| Bend protection boot |
|
| Coupling connection type | F-SMA |
| Dust protection cap RAL colour | RAL 3000 |
| Connector colour | silver |
| Housing base material | Nickel silver |
| Dust protection cap |
|
| Reusable |
|
| Variant of connector | Simplex |
| Connector diameter | 6.35 |
| Guide sleeve material | Nickel silver |
| Suitable type of optical fibre | Simplex |
| Contact connection type | Screw connection |
| Suitable fibre width | 1000 |
产品特点
| Max. storage temperature | 100 |
| Min. number of insertion cycles | 500 |
| Insertion attenuation | 1.0 |
| Vibration protection |
|
| Storage temperature min. | -55 |
| UV-resistant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 85 |
| Contact application areact | Fibre optic cables, Data / signals |
认证和标准
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
