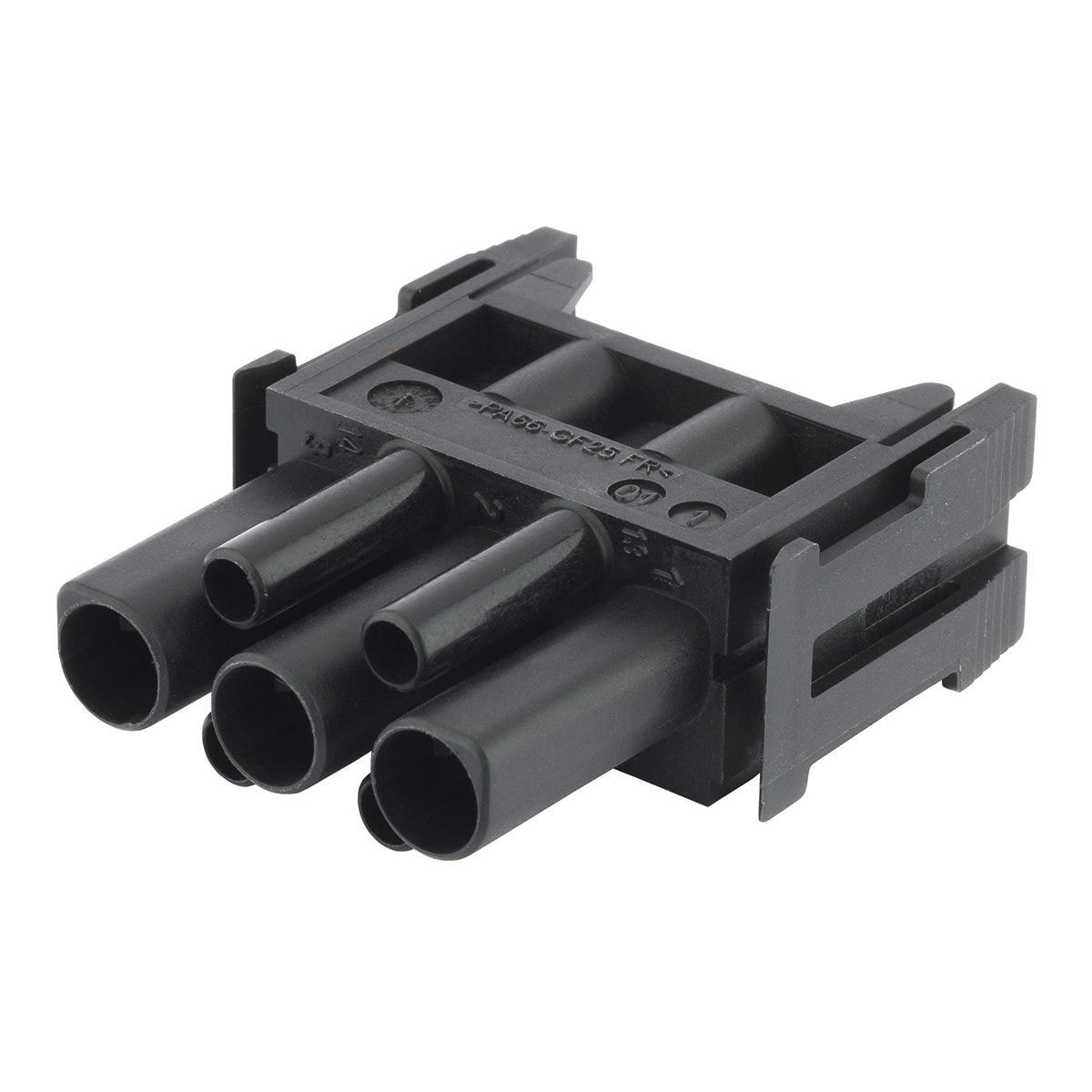

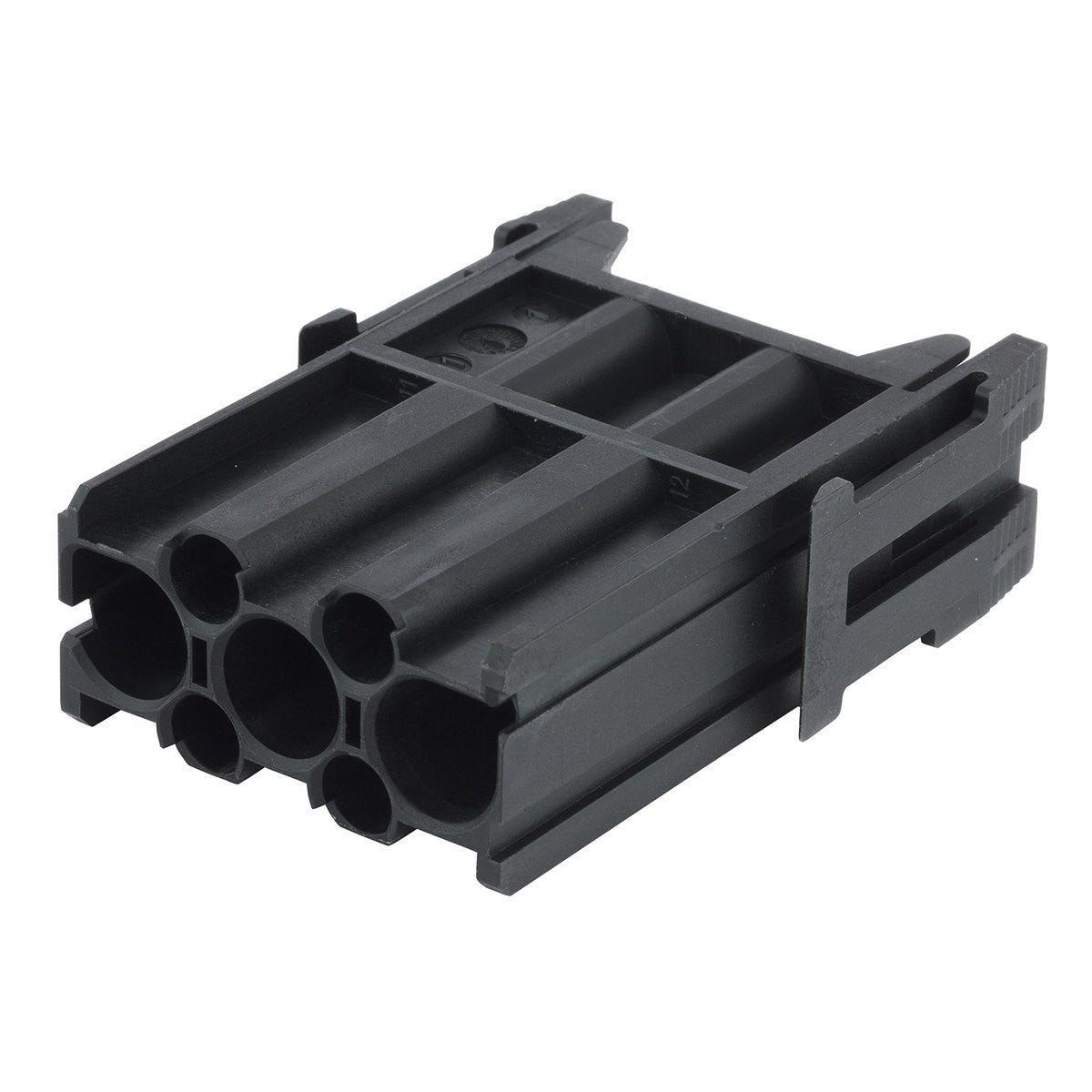

EPIC® MHS 3 + 4 CM
MH module modular system; Crimp termination; Number of contacts: 7; Required slots: 1;
EPIC® MHS 3 + 4 CM
SGD 7.07
/
EPIC® MHS 3 + 4 CM
SGD 7.07
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
Certificate
UR recognised, UL recognised
福利
Hybrid module with 3 power contacts for power transmission up to 40 A and 4 signal contacts for signal transmission up to 10 A
Connectors with modular configurations can be connected to market-standard connectors
Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly
Different crimp contacts available for different conductor cross-sections
Locks effortlessly into the fixed EPIC® MH multi-frame with an audible click. Much easier assembly than hinged and sliding frames
UL certification according to technical data enables the product to be used on the North American market.
申请书
For the production of a modular rectangular connector insert
For connecting devices and machines to a power supply in various applications
Typical areas of application include the connection of electric motors and the corresponding brakes
Compliant with standards for use in rail vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, requirements sets R22 and R23, hazard levels HL1, HL2 and HL3).
技术属性
一般信息
| Brand | EPIC® |
| Contacts included |
|
| Product type | MH module modular system |
| Installation type | clip on |
| Delivery Unit | 10.000 |
| Weight | 0.011 kg |
电气特性
| Rated impulse voltage signal contact | 6 kV AC rms / DC according to IEC 61984 to 4 |
| Rated surge voltage power contact | 8 kV AC rms / DC according to IEC 61984 to 3 |
| Protective conductor integrated into insert |
|
| Rated current signal contact | 10 A according to IEC |
| Rated current power contact | 40 A according to IEC |
| Rated voltage power contact | 830 V AC rms / DC according to IEC to 3 |
| Rated voltage signal contact | 690 V AC rms / DC according to IEC to 4 |
| Max. contact resistance | 5 |
产品设计
| Max. connectable conductor cross-section of power contacts (mm2) | 10 |
| EMC screening |
|
| With wire protection |
|
| Colour | black |
| Connectable conductor cross section min. (AWG) | 26 AWG |
| Max. connectable conductor cross-section AWG | 8 AWG |
| Number of contacts | 7 |
| Min. connectable conductor cross-section of signal contacts (mm2) | 0.14 |
| With protective conductor |
|
| Contact insert type | Plug |
| Number of PE contacts | 0 |
| Min. connectable conductor cross-section of power contacts (mm2) | 1.5 |
| Number of data contacts | 0 |
| Conductor connection type | Crimp termination |
| Required slots | 1 |
| Max. connectable conductor cross-section of signal contacts (mm2) | 2.5 |
| Screen contact |
|
| Material | Polyamide |
| Number of signal contacts | 4 |
| Material shortname | PA |
| Number of power contacts | 3 |
产品特点
| Flame-retardant |
|
| Operating temperature min. | -40 |
| Operating temperature max. | 125 |
| Min. number of insertion cycles | 500 |
| Pollution degree | 3 |
| Flame retardance according to | UL 94 V-0 |
| Halogenfree |
|
认证和标准
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| Fire protection for railway vehicles hazard level | EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3 |
| UL category control number | ECBT2 |
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| CE marked |
|
| VDE certified |
|
文档
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
