SKINDICHT® KW-M 32X1.5

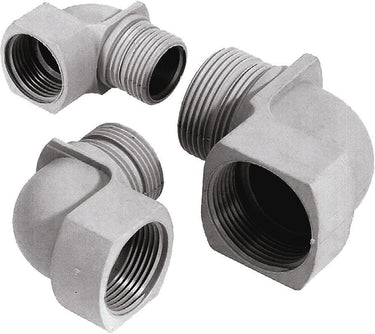

Angled cable gland; M 32; Polyamide Uncoated; Halogenfree; 90° angle; IP 55
SKINDICHT® KW-M 32X1.5
SGD 6.19
/
SKINDICHT® KW-M 32X1.5
SGD 6.19
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
halogen-free
oil resistant
chemical resistance
uv-resistant.
Certificate
CE marked
福利
Space- and weight-saving application due to thin cable diameters, Decrease in installation height
申请书
Angled glands are used in areas where cables have to run in parallel to the housing wall
Light and sound applications, Control cabinet manufacturing
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINDICHT® |
| Product type | Angled cable gland |
| Packaging type | Bag |
| Installation type | in threaded borehole |
| Delivery Unit | 10.000 |
| Weight | 0.033 kg |
电气特性
产品设计
| Number of cable entries | 1 |
| Material body | Polyamide |
| Thread type | Metric |
| Cable gland design | 90° angle |
| EMC screening |
|
| Material body shortname | PA |
| Thread size | M 32 |
| Overall width | 49.5 |
| Colour | silver grey |
| Thread length | 17 |
| Total height | 56 |
| Spanner size | 36 |
| Bending protection |
|
| Clear width | 26 |
| RAL colour | RAL 7001 |
| Glass-fibre reinforced |
|
| Pitch of thread | 1,5 |
| Surface protection | Uncoated |
| Spanner size 1 | 36 |
| For armoured cables |
|
| Thread standard | DIN EN 60423 |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 55 |
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 80 |
| Oil-resistant |
|
| Temperature (min.) | -20 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| GGVS certified |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| For Ex zone gas | without |
| For Ex-zone dust | without |
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
