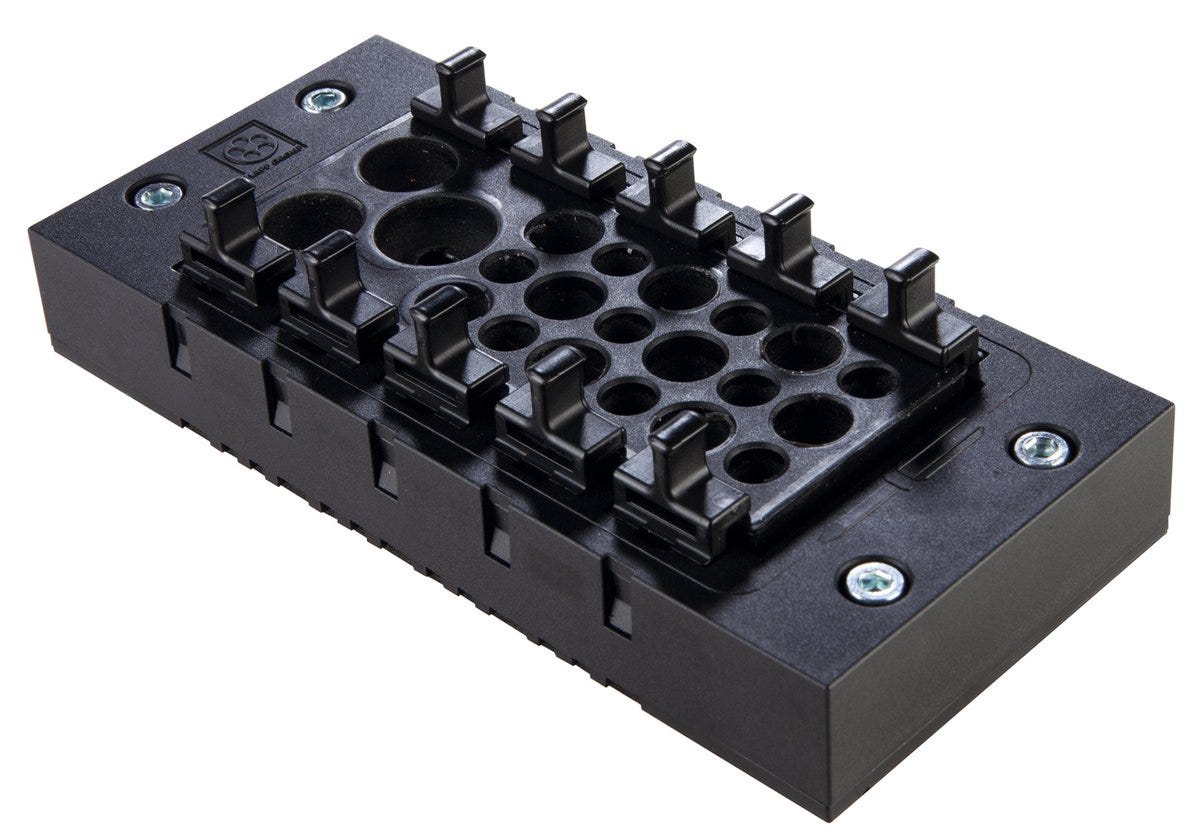

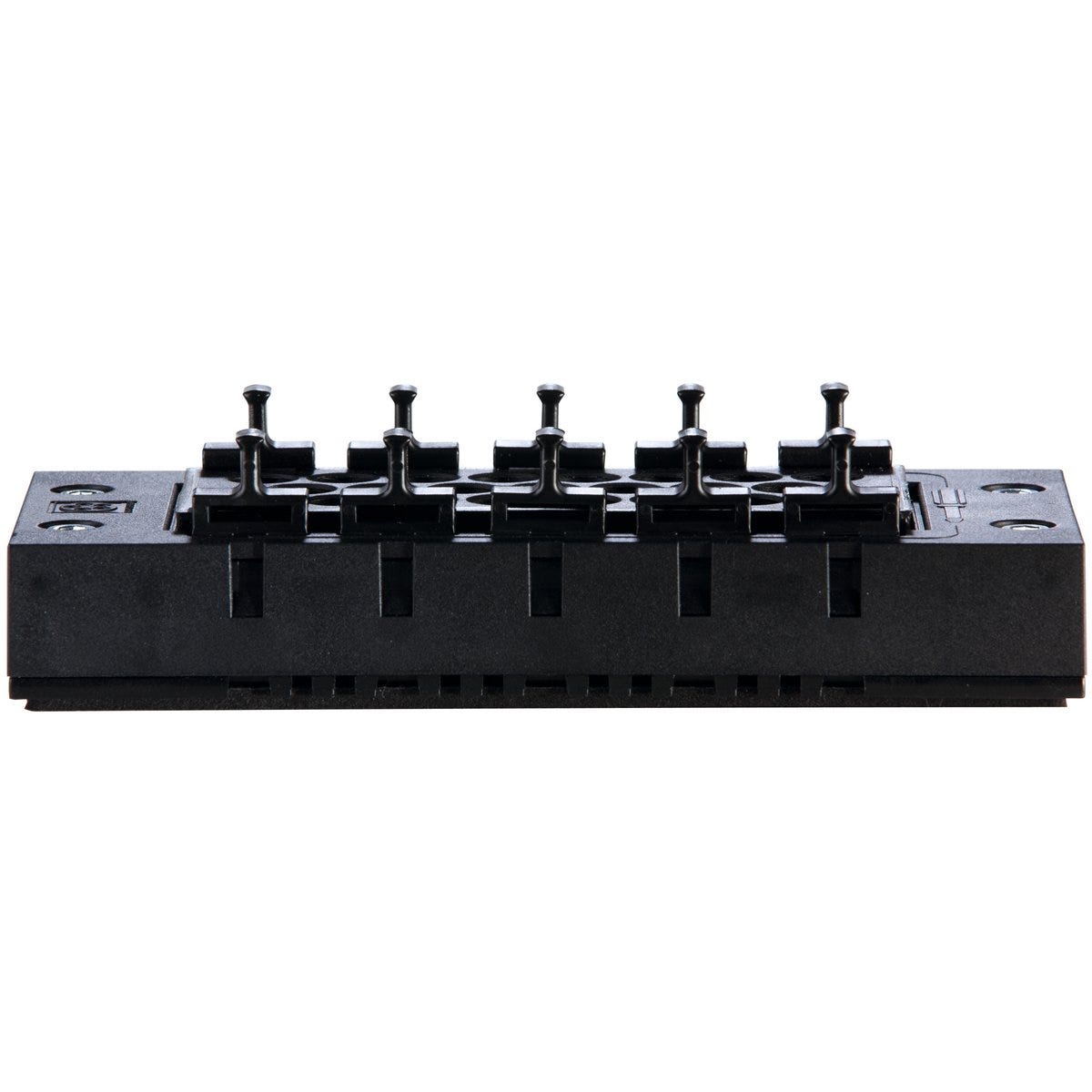

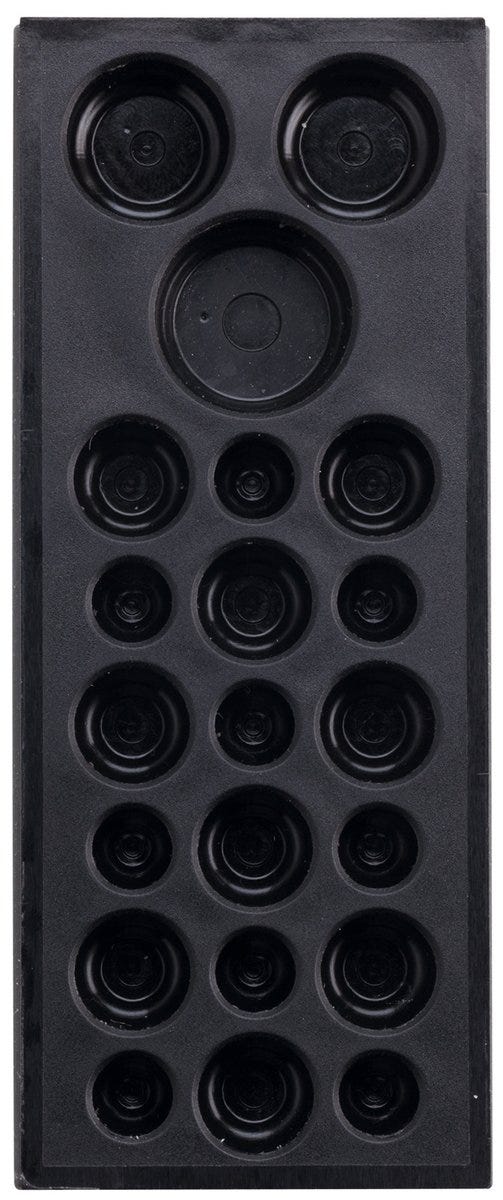

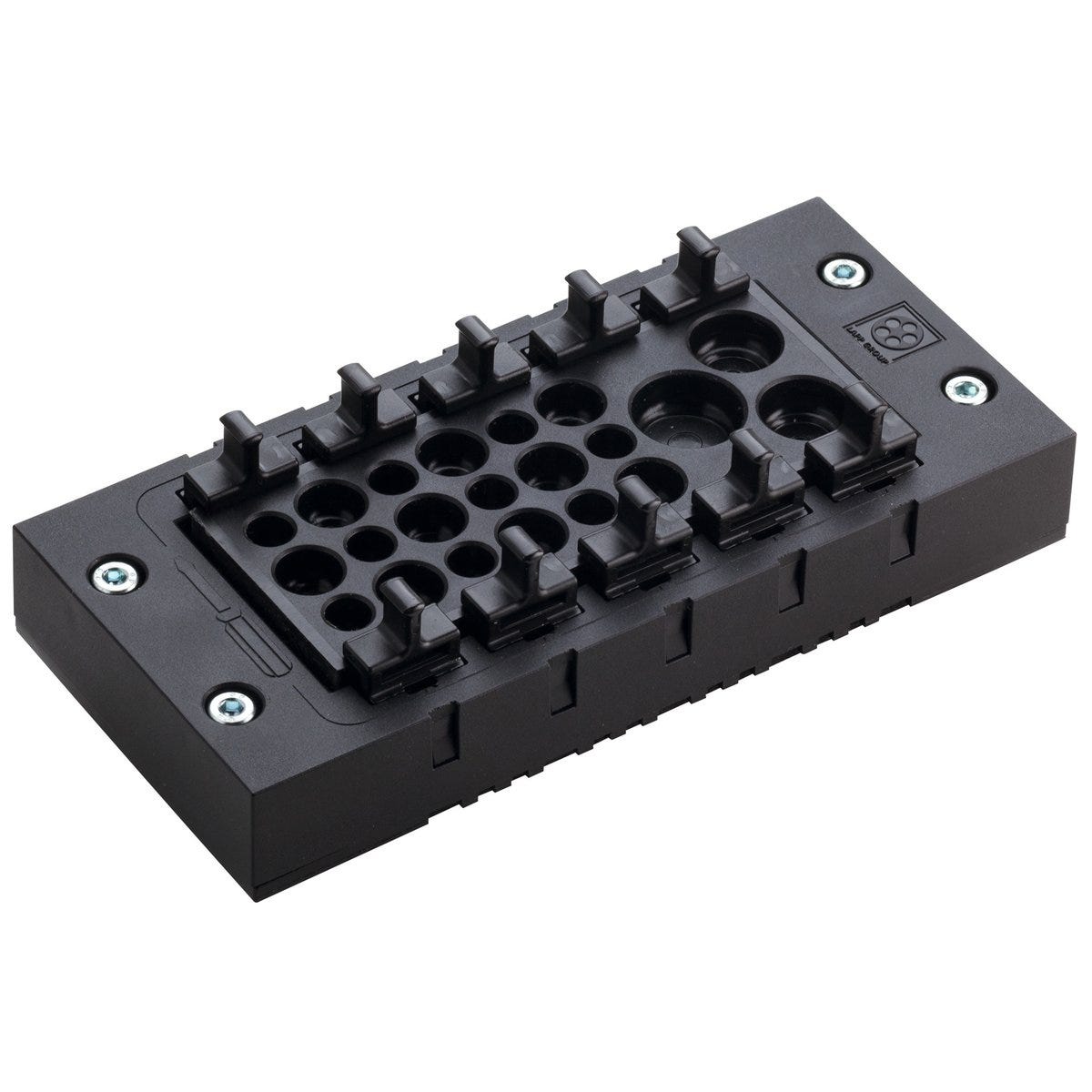

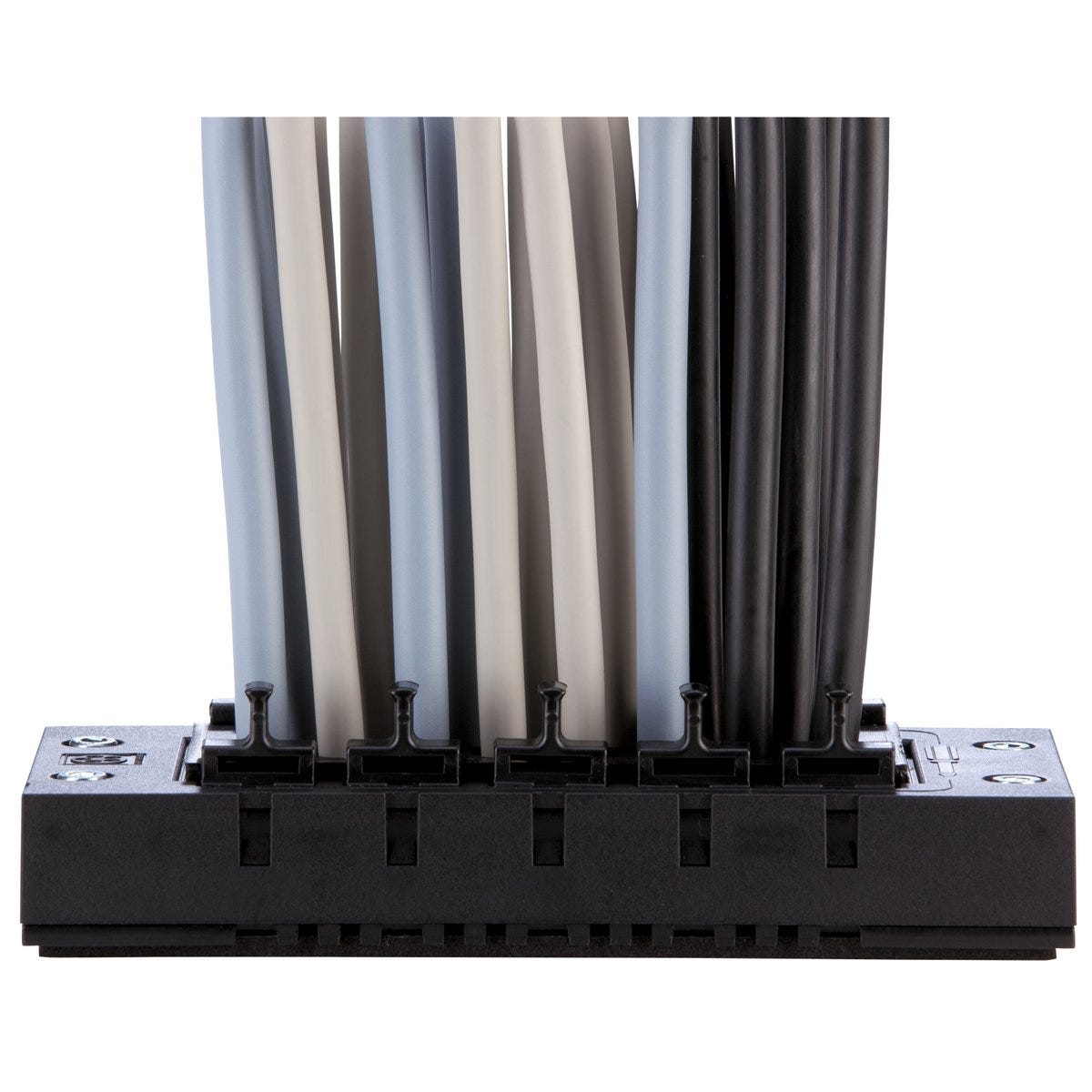

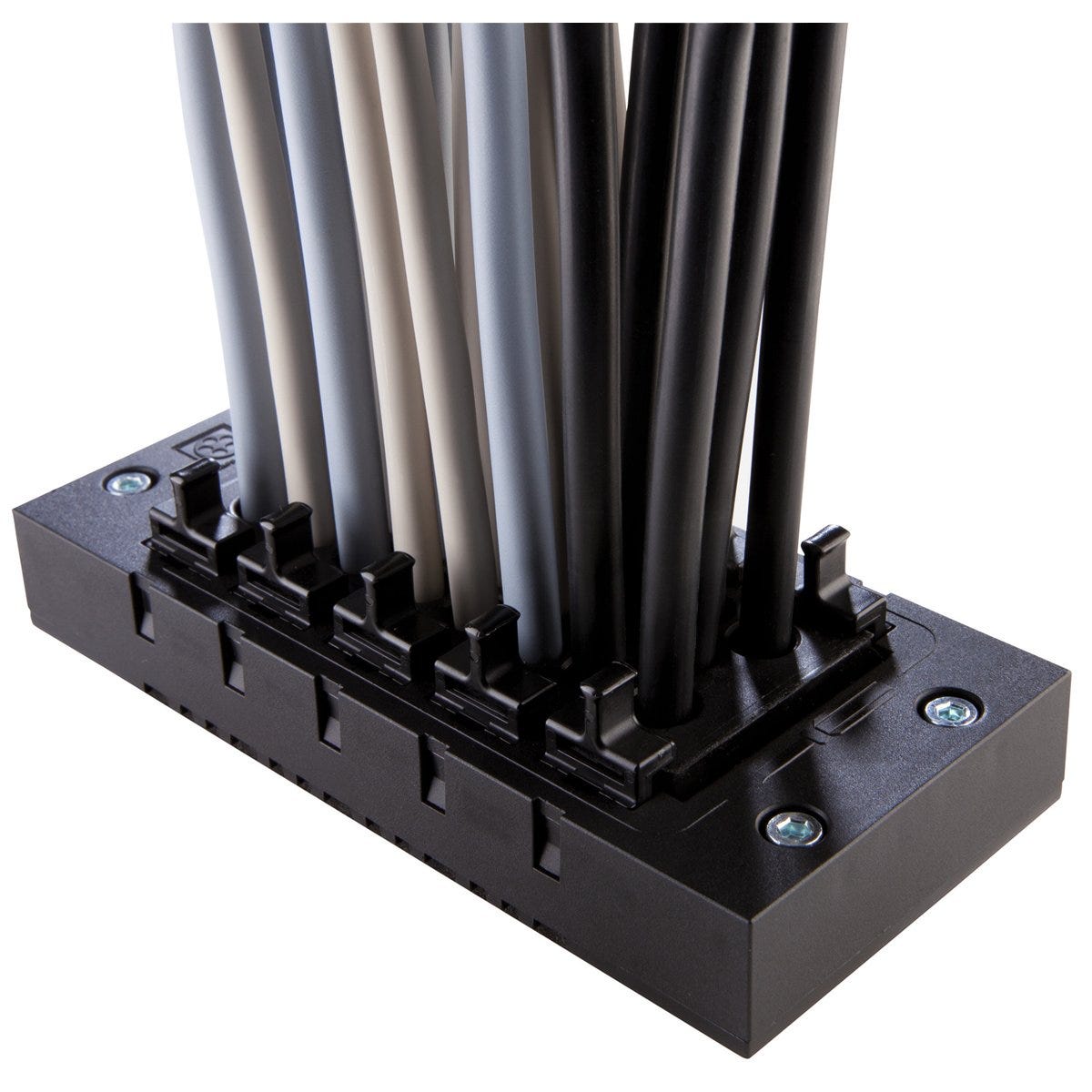

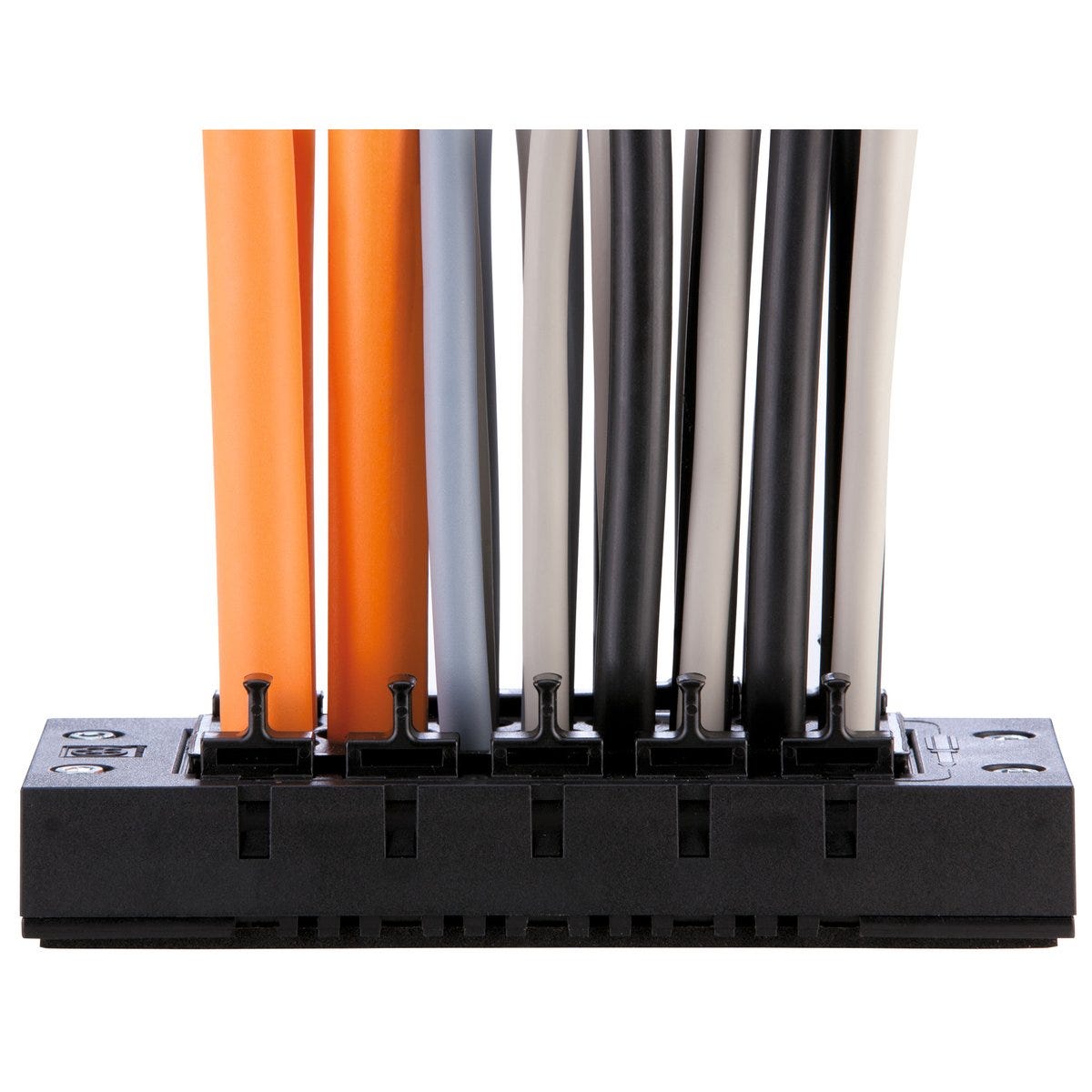

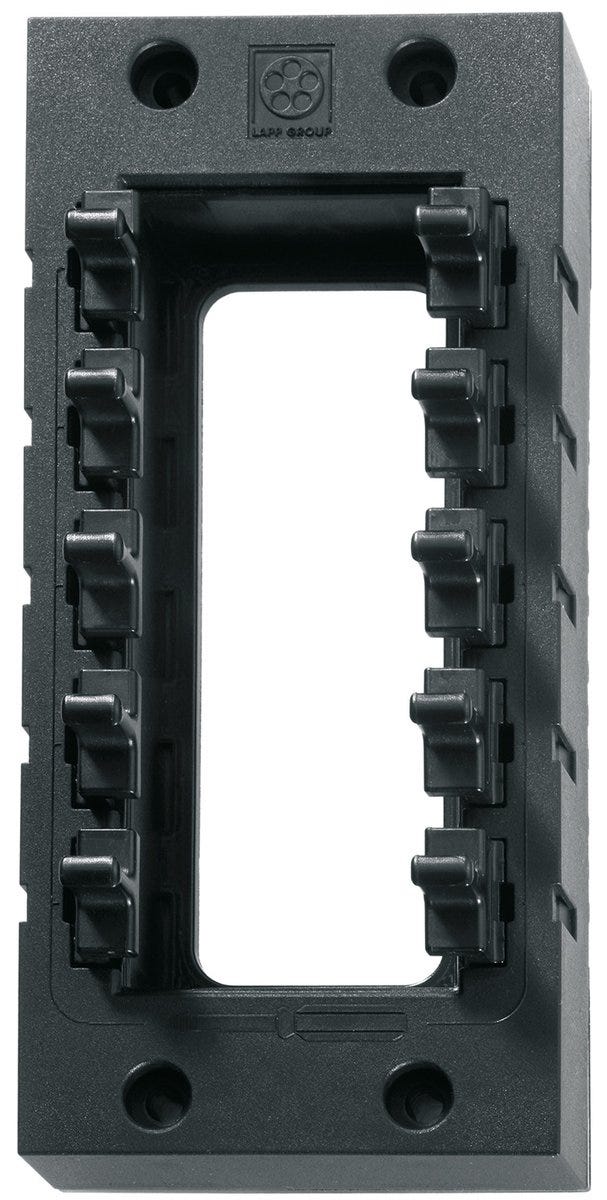

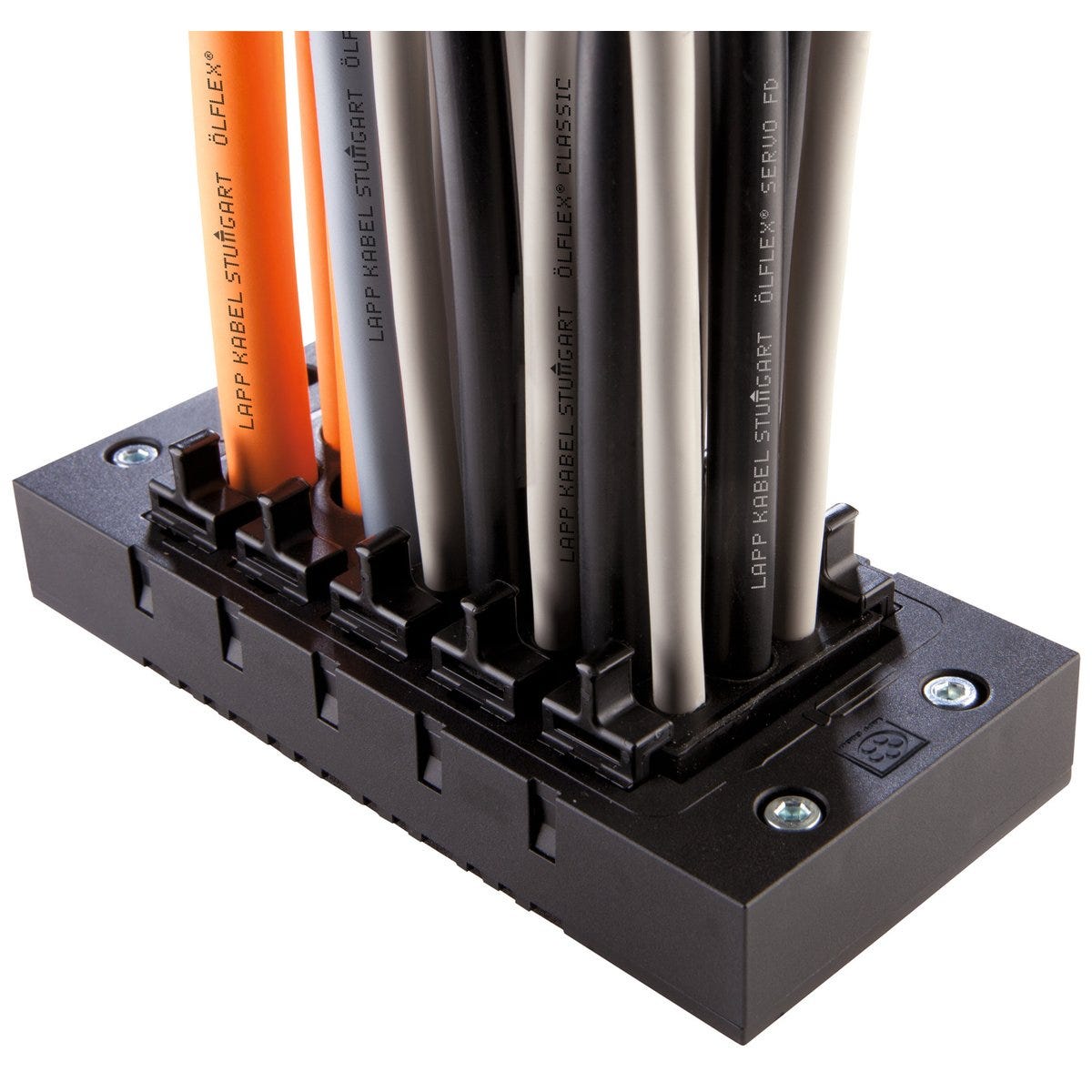

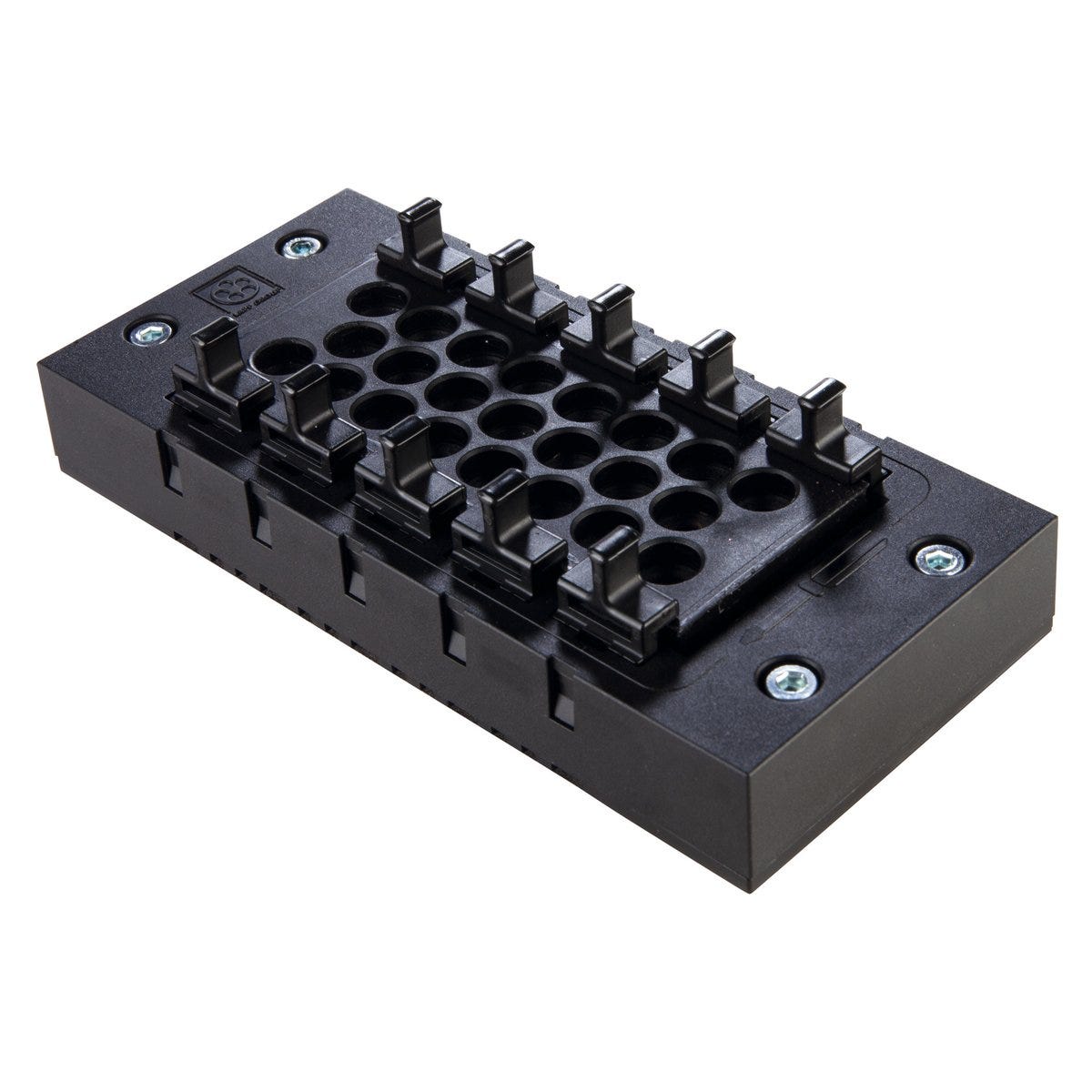

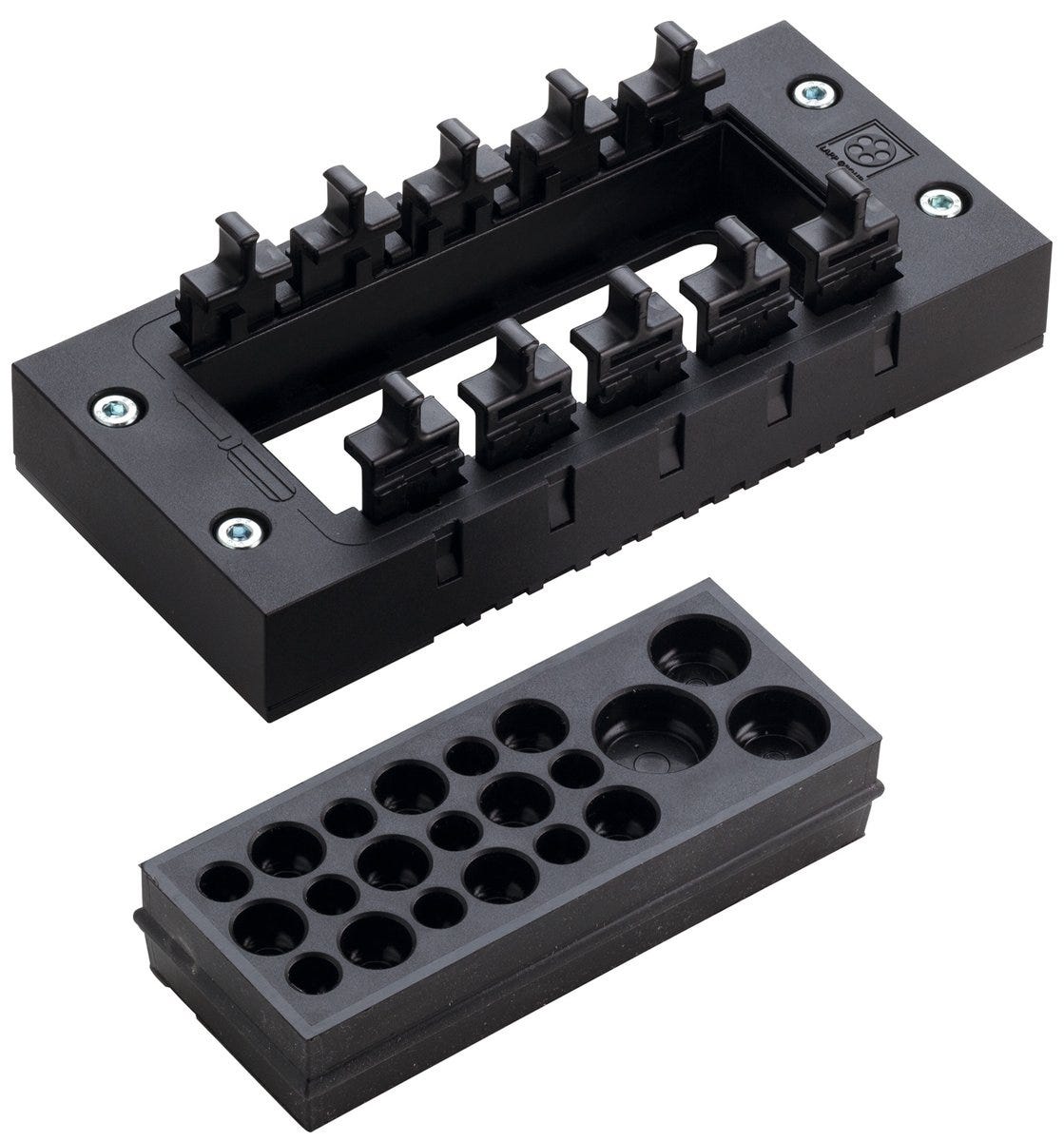

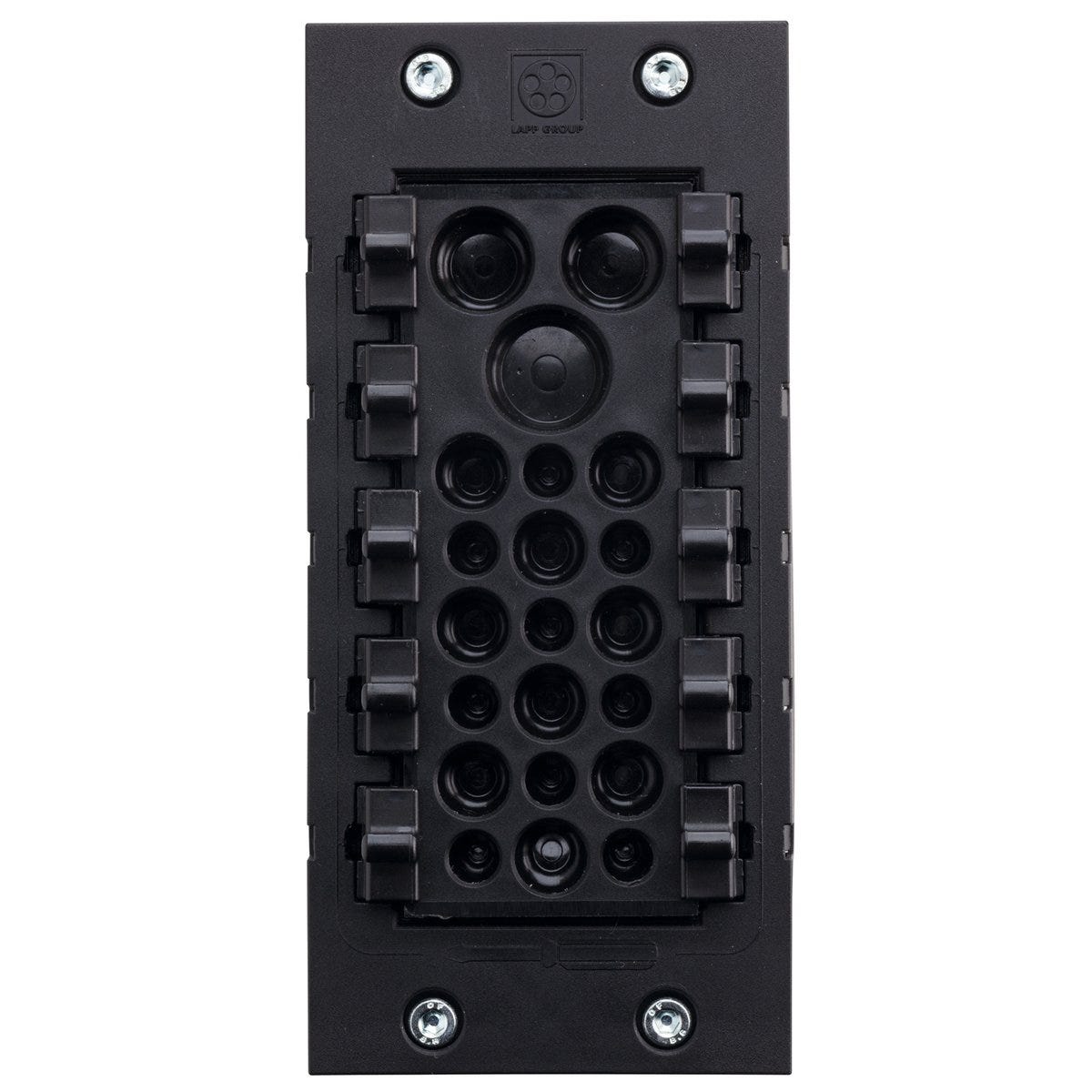

SKINTOP® CUBE MULTI VERSION2 (含框架)
Multi-entry; Number of cable entries: 23; IP 66, IP 65; UV-resistant;
SKINTOP® CUBE MULTI VERSION2 (含框架)
SGD 82.81
/
SKINTOP® CUBE MULTI VERSION2 (含框架)
SGD 82.81
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
oil resistant
uv-resistant.
Certificate
CE marked
UL recognized
福利
Large, variable clamping ranges due to elastic gel technology, Simplified servicing due to easy assembling and disassembling, Not used bushings remain securely sealed, Optimum strain relief at the entire cable bundle, Easy installation of the cables even for high packing density
申请书
Apparatus and switch cabinet construction, For not harnessed cables and media hoses, Automation technology, Used in areas where a lot of cables and wires need to be inserted into housings with minimum space requirements
技术属性
一般信息
| Brand | SKINTOP® |
| Product type | Multi-entry |
| Scope of delivery | including fastening material |
| Packaging type | Bag |
| Installation type | screw |
| Delivery Unit | 1.000 |
| Weight | 0.161 kg |
电气特性
产品设计
| Total length | 145 |
| Number of cable entries | 23 |
| Material body | Polycarbonate |
| Cable gland design | Multi-entry (rectangular) |
| EMC screening |
|
| Material body shortname | PC |
| Overall width | 67 |
| Colour | black |
| Total height | 46 |
| Bending protection |
|
| Seal type | Gel membrane |
| RAL colour | RAL 9005 |
| Glass-fibre reinforced |
|
| For armoured cables |
|
| Sealing material | Gel |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 66, IP 65 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Oil-resistant |
|
| Temperature (min.) | -30 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Flame retardance according to | UL 94 V-2 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
