SKINTOP® BRUSH ADD-ON 24
Add-on; EMC screening
SKINTOP® BRUSH ADD-ON 24
SGD 148.17
/
SKINTOP® BRUSH ADD-ON 24
SGD 148.17
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
uv-resistant.
icon sturgeon signal
Certificate
CE marked
福利
For optimum EMC protection when using the SKINTOP® MULTI or SKINTOP® CUBE multi-cable inserts

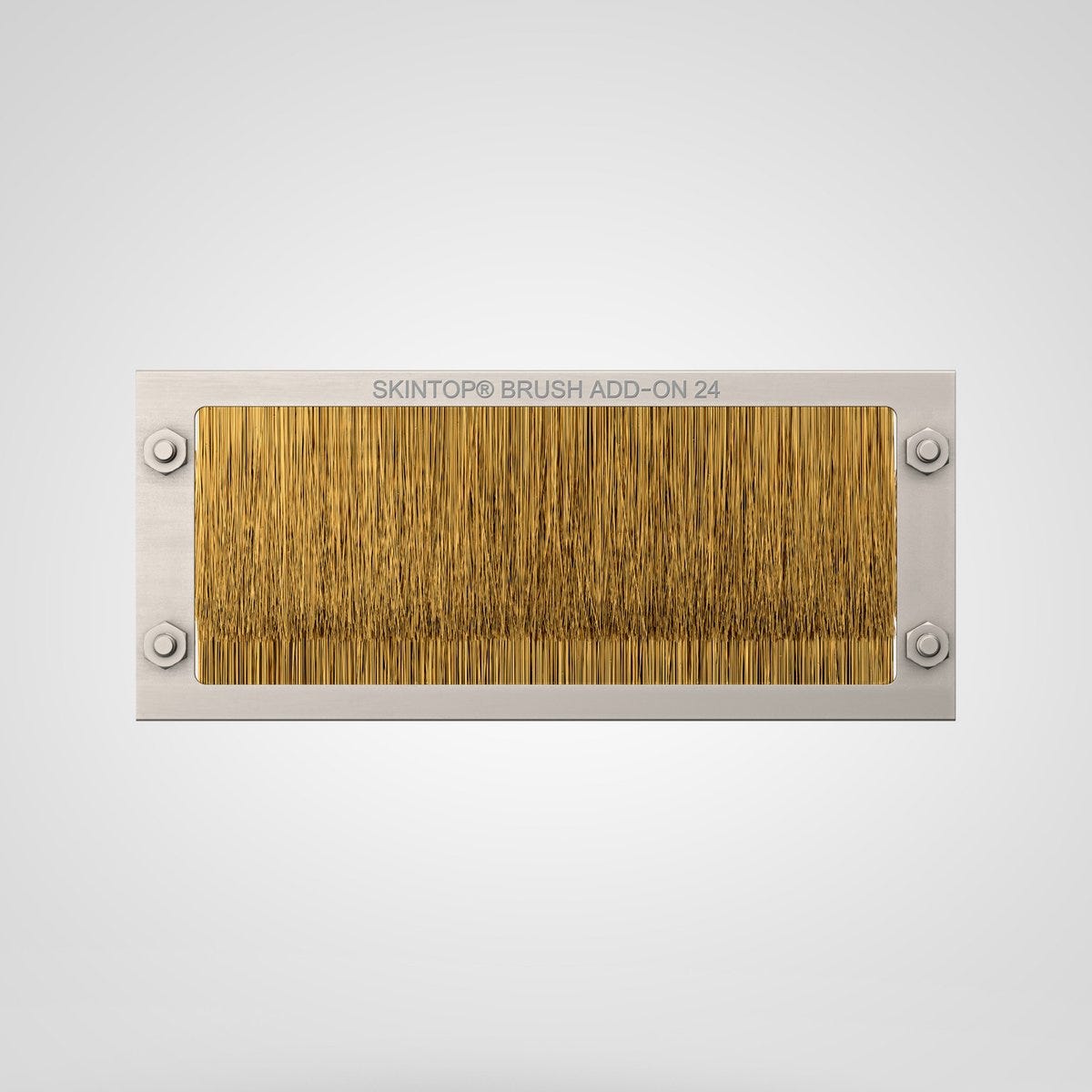

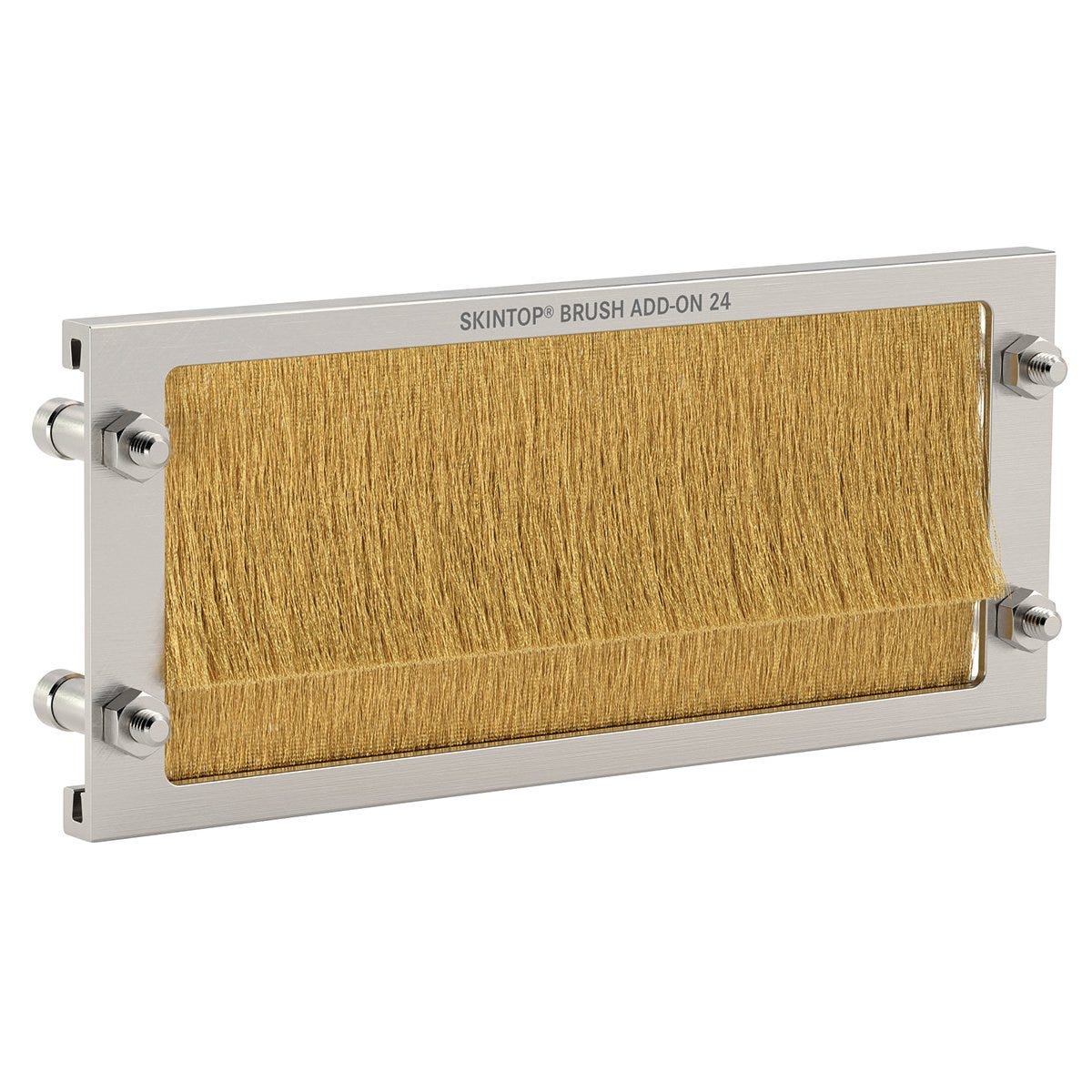

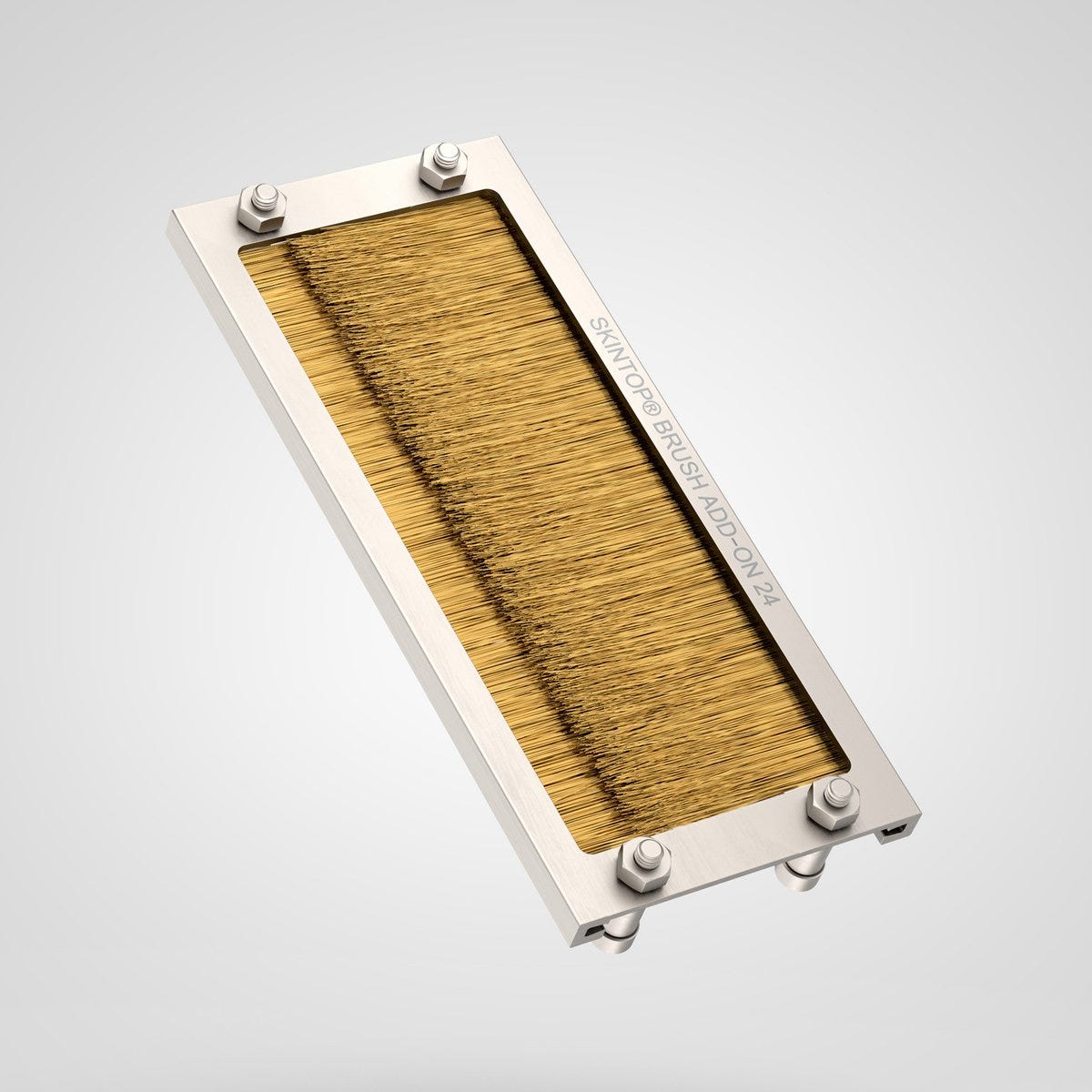

The unique BRUSH brass brush creates a low-resistance contact between the copper stranded shielding of the cables and the rectangular brush frame, thereby successfully deflecting interference signals. The brush wires protect the sensitive braided shield
Flexibility in selecting the cable diameter reduces the variety of parts in the warehouse, generating logistical and cost benefits

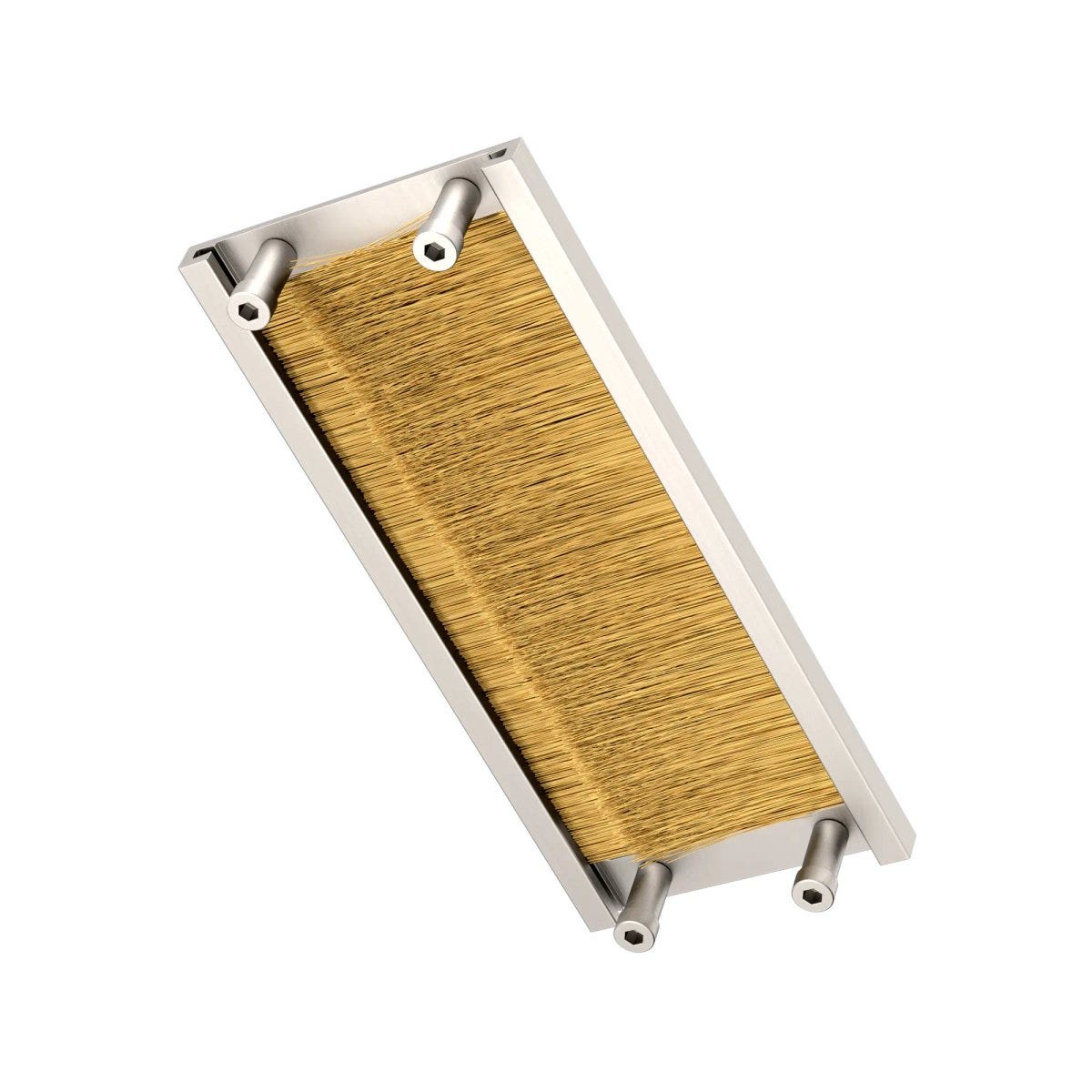

Easy and convenient installation to the multi-cable bushing system with 4 fastening screws
Cables can still be moved and adjusted even after installation

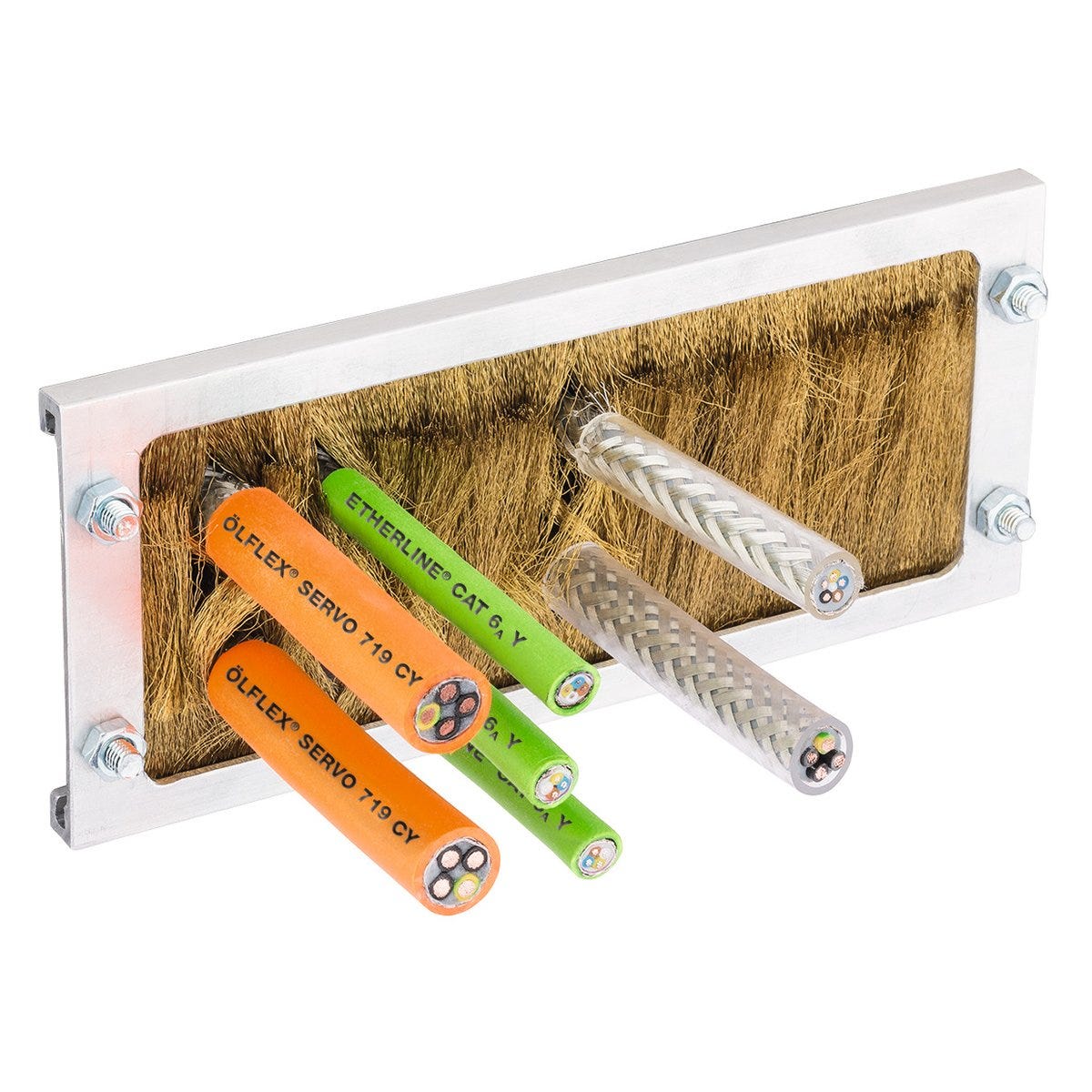

Cables subsequently inserted can be contacted with the brush frame without additional accessories. The brush wires can be flexibly positioned around the copper stranded shielding.
申请书

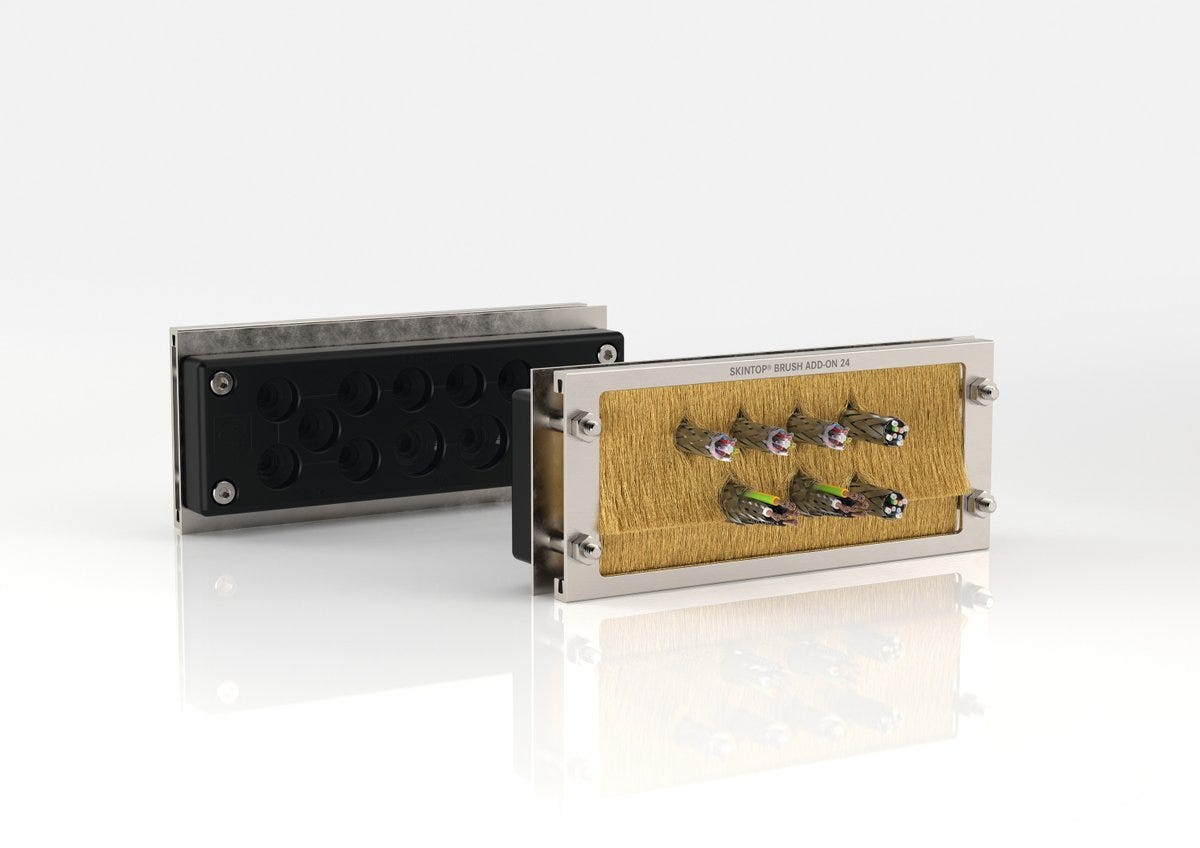

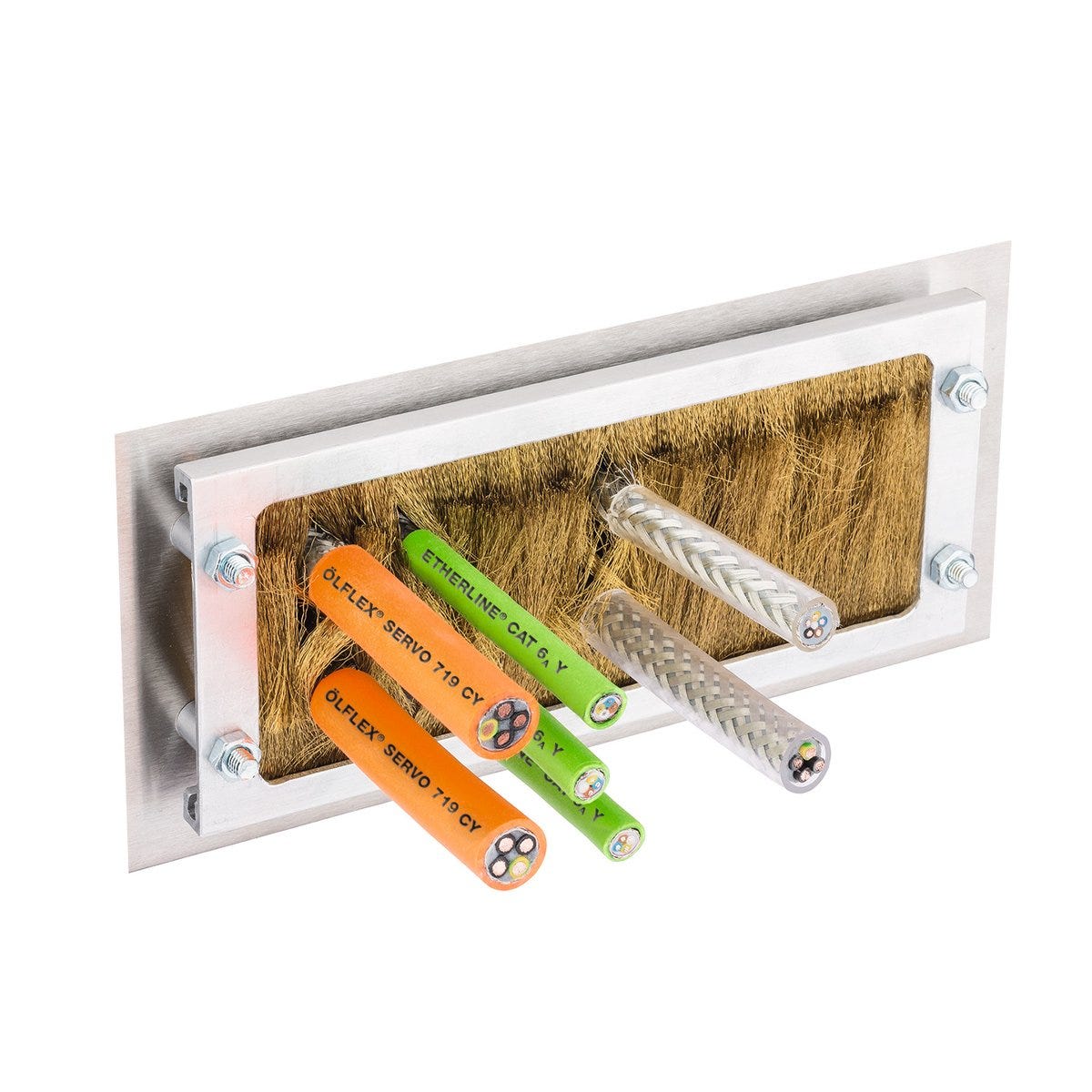

For EMC-compliant insertion of copper-shielded cables into a housing when using the SKINTOP® MULTI or SKINTOP® CUBE multi-cable entry system.
技术属性
一般信息
| Product type | Add-on |
| Scope of delivery | including brush frame, including spacing sleeves, including fastening material |
| Packaging type | Bag |
| Brand | SKINTOP® |
| Installation type | screw |
| Delivery Unit | 1.000 |
| Weight | 0.108 kg |
电气特性
产品设计
| Total length | 140 |
| Material body | Aluminium |
| Cable gland design | Straight |
| EMC screening |
|
| Material body shortname | Al |
| Overall width | 60 |
| Total height | 6.5 |
产品特点
| Flame-retardant |
|
| Oil-resistant |
|
| Temperature (min.) | -30 |
| Suitable for EX-applications |
|
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 110 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| FDA certified |
|
| CE marked |
|
| GGVS certified |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINTOP® BRUSH ADD-ON 24
| Article number | Total height def | Total length def | Total width def | Delivery Unit |
|---|---|---|---|---|
| 52220089 | 1.000 |
