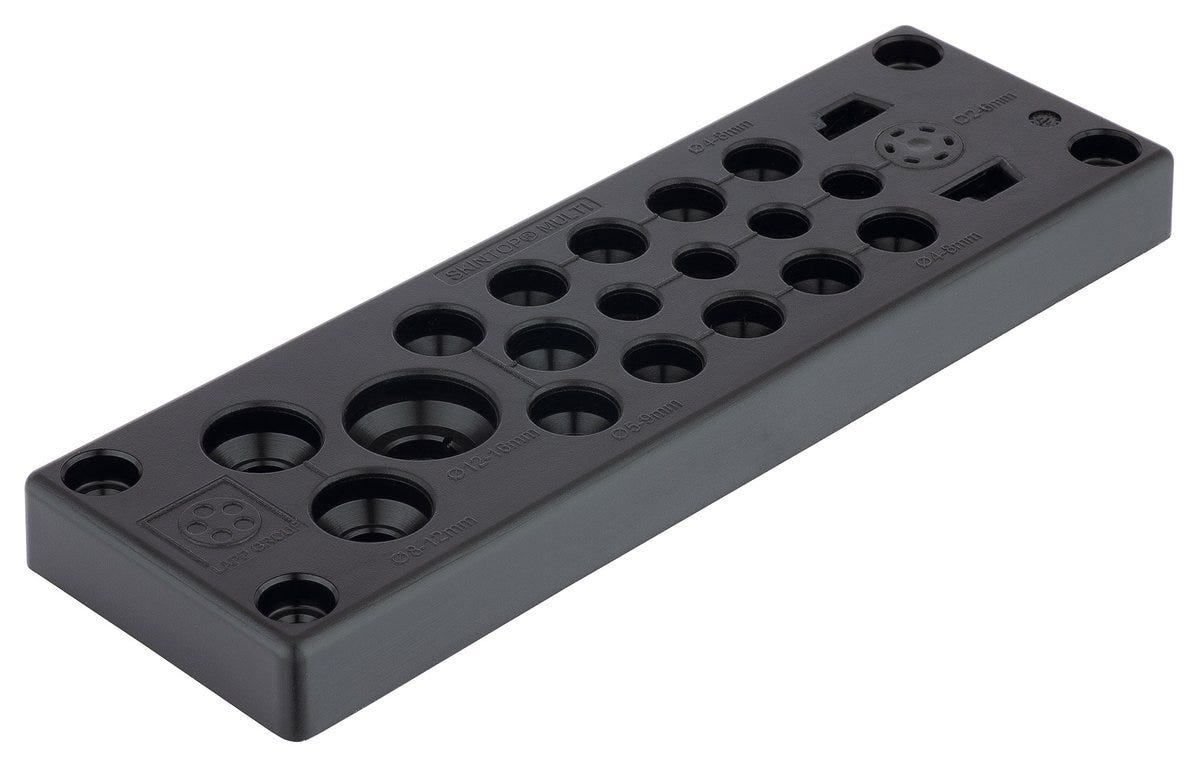

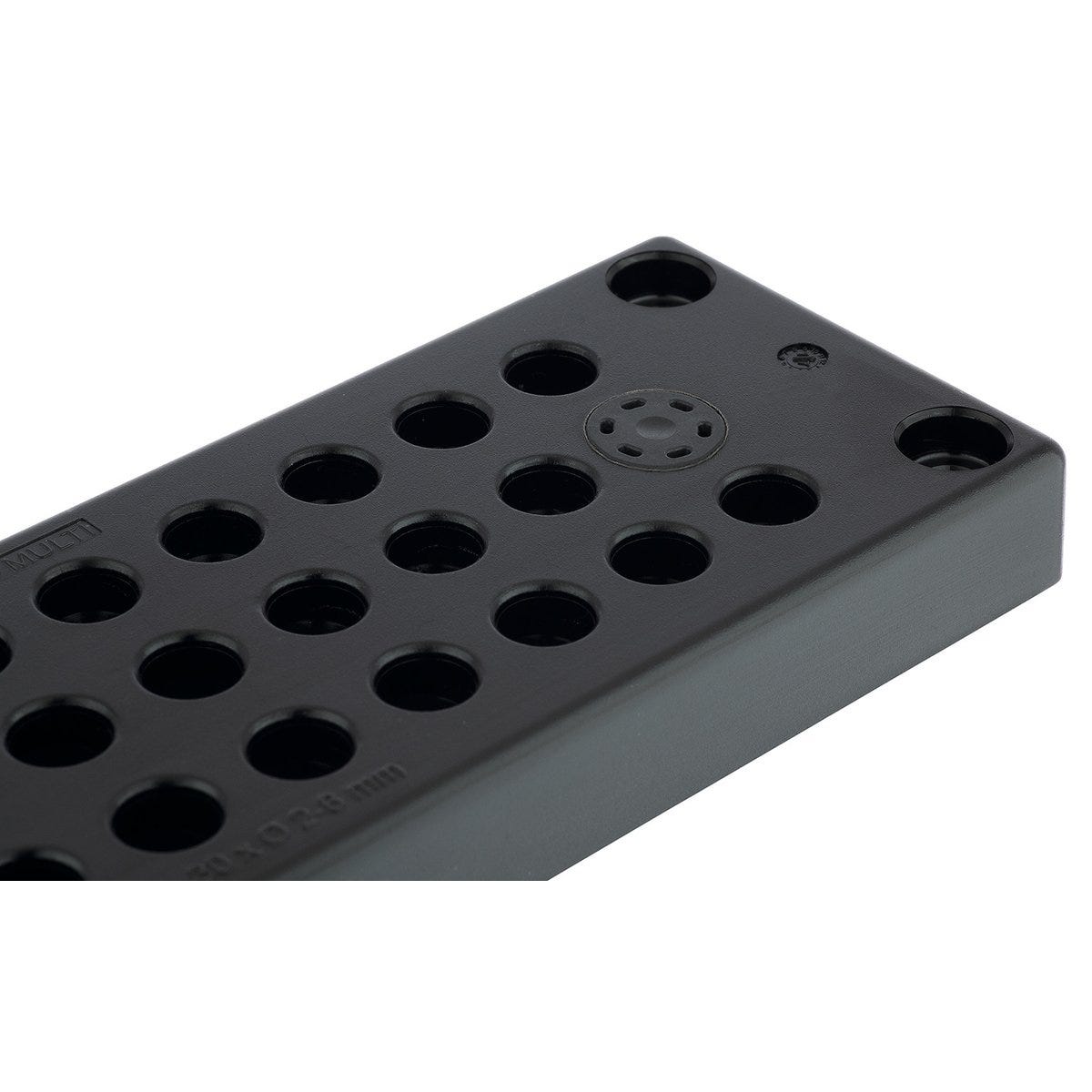

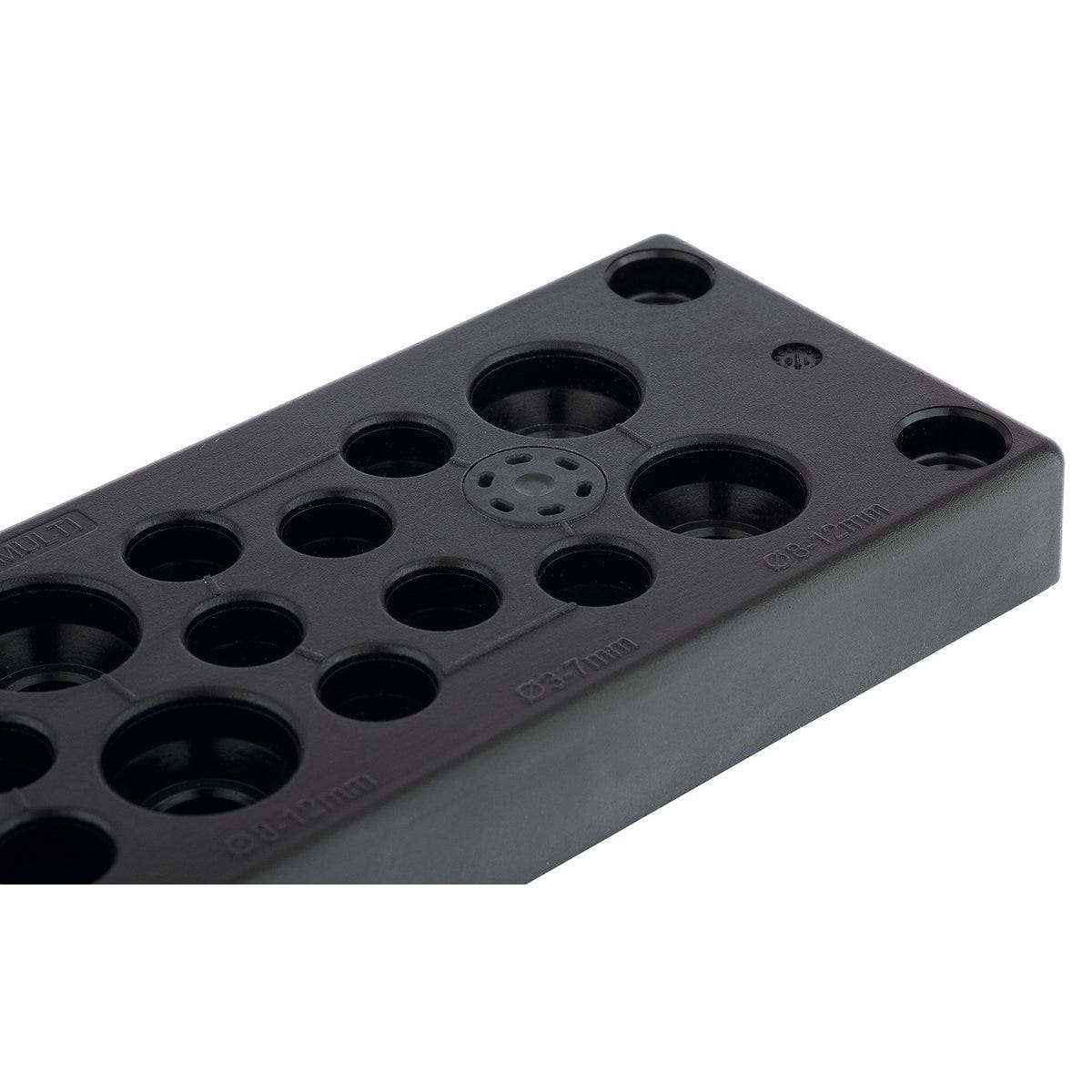

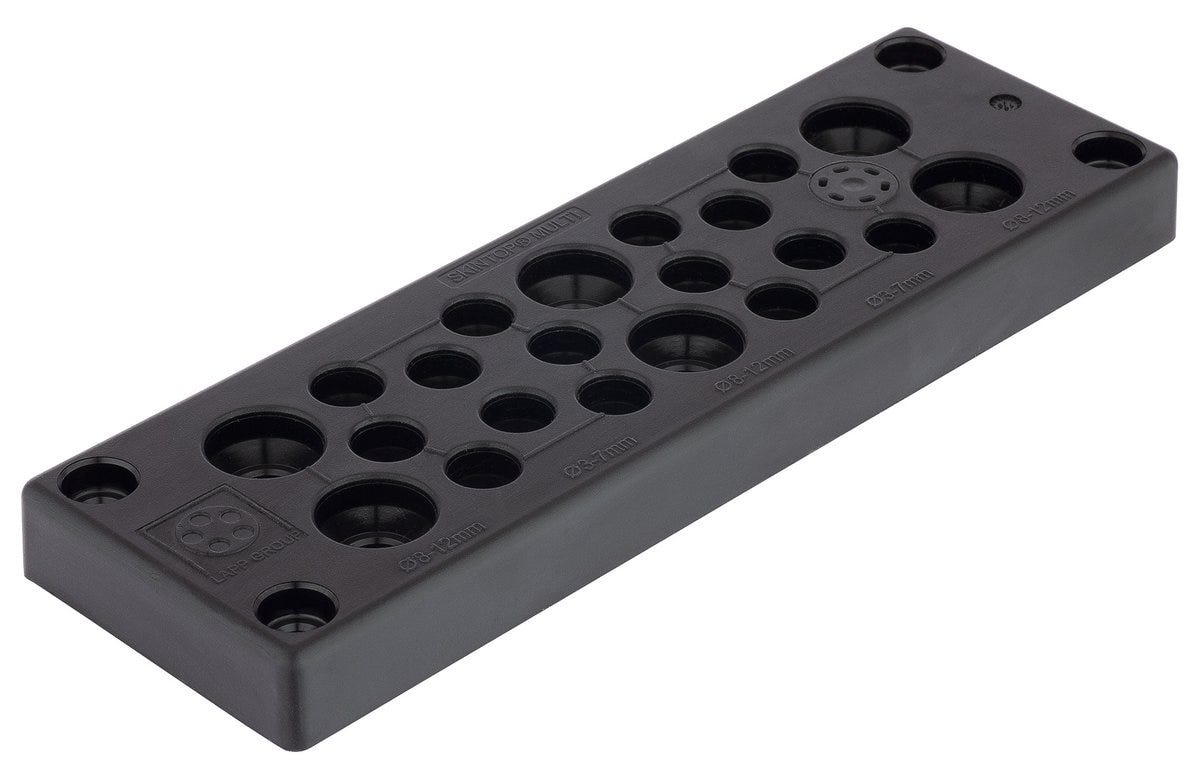

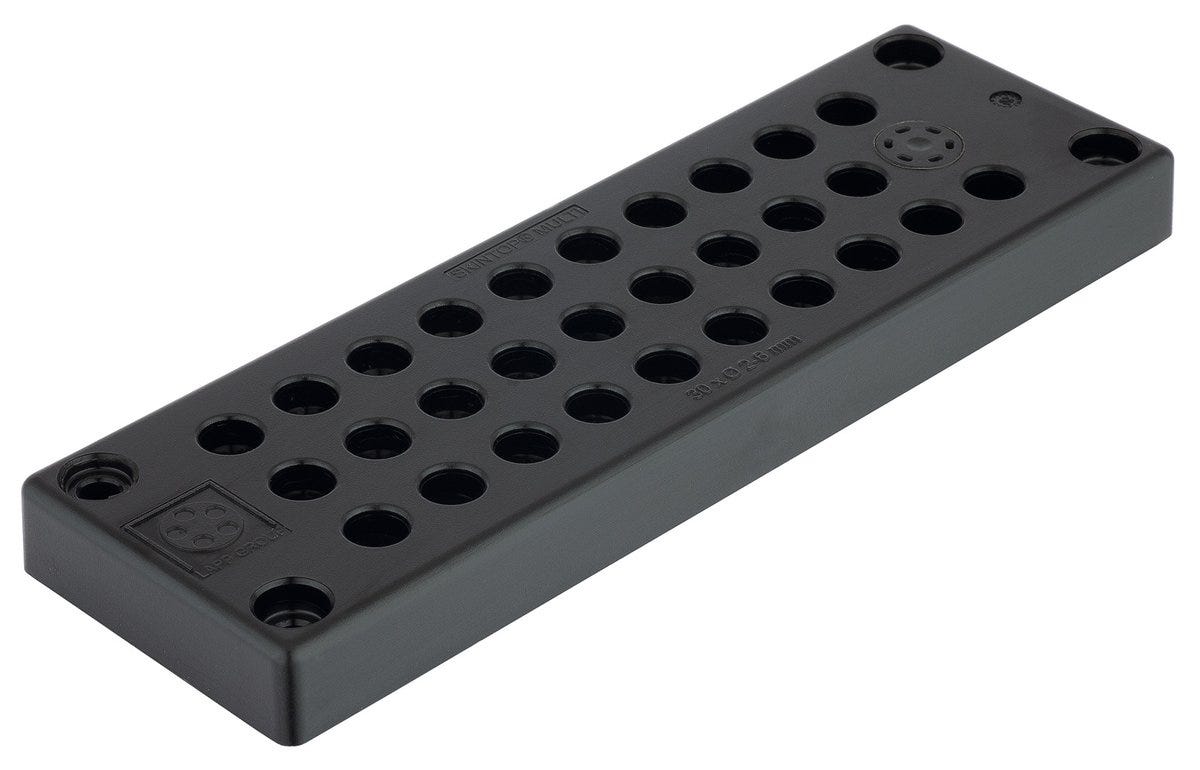

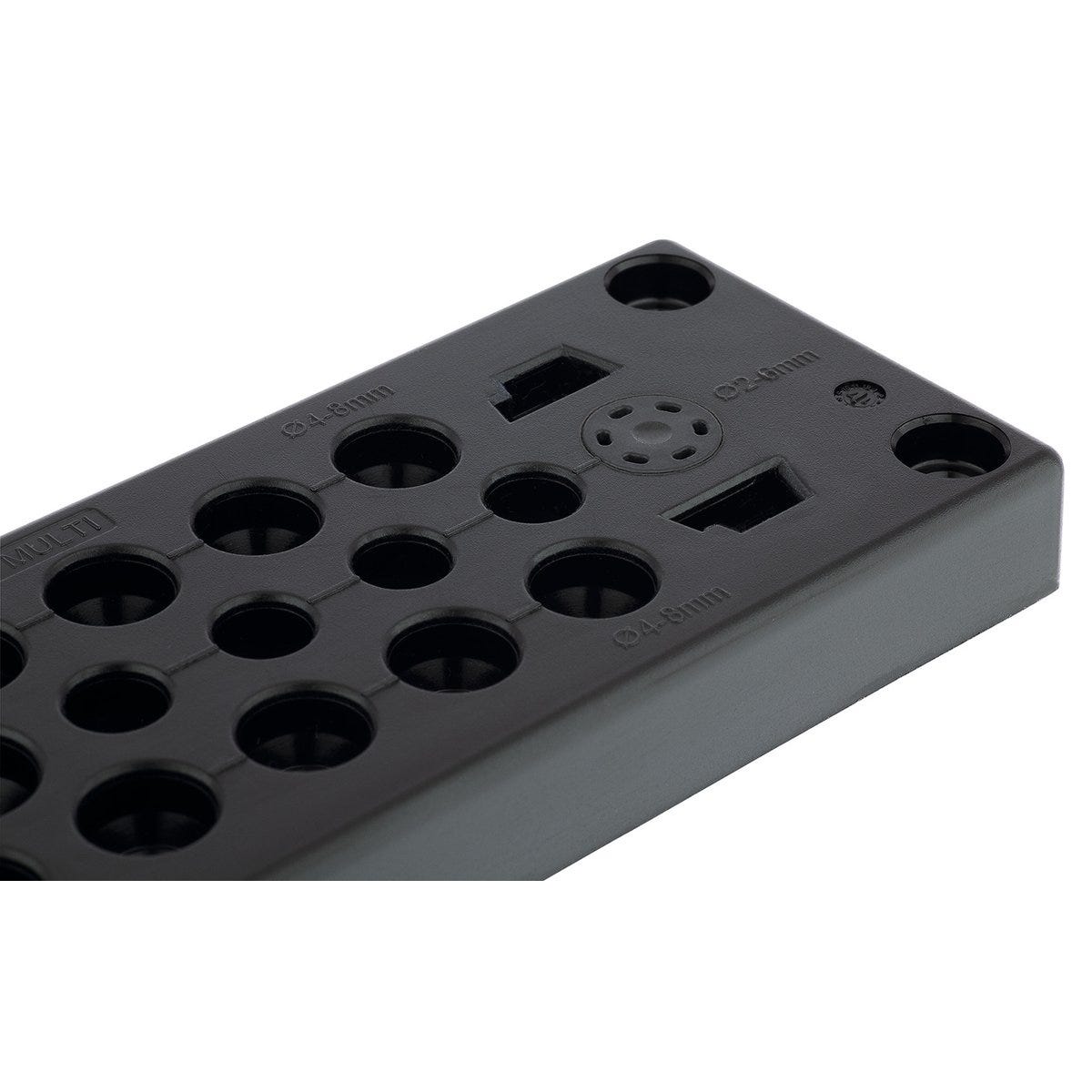

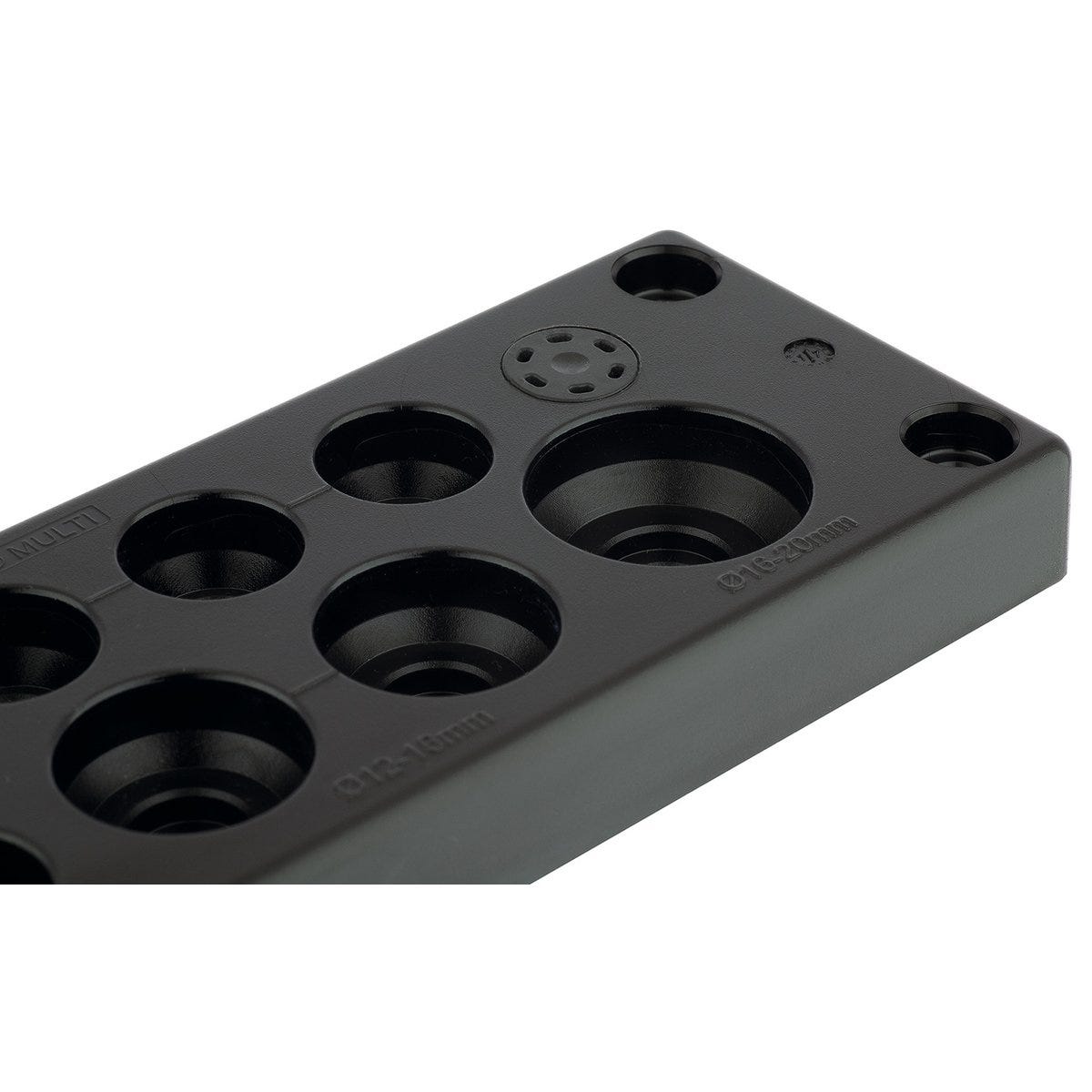

SKINTOP® MULTI 通风版 3
Multi-entry; Number of cable entries: 29; IP 68 - 0.1 bar (60 min), IP 67, IP 66; UV-resistant; Halogenfree
SKINTOP® MULTI 通风版 3
SGD 84.20
/
SKINTOP® MULTI 通风版 3
SGD 84.20
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
福利
Multi-cable entry system allows a higher packing density (up to 29 cables depending on the variant)
Large clamping ranges, each variable by 4 mm, for different cable diameters and clamping ranges especially for AS-i bus cables
Flexibility in selecting the cable diameter reduces the variety of parts in the warehouse, generating logistical and cost benefits
Direct cable entry without pre-piercing the bushings thanks to elastic gel technology with innovative membrane technology

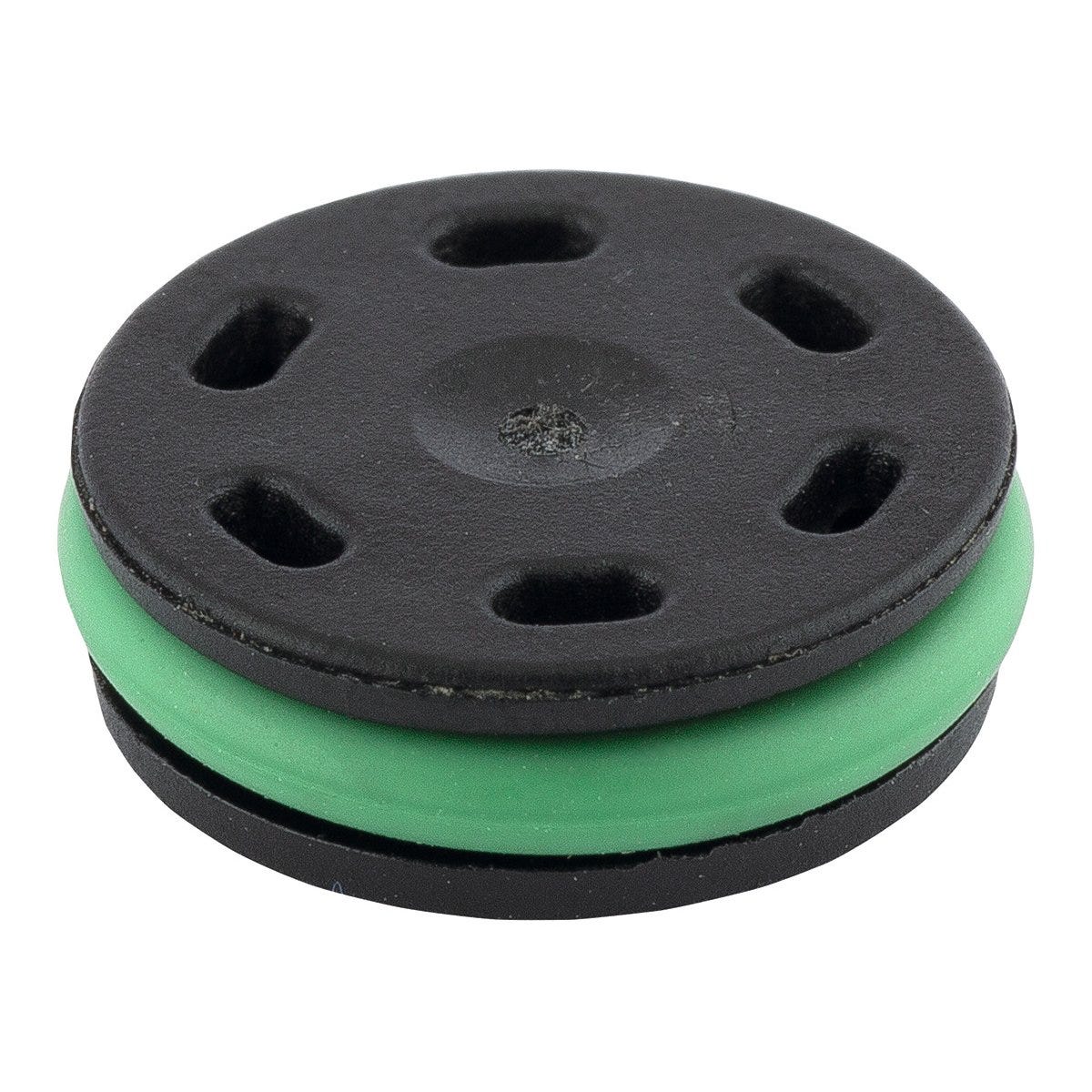

Included: breathable pressure compensation element that ensures the necessary pressure compensation when the housing is closed. This fully prevents the formation of moisture or condensate
Clear marking of bushing points and clamping ranges. As a result, there is no potential for errors during cable insertion
Easy assembly of the multi-cable entry on the housing using 4 fastening screws. The adhesive effect of the sealing gel enables the product to be positioned very easily during assembly
Available in different versions for a wide range of applications.
申请书
For sealing and strain relief, multiple insertions of non-assembled cables and media hoses through one housing
Especially for closed housings where optimum ventilation is needed
Can be used in dry, damp and oily environments
Suitable for outdoor use.
技术属性
一般信息
| Brand | SKINTOP® |
| Product type | Multi-entry |
| Scope of delivery | including fastening material |
| Packaging type | Bag |
| Installation type | screw |
| Delivery Unit | 1.000 |
| Weight | 0.111 kg |
电气特性
产品设计
| Total length | 144 |
| Number of cable entries | 29 |
| Material body | Polycarbonate |
| Cable gland design | Multi-entry (rectangular) |
| EMC screening |
|
| Material body shortname | PC |
| Overall width | 46 |
| Colour | black |
| Total height | 14 |
| Bending protection |
|
| Seal type | Gel membrane |
| RAL colour | RAL 9005 |
| Glass-fibre reinforced |
|
| For armoured cables |
|
| Sealing material | Gel |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 68 - 0.1 bar (60 min), IP 67, IP 66 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 110 |
| Oil-resistant |
|
| Temperature (min.) | -30 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Flame retardance according to | UL 94 V-2 |
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| Fire protection for railway vehicles hazard level | EN 45545-2 HL2 |
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
