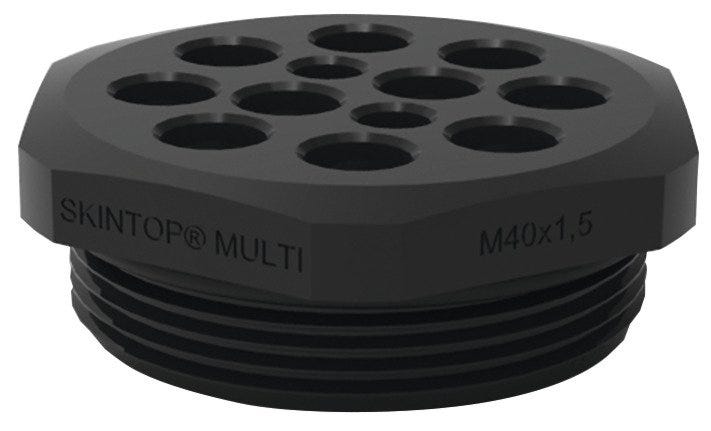

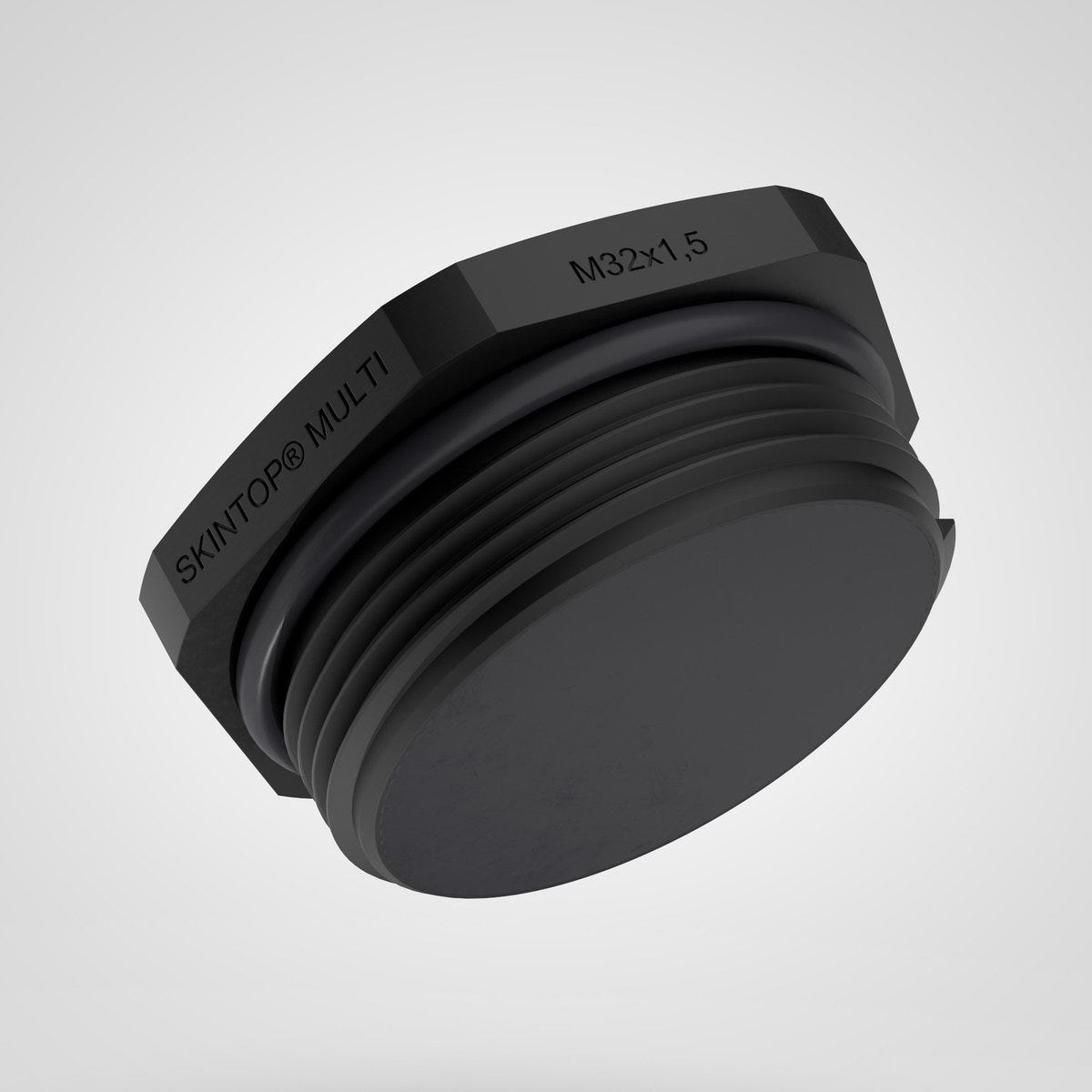

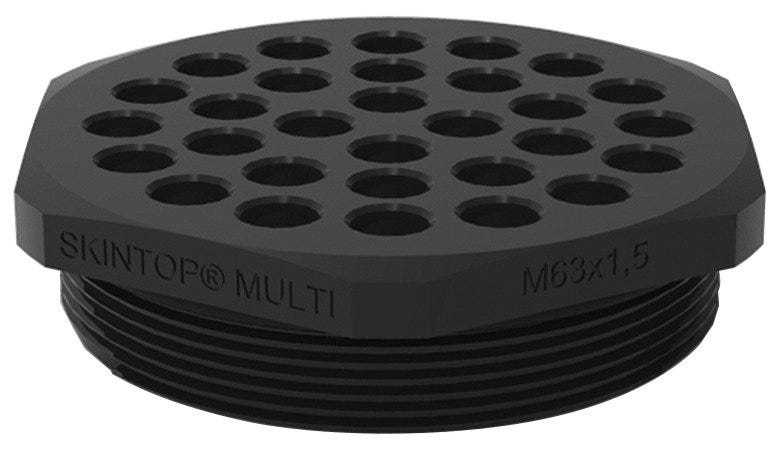

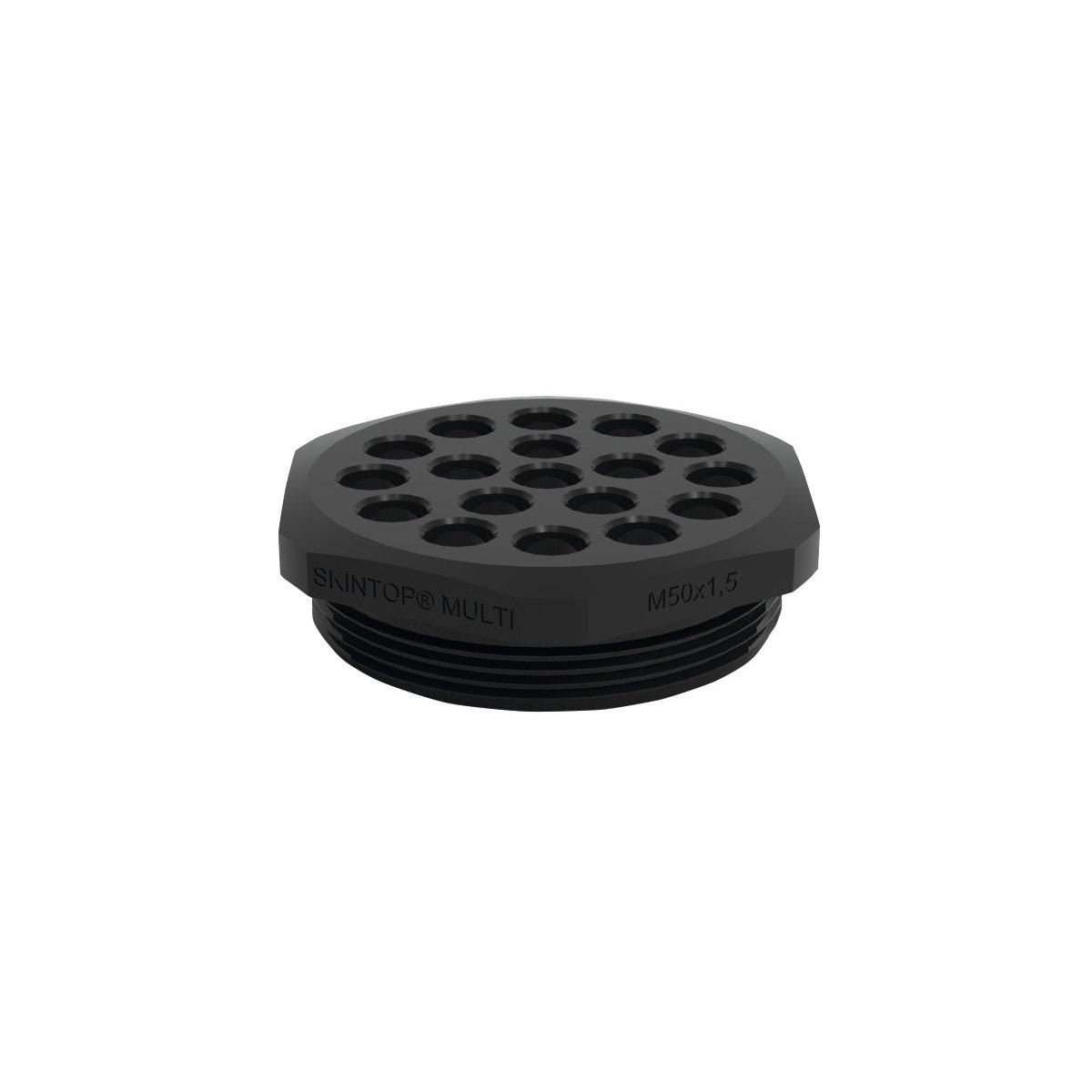

SKINTOP® MULTI-M 40X1.5 / 2X1-4+10X2-6 MM
Multi-entry; M 40; Number of cable entries: 12; Wrench width 1: 46; Halogenfree; UV-resistant; IP 67, IP 66, IP 68 - 0.1 bar (60 min)
SKINTOP® MULTI-M 40X1.5 / 2X1-4+10X2-6 MM
SGD 32.82
/
SKINTOP® MULTI-M 40X1.5 / 2X1-4+10X2-6 MM
SGD 32.82
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
UL recognized
福利
Multi-cable entry system allows a higher packing density (up to 30 cables depending on the variant)
Large clamping ranges, variable by 4 mm each for different cable diameters
Direct cable entry without pre-piercing the bushings
Flexibility in selecting the cable diameter reduces the variety of parts in the warehouse, generating logistical and cost benefits
Easy assembly on the housing by screwing or fastening with a counter nut
Unoccupied bushings remain securely closed and sealed thanks to elastic gel technology with innovative membrane technology
The best possible sealing off of the housing and the cables enables protection class IP 68
UL certification according to technical data enables the product to be used on the North American market.
申请书
For sealing and strain relief of non-assembled cables through a housing
Suitable for use in AC and DC charging infrastructures for electromobility
Can be used in dry, damp and oily environments
Suitable for applications with UV-C radiation (according to LAPP's internal test method)
Suitable for outdoor use.
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SKINTOP® |
| Product type | Multi-entry |
| Packaging type | Bag |
| Installation type | in threaded borehole |
| Delivery Unit | 1.000 |
| Weight | 0.065 kg |
电气特性
产品设计
| Number of cable entries | 12 |
| Material body | Polycarbonate |
| Cable gland design | Multi-entry (round) |
| thread-sided sealing element | O-ring |
| EMC screening |
|
| Cable-side sealing element | Gel membrane |
| Material body shortname | PC |
| Thread size | M 40 |
| Colour | black |
| Thread length | 10 |
| Total height | 16 |
| Hexagon corner dimensions | 48 |
| Bending protection |
|
| O-ring material, short form | NBR |
| Max. clamping range | 6 |
| Seal type | Gel membrane |
| O-ring material | Acrylonitrile butadiene rubber |
| RAL colour | RAL 9005 |
| Glass-fibre reinforced |
|
| Pitch of thread | 1,5 |
| Spanner size 1 | 46 |
| Min. clamping range | 1 |
| For armoured cables |
|
| Thread standard | DIN EN 60423 |
| Sealing material | Gel |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 67, IP 66, IP 68 - 0.1 bar (60 min) |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Temperature (max.) | 100 |
| Oil-resistant |
|
| Temperature (min.) | -30 |
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Flame retardance according to | UL 94 V-2 |
| UV-C resistant |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| Fire protection for railway vehicles hazard level | EN 45545-2 HL2 |
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
产品系列列表
All articles from SKINTOP® MULTI-M
| Article number | Thread size | Number of cable entries | Imp wrench width 1 | Spanner size 1 | Delivery Unit | Imp clamping range max | Max. clamping range |
|---|---|---|---|---|---|---|---|
| 52220110 | M 40 | 12 | 46 | 1.000 | 6 | ||
