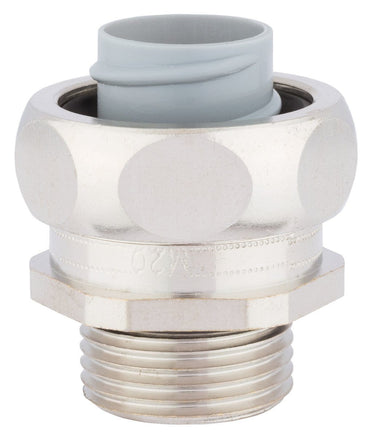

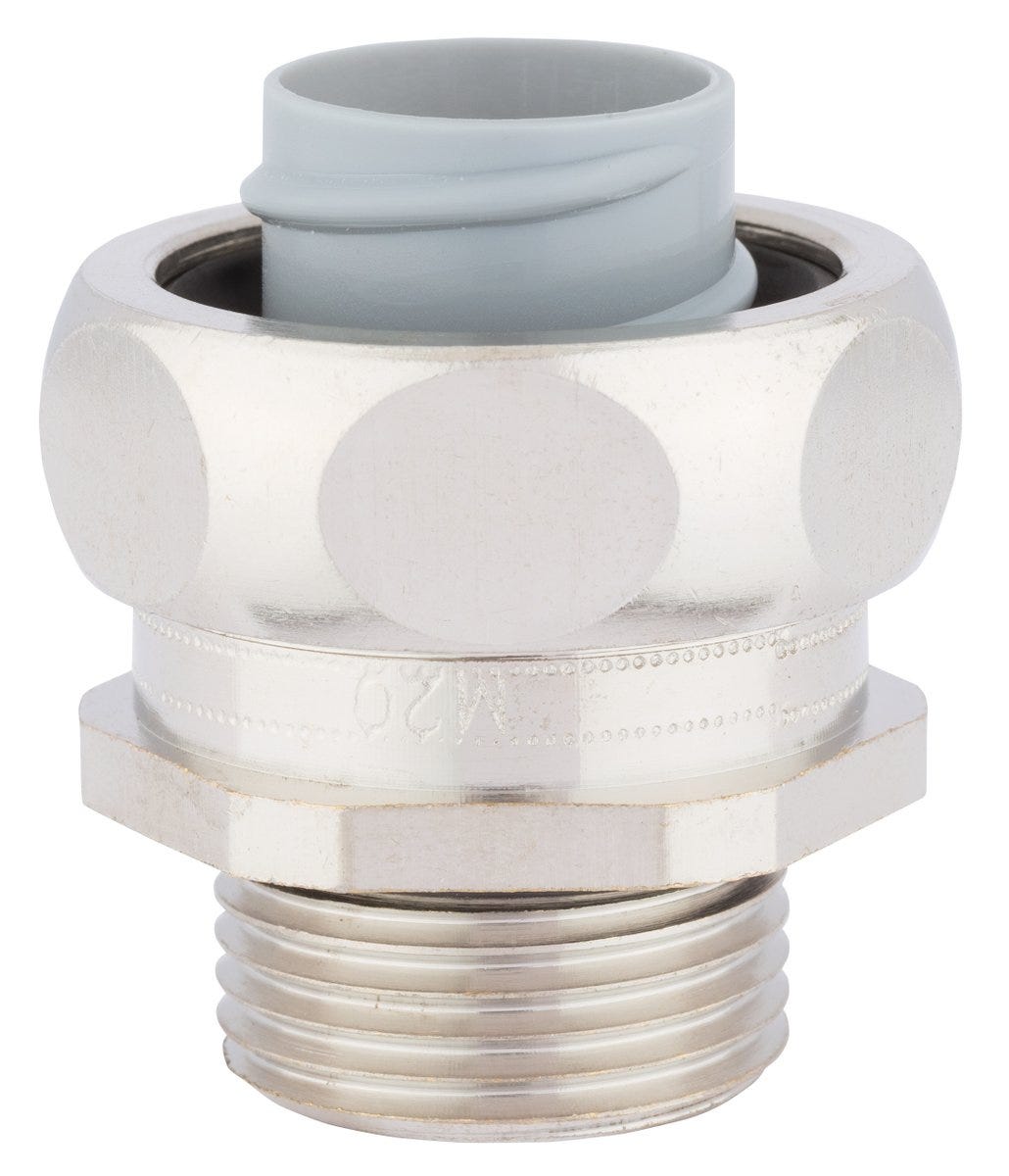

SILVYN® US PG 36 EE-K
Conduit gland; PG 36; Nominal size: 45; Halogenfree; UV-resistant; IP 54;
SILVYN® US PG 36 EE-K
SGD 110.07
/
SILVYN® US PG 36 EE-K
SGD 110.07
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
uv-resistant.
Certificate
CE marked
UL recognized
福利
High tensile strength, Space-saving, Fast and easy assembly, Vibration protection, All-purpose
申请书

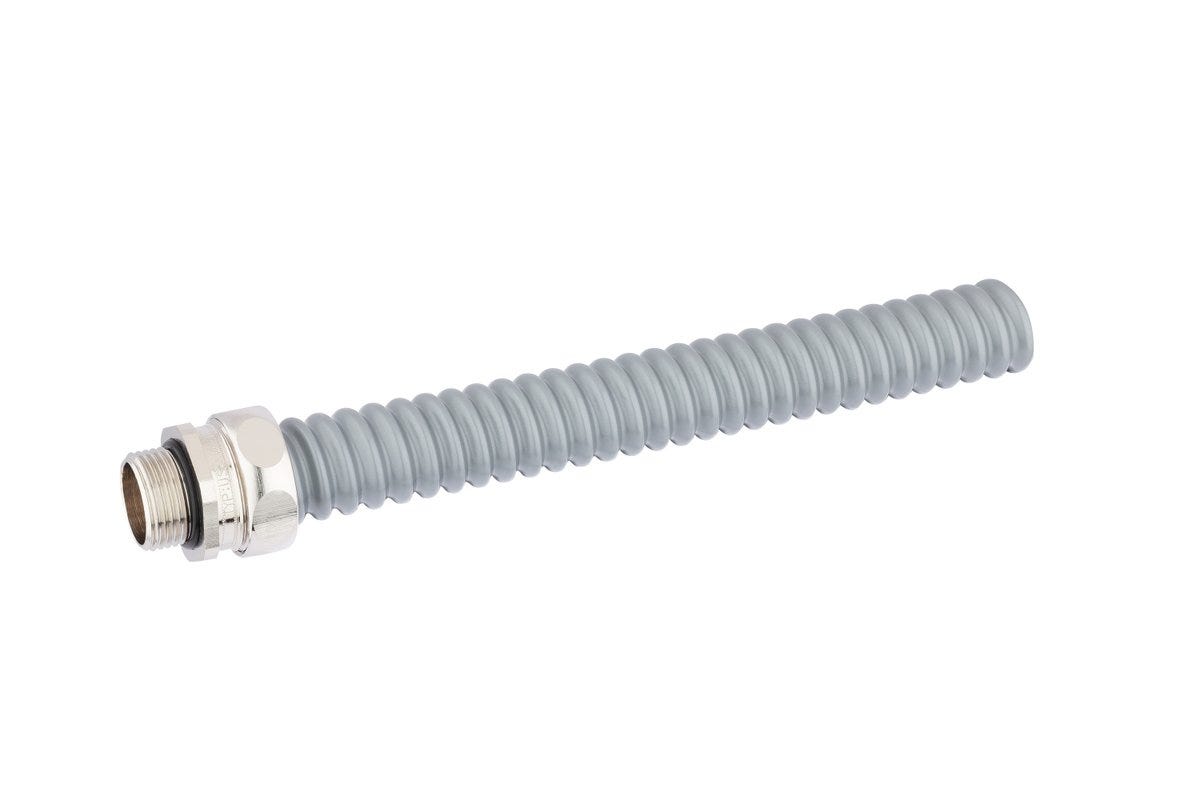

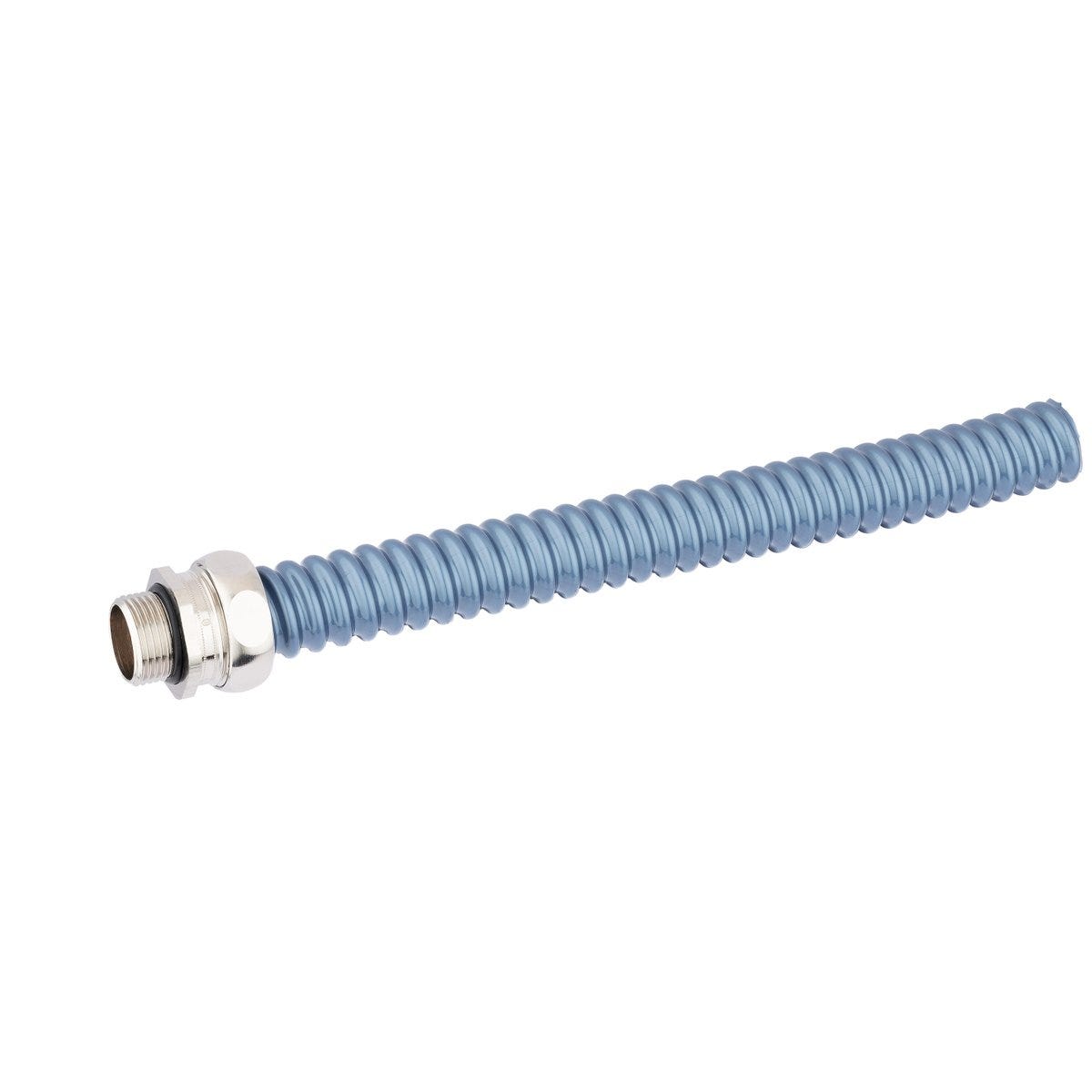

In combination with protective conduit:, SILVYN FPS, SILVYN® FD-PU, Mechanical engineering, Plant engineering
技术属性
一般信息

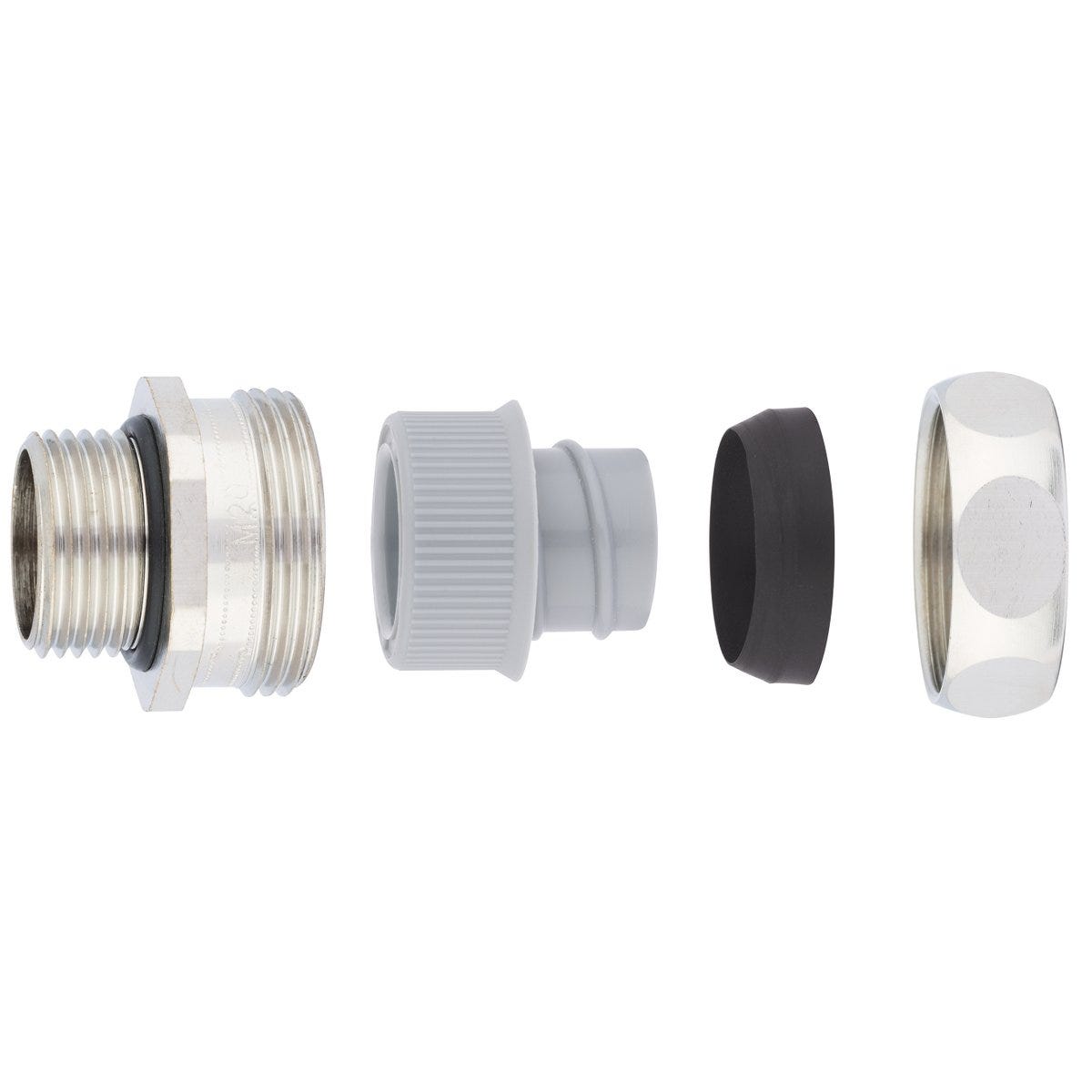

| Including lock nut |
|
| Including o-ring |
|
| Brand | SILVYN® |
| Product type | Conduit gland |
| Scope of delivery | including O-ring |
| Packaging type | Bag |
| Installation type | in threaded borehole |
| Delivery Unit | 20.000 |
| Weight | 0.238 kg |
电气特性
产品设计
| Lockable (two-part) |
|
| Nominal size | 45 |
| Total length | 40 |
| Divisible fitting |
|
| EMC screening |
|
| Thread size | PG 36 |
| Outer diameter | 57 |
| Inner diameter | 36 |
| Thread length | 10 |
| Gland body material | Brass |
| Conduit gland design | Straight |
| Cable gland body material, short form | CuZn |
| Hexagon corner dimensions | 57 |
| Spanner size | 52 |
| Bending protection |
|
| Clear width | 36 |
| O-ring material, short form | NBR |
| Bending protection fixed installation |
|
| O-ring material | Acrylonitrile butadiene rubber |
| Pitch of thread | 1,588 |
| Surface protection | Nickel-plated |
| Flexibly installed bending protection |
|
| Rotatable thread |
|
| Spanner size 1 | 52 |
| Spanner size 2 | 54 |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 54 |
| Acid-resistant |
|
| IP-protection class cable side | IP 54 |
| Chemical resistant |
|
| UV-resistant |
|
| Oil-resistant |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Product standard according to IEC | IEC 61386-1, IEC 61386-23 |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
