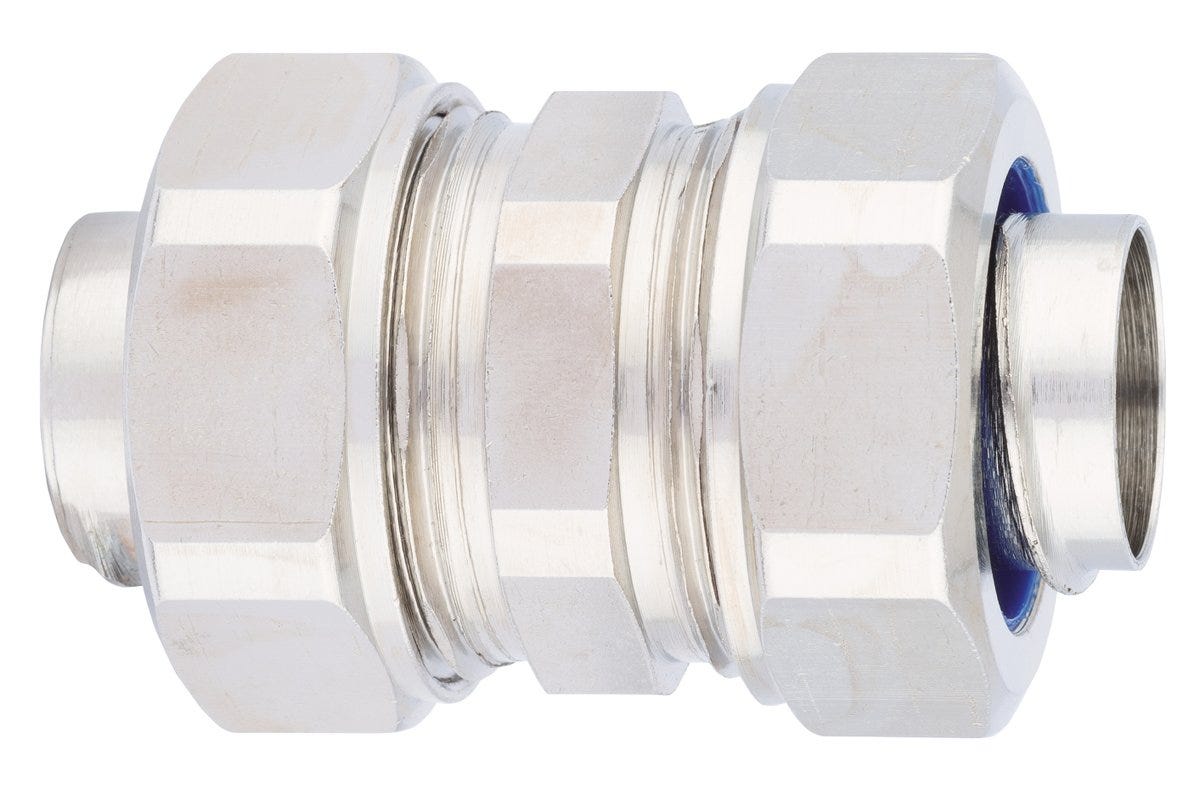

SILVYN® LCC-C 32 连接器
Conduit coupler; Nominal size: 32; Clear width: 26mm; Halogenfree; UV-resistant; IP 65
SILVYN® LCC-C 32 连接器
SGD 64.28
/
SILVYN® LCC-C 32 连接器
SGD 64.28
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
halogen-free
oil resistant
uv-resistant.
Certificate
CE marked
福利
Optional extension of SILVYN® LCC-2 / LCCH-2, Fast assembly, High tensile strength
申请书
In combination with protective conduit:, SILVYN LCC-2 / LCCH-2, Conduit coupler for extension
技术属性
一般信息
| Including lock nut |
|
| Product type | Conduit coupler |
| Brand | SILVYN® |
| Delivery Unit | 2.000 |
| Weight | 0.136 kg |
电气特性
产品设计
| Lockable (two-part) |
|
| Bending protection fixed installation |
|
| Nominal size | 32 |
| Total length | 56 |
| Divisible fitting |
|
| EMC screening |
|
| Insert material | Polyamide |
| Surface protection | Nickel-plated |
| Flexibly installed bending protection |
|
| Outer diameter | 42 |
| Rotatable thread |
|
| Insert material, short form | PA |
| Screw-in sleeve material | Brass |
| Inner diameter | 26 |
| Gland body material | Brass |
| Conduit gland design | Straight |
| Suitable for protective cable conduit size | 32 |
| Cable gland body material, short form | CuZn |
| Spanner size | 40 |
| Bending protection |
|
| Clear width | 26 |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 65 |
| Oil-resistant |
|
| Strain relief |
|
| Suitable for EX-applications |
|
| UV-resistant |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| Ecolab certified |
|
| cUR recognized |
|
| cUL listed |
|
| CSA certified |
|
| UL listed |
|
| CE marked |
|
| GGVS certified |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
