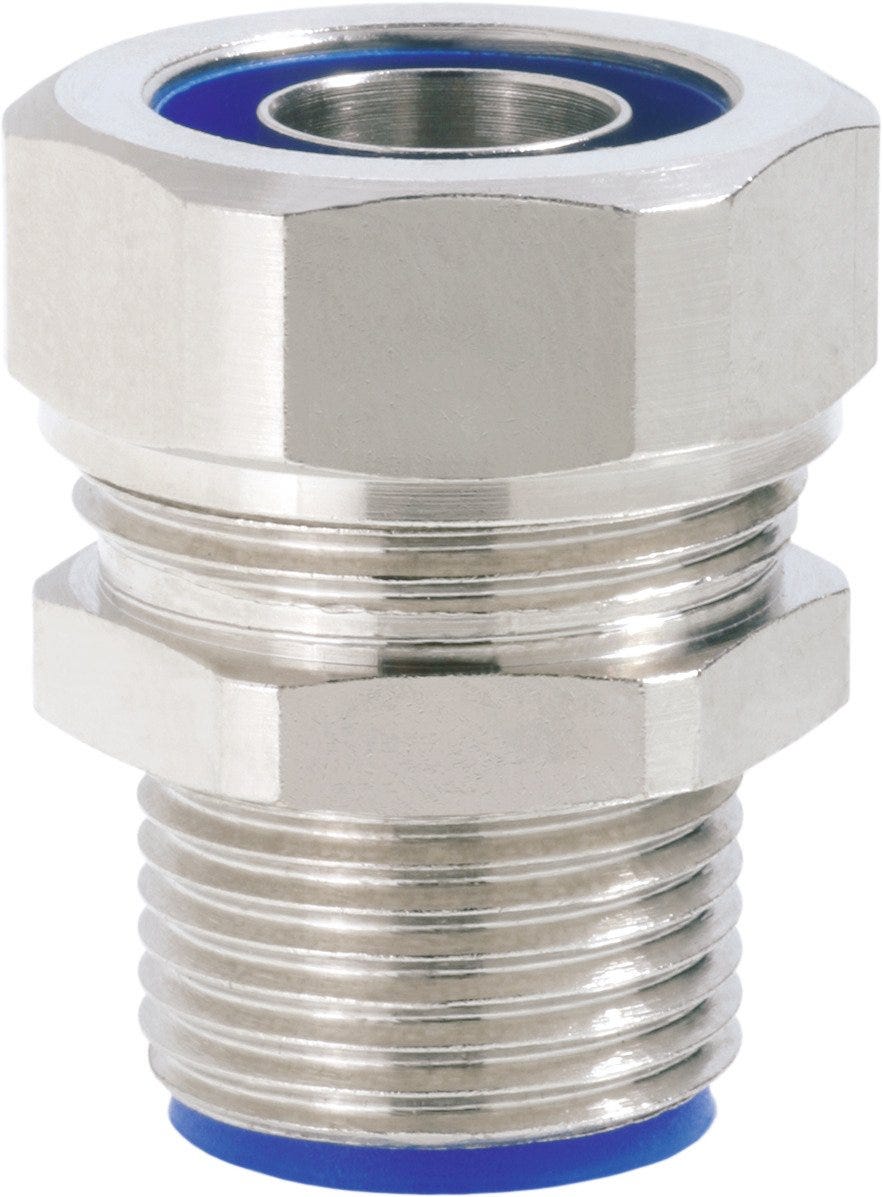

SILVYN® LTPG-M 16X1.5/1 NPB
Conduit gland; M 16; Nominal size: 12; Halogenfree; UV-resistant; IP 66, IP 67, IP 68 - 5 bar, IP 69;
SILVYN® LTPG-M 16X1.5/1 NPB
SGD 9.34
/
SILVYN® LTPG-M 16X1.5/1 NPB
SGD 9.34
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
heat resistance
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
uv-resistant.
Certificate
CE marked
福利
High tensile strength, Vibration protection, High sealing performance
申请书
In combination with protective conduit:, SILVYN® LTP, Applications with high mechanical stress, Used in areas where liquids are present
技术属性
一般信息
| Including lock nut |
|
| Including o-ring |
|
| Brand | SILVYN® |
| Product type | Conduit gland |
| Delivery Unit | 10.000 |
| Weight | 0.035 kg |
电气特性
产品设计
| Lockable (two-part) |
|
| Nominal size | 12 |
| Total length | 29.8 |
| Divisible fitting |
|
| EMC screening |
|
| Slit |
|
| Thread size | M 16 |
| Outer diameter | 26 |
| Screw-in sleeve material | Brass |
| Inner diameter | 8.6 |
| Thread length | 10 |
| Gland body material | Brass |
| Conduit gland design | Straight |
| Cable gland body material, short form | CuZn |
| Bending protection |
|
| Clear width | 8.6 |
| Bending protection fixed installation |
|
| Pitch of thread | 1,5 |
| Surface protection | Nickel-plated |
| Flexibly installed bending protection |
|
| Rotatable thread |
|
| Spanner size 1 | 24 |
| Sealing material, short form | PA |
| Spanner size 2 | 22 |
| Sealing material | Polyamide |
产品特点
| Flame-retardant |
|
| IP protection rating | IP 66, IP 67, IP 68 - 5 bar, IP 69 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Oil-resistant |
|
| Strain relief |
|
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Vibration protection |
|
| Halogenfree |
|
认证和标准
| EHEDG certified |
|
| DNV-certified |
|
| cUR recognized |
|
| CSA certified |
|
| FDA certified |
|
| GGVS certified |
|
| Tested for fire protection for railway vehicles |
|
| Product standard according to IEC | IEC 61386-23 |
| Ecolab certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| NSF certified |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
