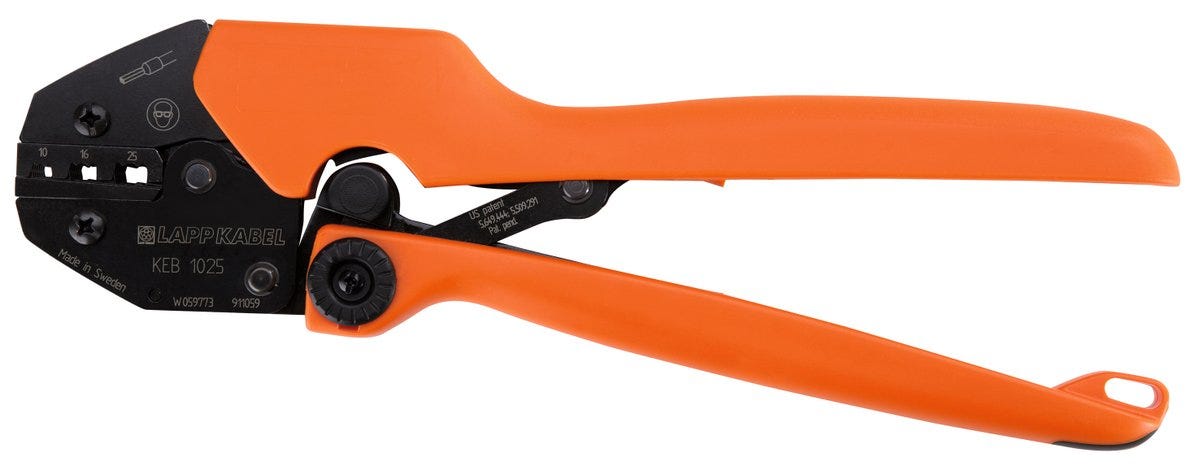

压接钳 KEB 1025
Crimping tool; For cross-section (min./max.): 10mm² - 25mm²; Crimping profile: Trapezoid
压接钳 KEB 1025
SGD 523.92
/
压接钳 KEB 1025
SGD 523.92
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
福利
Unique mechanism reduces the manual force from 450 N to 250 N, Handles suit both large and small hands, Locking function that is released only after completion of the pressing operation, Tested for a minimum of 80,000 pressings
申请书
Mini-force tools for pressing insulated and non-insulated conductor end sleeves from 10 - 25 mm²
技术属性
一般信息
| Product type | Crimping tool |
| Delivery Unit | 1.000 |
| Weight | 0.57 kg |
电气特性
产品设计
| Colour | orange |
| Crimping profile | Trapezoid |
| Total length | 220 |
| For pressing | End sleeve |
| For cross-section (max.) | 25 |
| For cross-section (min.) | 10 |
产品特点
| Number of application operations | 80000 |
| Pressing force | 450 |
认证和标准
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
产品系列列表
All articles from KEB 1025 crimping pliers
| Article number | For cross-section (min.) | For cross-section (max.) | Crimping profile |
|---|---|---|---|
| 61791065 | 10 | 25 | Trapezoid |
