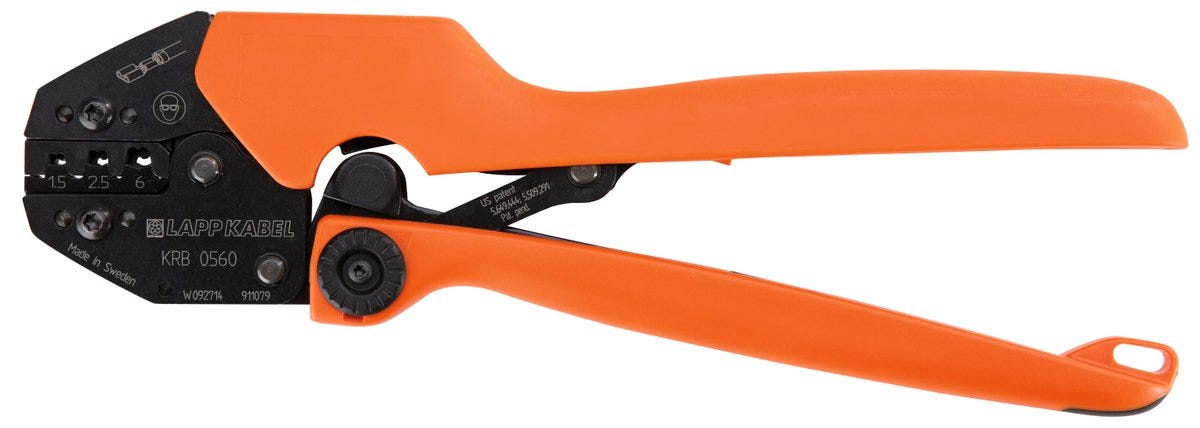

KRB 0560 W. 定位器
Crimping tool; For cross-section (min./max.): 0.5mm² - 6.0mm²; Crimping profile: Roller Pressing
KRB 0560 W. 定位器
SGD 1,145.39
/
KRB 0560 W. 定位器
SGD 1,145.39
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
福利
Clearly marked press moulds, Locking function for faultless pressing, Handles suit both large and small hands, Unique mechanism reduces the manual force from 450 N to 250 N, Tested for a minimum of 80,000 pressings
申请书
The convenient roll pressing pliers for non-insulated blade connectors of 0.5 - 6 mm² with connection 4.8 and 6.3
技术属性
一般信息
| Product type | Crimping tool |
| Delivery Unit | 1.000 |
| Weight | 0.58 kg |
电气特性
产品设计
| Colour | orange/black |
| Crimping profile | Roller pressing |
| Total length | 255 |
| For pressing | Non-insulated panel connector, connector width 4.8, Non-insulated panel connector, connector width 6.3 |
| For cross-section (max.) | 6.0 |
| For cross-section (min.) | 0.5 |
产品特点
| Number of application operations | 80000 |
| Pressing force | 450 |
认证和标准
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
