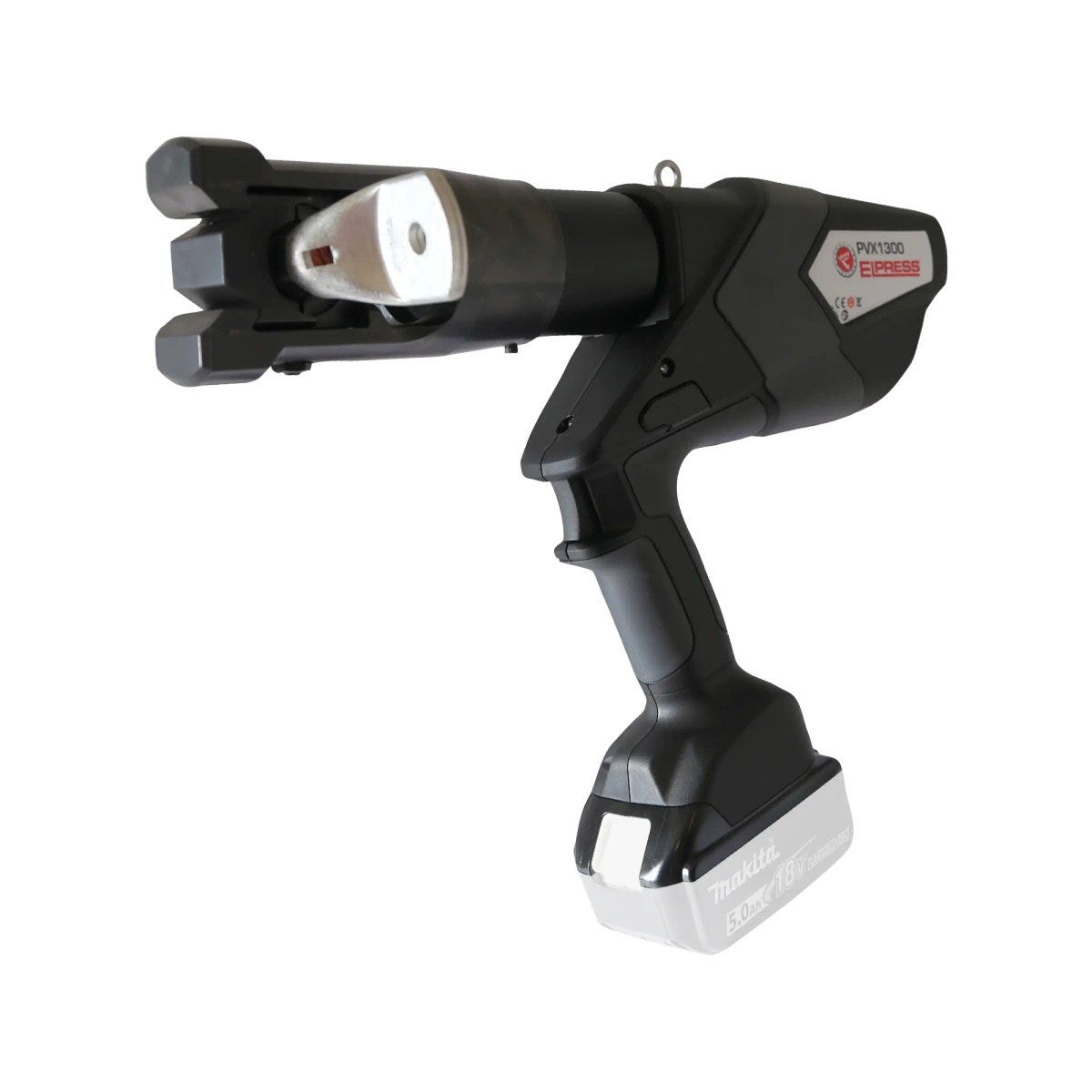

CRIMPWERKZEUG PVX 1300 O. AKKU
Battery-powered crimping tool; For cross-section (min./max.): 10mm² - 400mm²; Crimping profile: Mandrel Pressing
CRIMPWERKZEUG PVX 1300 O. AKKU
SGD 0.00
/
CRIMPWERKZEUG PVX 1300 O. AKKU
SGD 0.00
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Certificate
CE marked
福利
Allows one-handed operation for easy working
Digital display provides information on the tool, e.g. number of crimping operations, battery charge status and maintenance interval
If the pressing force is not reached, the electronic pressure monitoring system reacts with an acoustic signal and a flashing LED
Fast feed with two-stage hydraulics for more efficient pressing
Suitable for conductor cross-sections from 10.00 to 400.00 mm².
申请书
Battery-powered tool for crimping copper/aluminium connectors and type KRF and KRT tube cable lugs
For use with matching crimp inserts.
技术属性
一般信息
| Product type | Battery-powered crimping tool |
| Scope of delivery | without power cable, without crimping inserts |
| Weight | 0 kg |
电气特性
产品设计
| Colour | black |
| Crimping profile | Mandrel pressing |
| For pressing | Tube cable lug |
| For cross-section (max.) | 400 |
| For cross-section (min.) | 10 |
产品特点
| Number of application operations | 120 |
| Pressing force | 124 |
认证和标准
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
文档
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
产品系列列表
All articles from PVX 1300 pressing pliers
| Article number | For cross-section (min.) | For cross-section (max.) | Crimping profile | Scope of delivery |
|---|---|---|---|---|
| 61813872 | 10 | 400 | Mandrel pressing | including operating manual, including battery, including charger, without crimping inserts |
| 61813875 | 10 | 400 | Mandrel pressing | without power cable, without crimping inserts |
