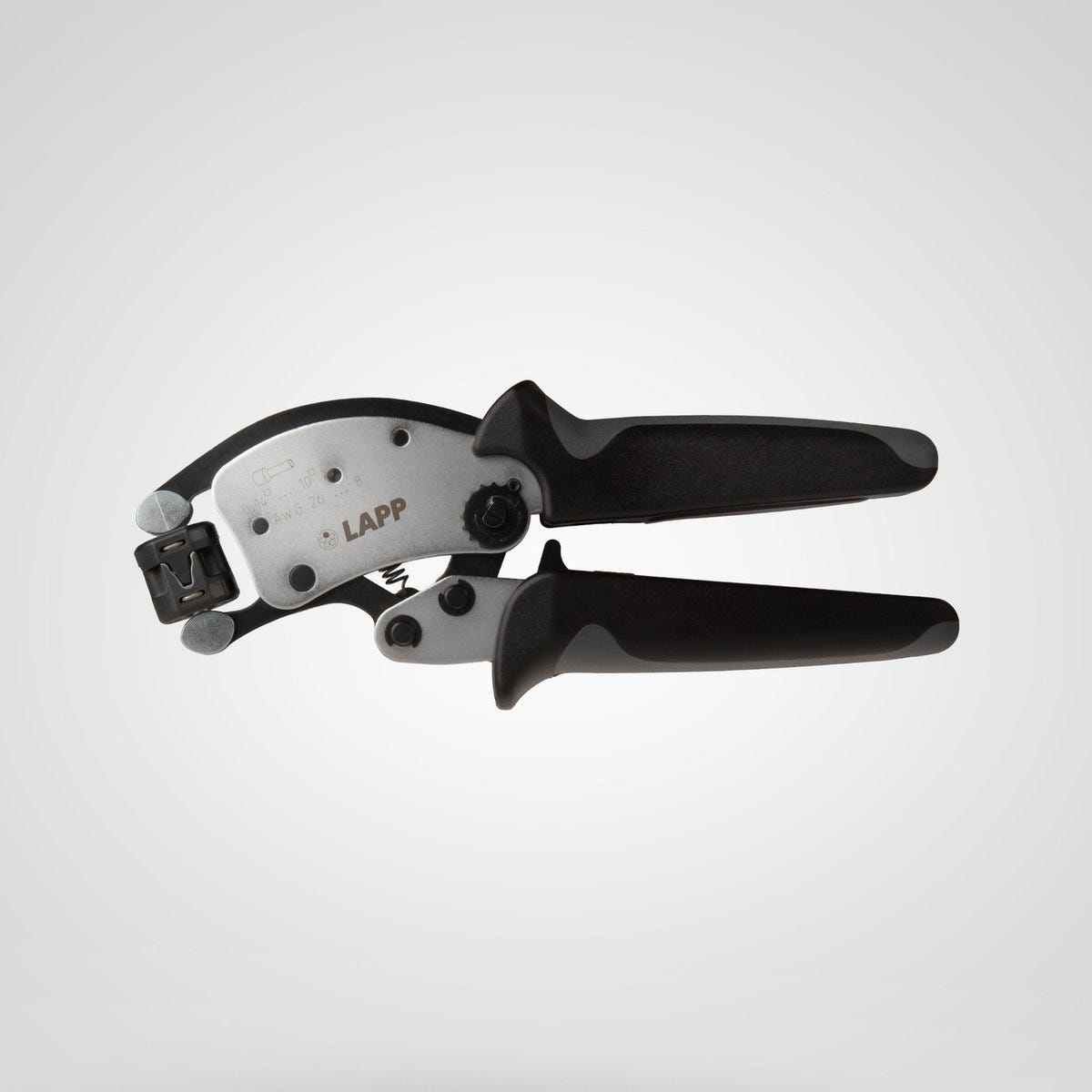

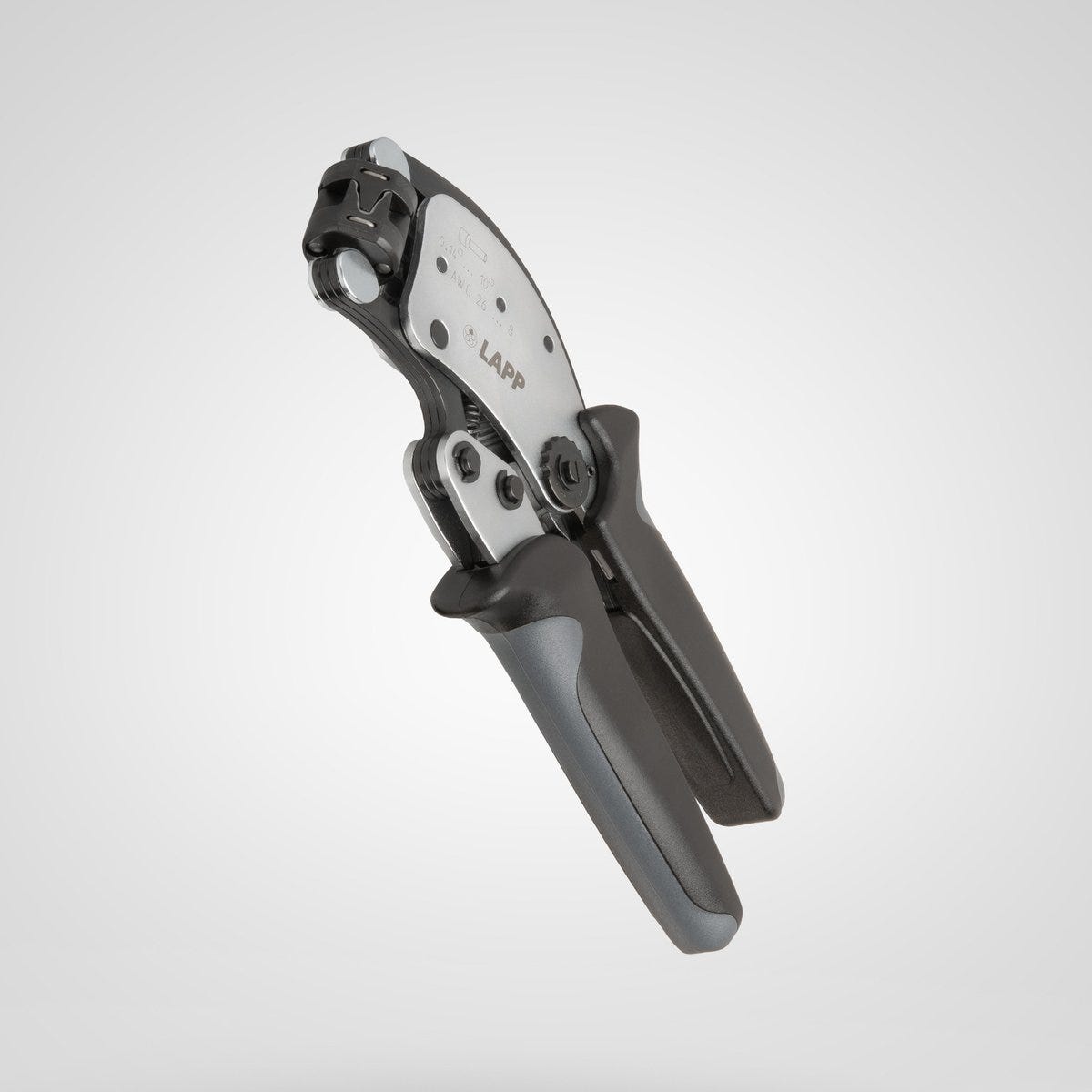

压接工具 PEW 8.191 TWISTOR T
Crimping tool; For cross-section (min./max.): 0.14mm² - 10.0mm²; Crimping profile: Trapezoid
压接工具 PEW 8.191 TWISTOR T
SGD 0.00
/
压接工具 PEW 8.191 TWISTOR T
SGD 0.00
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
福利
Crimping insert that can be rotated 360° enables the tool to be optimally adjusted to suit changing assembly conditions
Properties of crimping tools with front and side insertion combined into one tool
Perfect for confined spaces or changing environments. Side insertion ensures an ergonomically optimal crimping process, while front insertion is particularly suitable for tight environments and machines
Cover a large cross-section range without adjusting the crimping tool
For conductor end sleeves with a cross-section range of up to 10 mm² or 16 mm², depending on the variant
For TWIN conductor end sleeves with a cross-section range of up to 2 x 6 mm²
Crimping of extra-long conductor end sleeves up to 16 mm or 18 mm is possible, depending on the variant
Ergonomic handles and optimised power transmission enable fatigue-free work.
申请书
For pressing insulated and non-insulated conductor end sleeves as well as TWIN conductor end sleeves according to DIN 46228
"TWISTOR® 16" variant for square pressing of conductor end sleeves
"TWISTOR® T" variant for trapezoidal pressing of conductor end sleeves.
技术属性
一般信息
| Product type | Crimping tool |
| Packaging type | Box |
| Delivery Unit | 1.000 |
| Weight | 0.52 kg |
电气特性
产品设计
| Overall width | 22 |
| Colour | grey/black |
| Crimping profile | Trapezoid |
| Total length | 196 |
| For pressing | End sleeve, Insulated end sleeves, Non-insulated end sleeves |
| Total height | 80 |
| For cross-section (max.) | 10.0 |
| For cross-section (min.) | 0.14 |
| Surface protection | Chrome-plated |
产品特点
认证和标准
| TÜV certified |
|
| CE marked |
|
| VDE certified |
|
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
