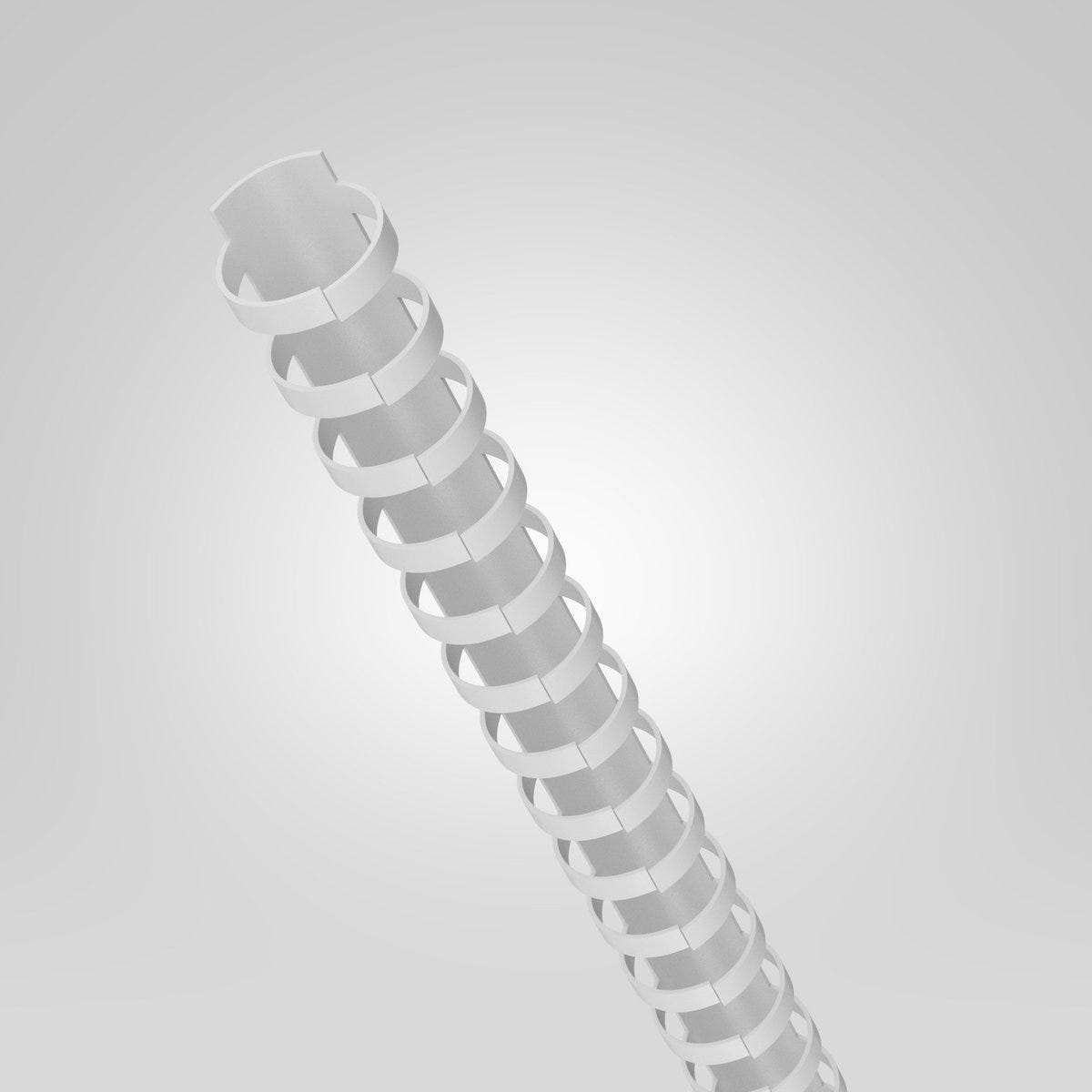

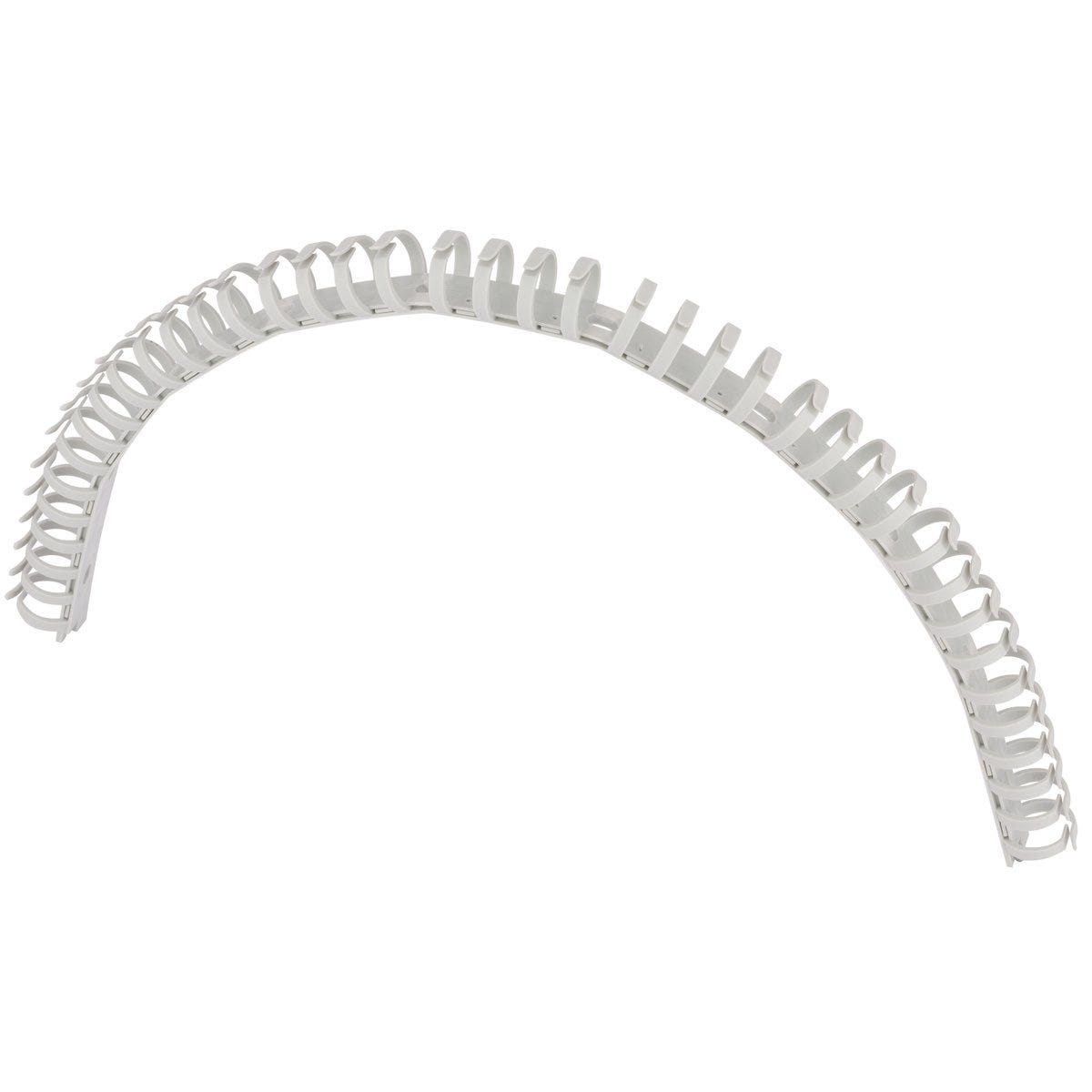

FLEXIBLE TRUNKING GMF HF-40 灰色
Wiring duct; light grey
FLEXIBLE TRUNKING GMF HF-40 灰色
SGD 13.64
/
FLEXIBLE TRUNKING GMF HF-40 灰色
SGD 13.64
/
付款与安全
您的支付信息已安全处理。我们不存储信用卡详细信息，也无法访问您的信用卡信息。
Product characteristics
cold resistance
flame-retardant
halogen-free
oil resistant
福利

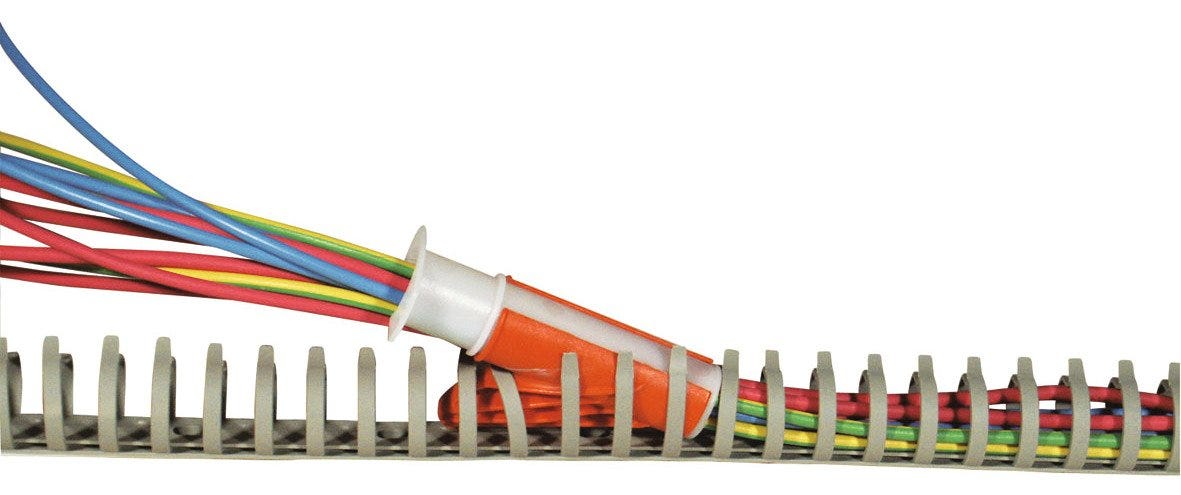

Fast and easy assembly through using the cable insertion tools, Reduced installation time
申请书
For use in control panels, distribution boards or in areas that are difficult to reach, Attach the cable trunking: webs turned upwards, connect one cable end and laterally insert the cable up to the requested branch point, connect the opposite cable end
技术属性
一般信息
| Product type | Wiring duct |
| Delivery Unit | 24.000 |
| Weight | 0.067 kg |
电气特性
产品设计
| Colour | light grey |
| Material | Polypropylene |

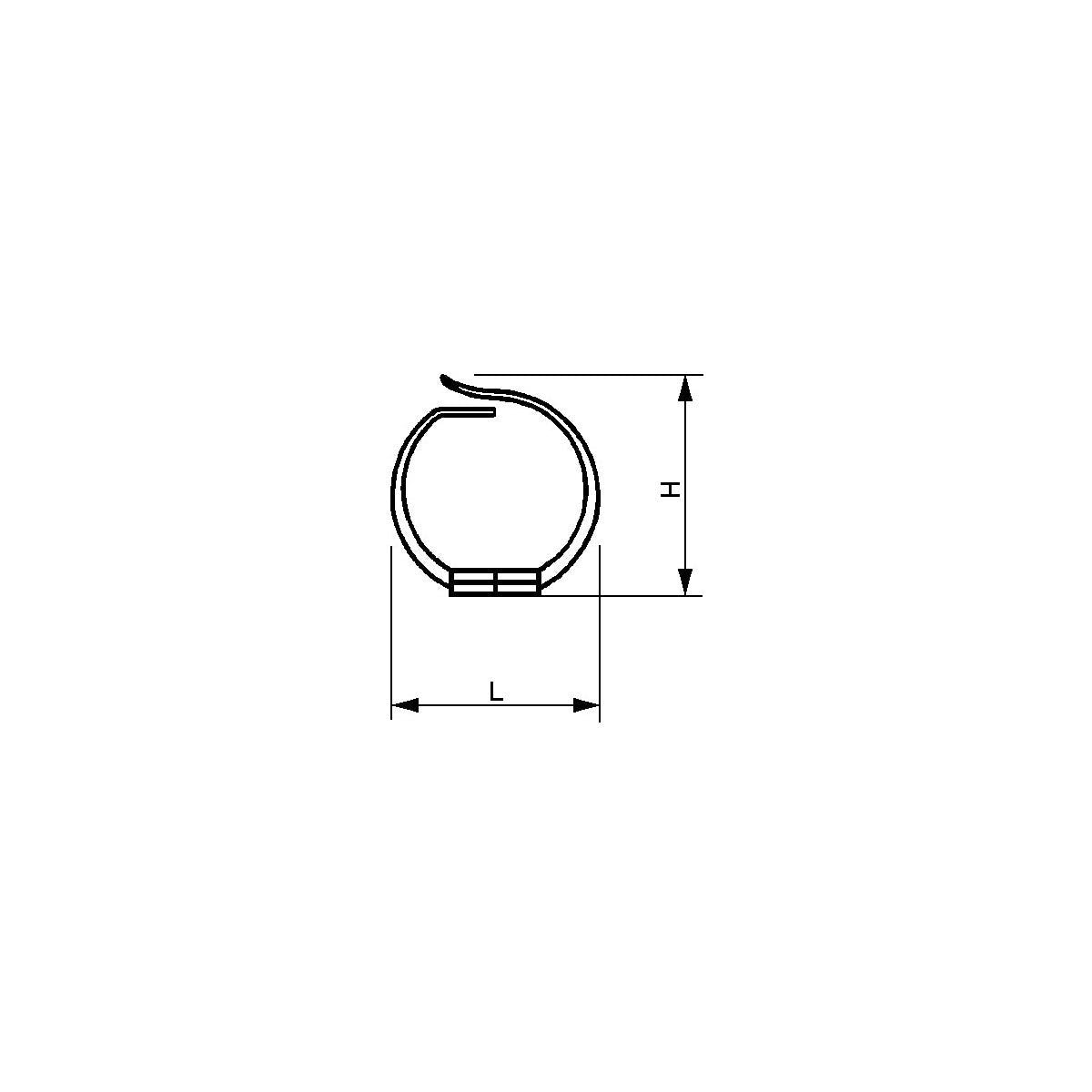

| Total length | 44 |
| Total height | 46.0 |
产品特点
| Flame-retardant |
|
| Flame retardance according to | UL 94 V-2 |
| Oil-resistant |
|
| Halogenfree |
|
认证和标准
文档
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Trade product, not a LAPP product.
